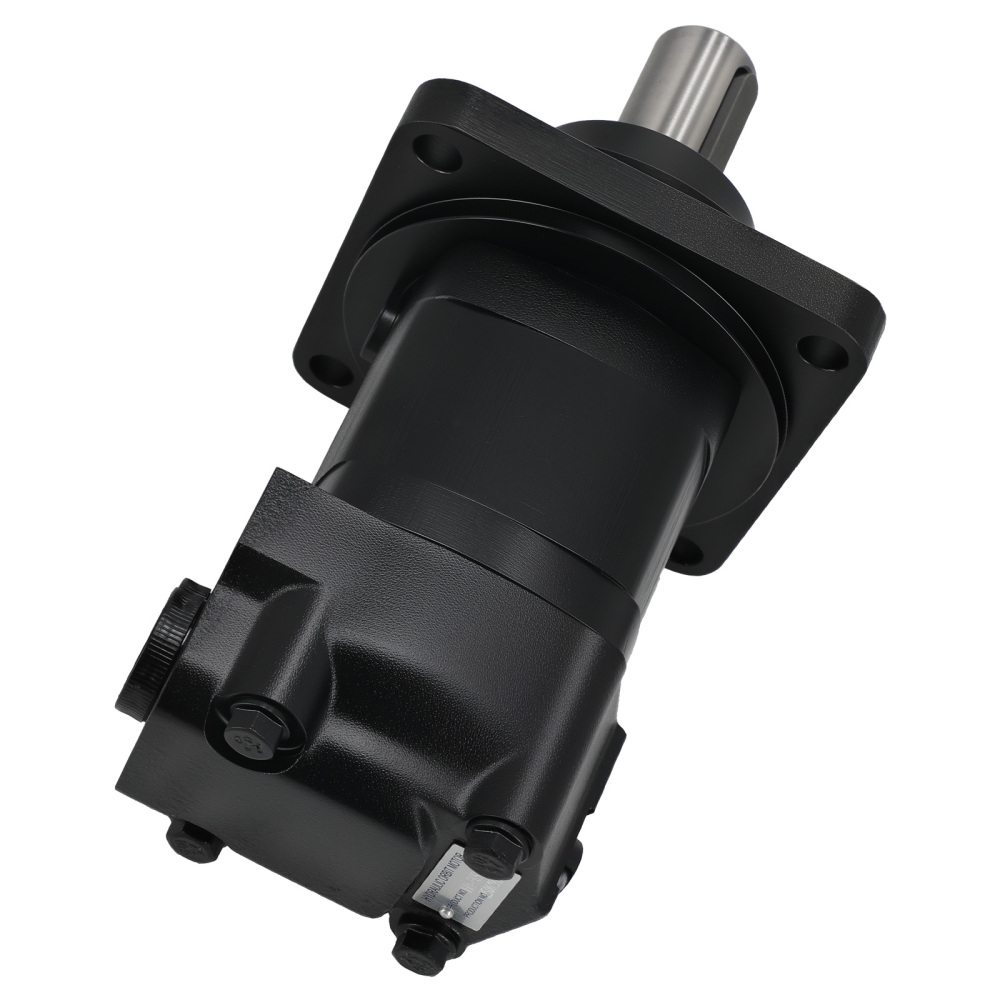

32mm Shaft Orbital Motor OMSW315-151F0527 151F0527 OMSW 315 151F0527

OE/Part number

OMSW315151F0527, 151F0527, BMSY-315-WBD

Specification

Condition: 100% Brand New
Color: Black
Material: Iron
Fitment Type: Direct Replacement
Output Shaft: 32mm with 1/2 BSP port
Geometric Displacement: 314.9 cm3
Motor size: 315
Geometric displacement( cm^3[in]): 314,9[19.22]
Max speed cont: 240 rpm
Max speed int: 285 rpm
Max torque cont(Nm[lbf in]): 825[7300]
Max torque int(Nm[lbf in]): 1000[8850]
Max output power cont(kW[hp]): 15,0[20.1]
Max output power int(kW[hp]): 17,0[22.8]
Max pressure drop cont(bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak(bar[psi]):260[3770]
Max oil flow cont(l/min[gpm]): 75[19.8]
Max oil flow int(l/min[gpm]): 90[23.8]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 710[6280]
Min starting torque at max press drop int(Nm[lbf in]): 850[7520]
Max inlet pressure cont(bar[psi]): 230[3340]
Max inlet pressure int(bar[psi]): 295[4280]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]

Package included

1X Hydraulic Orbital Motor
(Showing as the picture)

Feature

1.Superior Performance: It offers direct drive operation and heavy-duty bearings for smooth operation while providing high starting torque and excellent volumetric efficiency.
2.Durable: The surface is lacquered and easy to clean.It has been tested repeatedly and has a fast response time.

Note

1.No instruction included.
2.Professional installation is highly recommended.
3.Please double confirm the compatibility as well as the OEM number before purchasing.
We try our best to pack the products as good and safe as possible ,so they always arrive in a good condition.
The items will be the shipped the same working day for the order before 10:00 a.m.
The items will be the shipped the other working day for the order after 10:00 a.m.
We accept PayPal only. All major credit cards are accepted through secure payment processor PayPal. Payment must be received within 4 business days of auction closing.
We offer sophisticated products at a high technological level, with the highest possible quality and the most favorable price.
With these parts you can replace your defective parts simply plug and play.
Our warranty is valid for max. 24 months without mileage limitation.
Please compare carefully with Photos or OE number before purchasing the part.
