3.25 Lift Kit Complete compatible for Jeep Wrangler JK Unlimited 2007-2018 Front Rear

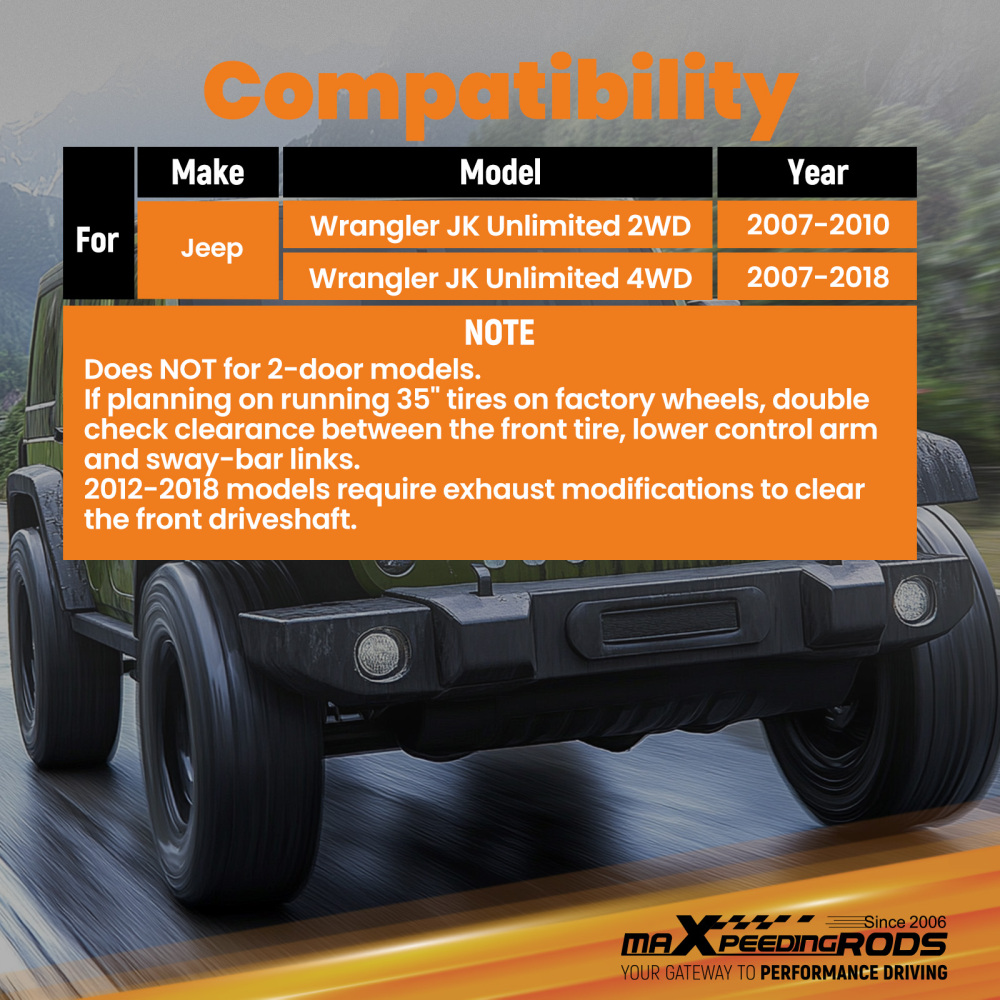

Application

for 2007-2010 2WD compatible for Jeep Wrangler JK Unlimited
for 2007-2018 4WD compatible for Jeep Wrangler JK Unlimited
NOTE:Does NOT fit 2-door models.
If planning on running 35" tires on factory wheels, double check clearance between the front tire, lower control arm and sway-bar links.
2012-2018 models require exhaust modifications to clear the front driveshaft.

Specification

type：lift shock kit
Lift Height：3.25"
Material: High Tensile Strength Carbon Steel
Spring Material：（55CrSi） steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod：F&R 18mm/0.71inch
Piston diameter: F&R 35mm/1.38inch
Outer cylinder diameter: F&R 54mm/2.13inch

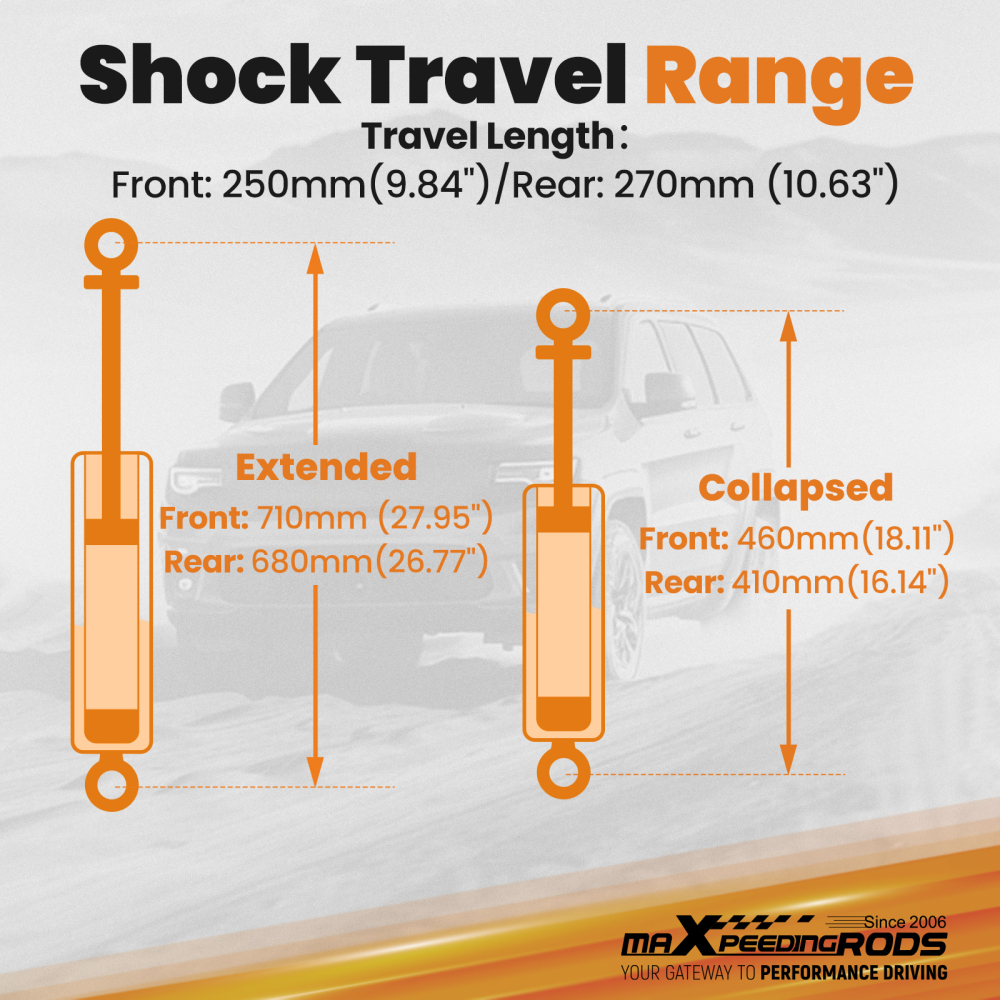

Travel Length: F 250mm/9.84inch; R 270mm/10.63inch
Extended Length: F: 710mm/27.95inch; R: 680mm/26.77inch
Collapsed Length: F: 460mm/18.11inch; R: 410mm/16.14inch
Nitrogen charged：yes
Dust cover equipped: yes

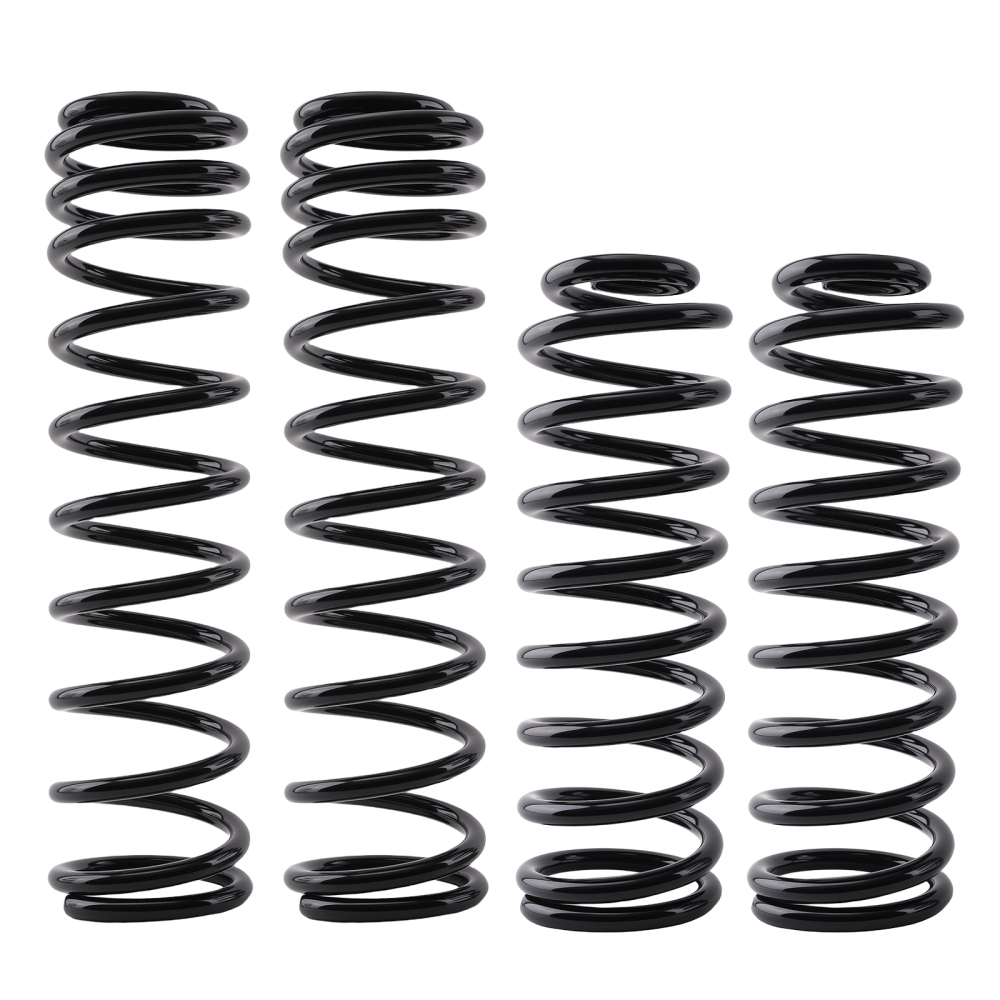

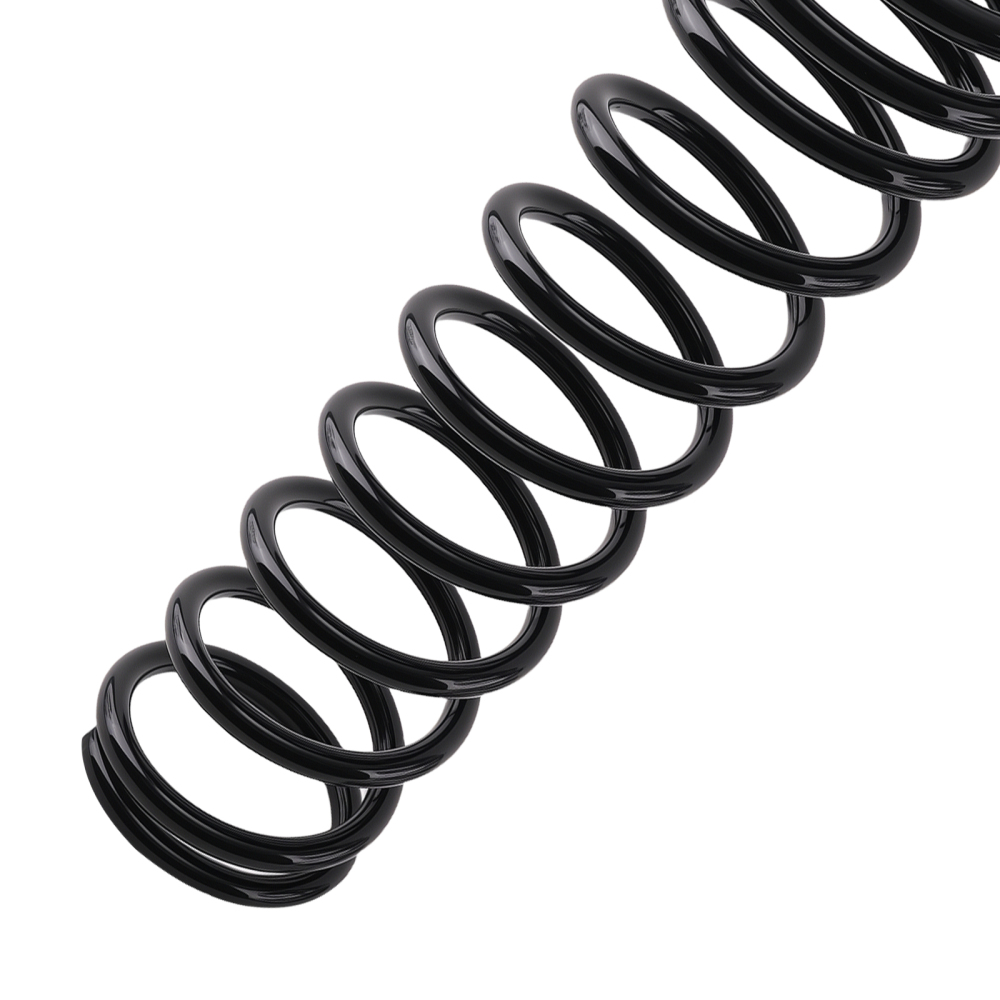

Spring length: F: 500mm/19.69inch; R: 400mm/15.75inch
Spring rate：F: 3kg/mm=168lb/in; R: 4 kg/mm=224lb/in
Spring spacer thickness: F&R 19.05mm/0.75inch
Spring spacer material: Nylon

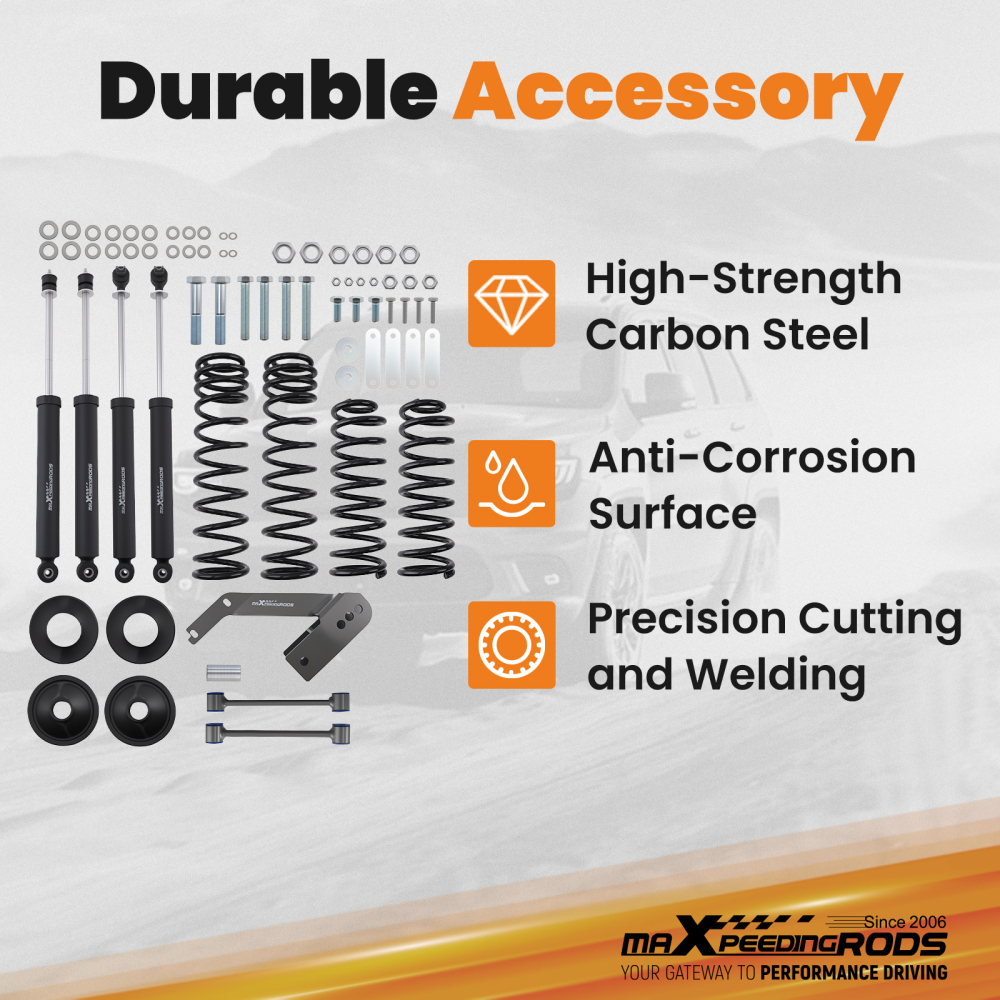

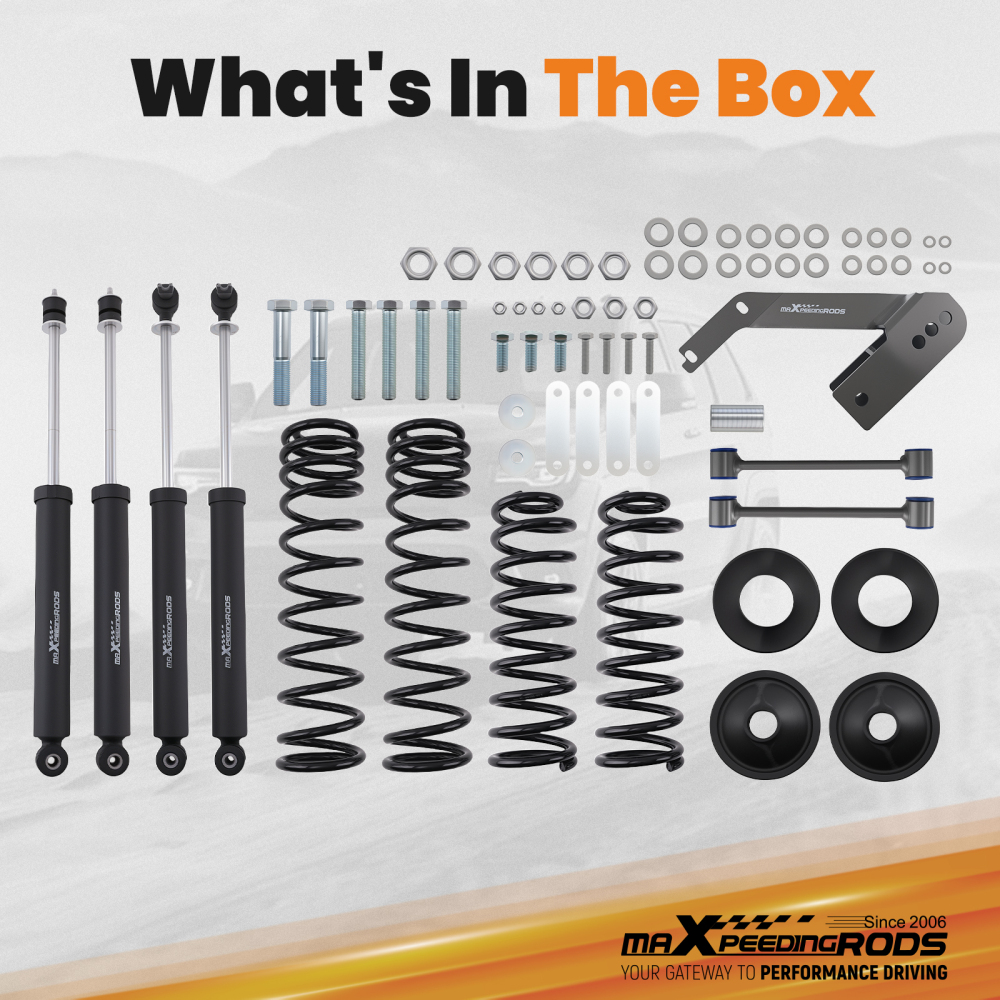

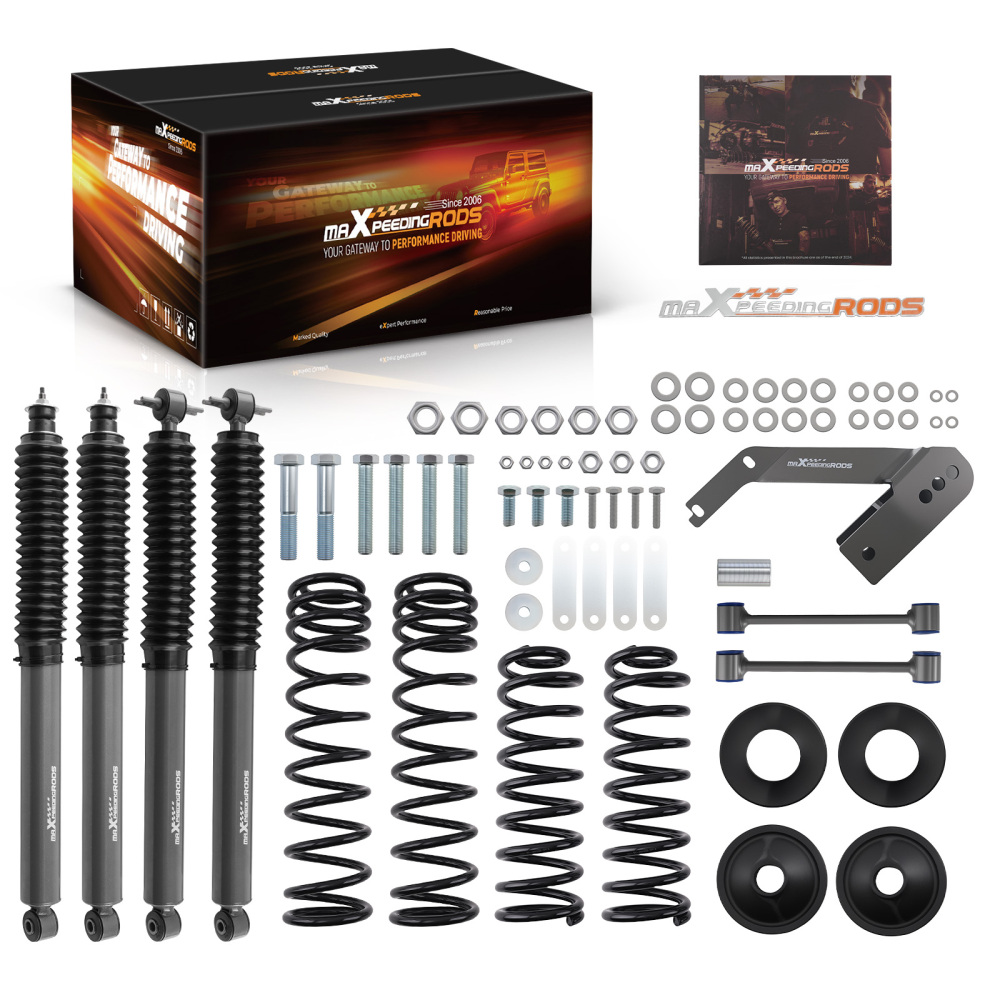

Package included

2x front spring spacers
2x rear spring spacers

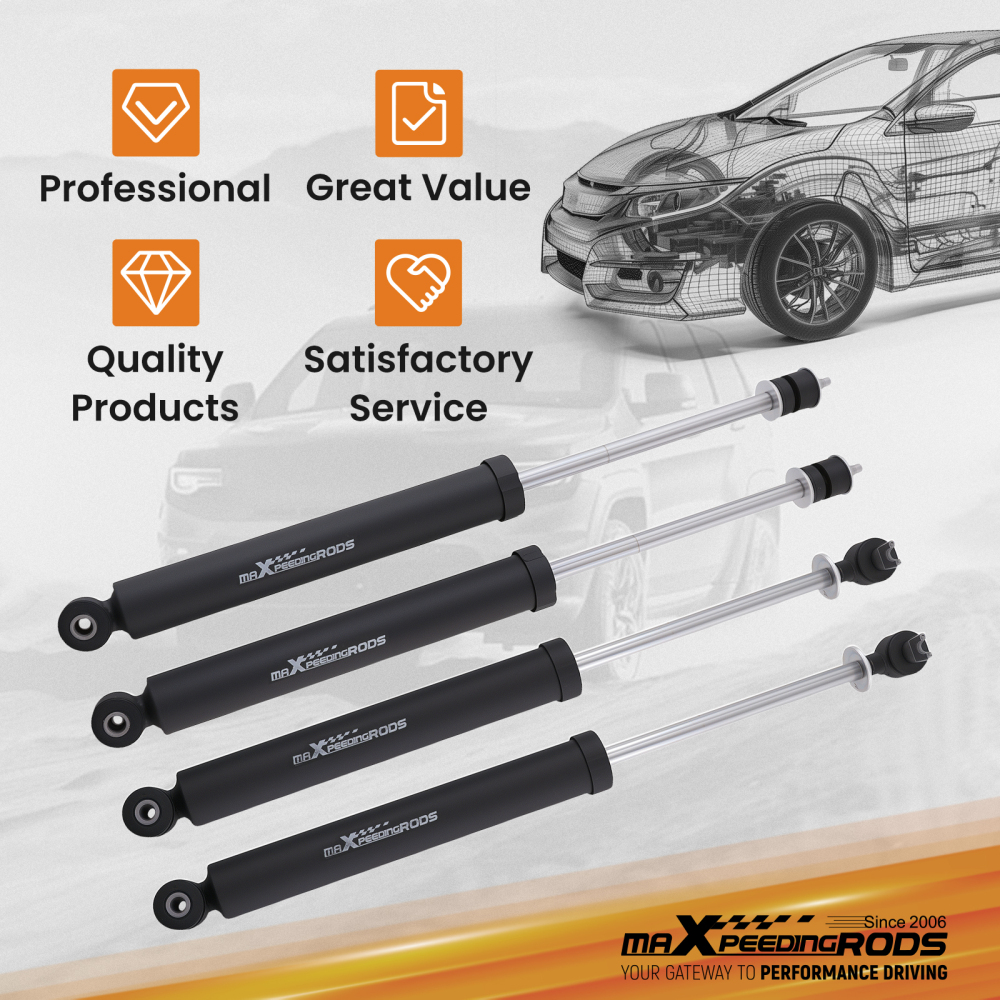

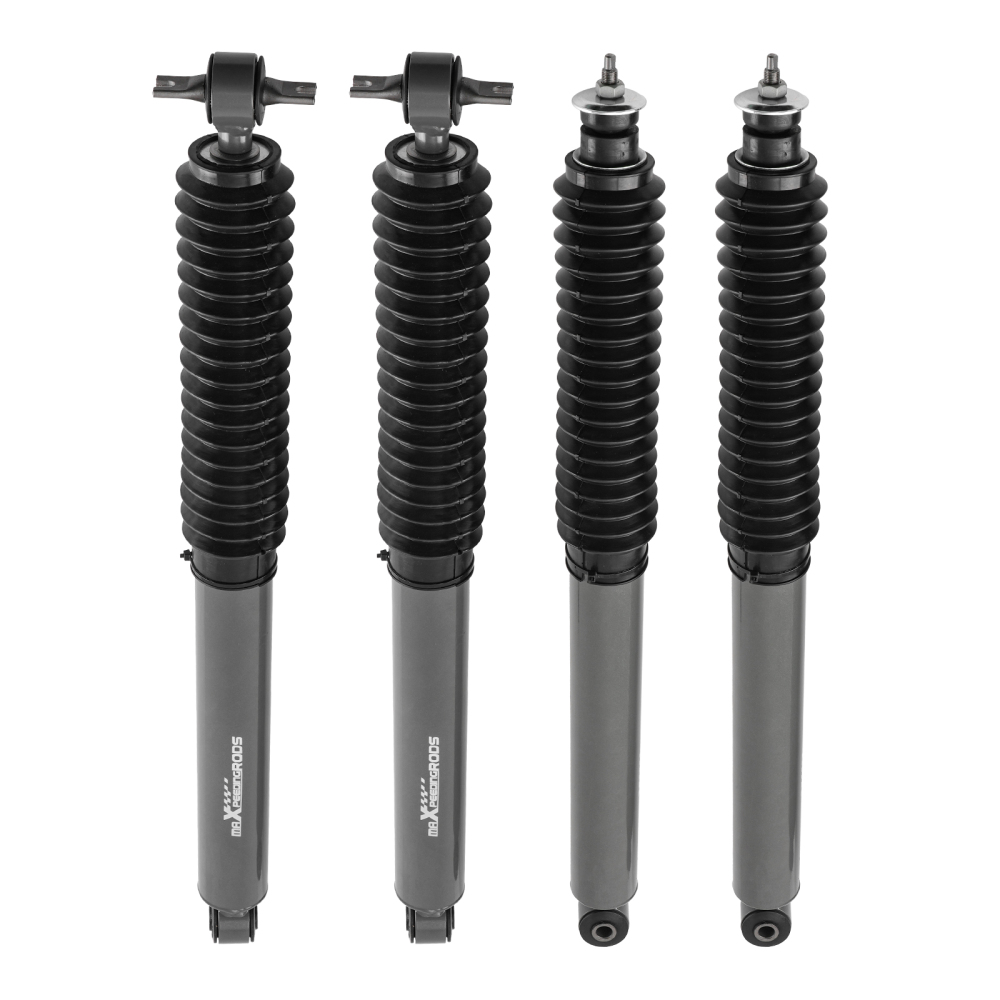

2x front shocks
2x rear shocks
2x front springs
2x rear springs
1x compatible for Panhard rod bracket
2x Sway bar links
Hardwares

Feature

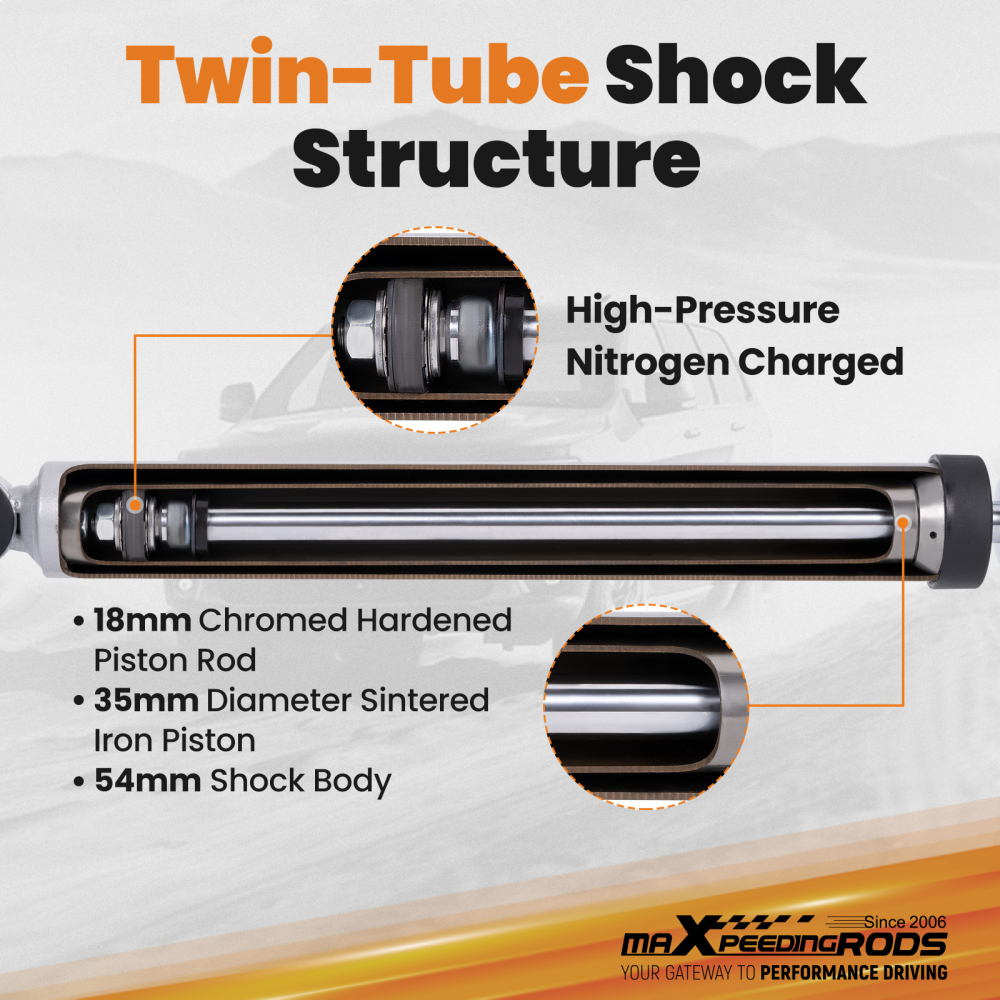

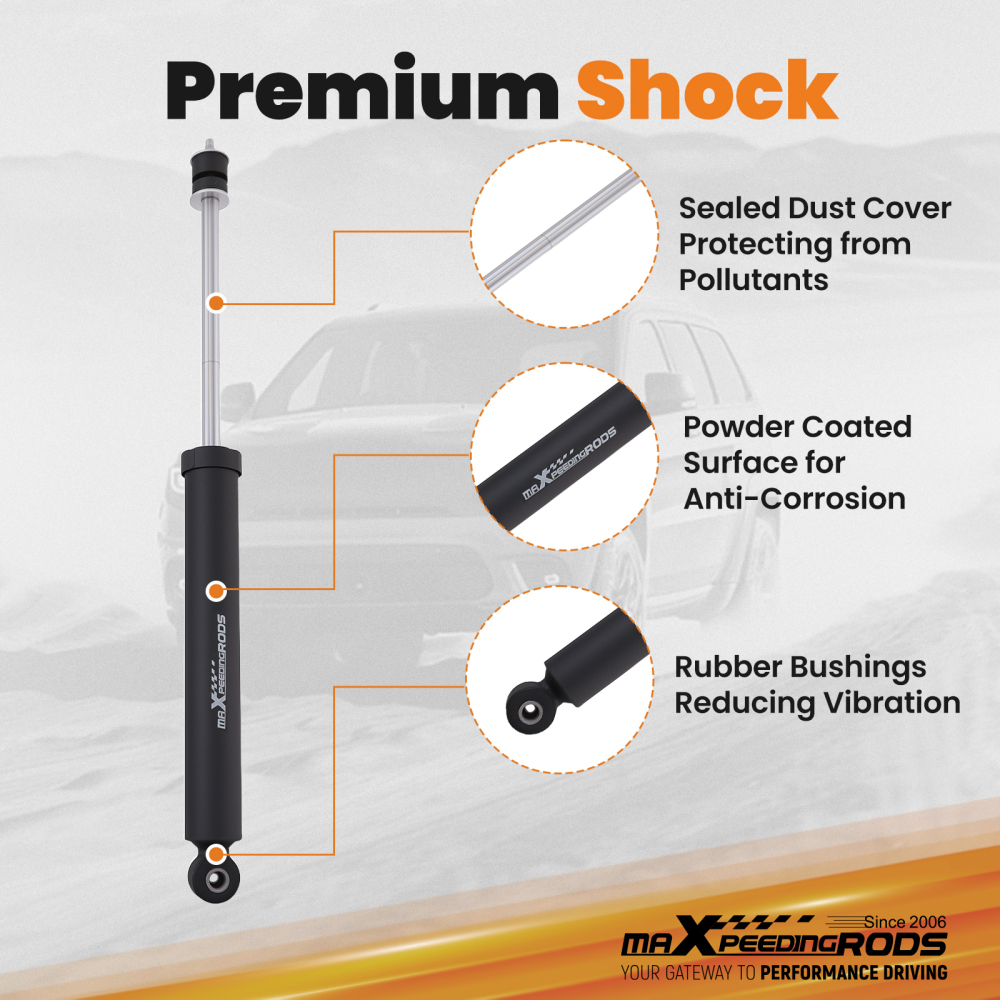

*High-pressure nitrogen charged twin-tube shock absorber with high durability.
*Rubber bushings for better absorption.
*18mm Chromed Hardened Piston Rod.
*35mm Diameter Sintered Iron Piston.
*54mm Shock Body help Heat dissipation.
*Precision Welding.
*Improve your on and off-road ride.
*Powder coated surface：provides superior corrosion resistance.
*High Tensile Strength Carbon Steel for optimal durability and fitment.
*Chromium-silicon cold-wound structure with high tensile strength and resilience
*Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.
*Dust cover included prevent the shaft rod and oil seal from damaging.

轮胎尺寸

Tire Info:
35x12.50R17 17x9 5x5.0 12
35x12.50R17 17x9 5x5.0 6
35x12.50R18 18x9 5x5.0 12
35x12.50R18 18x9 5x5.0 6
35x12.50R20 20x9 5x5.0 12
35x12.50R20 20x9 5x5.0 6
