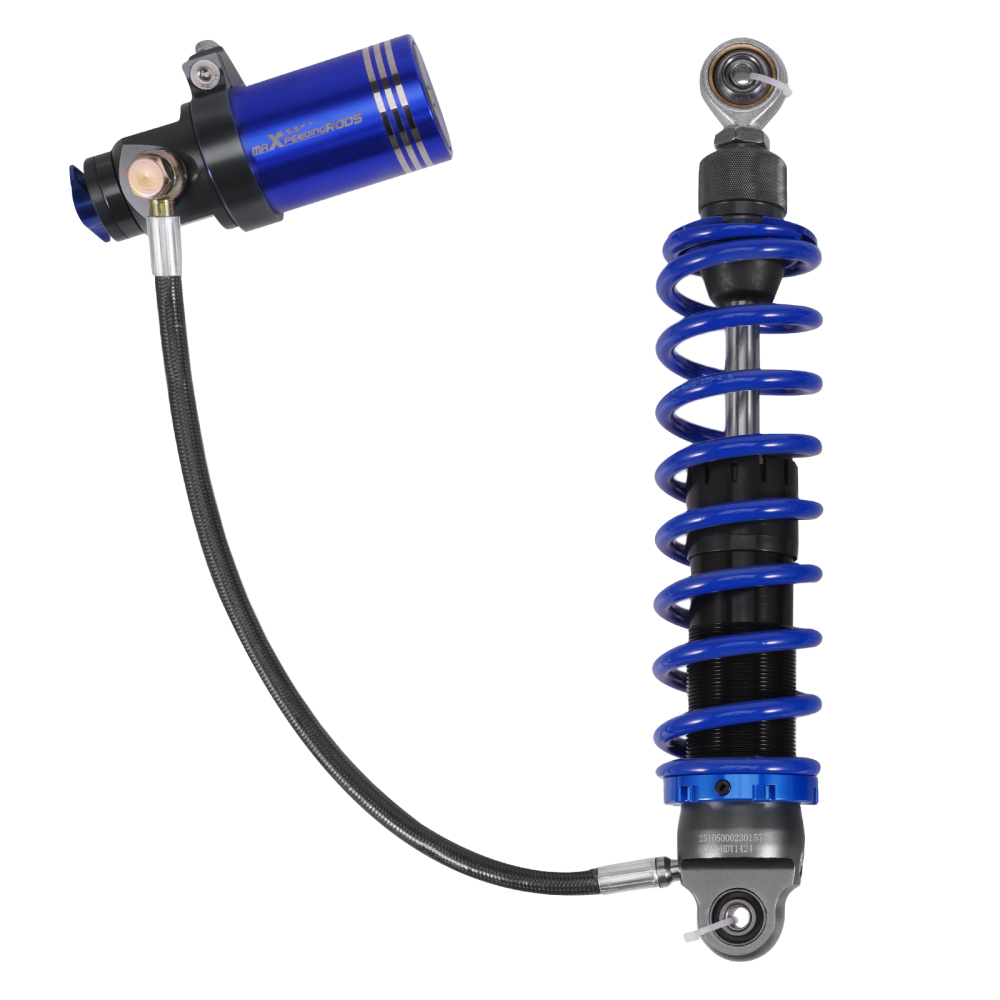

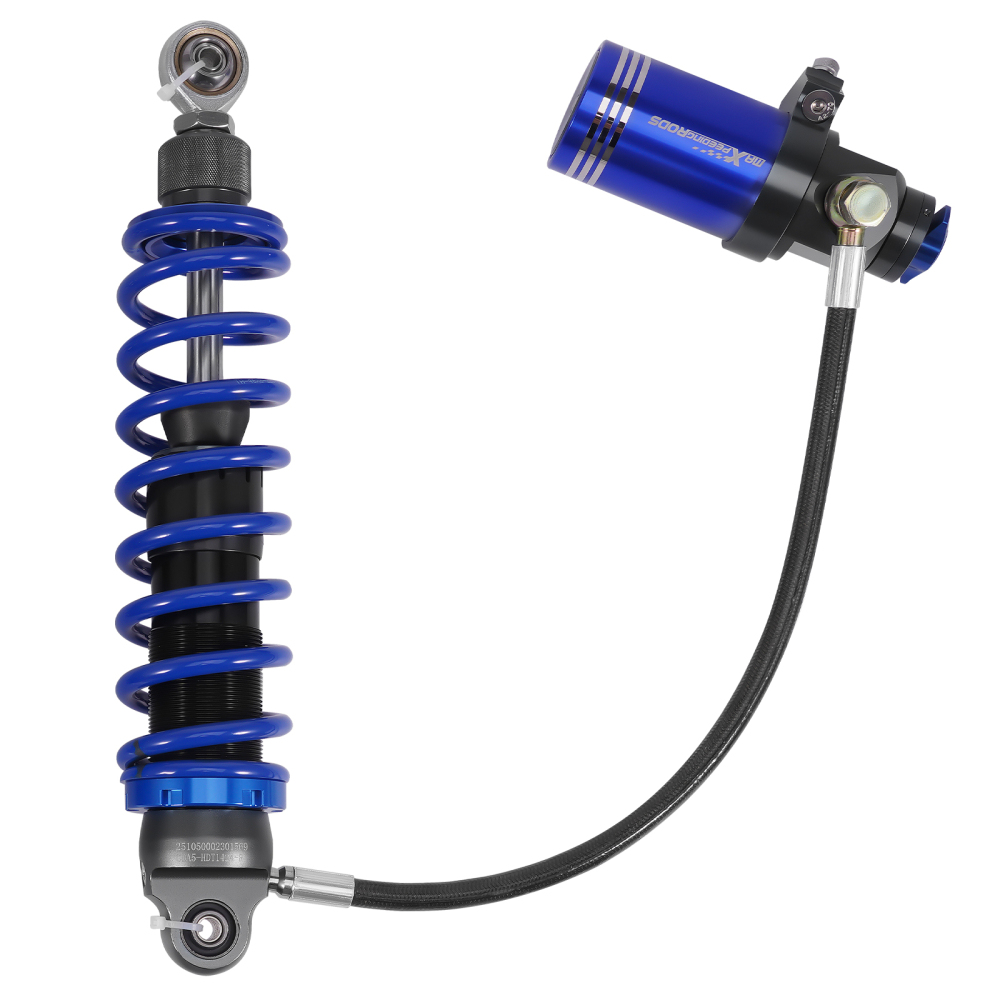

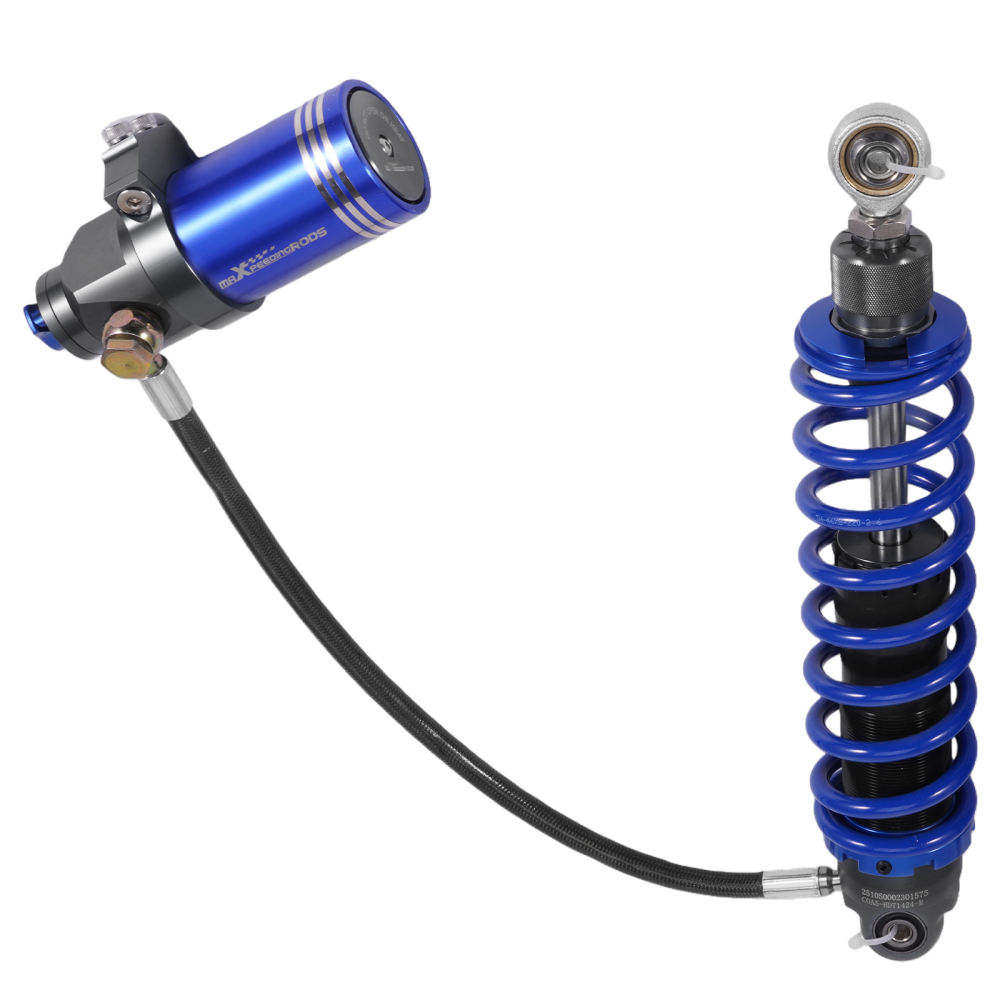

30 Way Damper Adj. Remote Reservoir Rear Shocks compatible for Harley Touring 14-25

Introduction

MaXpeedingrods A5 Series Remote-Reservoir Shocks. The upgraded system enhances the off-road capabilities of motorcycles through an innovative external nitrogen reservoir with oil-gas separation technology. Its optimized design features an expanded gas compression chamber for improved shock stroke efficiency, coupled with an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. Equipped with precision-engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts via advanced thermodynamic management.

Application

For 2014-2024 compatible for Harley-Davidson Touring Models (Road King, Road Glide, Electra Glide, Street Glide)

Specification

Body Outer Diameter (mm)：43
Body Inner Diameter (mm): 36
Body Material: Aluminum alloy
Compressed Length (mm): 88
Extended Length (mm): 88
Hose (mm): 10.2
Reservoir Outer Dimensions: 52
Reservoir Inner Dimensions: 44
Shaft Size (mm): 14
Travel (mm): 88
Valving:Adjustable Compression and Rebound
Outer Diameter of Springs(mm):62
Rebound damping adjuster: 30 level
Compression damping adjuster: 10 level
Total Length(mm):366
Length of Eye to Eye Core(mm):330.5
Inside Diameter of the Eye(mm):10

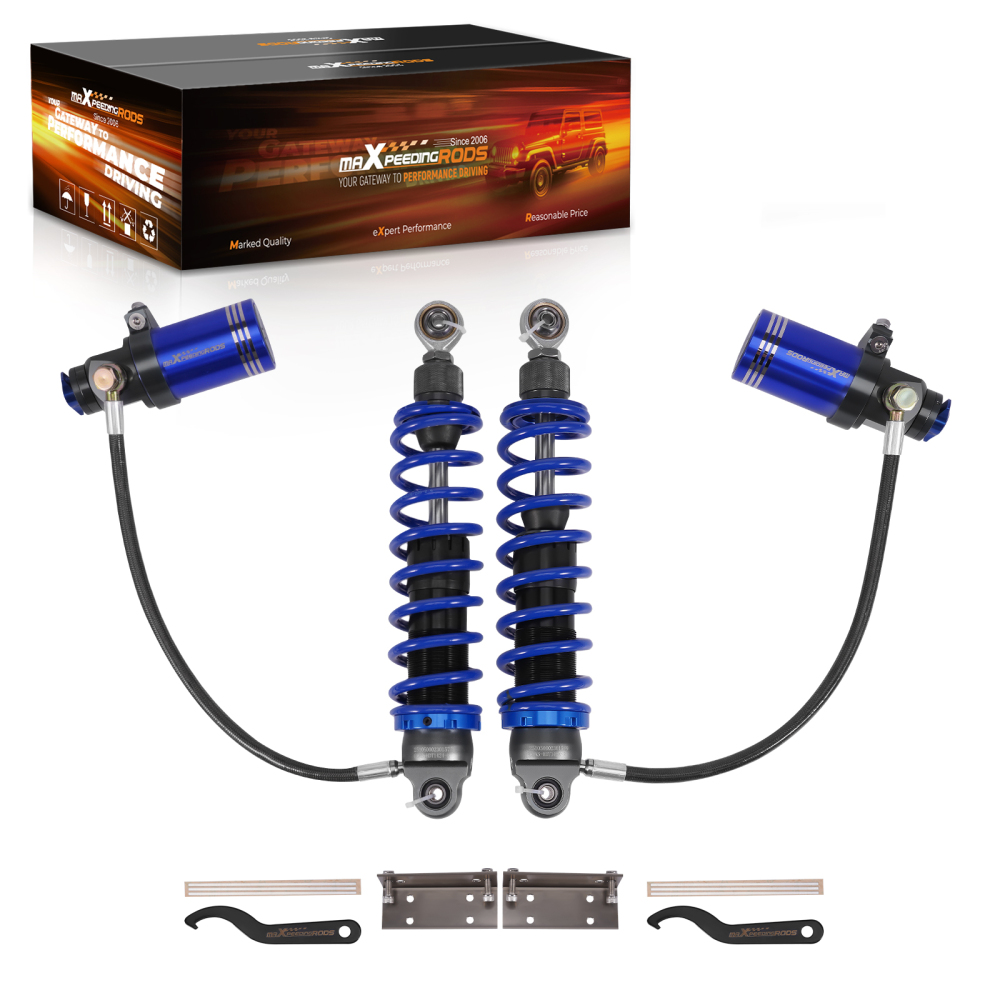

Package included

rear coil-overs*2

Feature

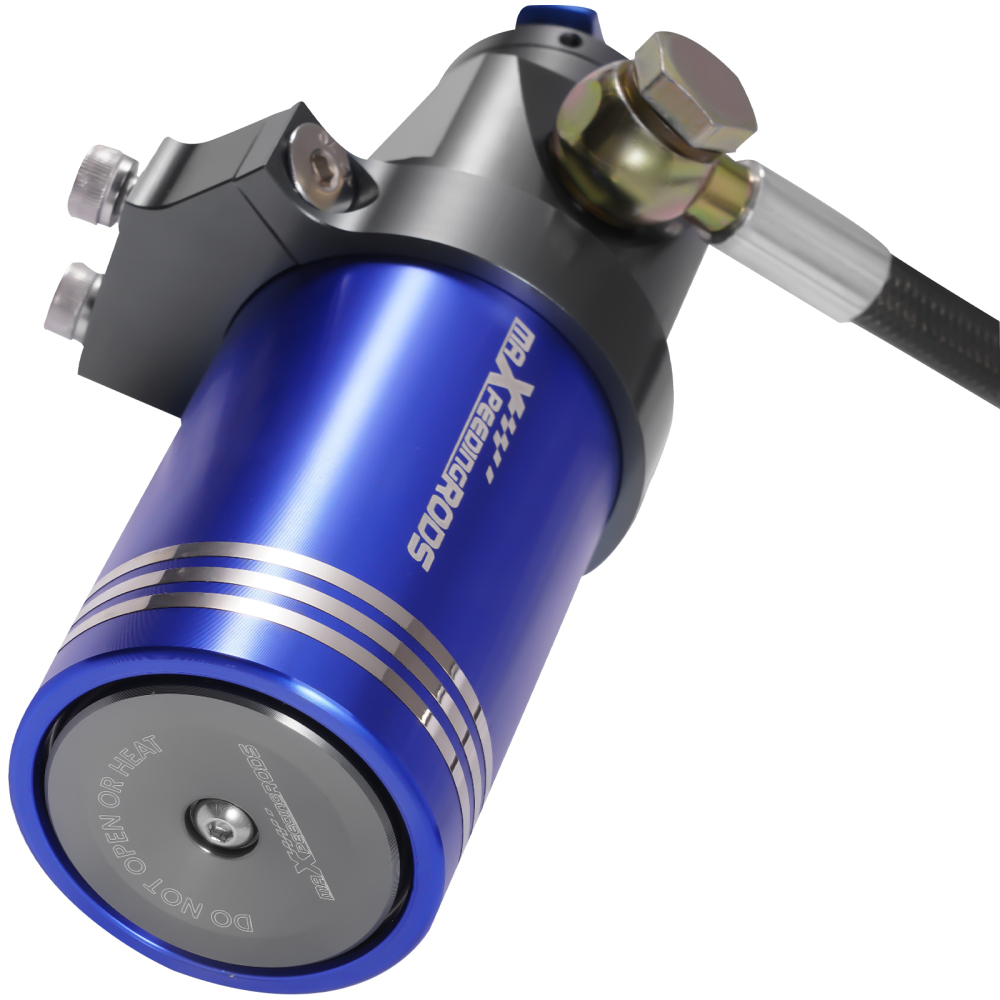

1. Enhanced Nitrogen Reservoir Design
The expanded inner diameter of the nitrogen cylinder increases gas chamber volume and thermal dissipation surface area, effectively preventing damping fade during prolonged high-intensity off-roading and ensuring consistent performance.
2. 30-Stage Rebound & 10-Stage Compression Damping Adjustment
A precision-engineered dual-mode adjustability system (30-stage rebound + 10-stage compression) offers wide parameter adaptability. It allows riders to fine-tune stiffness for specific terrains (e.g., gravel, rock crawling, paved roads) while balancing off-road control with on-road comfort.
3. Oversized Damping Tube Architecture
The enlarged damping tube inner diameter improves hydraulic fluid flow efficiency, while the reinforced rebound disc design enhances vibration absorption and impact resistance—delivering smoother handling over rough terrain and reducing rider fatigue.
4. Advanced Surface & Structural Engineering
The piston rod features high-frequency quenching and hard chrome plating for superior wear resistance, ensuring long-term durability. Meanwhile, T6 heat-treated 6082 forged aluminum construction maintains structural rigidity while achieving significant weight reduction—improving vehicle maneuverability.
5.Total Length & Preload Dual Adjustable
Eye-to-eye length adjustable from 331mm to 335mm, and preload setting provides 50mm adjustable height on both shocks.
