3 Row Cross Flow Radiator compatible for Chevy C/K Series Van 1967-1979 CC369 AT

Application

Compatible for Chevrolet C/K Series 10 20 30 Pickup compatible for Suburban V8 1967-1972
compatible for Chevrolet Blazer 5.0L 5.7LV8 1969-1972
For G/P Series P10 P20 P30 G10 G20 G30 Van 1967-1979
compatible for GMC Jimmy I6 V8 1970 1971 1972
compatible for GMC C/K Series K25/K2500 K35/K3500 C15/C1500 Pickup compatible for Suburban 1967-1972
For G/P Series P15 P25 P35 G15 G25 G35 Van 1967-1979
Fits L6 V6 V8 Engine:4.1L 4.8L 5.0L 5.7L 6.6L 3.8L 5.3L 6.5L 5.4L 4.6L
For the year and models, please check the compatibility.

OE/Part number

DPI369,CC369,CU369,0369AA,369,MC369，CU369,CUC369,,RAD369,

Specification

Type：Aluminum Radiator Fan Shroud Relay Kit
Core Material：Aluminum
Tank Material：Aluminum
Core Size：28.26x16.06x1.73in

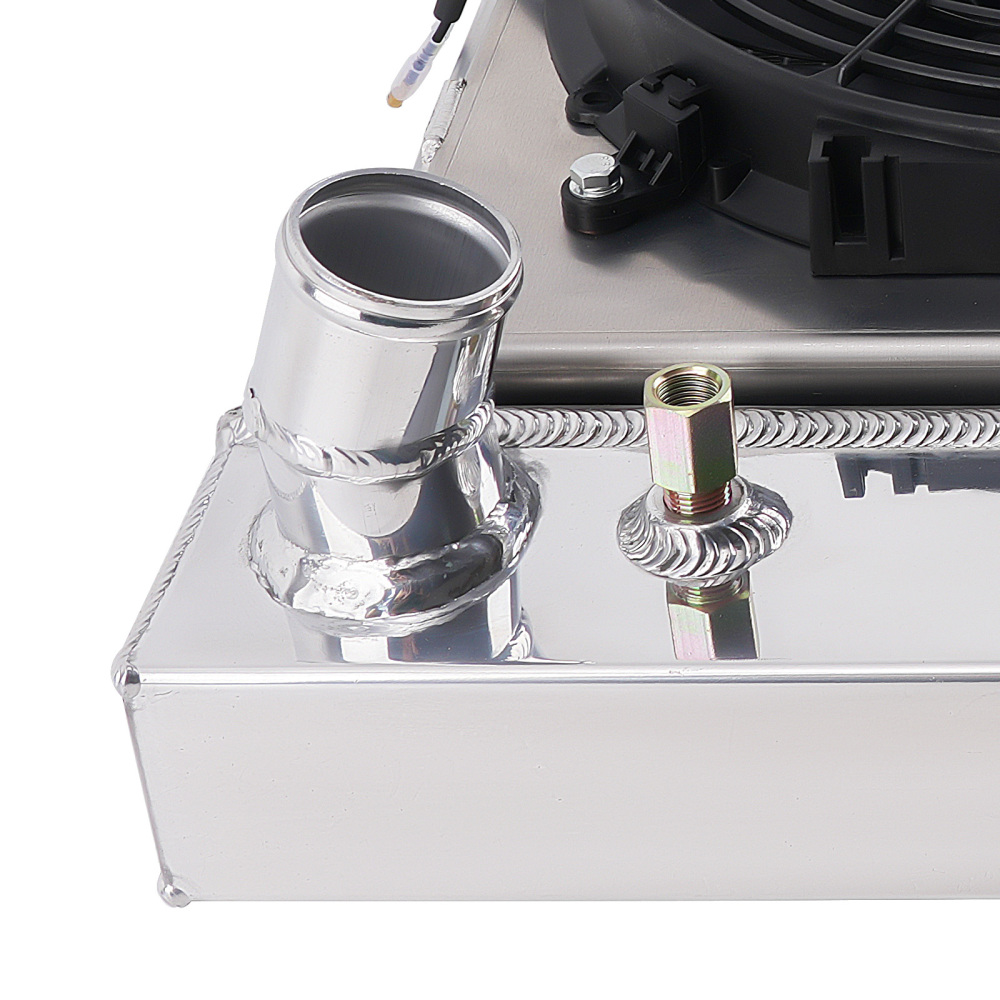

Inlet Diameter：Φ40
Inlet Location：Top Left

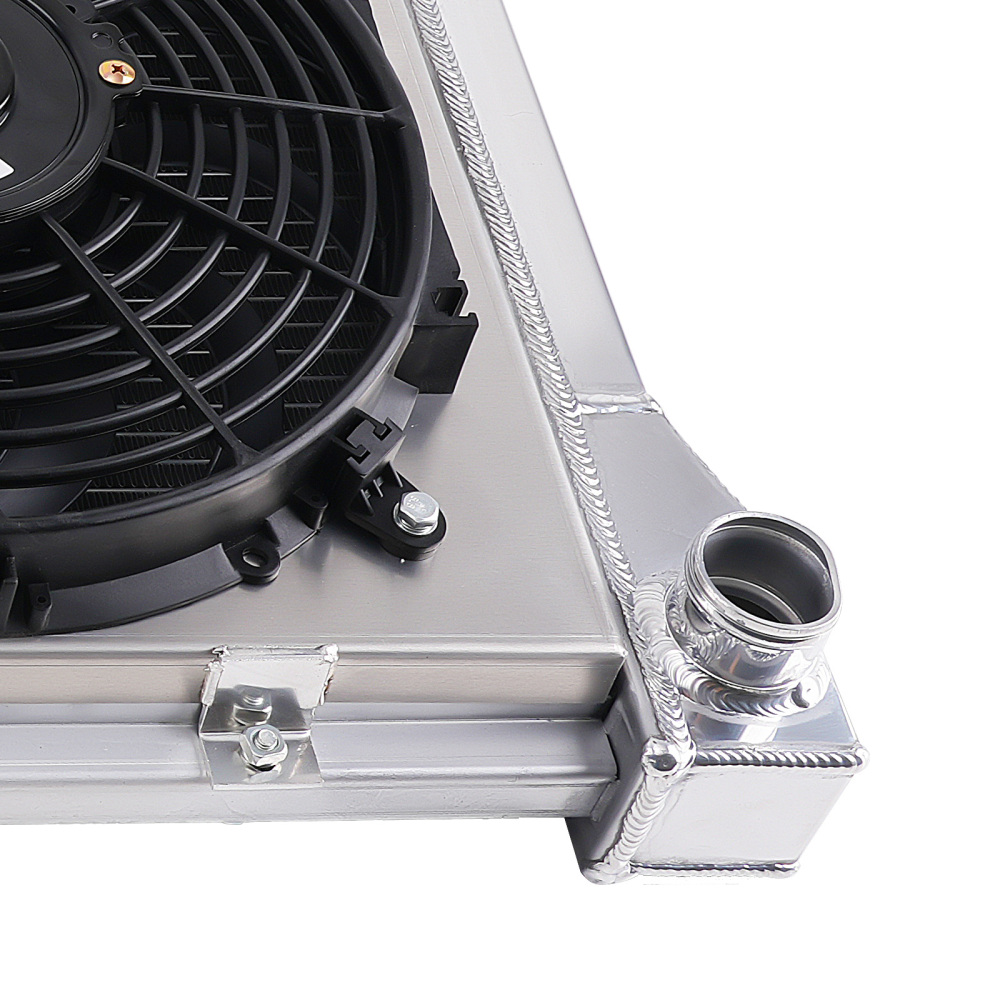

Outlet Diameter：Φ45
Outlet Location：Bottom Right
Core Row Quantity：3
Down Flow Or Cross Flow Type：Cross flow
Engine Oil Cooler Included：No
Transmission Oil Cooler Included：Yes
Transmission Type：AT

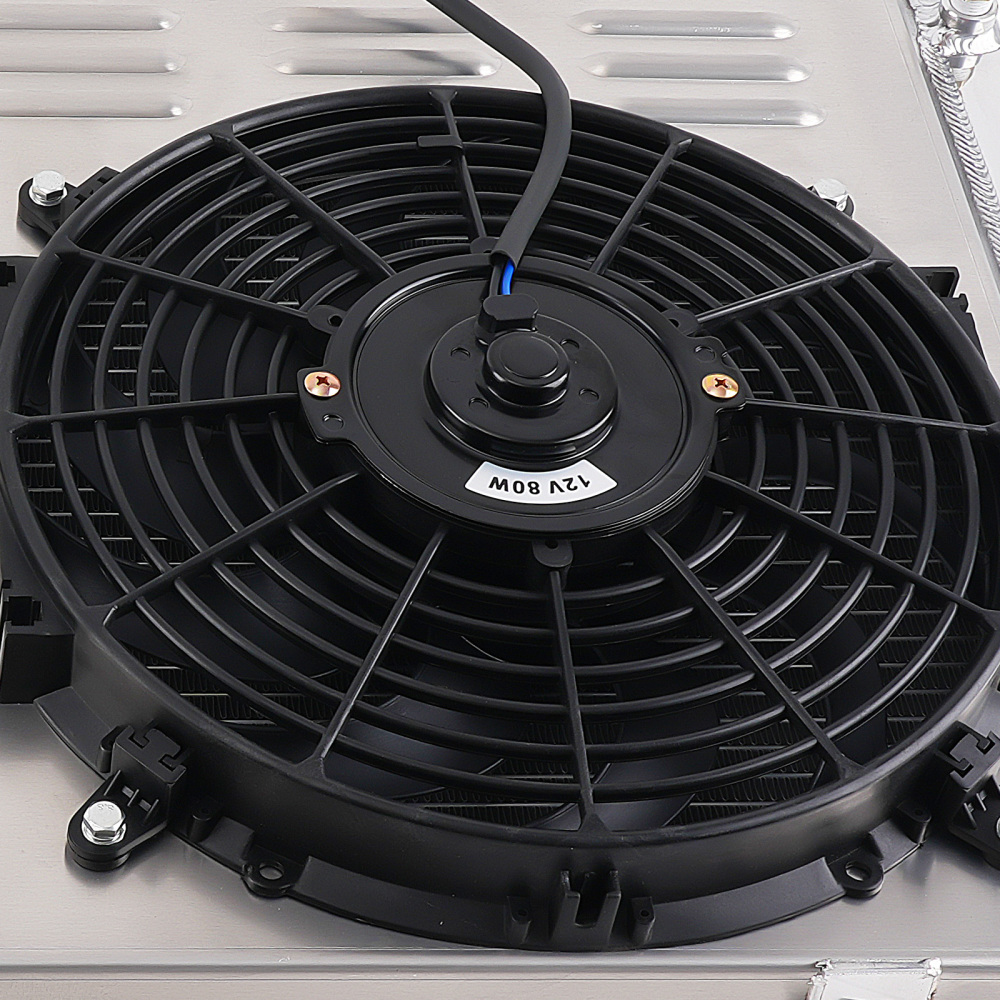

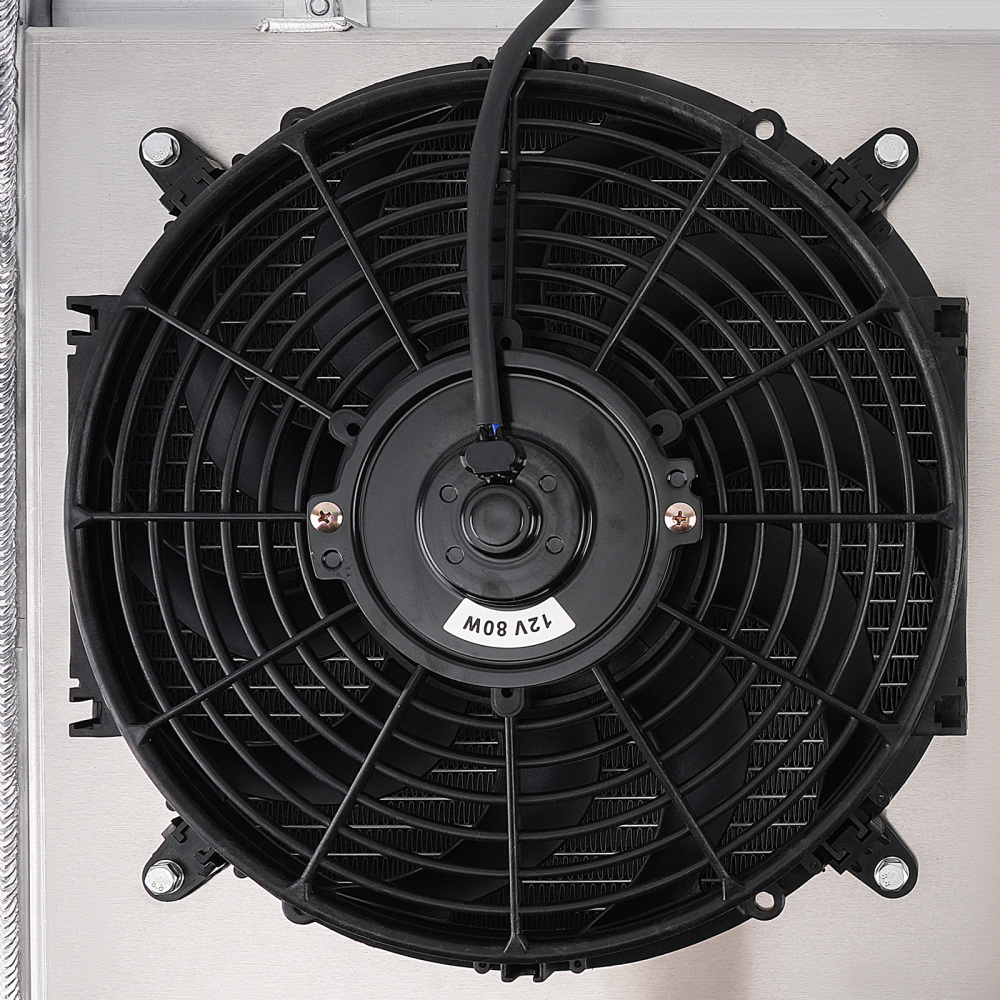

"2X12"" Slim Fan:
12V, 80W
≤7.0 AMP DRAW
10 Blades
Color: Black
Fan Diameter: 11.34"
Fan Thickness: 2.36"
Maximum Fan CFM: 470 CFM
Maximum Fan RPM: 2200±10% RPM
Includes the Mounting Tabs for an Easy Zip Tie Installation
Easy direct installation, require NO modification
OE Fitment or Replacement Pull Type

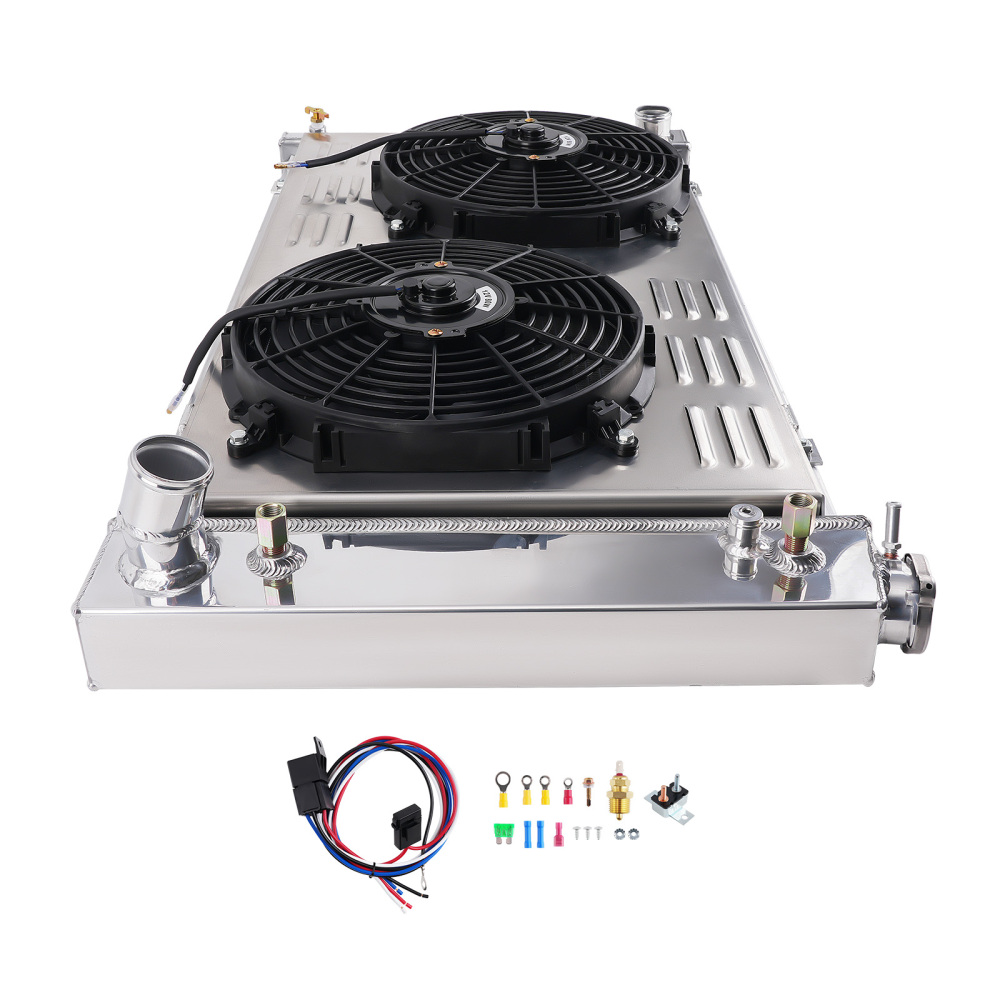

Package included

1 X Aluminum Radiator

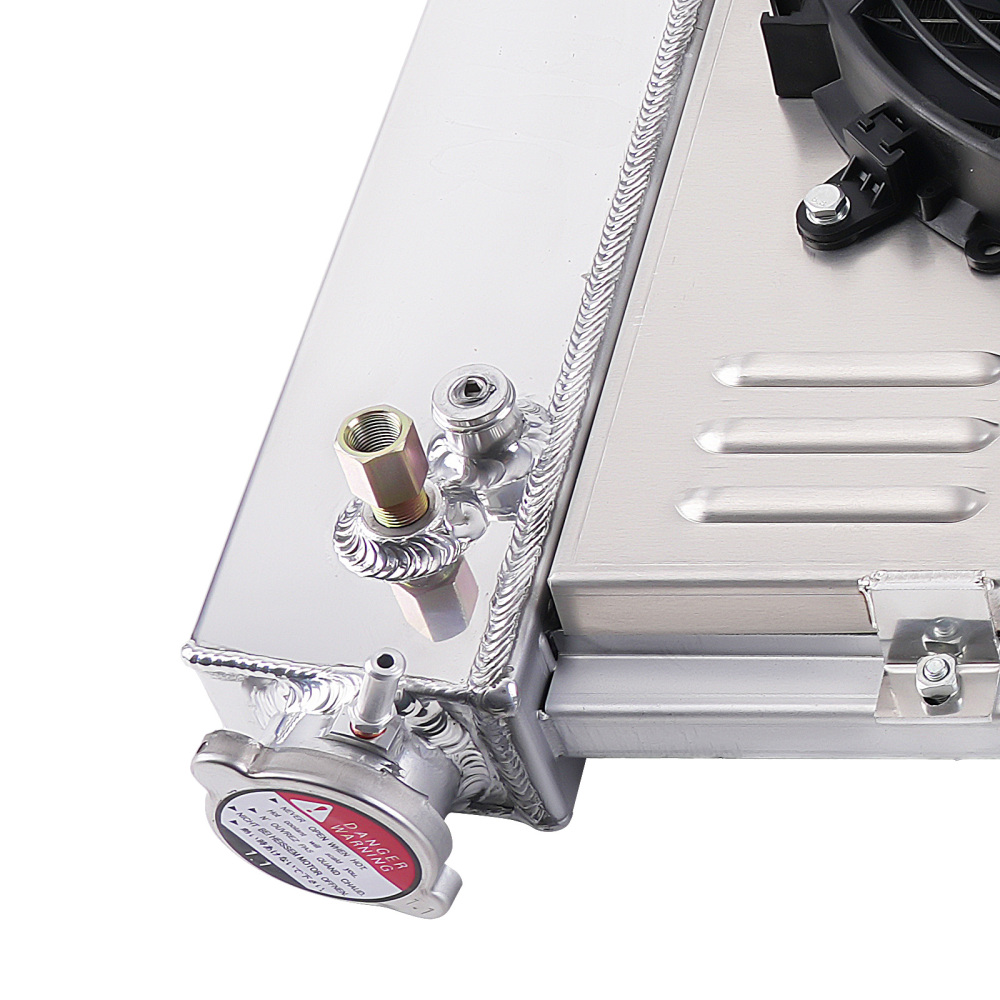

1 X CNC Machined Radiator Cap
1 X Aluminum Shroud
1 X Fans (Includes mounting kits)

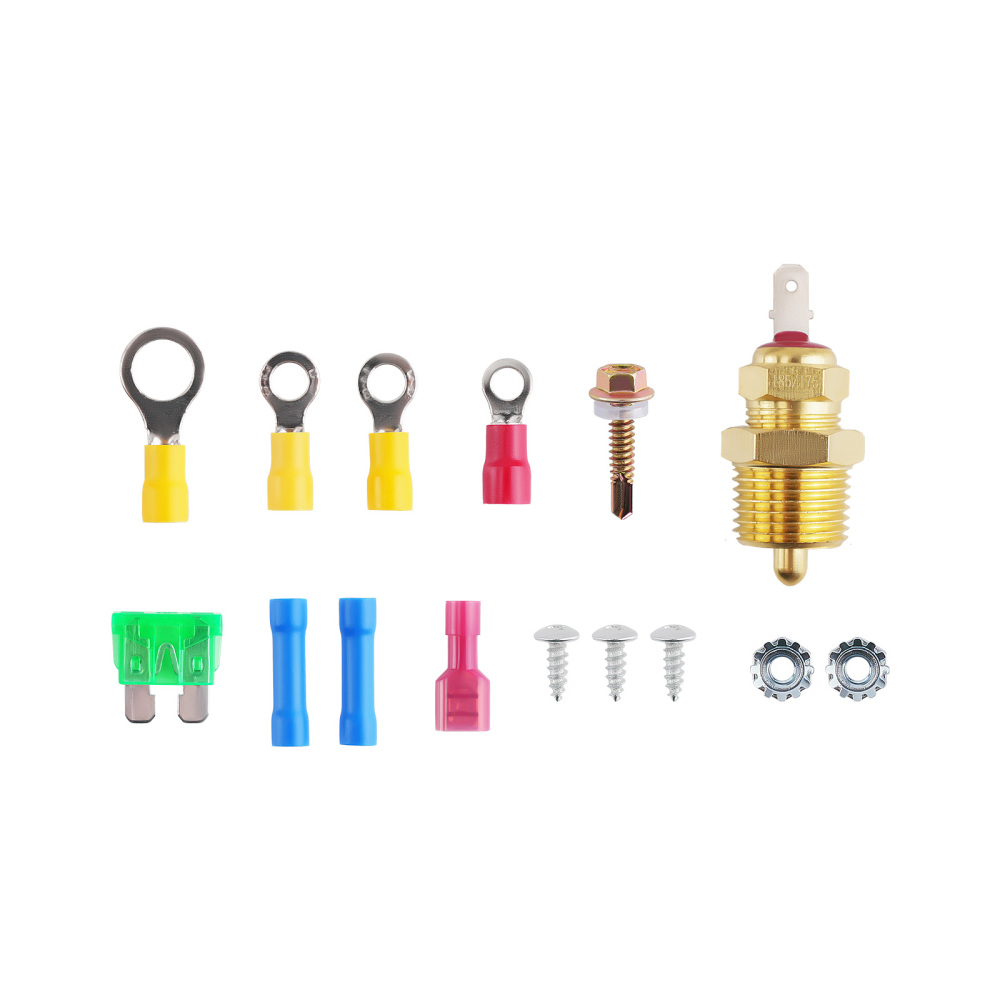

1 X Thermostat Relay Kit (Showing as the picture)

Note

You confirm that you fully understand the r
isks that may arise from the use of this product, a
nd voluntarily assume all consequences and legal
responsibilities arising from the use of this produc
t. You should ensure that the vehicle after installin
g this product complies with relevant national an
d local laws and regulations, and limit the use of t
his product to specific scenarios permitted by law
s and regulations.
