3-Row AT Cooling System compatible for Chevrolet Camaro V8 1967-1969 AE370 Cross Flow

Application

Compatible for Chevrolet Camaro (V8 4.9L); 1969-1968
compatible for Chevrolet Camaro (V8 5.0L); 1969
compatible for Chevrolet Camaro (V8 5.3L); 1969-1967
compatible for Chevrolet Camaro (V8 5.4L); 1969-1968
compatible for Chevrolet Camaro (V8 5.7L); 1969-1967
compatible for Pontiac Firebird (L6 3.8L); 1967
compatible for Pontiac Firebird (L6 4.1L) 1969-1968
Note: Please check compatibility. (ONLY FIT ENGINES USING 20 3/4" WIDE CORES)

OE/Part number

337,DPI337,CC337,CU337,MC337,EC337,AE370,

Specification

Type：Aluminum Radiator Fan Shroud Relay Kit
Core Material：Aluminum
Tank Material：Aluminum
Core Size：21.25x16.85x1.73in

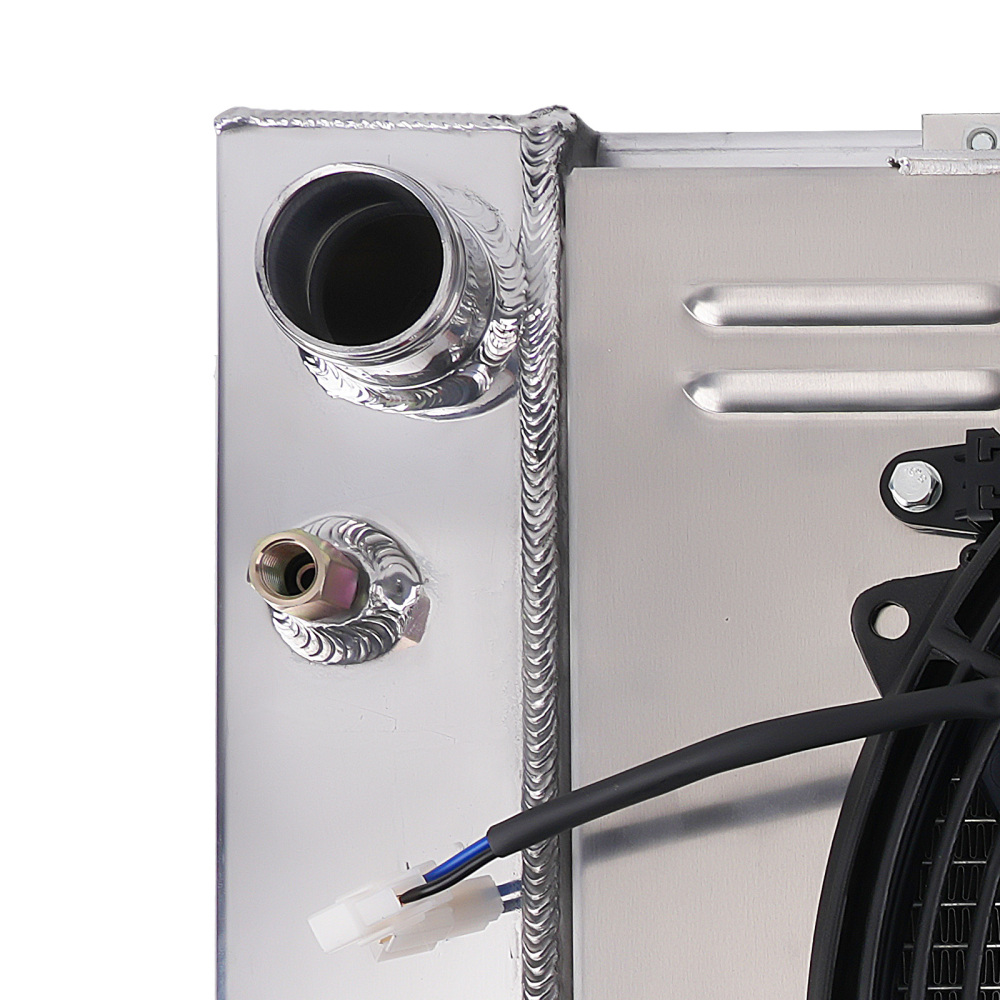

Inlet Diameter：Φ40
Inlet Location：Top Left

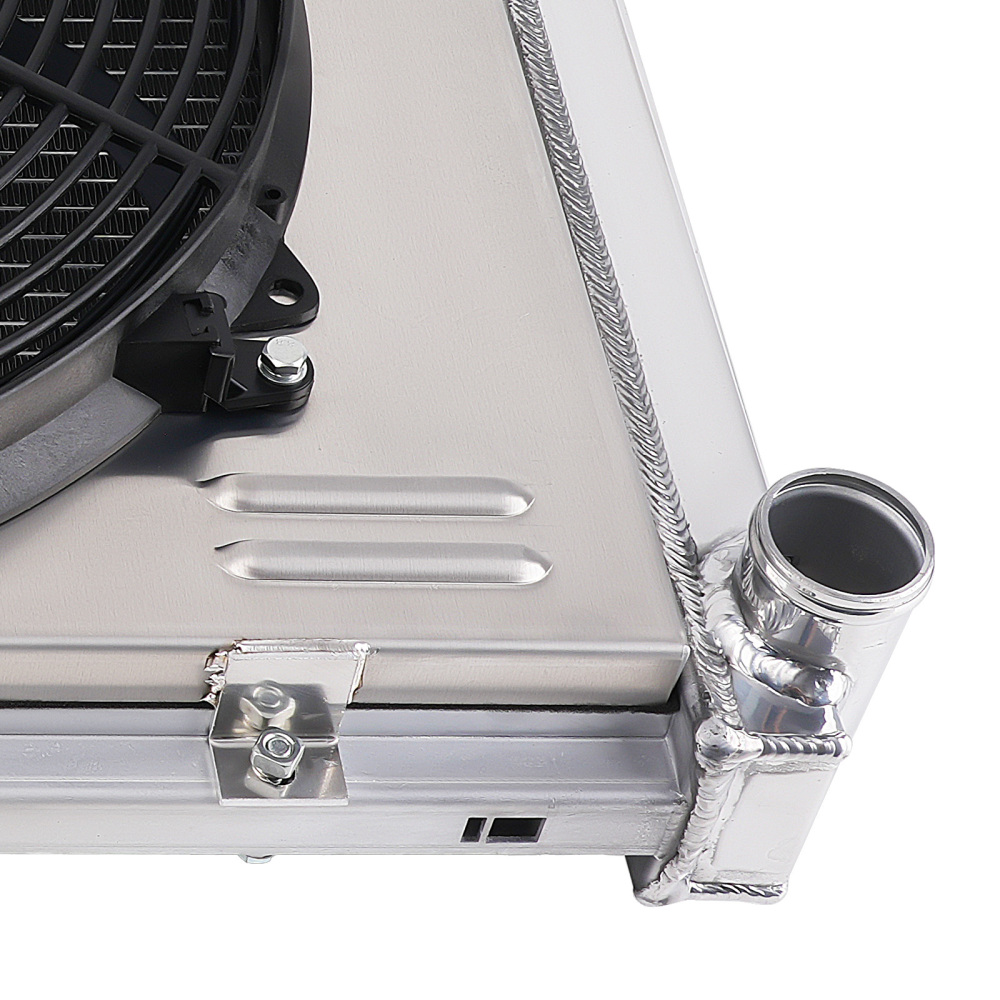

Outlet Diameter：Φ45
Outlet Location：Bottom Right
Core Row Quantity：3
Down Flow Or Cross Flow Type：Cross flow
Engine Oil Cooler Included：No
Transmission Oil Cooler Included：Yes
Transmission Type：AT

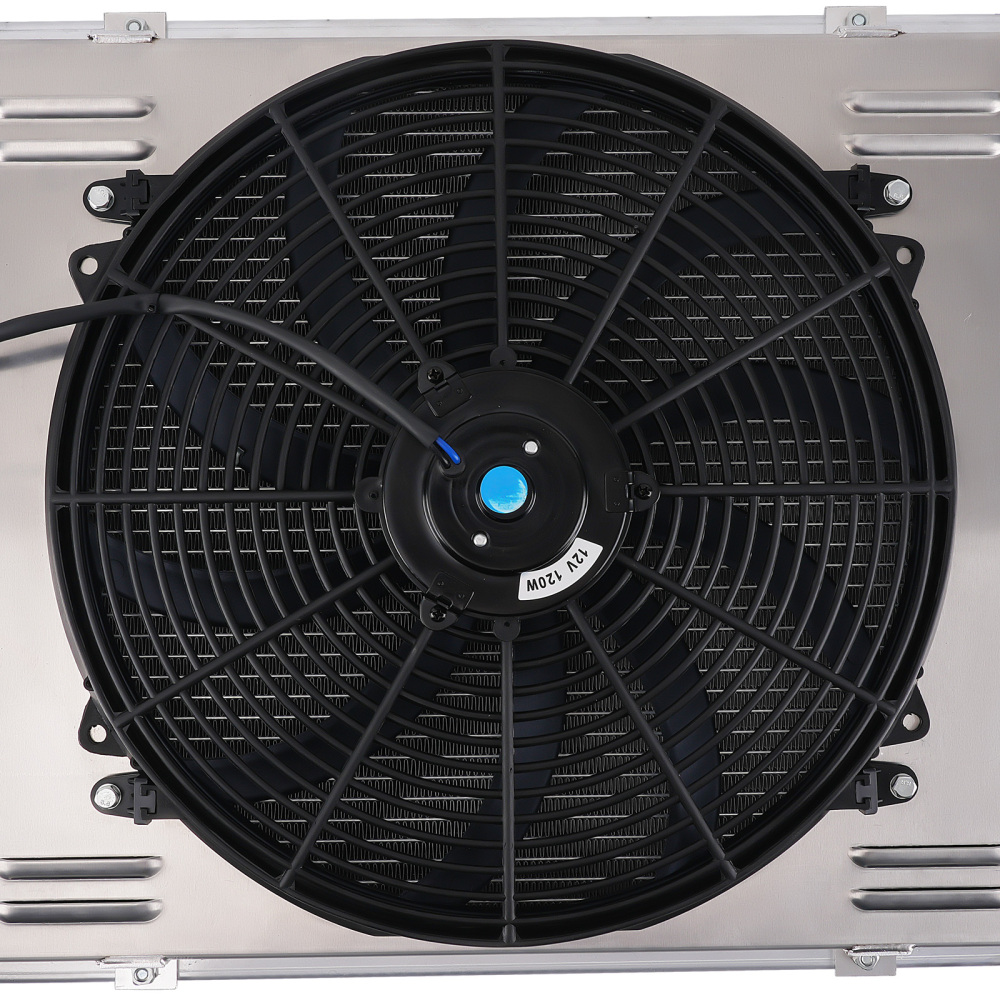

16" Fan:
12V, 120W
≤11.0 AMP DRAW
10 Blades
Color: Black
Fan Diameter: 15.16"
Fan Thickness: 3.27"
Maximum Fan CFM: 580 CFM
Maximum Fan RPM: 2000±5% RPM
Includes the Mounting Tabs for an Easy Zip Tie Installation
Easy direct installation, require NO modification
OE Fitment or Replacement Pull Type

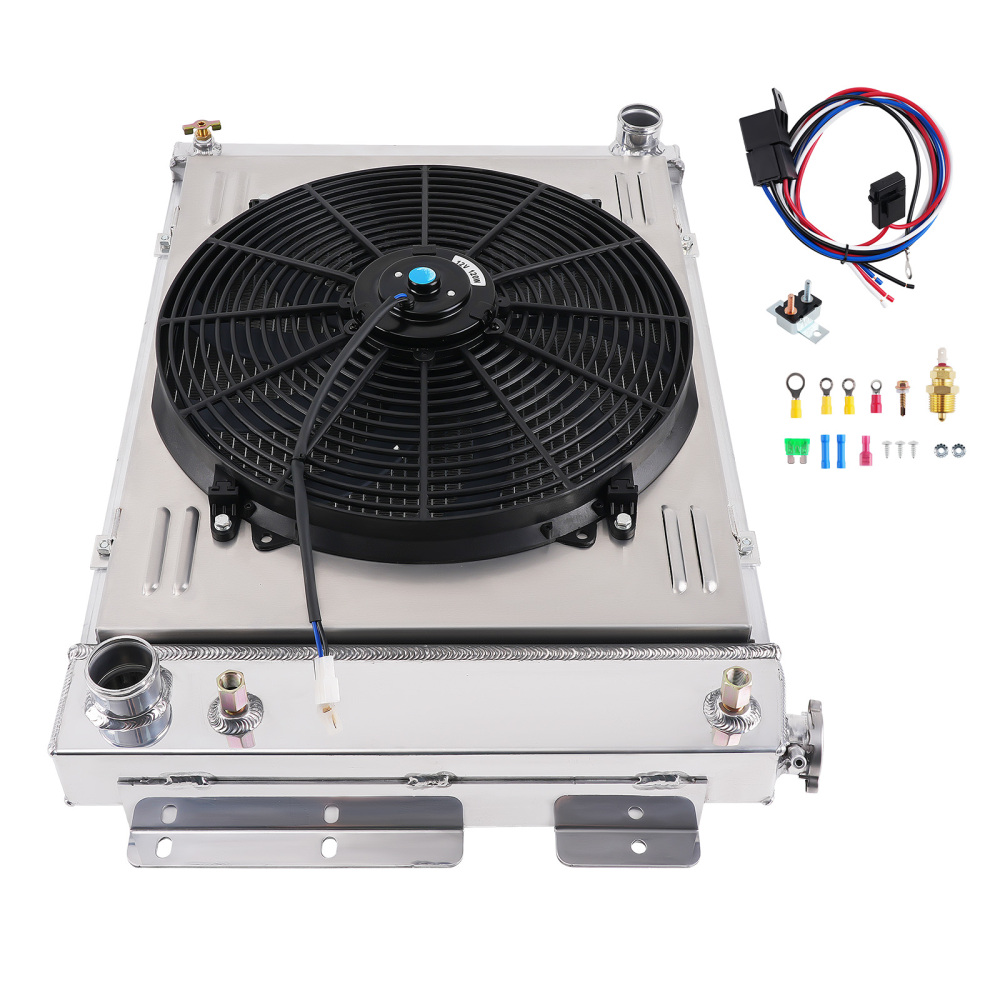

Package included

1 X Aluminum Radiator

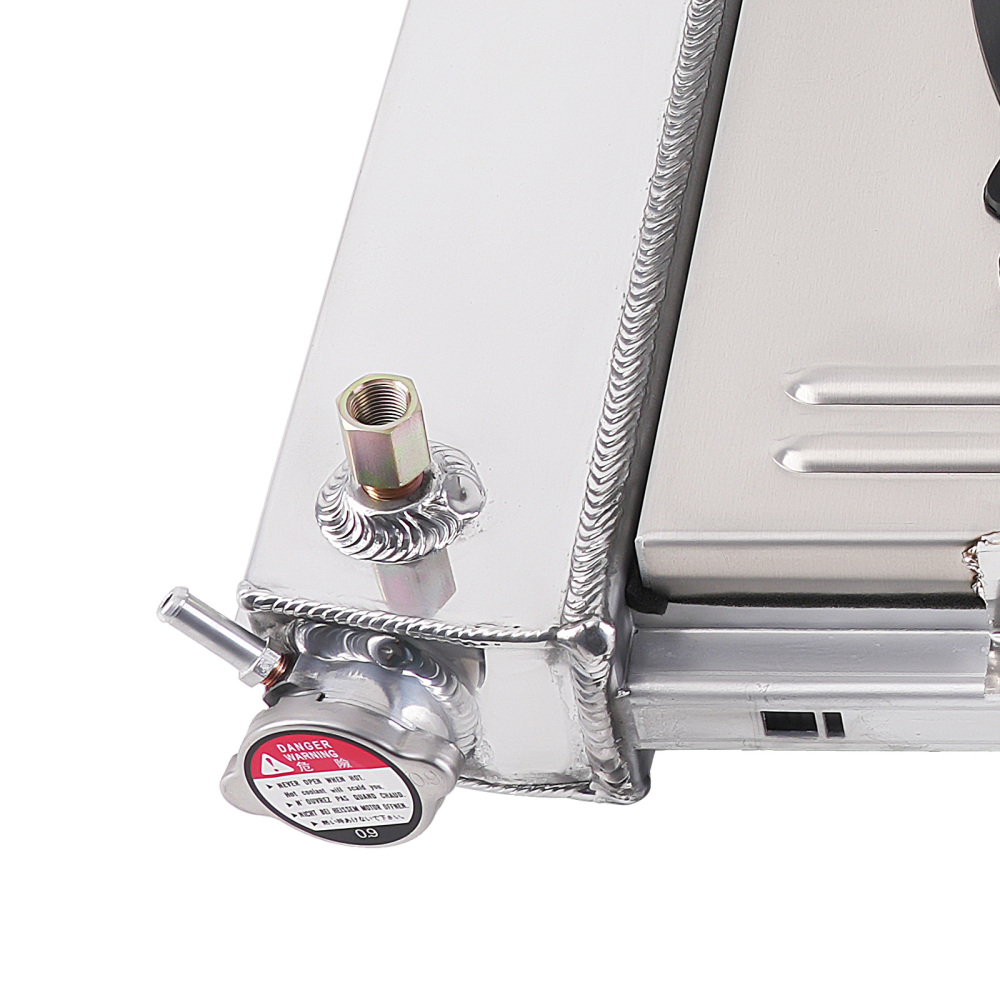

1 X CNC Machined Radiator Cap
1 X Aluminum Shroud
1 X Fans (Includes mounting kits)

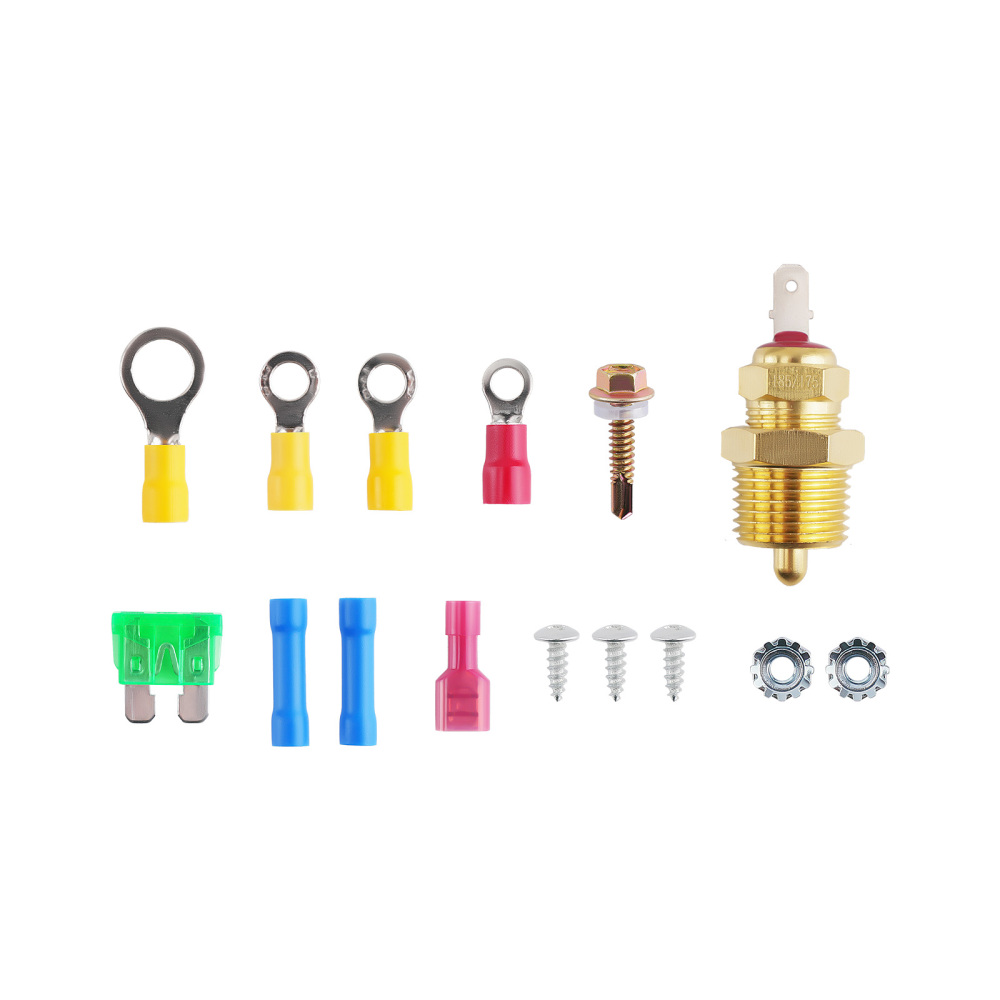

1 X Thermostat Relay Kit (Showing as the picture)

Note

You confirm that you fully understand the r
isks that may arise from the use of this product, a
nd voluntarily assume all consequences and legal
responsibilities arising from the use of this produc
t. You should ensure that the vehicle after installin
g this product complies with relevant national an
d local laws and regulations, and limit the use of t
his product to specific scenarios permitted by law
s and regulations.
