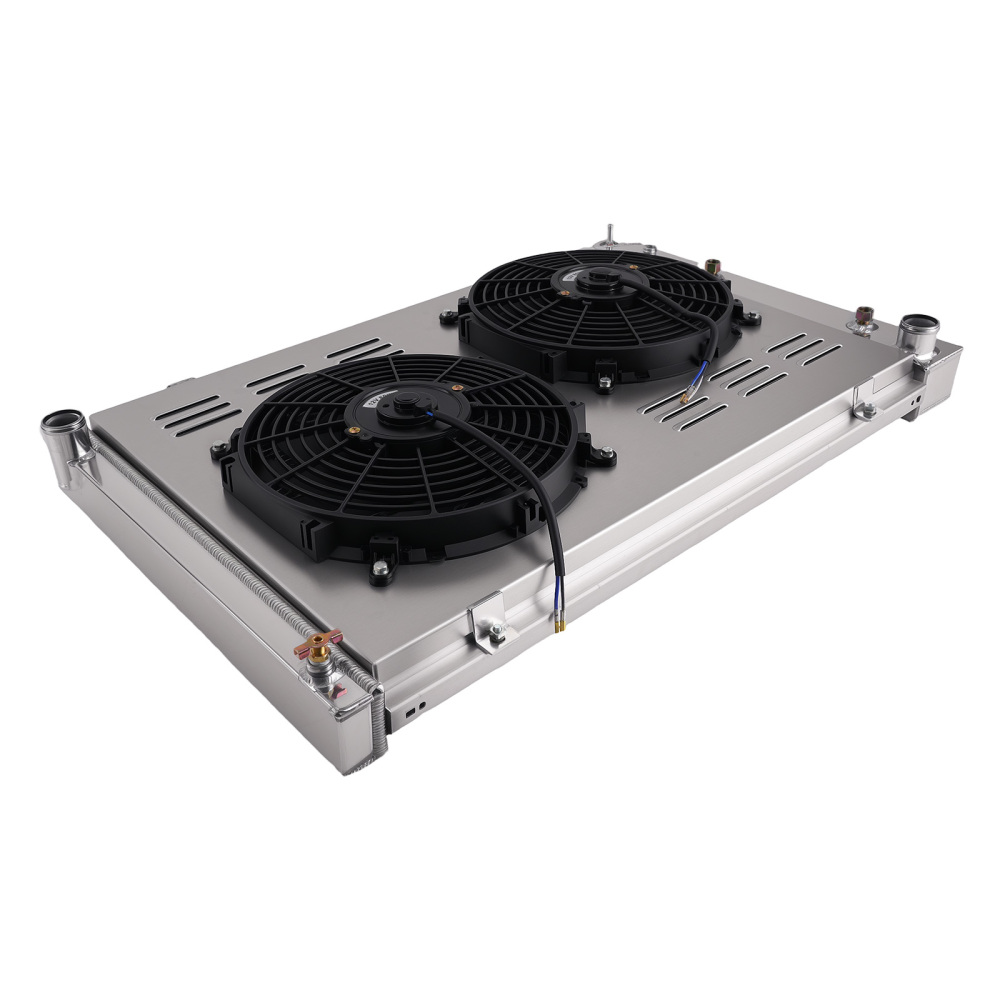

3 Row Aluminum Radiator compatible for Chevy P10/P20/P30 Van 1973-1993 716

Application

Compatible for Chevrolet Blazer / Compatible for GMC V3500 1990
compatible for Chevrolet C10 4.1L 4.8L 5.0L 5.7L 6.2L 6.6L 7.4L 1975-1983
compatible for Chevrolet C10 compatible for Suburban 1974-1985
compatible for Chevrolet C20 4.1L 4.3L 4.8L 5.0L 5.7L 6.2L 7.4L 1976-1986
compatible for Chevrolet C20 compatible for Suburban 1974 -1983
compatible for Chevrolet C30 1977-1986
compatible for Chevrolet C30 Pickup 1974
compatible for Chevrolet K10 1978-1986
compatible for Chevrolet K10 Pickup / Compatible for GMC P35 / P3500 Van 1973
compatible for Chevrolet K10 compatible for Suburban 1979-1984
compatible for Chevrolet K20 1975-1985
compatible for Chevrolet K20 compatible for Suburban 1974-1986
compatible for Chevrolet K30 1978-1984
compatible for Chevrolet K30 Pickup 1974
compatible for Chevrolet K5 Blazer 4.1L 5.0L 5.7L 6.6L 1979
compatible for Chevrolet P10 Van 4.1L 5.0L 5.7L 7.4L 1973
compatible for Chevrolet P20 1979-1988
compatible for Chevrolet P30 1977-1993
compatible for Chevrolet P30 Van 1974
compatible for Chevrolet R10 / V30 compatible for GMC R1500 compatible for Suburban / R2500 compatible for Suburban/ V1500 1987
compatible for Chevrolet R1500 compatible for Suburban 1990
compatible for Chevrolet R20 compatible for Suburban / V20 compatible for Suburban GMC R3500 1988
compatible for Chevrolet R2500 compatible for Suburban 5.7L 6.2L 7.4L 1990
compatible for Chevrolet V1500 compatible for Suburban / GMC V2500 compatible for Suburban 1989
compatible for GMC C15 / C1500 Pickup 4.1L 4.8L 5.0L 5.7L 7.4L 1973-1975
compatible for GMC C15 compatible for Suburban / C35 1976
compatible for GMC C1500 1981-1985
compatible for GMC C1500 compatible for Suburban 1983
compatible for GMC C25 / K35 1977-1978
compatible for GMC C25 compatible for Suburban 1977
compatible for GMC C25 / C2500 Pickup / K25 / K2500 compatible for Suburban 1973
compatible for GMC C2500 1981-1986
compatible for GMC C2500 compatible for Suburban 1981-1985
compatible for GMC C3500 1979-1982 1986
compatible for GMC G2500 1979
compatible for GMC Jimmy 1981-1991
compatible for GMC K15 / K15 compatible for Suburban / K25 / K25 compatible for Suburban 1975
compatible for GMC K15 / K1500 Pickup 1974
compatible for GMC K1500 1979-1983
compatible for GMC K1500 compatible for Suburban / K2500 / K2500 compatible for Suburban 1979-1983
compatible for GMC K3500 1982-1986
compatible for GMC P1500 4.8L 1980
compatible for GMC P2500 1982-1989
compatible for GMC P35 4.8L 5.7L 7.4L 1975
compatible for GMC P3500 1983 1989 1993
compatible for GMC V1500 compatible for Suburban 1988-1989
For the year and models, please check the compatibility

OE/Part number

716,CC716,CU716,EC716,AE716,MC716,RAD716,DPI716,SBR716,CU1599

Specification

Type：Aluminum Radiator Fan Shroud Relay Kit
Core Material：Aluminum
Tank Material：Aluminum
Core Size：28.22x18.81x1.73in
Inlet Diameter：Φ38
Inlet Location：Top Left
Outlet Diameter：Φ40
Outlet Location：Bottom Right
Core Row Quantity：3
Down Flow Or Cross Flow Type：Cross flow
Engine Oil Cooler Included：No
Transmission Oil Cooler Included：Yes
Transmission Type：AT

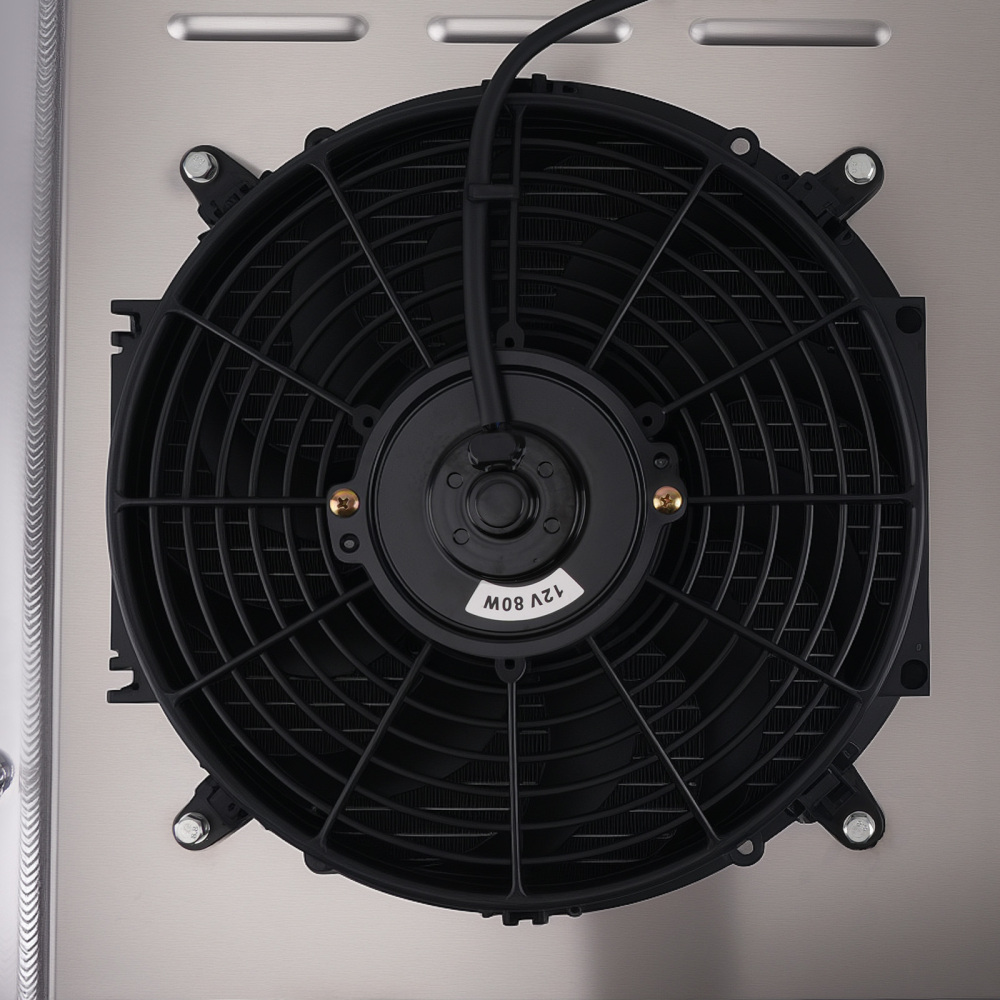

"2X12"Slim Fan:
12V, 80W
≤7.0 AMP DRAW
10 Blades
Color: Black
Fan Diameter: 11.34"
Fan Thickness: 2.36"
Maximum Fan CFM: 470 CFM
Maximum Fan RPM: 2200±10% RPM
Includes the Mounting Tabs for an Easy Zip Tie Installation
Easy direct installation, require NO modification
OE Fitment or Replacement Pull Type

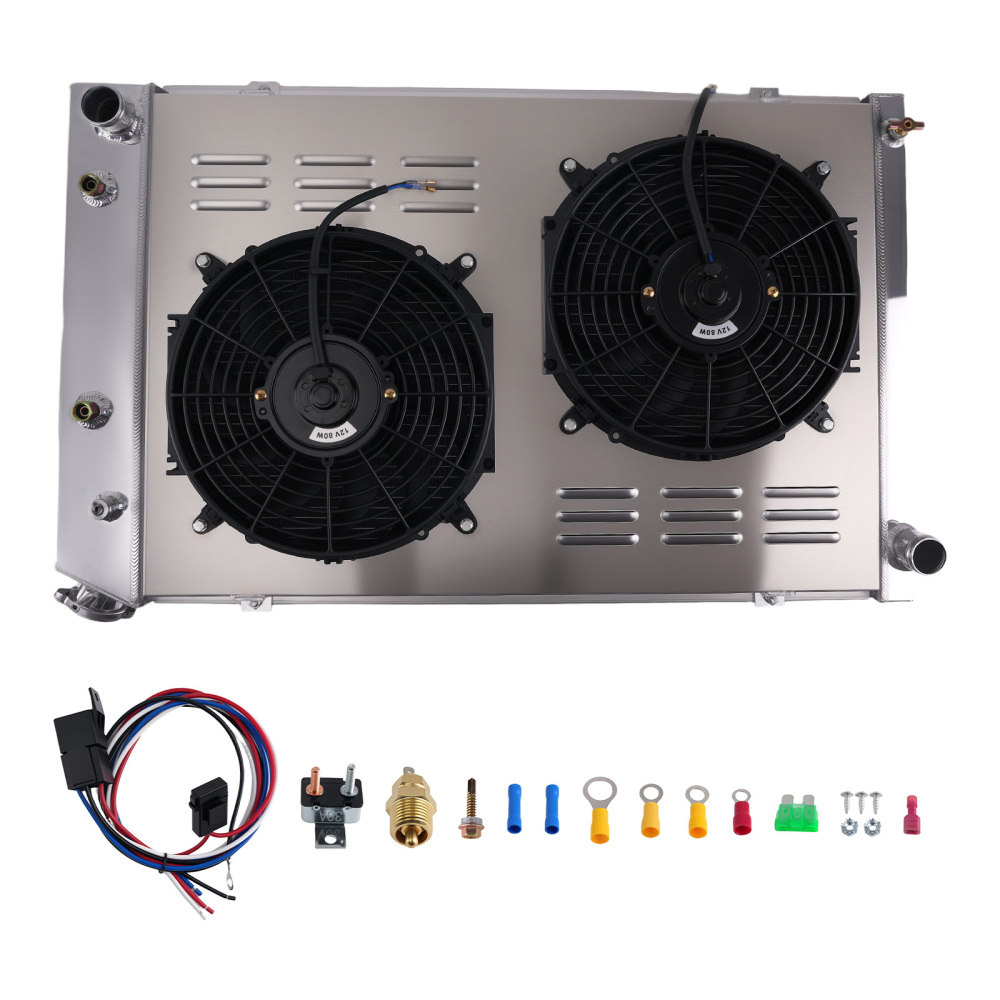

Package included

1 X Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X Aluminum Shroud
1 X Fans (Includes mounting kits)

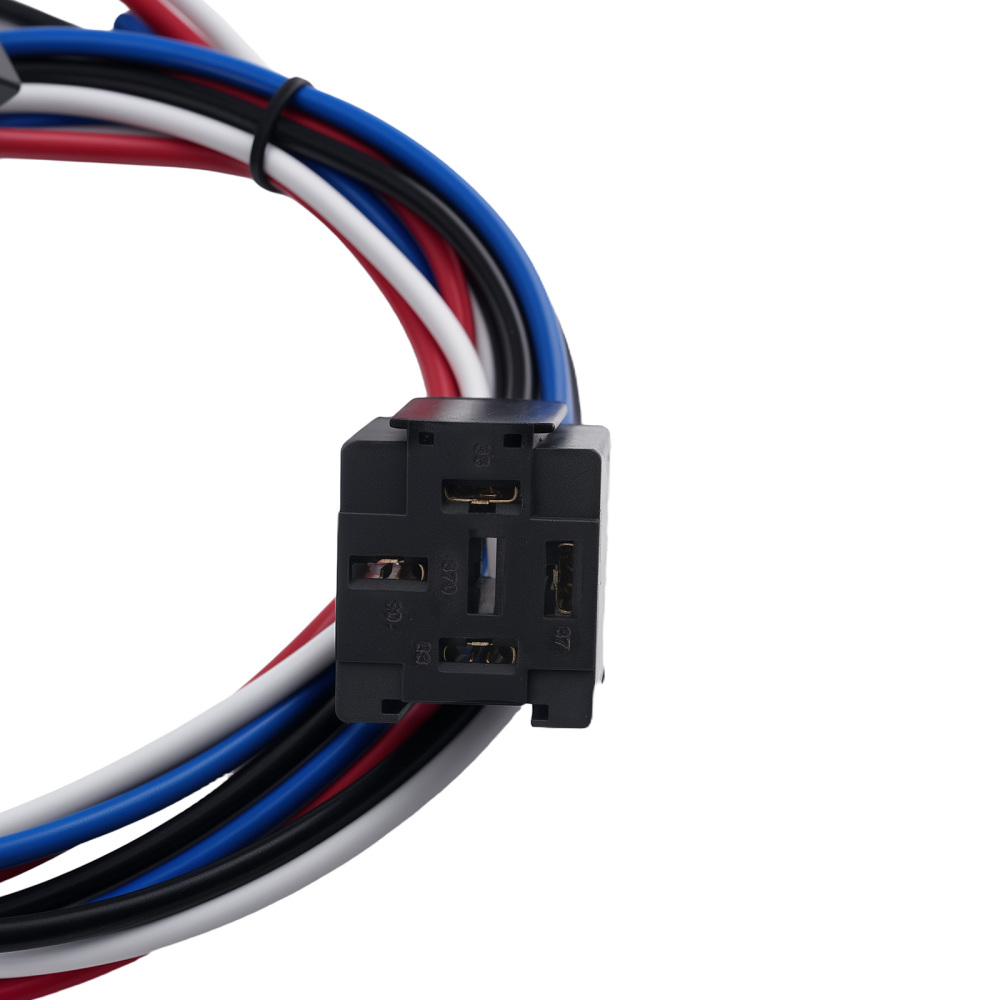

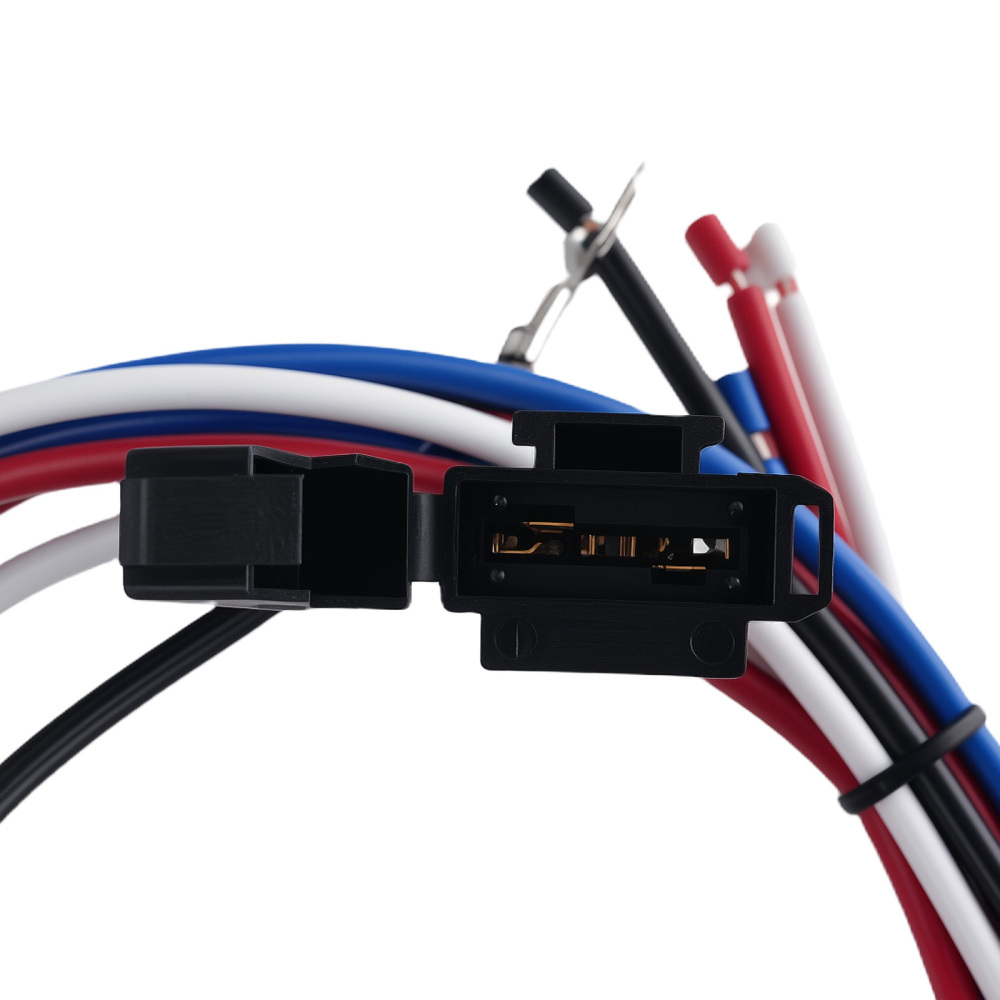

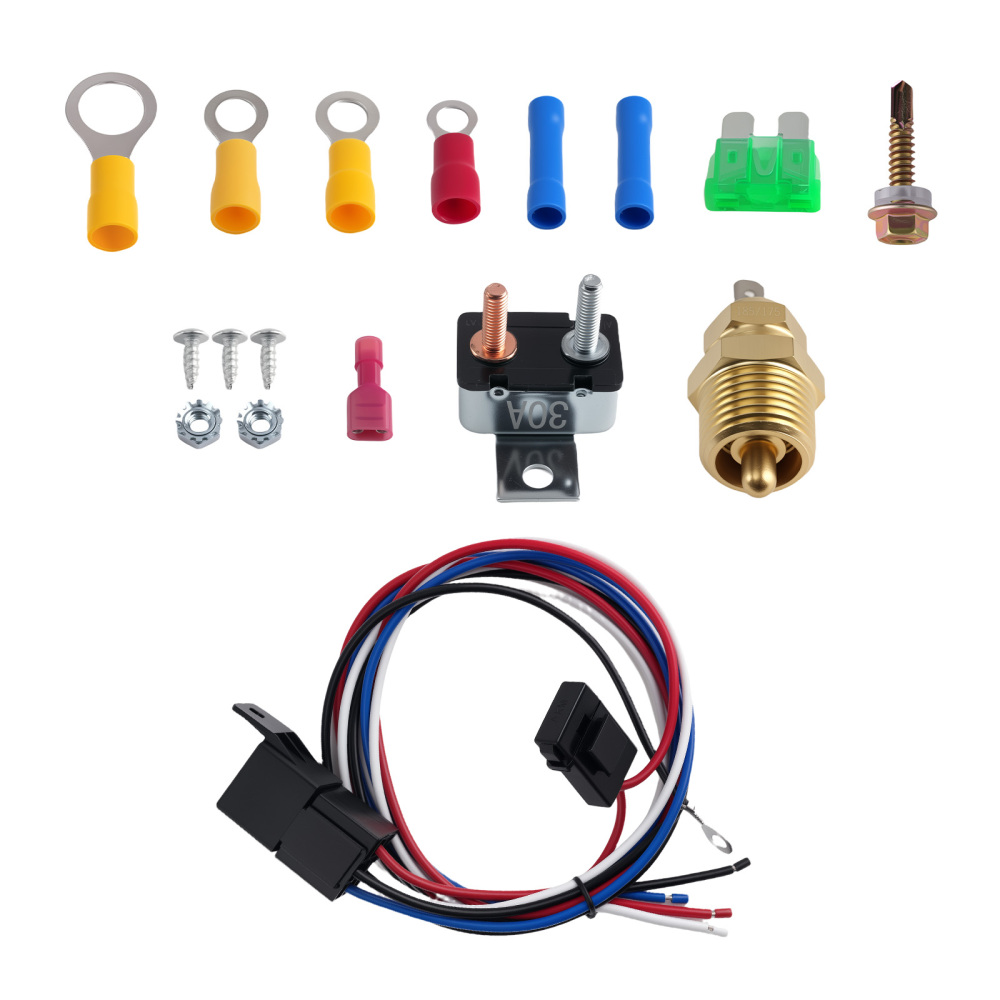

1 X Thermostat Relay Kit (Showing as the picture)

Note

You confirm that you fully understand the r
isks that may arise from the use of this product, a
nd voluntarily assume all consequences and legal
responsibilities arising from the use of this produc
t. You should ensure that the vehicle after installin
g this product complies with relevant national an
d local laws and regulations, and limit the use of t
his product to specific scenarios permitted by law
s and regulations.
