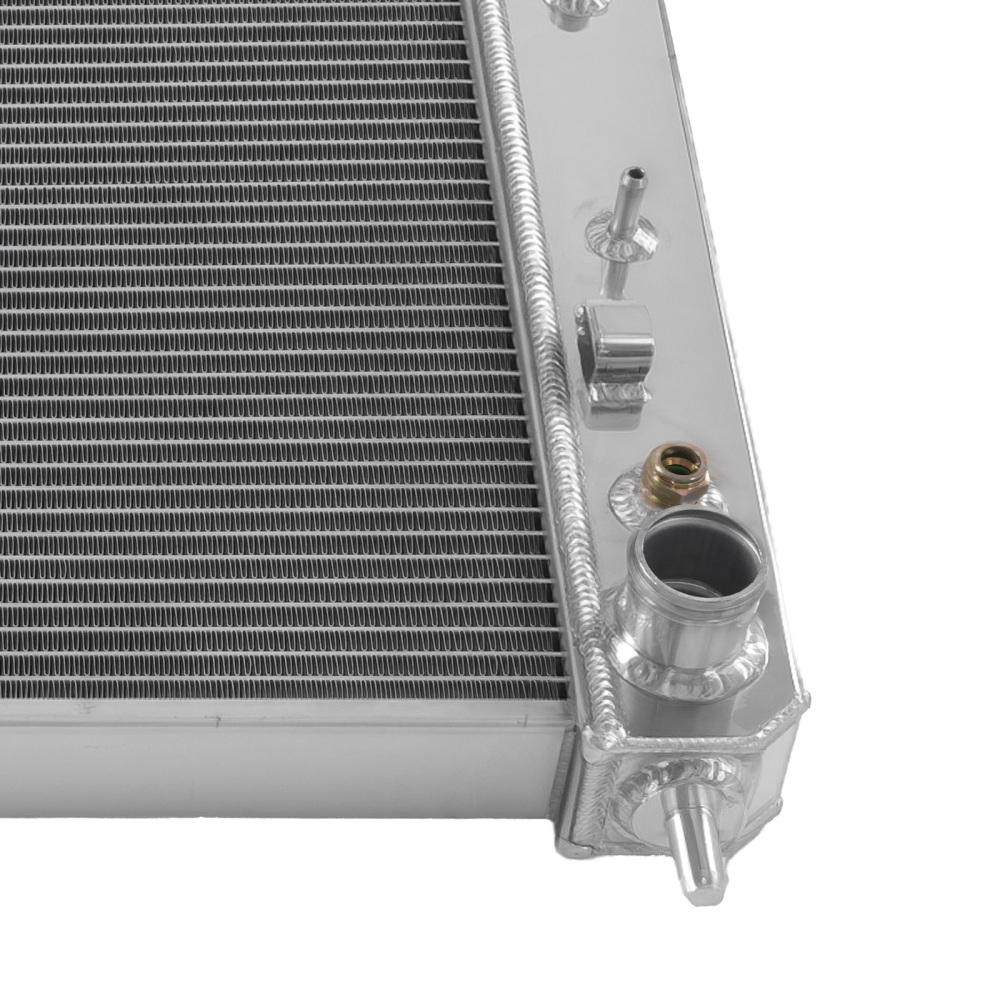

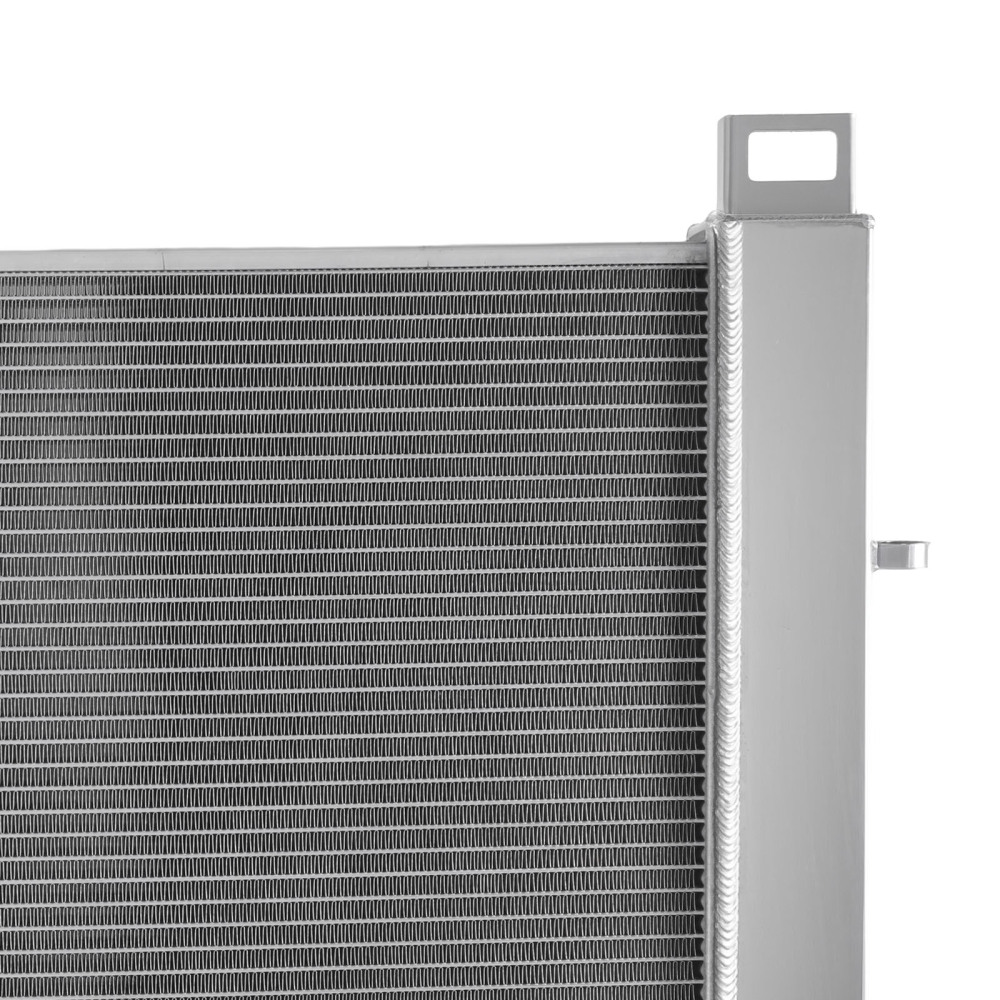

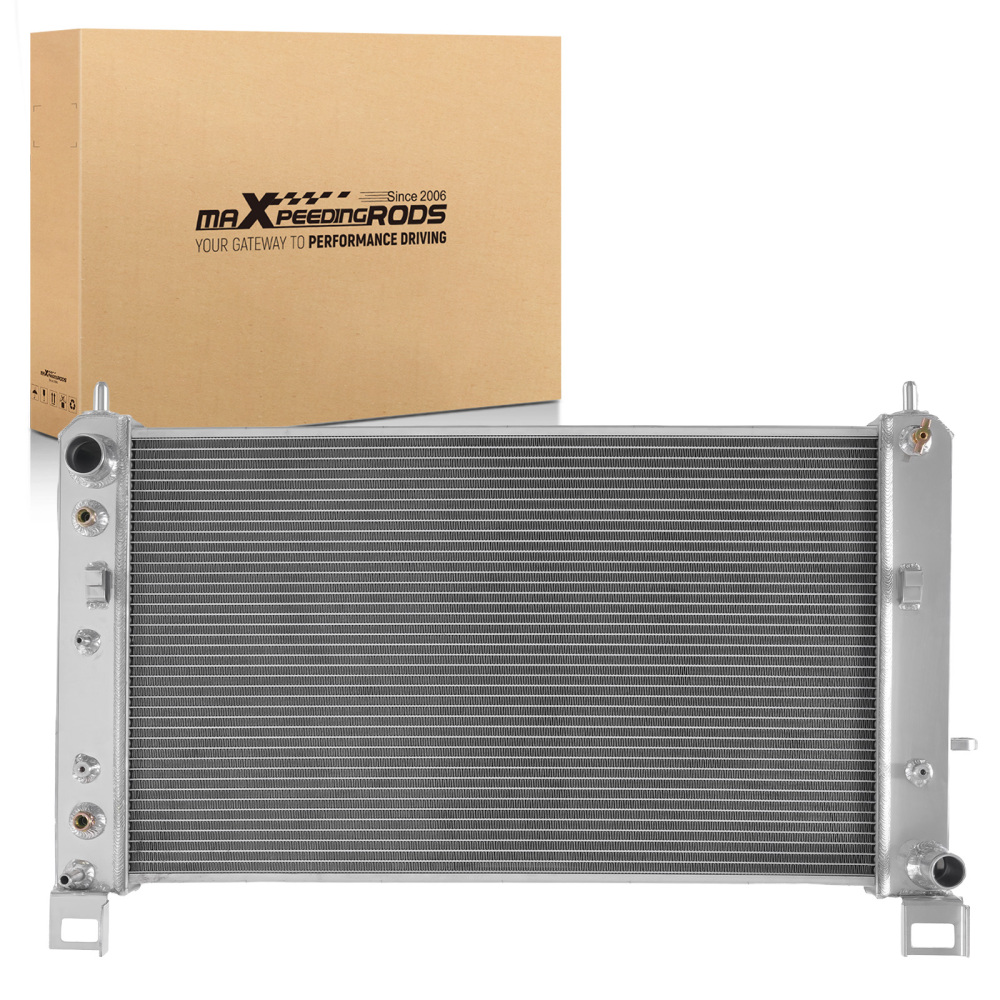

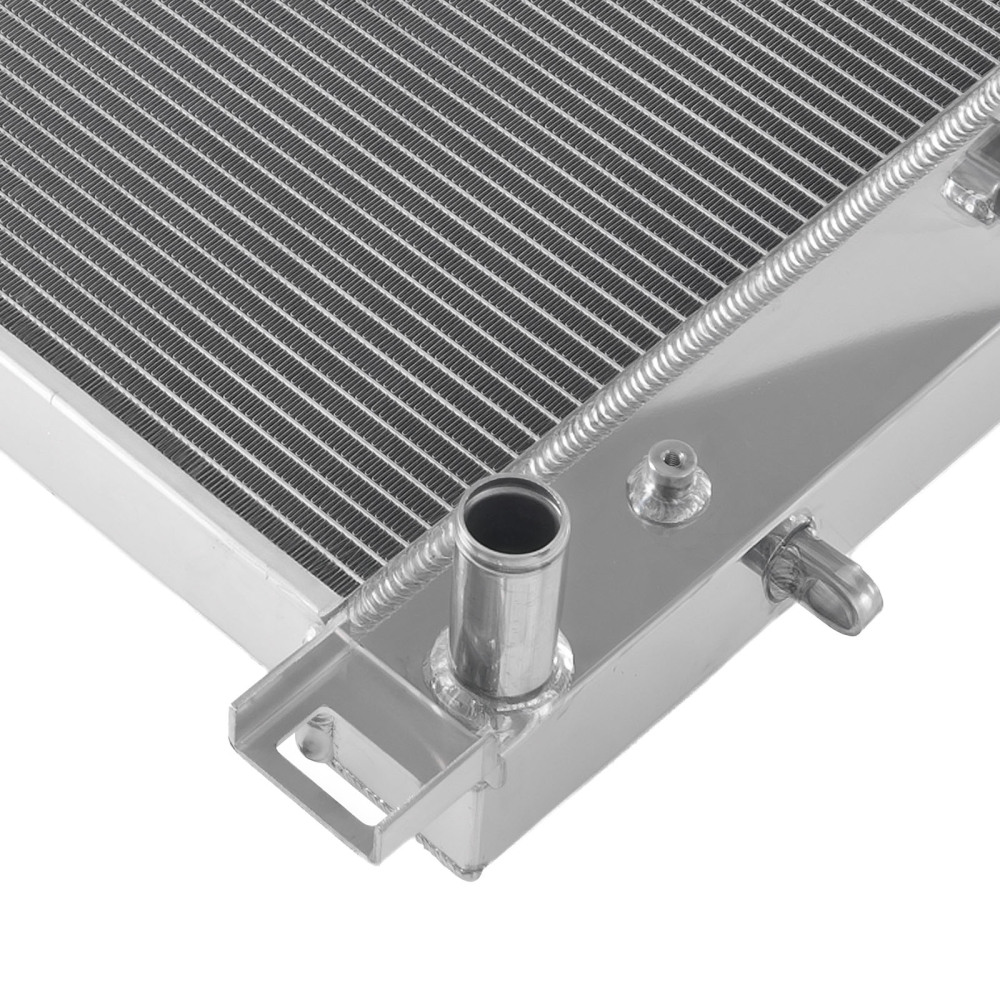

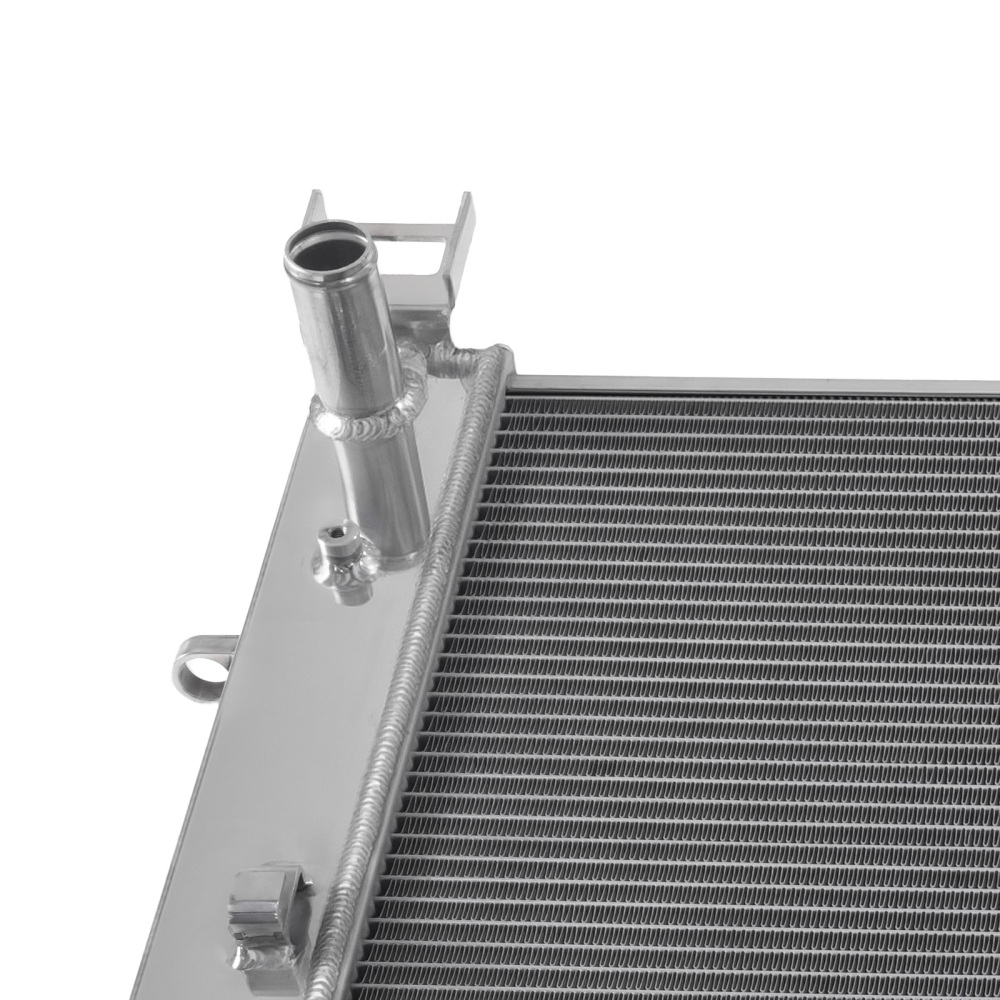

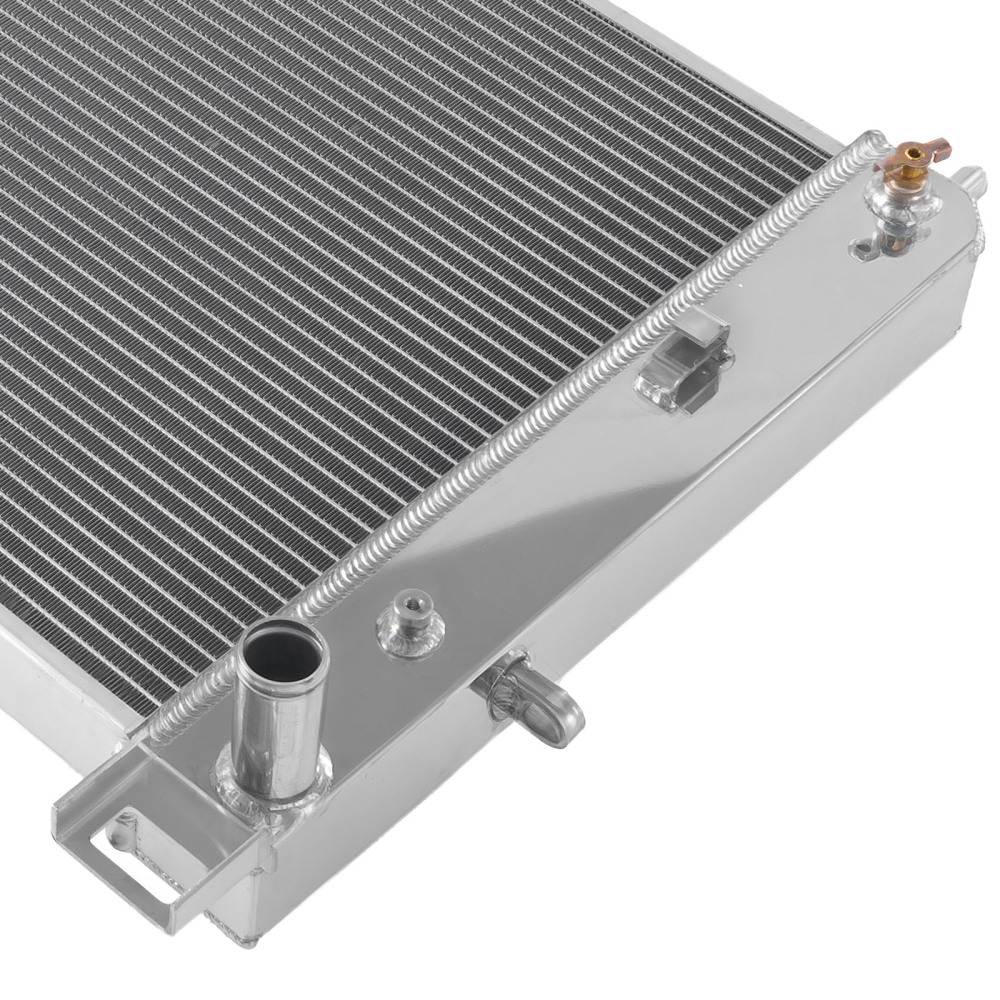

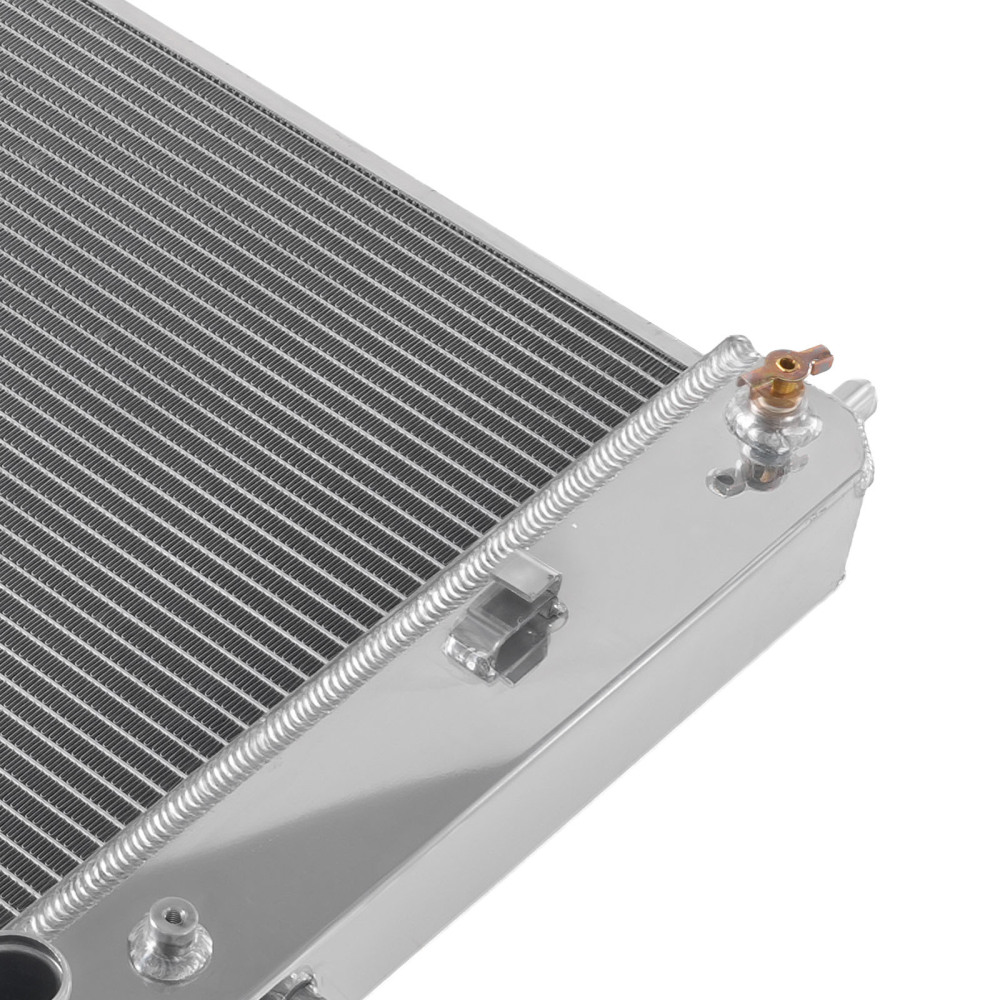

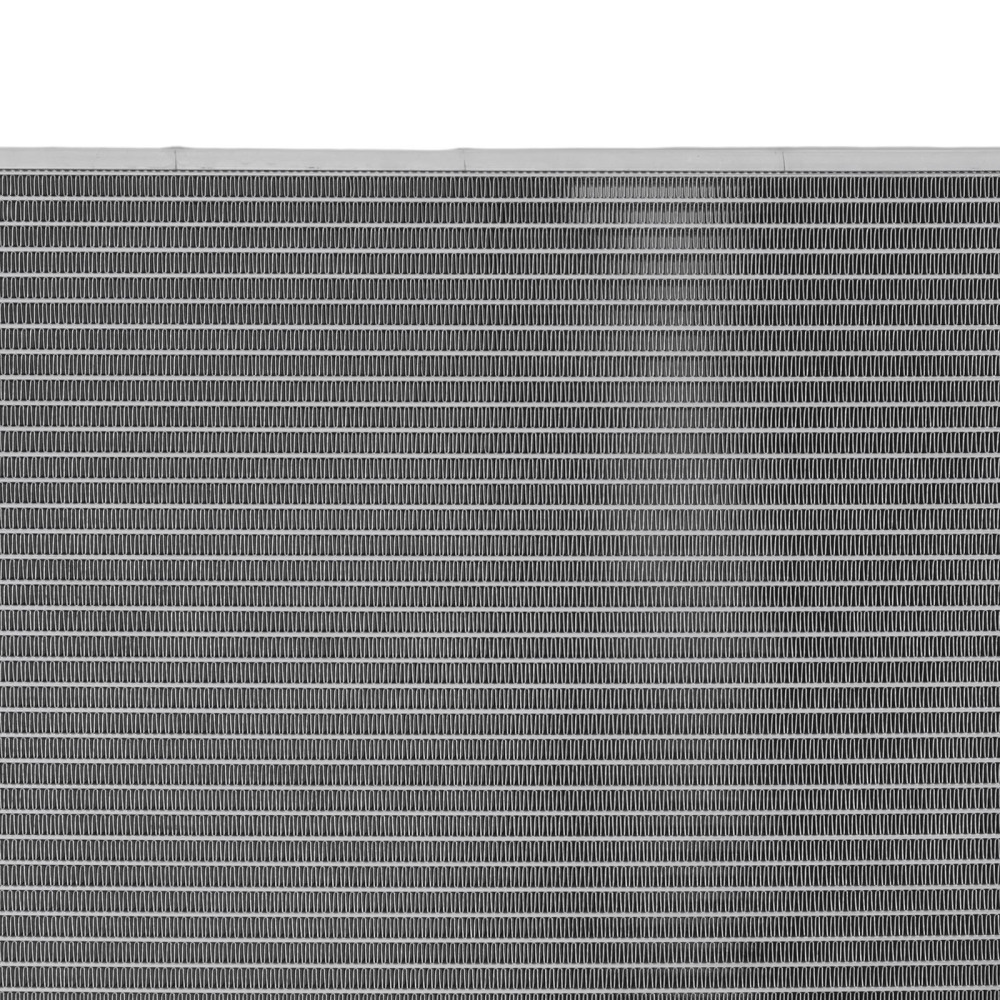

3-Row Aluminum Radiator compatible for Chevrolet Silverado 1500 4.3L 1999-2013 15193110 28

Application

Compatible for Cadillac Escalade 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2002-2005
compatible for Chevrolet Silverado 1500 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated 1999-2013
compatible for Chevrolet Silverado 1500 4.8L 294Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2013
compatible for Chevrolet Silverado 1500 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2013
compatible for Chevrolet Silverado 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2007-2013
compatible for Chevrolet Silverado 2500 4.8L 294Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2000
compatible for Chevrolet Silverado 2500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2008-2011
compatible for Chevrolet Suburban 1500 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 2000-2006
compatible for Chevrolet Suburban 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2000-2006
compatible for Chevrolet Tahoe 4.8L 294Cu. In. V8 GAS OHV Naturally Aspirated 2000-2006
compatible for Chevrolet Tahoe 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 2000-2006
compatible for Chevrolet Tahoe 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2000-2006
compatible for GMC Sierra 1500 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated 1999-2007
compatible for GMC Sierra 1500 4.8L 294Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2007
compatible for GMC Sierra 1500 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2007
compatible for GMC Sierra 1500 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2007-2007
compatible for GMC Sierra 2500 4.8L 294Cu. In. V8 FLEX OHV Naturally Aspirated 1999-2000
compatible for GMC YUKON 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 2000-2006
compatible for GMC YUKON 5.3L 5328CC 325Cu. In. V8 GAS OHV Naturally Aspirated 2000-2006
compatible for GMC YUKON XL 1500 5.3L 5328CC 325Cu. In. V8 FLEX OHV Naturally Aspirated 2000-2006

PLS NOTE:

1. Please make sure that the length of this Radiator core (Between Tanks) is 28" (NOT FOR 34").

2. ONE side have Oil Cooler. WITH Transmission Oil Cooler (NO Engine Oil Cooler)

OE/Part number

15193110,2334,52484047,52486598,CU2334,GM3010436,Q2334,RAD2334,

Specification

Core Material：Aluminum
Tank Material：Aluminum
Core Size：28.26x17.24x1.73in
Inlet Diameter：Φ33
Inlet Location：Top Left
Outlet Diameter：Φ40
Outlet Location：Bottom Right
Core Row Quantity：3
Down Flow Or Cross Flow Type：Cross flow
Engine Oil Cooler Included：No
Transmission Oil Cooler Included：Yes
Transmission Type：AT

Package included

1 x 3-Row Aluminum Radiator
Showing as the picture

Feature

1.Upgraded Protection Packaging
Premium reinforced shell and advanced packaging ensure maximum durability and reduce transit damage.

2.Advanced Cooling Technology
Aluminum construction offers expansive heat-dissipation surfaces, while foldededge diffuser tape enhances airflow for superior thermal performance.

3.Precision Leak-Proof Design
Engineered with high-precision manufacturing to eliminate leakage risk, ensuring reliable long-term operation.

4.Easy Installation
Our radiator is designed to be installed quickly and effortlessly, saving your time and effort.
