3" Lift Kit compatible for Honda Element 2003-2011 Steel Front Rear Spacers Hardware

Application

for all 2003–2011 compatible for Honda Element models (LX, EX, SC)

Specification

product type: lift spacer kit
lift height: 3"
material：High Tensile Strength Carbon Steel
finish: powder coated

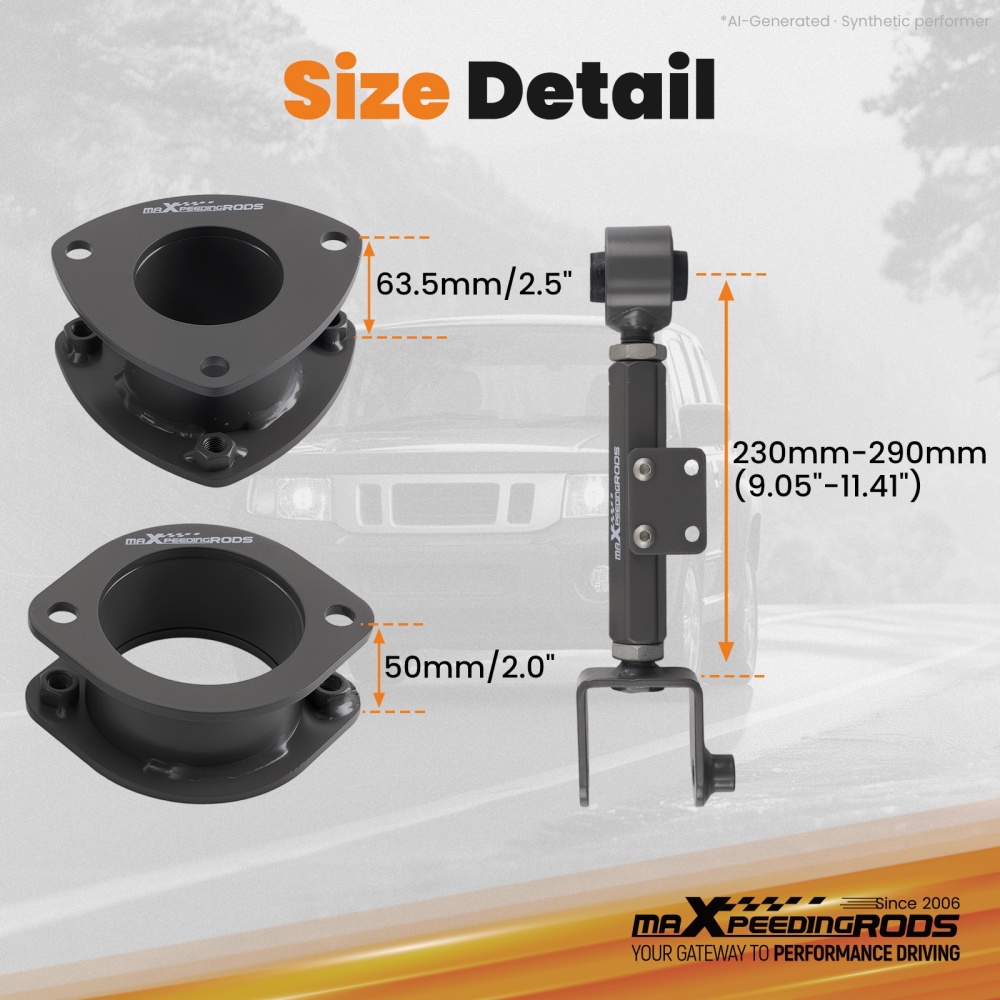

spacer thickness：F 63.5mm/2.5"，R 50mm/2.0"

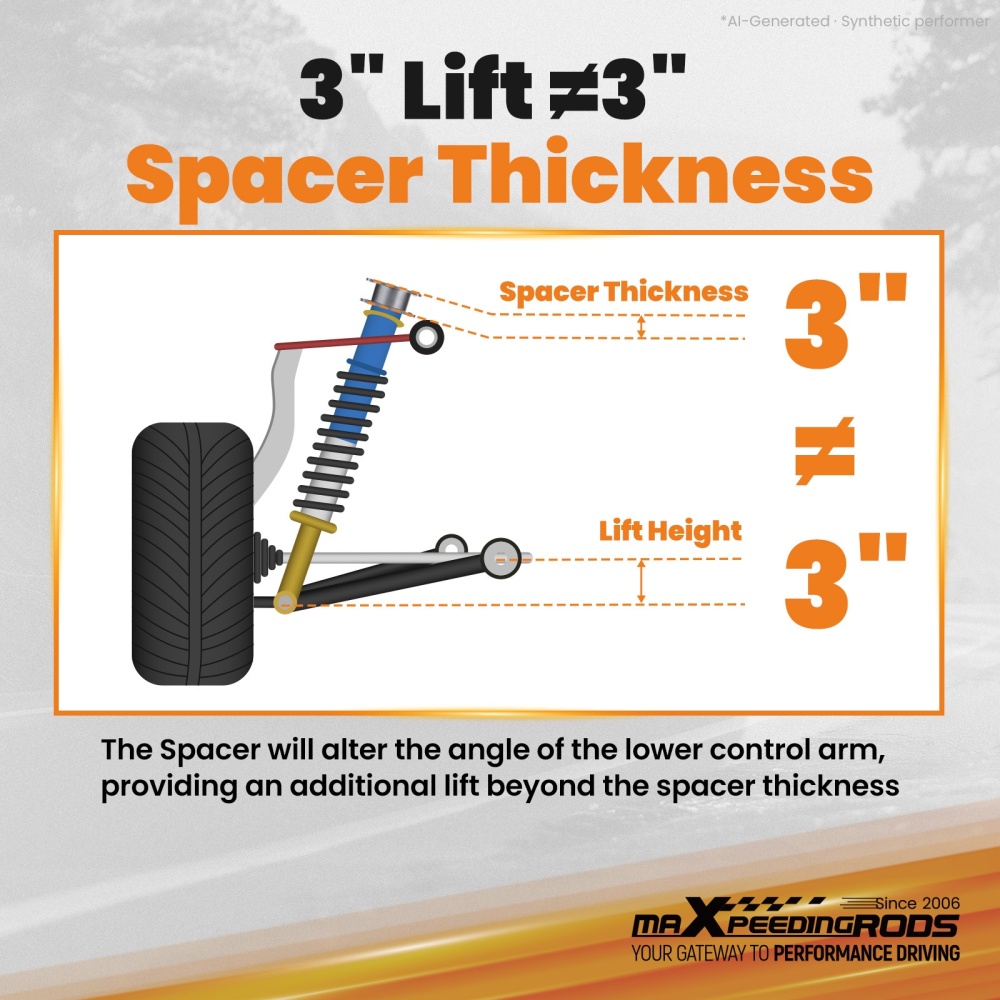

NOTE: the ratio between spacer thickness and the final lift height not always 1:1 due to the suspension geometry.

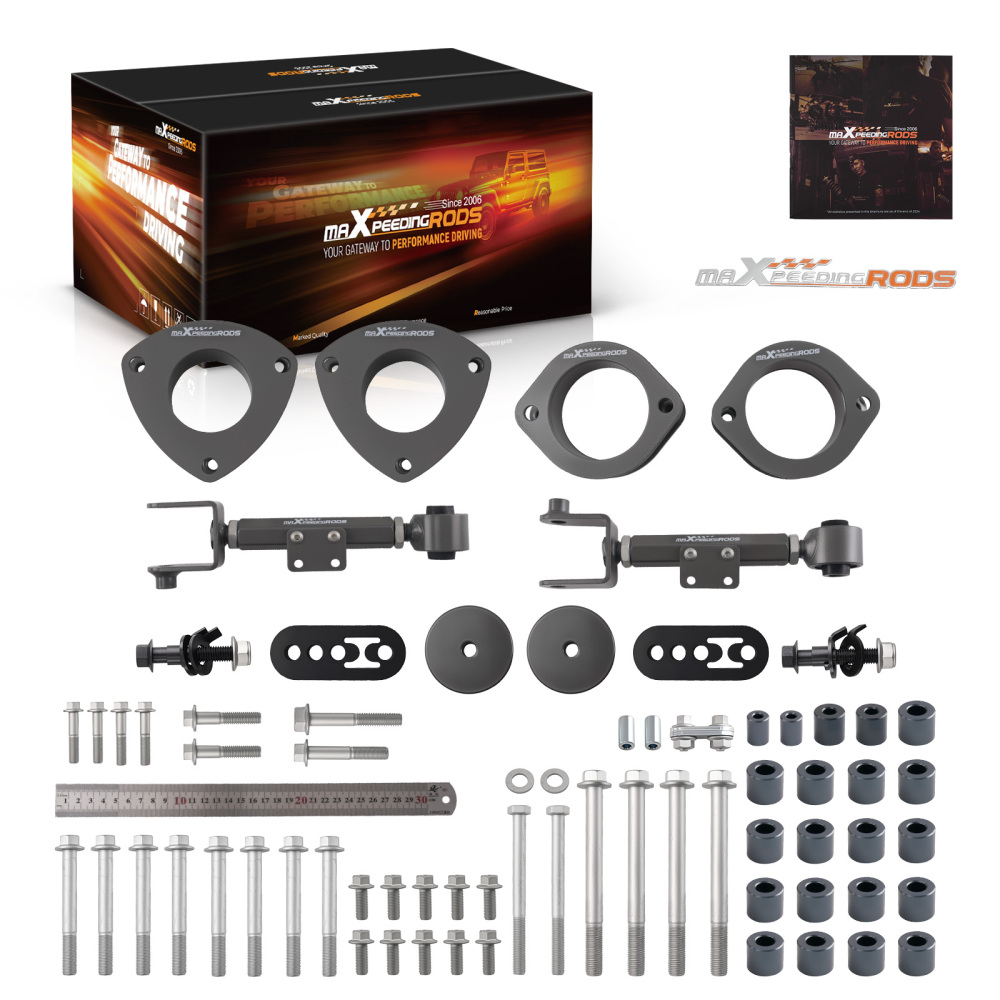

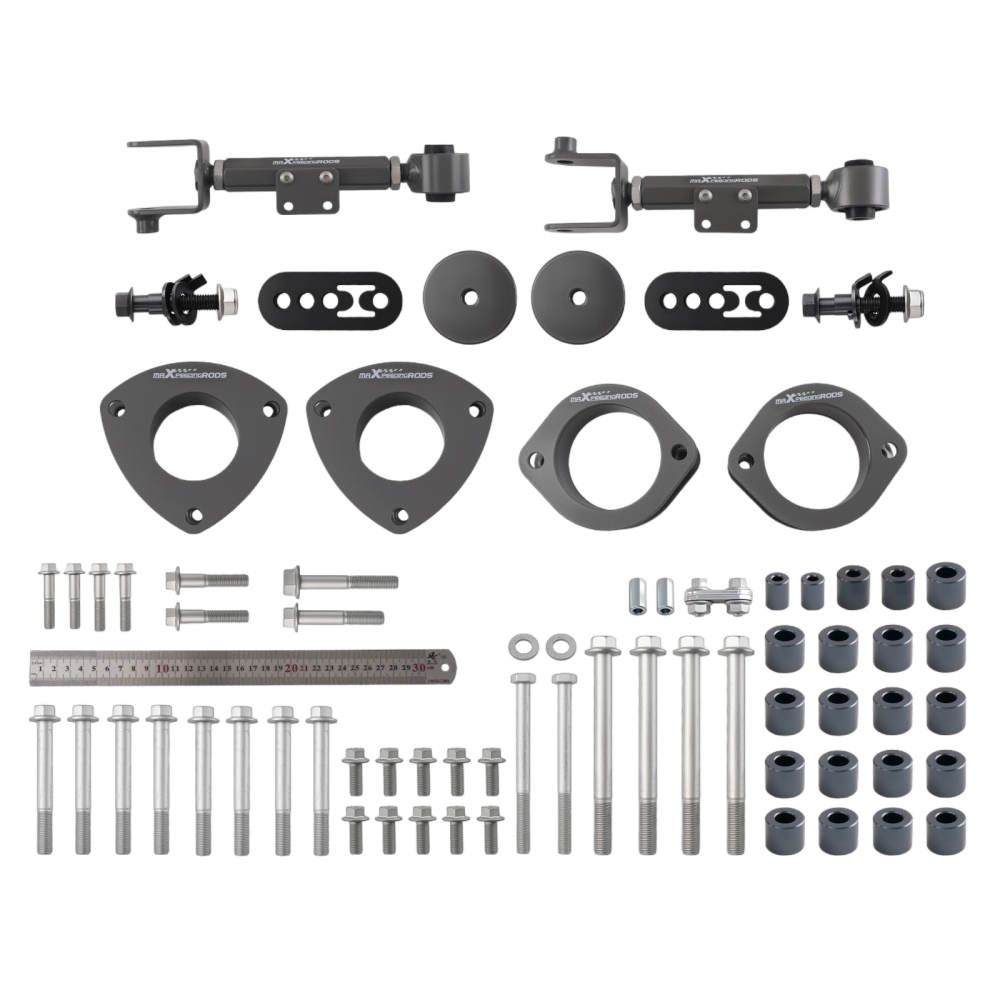

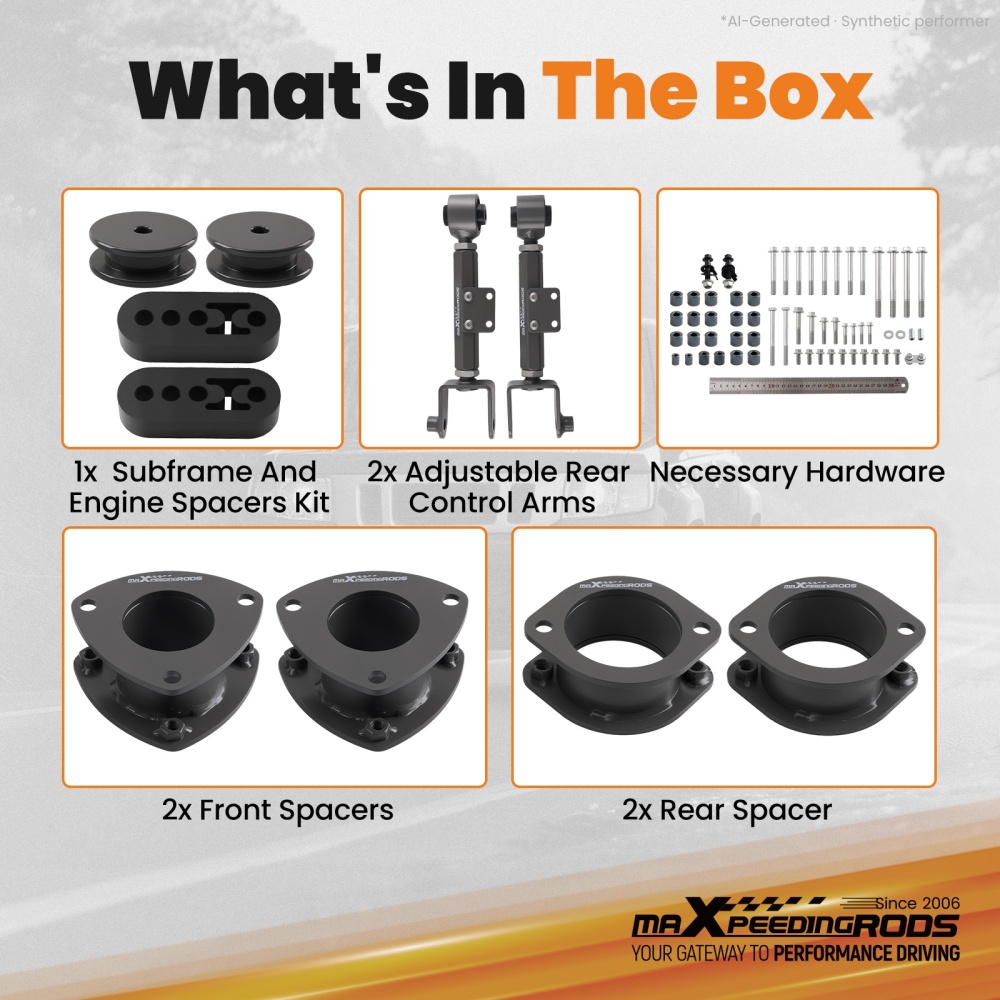

Package included

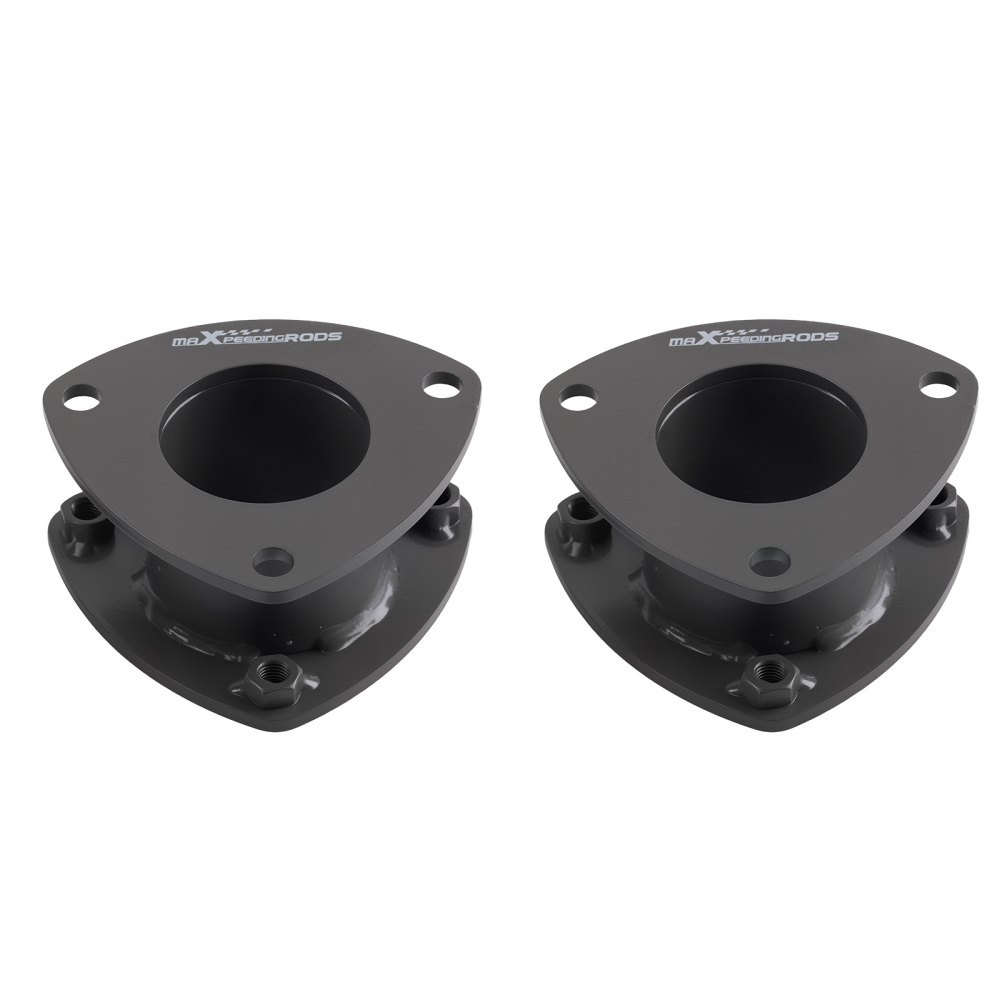

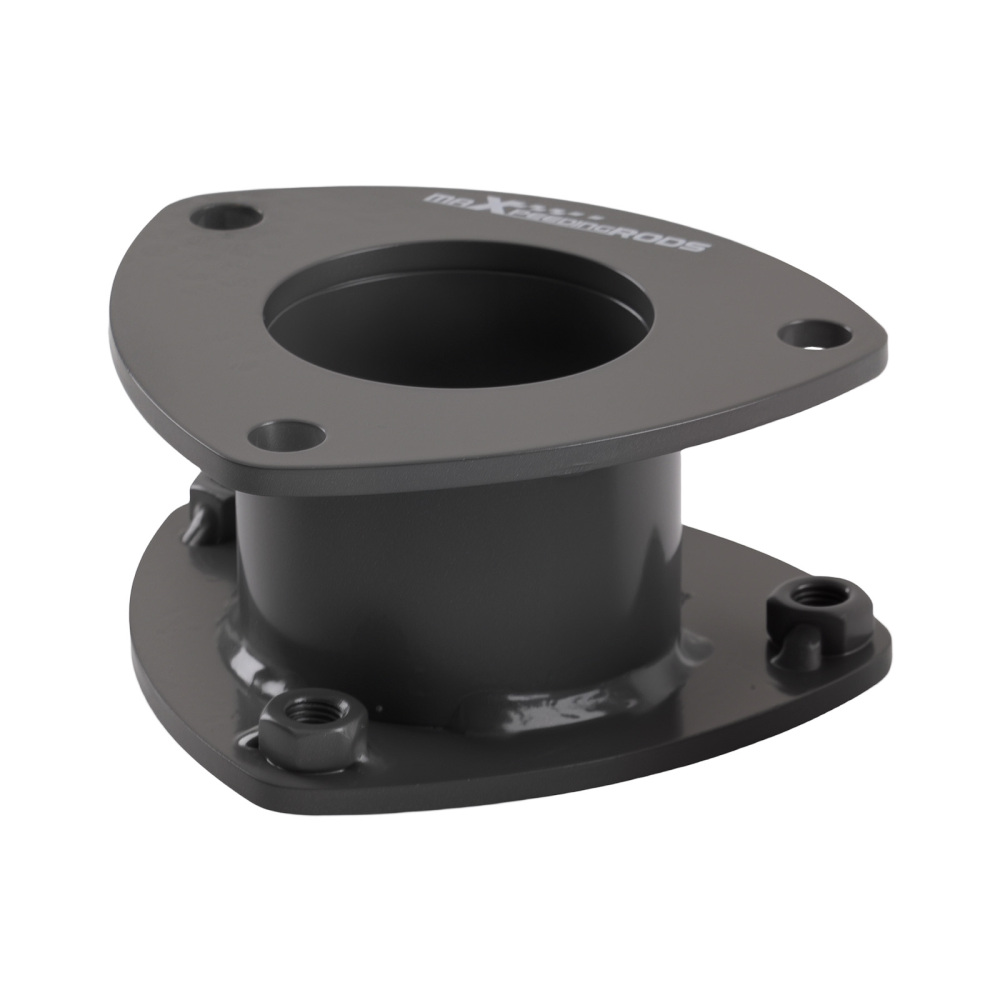

2x front spacers

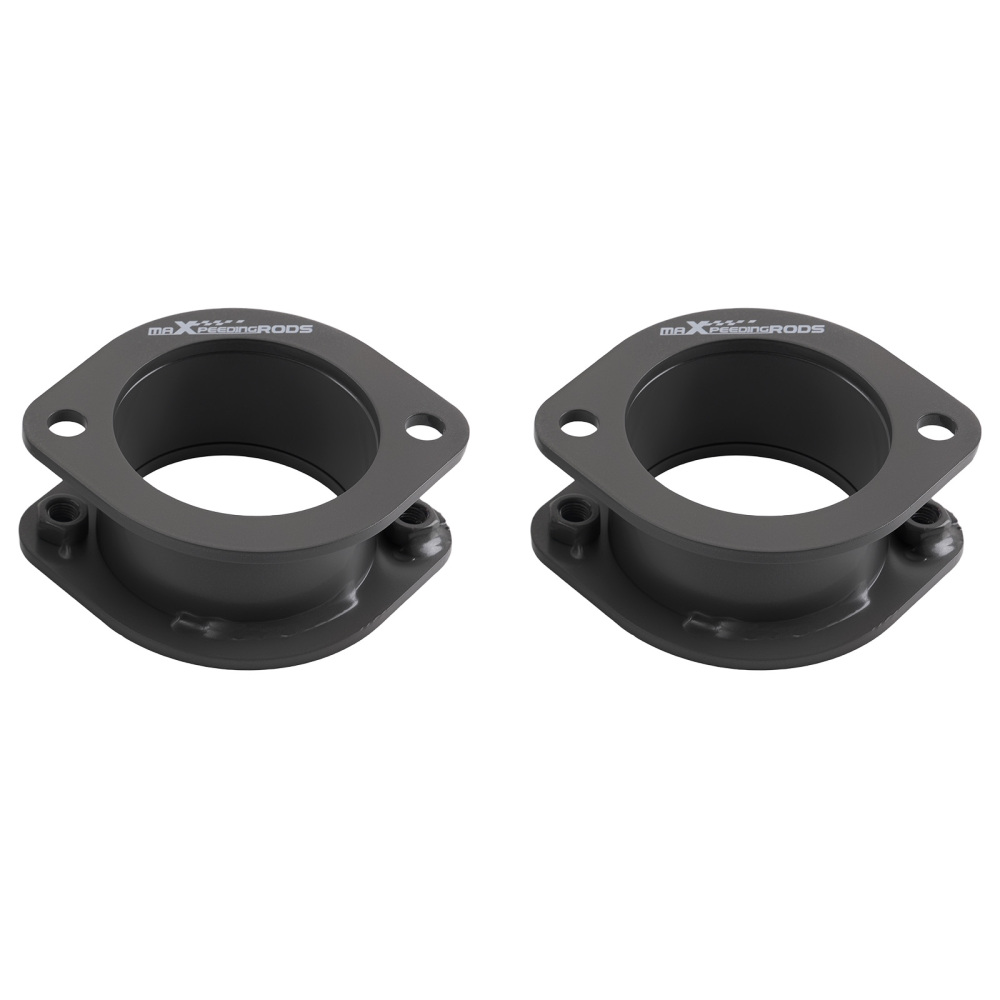

2x rear spacers
2x adjustable rear control arms with eye to eye length range 230mm-290mm(9.05"-11.41")
2x front camber adjustable bolts
2x trailing arm spacers
1x subframe and engine spacers kit
Extended exhaust hangers
necessary hardware

Feature

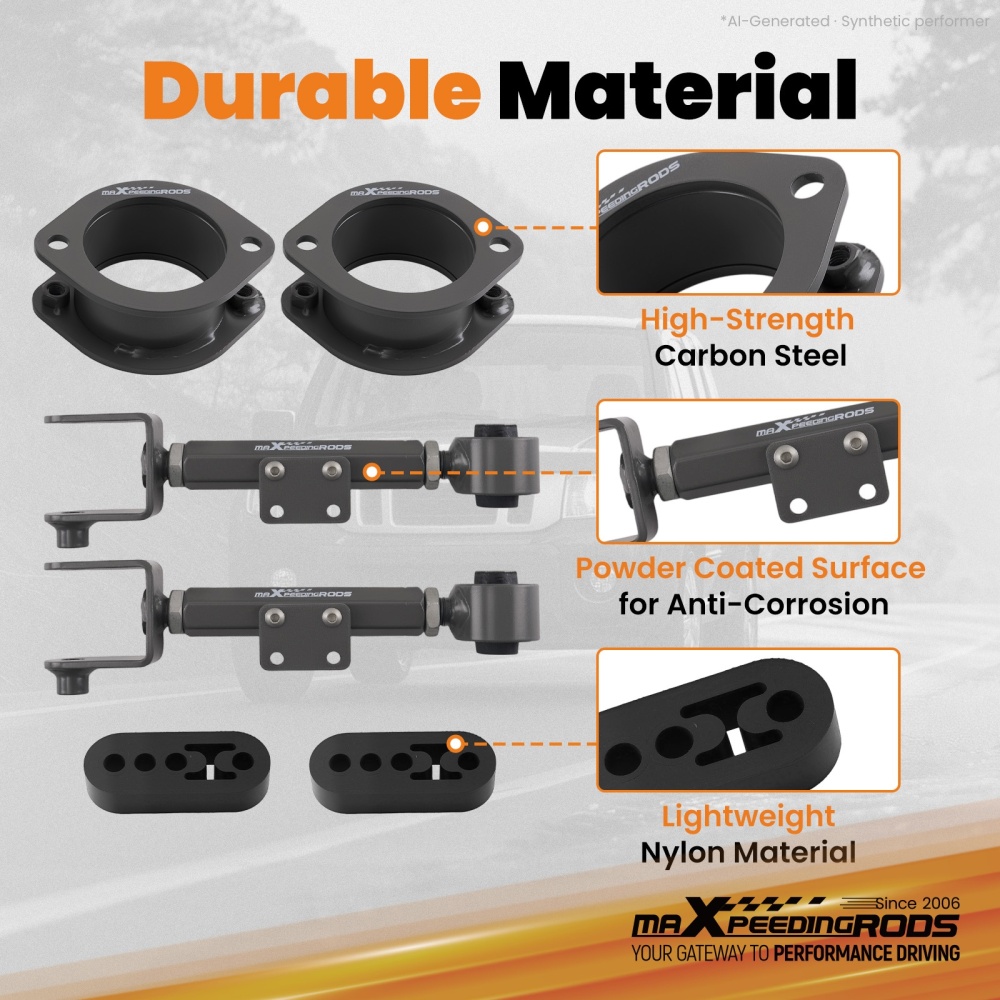

High Tensile Strength Carbon Steel for optimal durability and fitment.
Powder coated surface provides superior corrosion resistance.
Precision cutting and welding.
Front camber bolts and rear camber arms included to adjust the angle.
Grade 10.9 bolts for safer connection.
Improve the appearance of your vehicle and accommodate larger tire and wheel setups.
Maintain factory ride quality.

tire size

Recommended Tire Size:
Stock 15″ wheels: 205/70/15 (26.3″) or 215/65/16 (26.4″)
205/75/15 (27.0″)
225/70/15 (27.4″)
215/75/15 (27.7″)
225/75/15 (28.2″)
235/75/15 (28.8″)
30×9.50R15 (30.0″)16″ wheels
215/70/16 (27.8″)235/70/16 (28.9″)
225/75/16 (29.2″)
235/75/16 (29.8″)
255/70/16 (30.0″)

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
