2.5 Suspension Lift Kit compatible for Jeep Wrangler/Unlimited/Rubicon 4WD 1997-2006

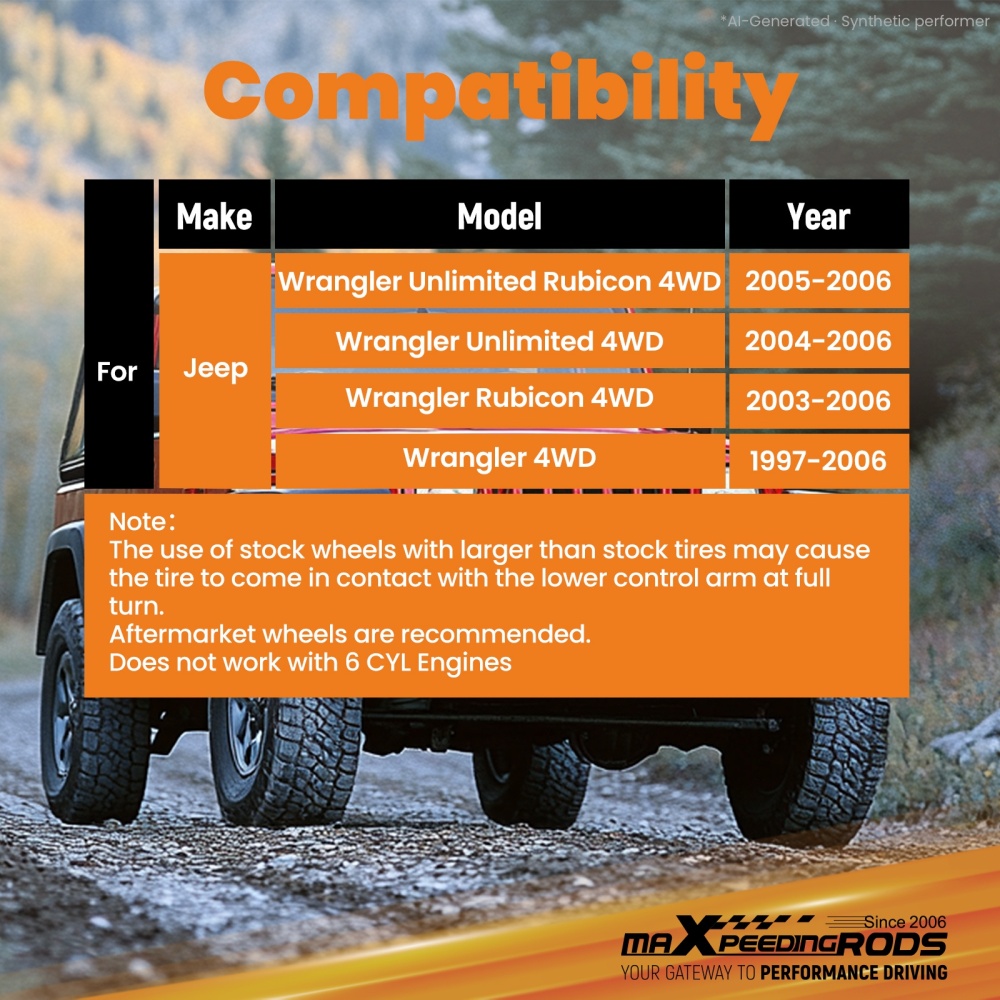

Application

For 2005 - 2006 compatible for Jeep Wrangler Unlimited Rubicon 4WD
For 2004 - 2006 compatible for Jeep Wrangler Unlimited 4WD
For 2003 - 2006 compatible for Jeep Wrangler Rubicon 4WD
For 1997 - 2006 compatible for Jeep Wrangler 4WD
Note：
The use of stock wheels with larger than stock tires may cause the tire to come in contact with the lower control arm at full turn.
Aftermarket wheels are recommended.
Does not work with 6 CYL Engines

Specification

Product Type: Lift Shock Kit
Lift Height: F&R: 2.5"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 35mm/1.37"
Outer cylinder diameter: F&R 54mm/2.12"

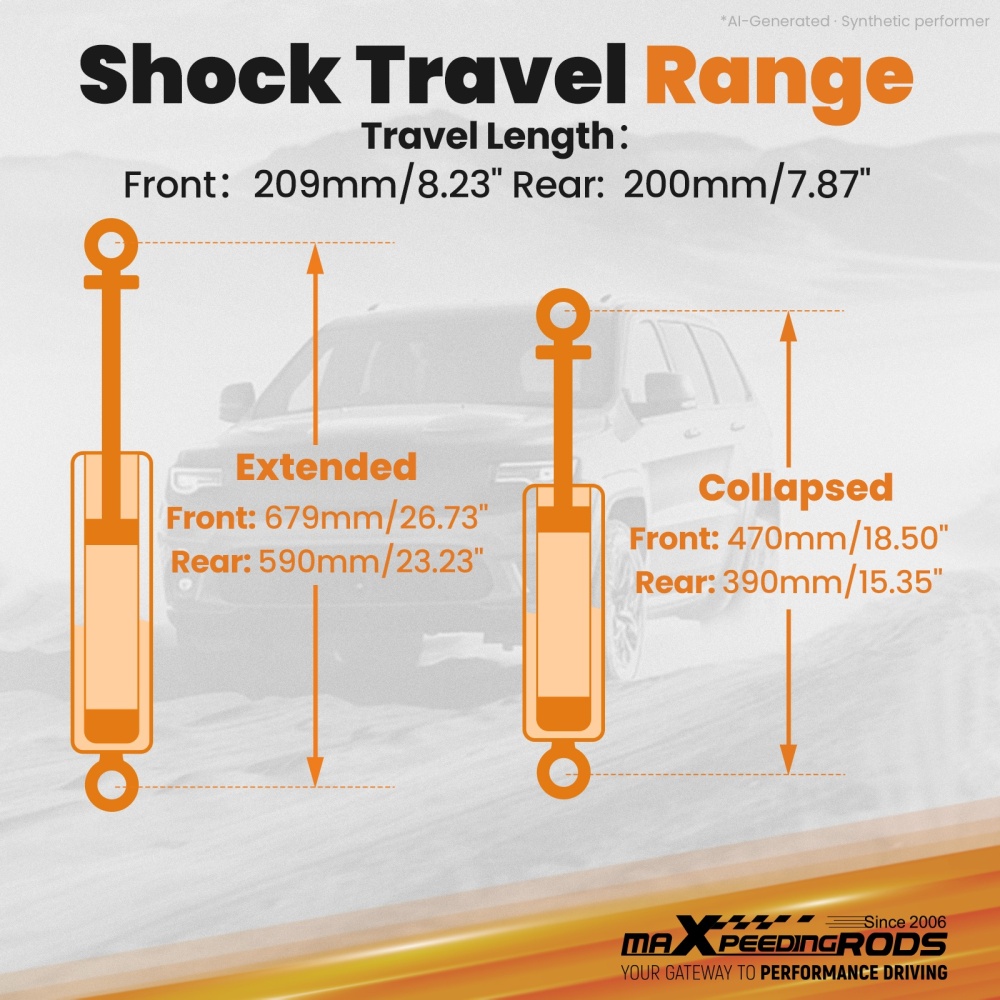

Travel: F: 209mm / 8.23" R: 200mm/7.87"
Extended Length: F: 679mm/26.73: R: 590mm/23.23"
Collapsed Length:F: 470mm/18.50" R: 390mm/15.35"
Nitrogen charged：Yes
Dust Cover Equipped: Yes

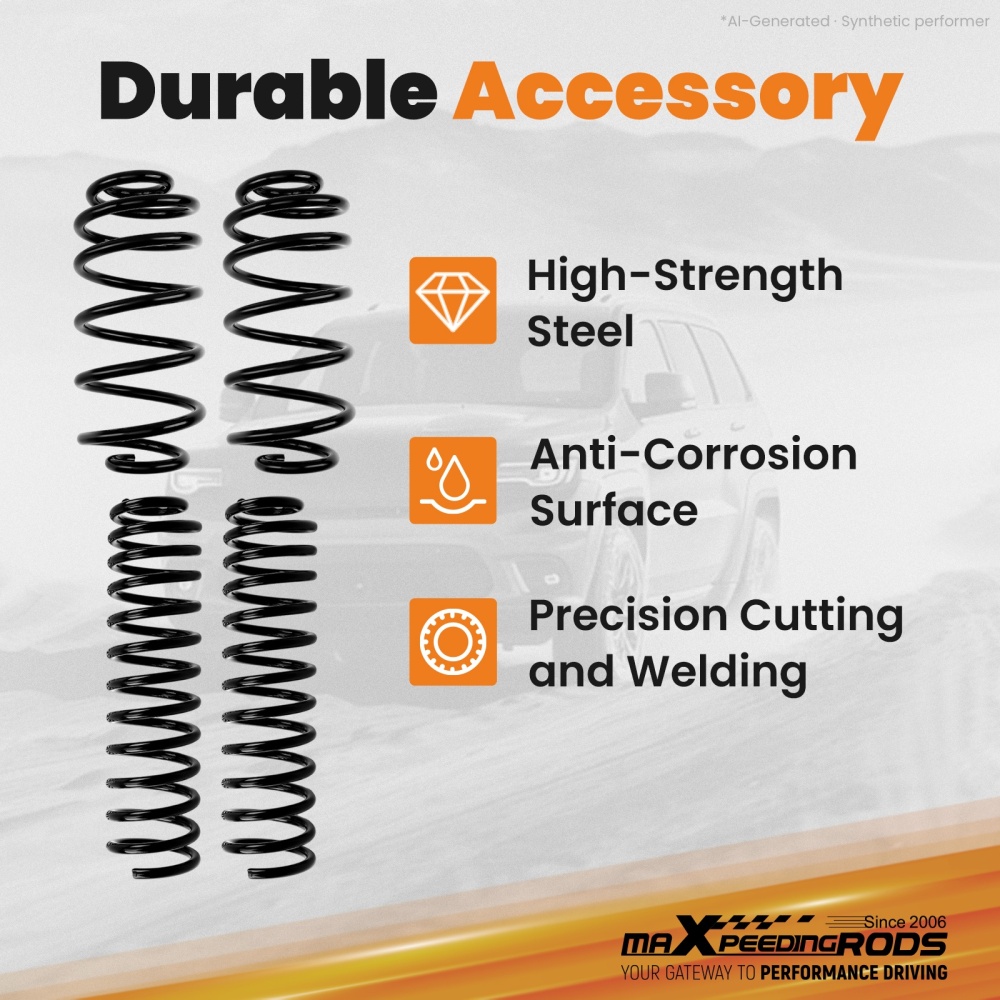

Material: 55CrSi Steel
Finish: Powder Coated
Spring Rate: F: 168 lb/in = 3 kg/mm R: 112 lb/in = 2 kg/mm
Spring Length: F: 505mm/19.88" R: 391mm/15.39"
Spring Inner Diameter：F:61.5-10mm/2.421"-3.98" R:67.5mm/2.66"
Spring Wire Diameter：F:13.8mm/0.54" R:15.4mm/0.61"
Spring Tensile Strength：1500-1700MPA

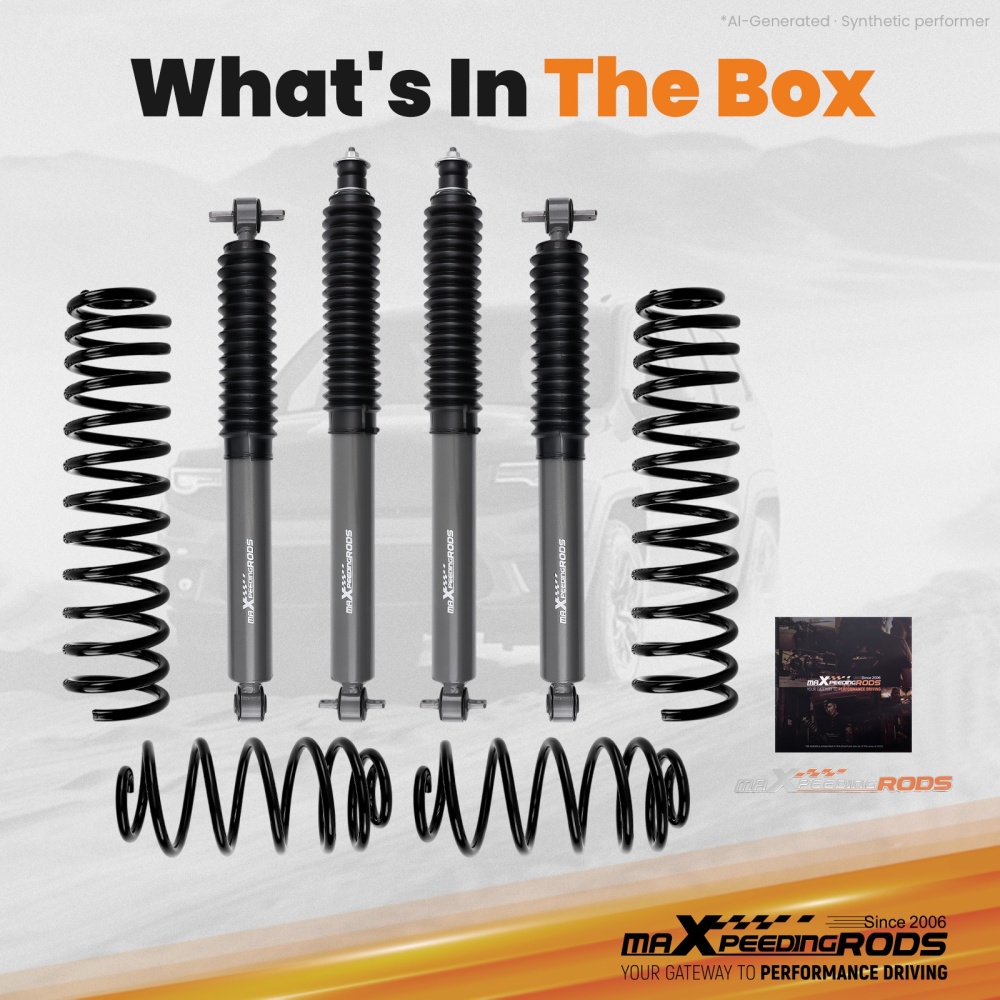

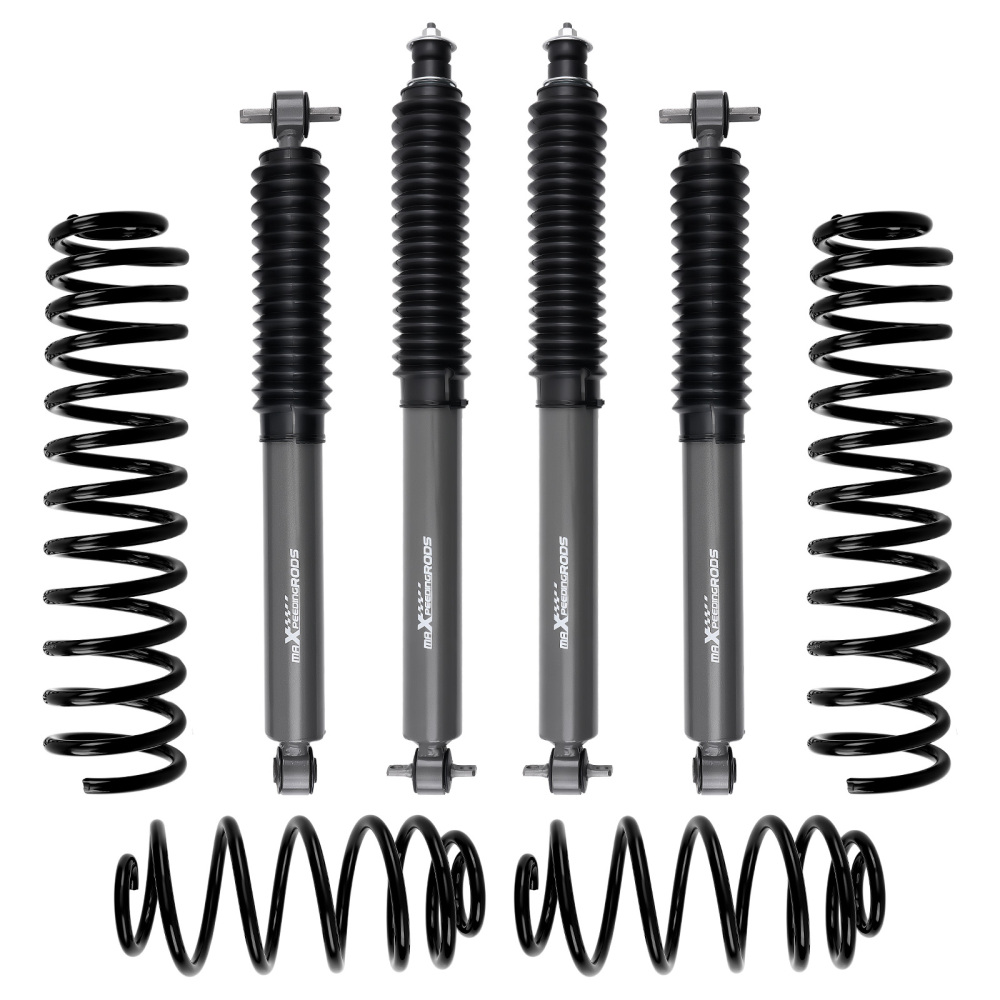

Package included

Front:
Front coil springs x 2

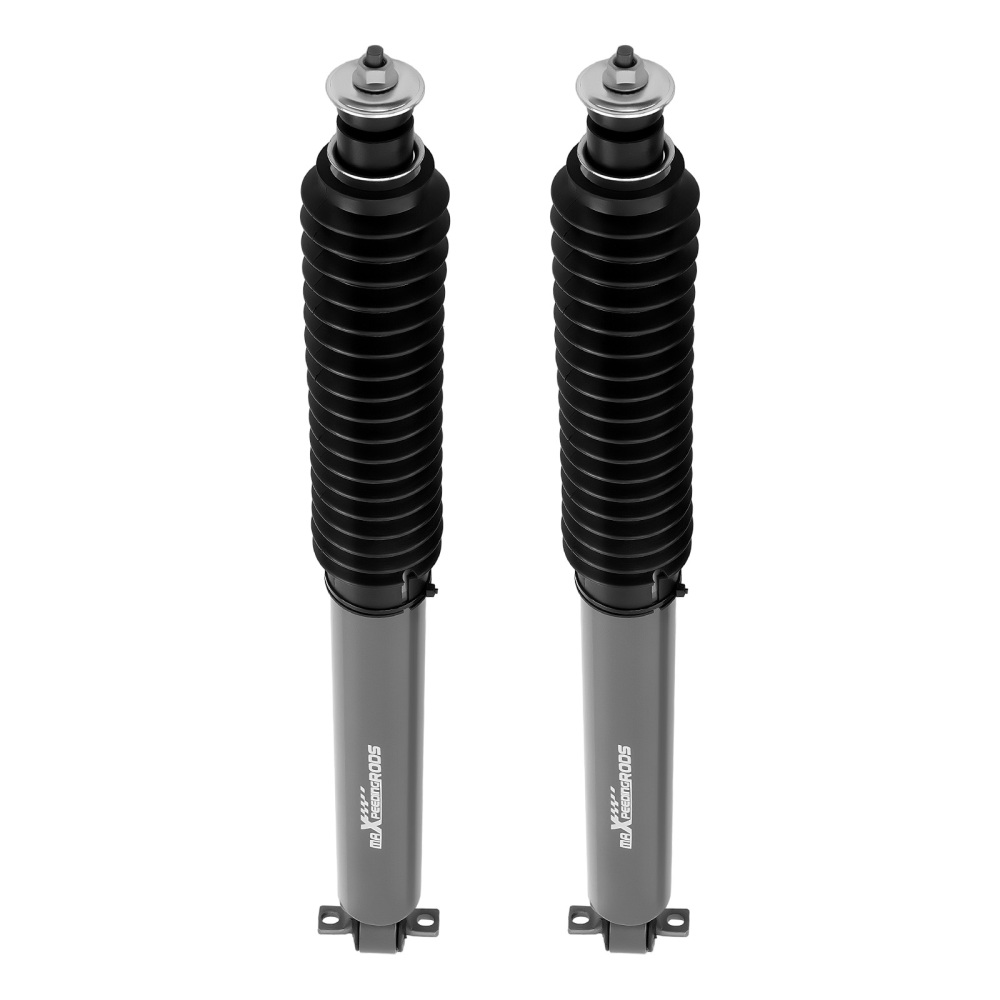

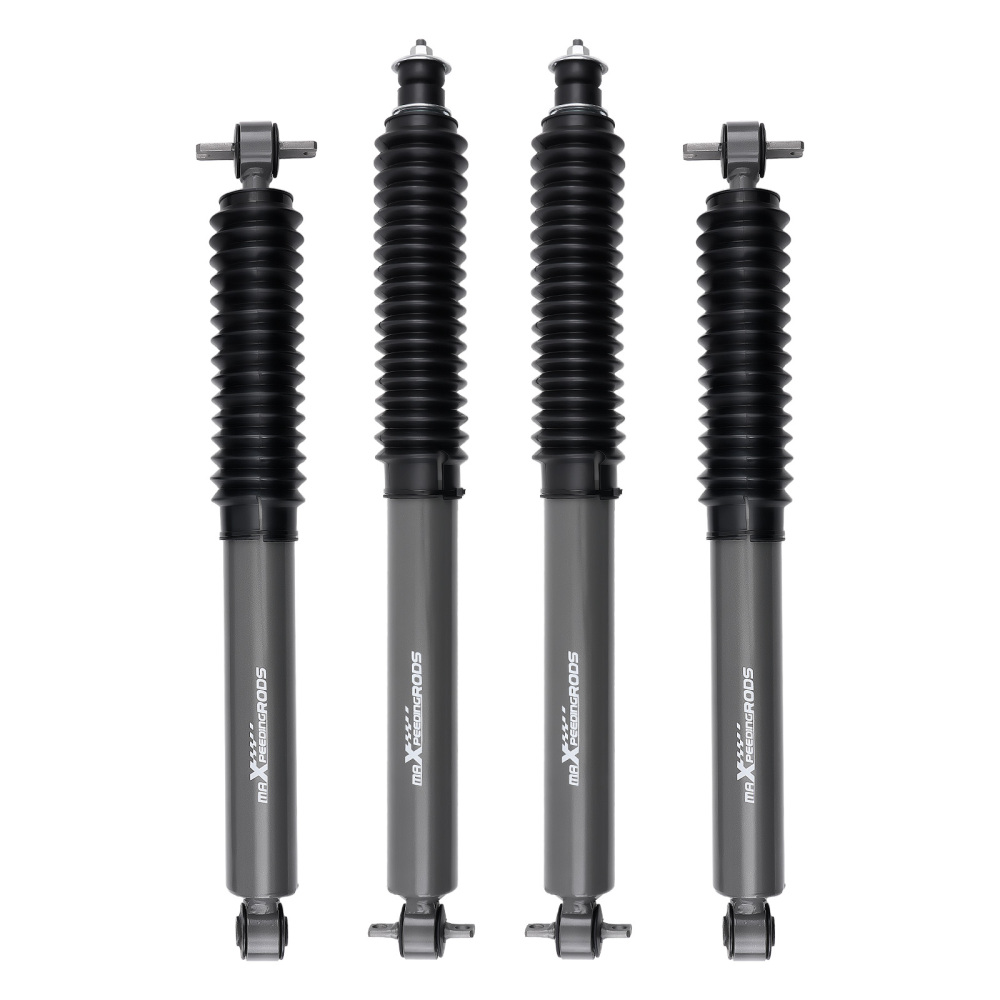

Front Shock x 2
Rear:
Rear coil springs x 2

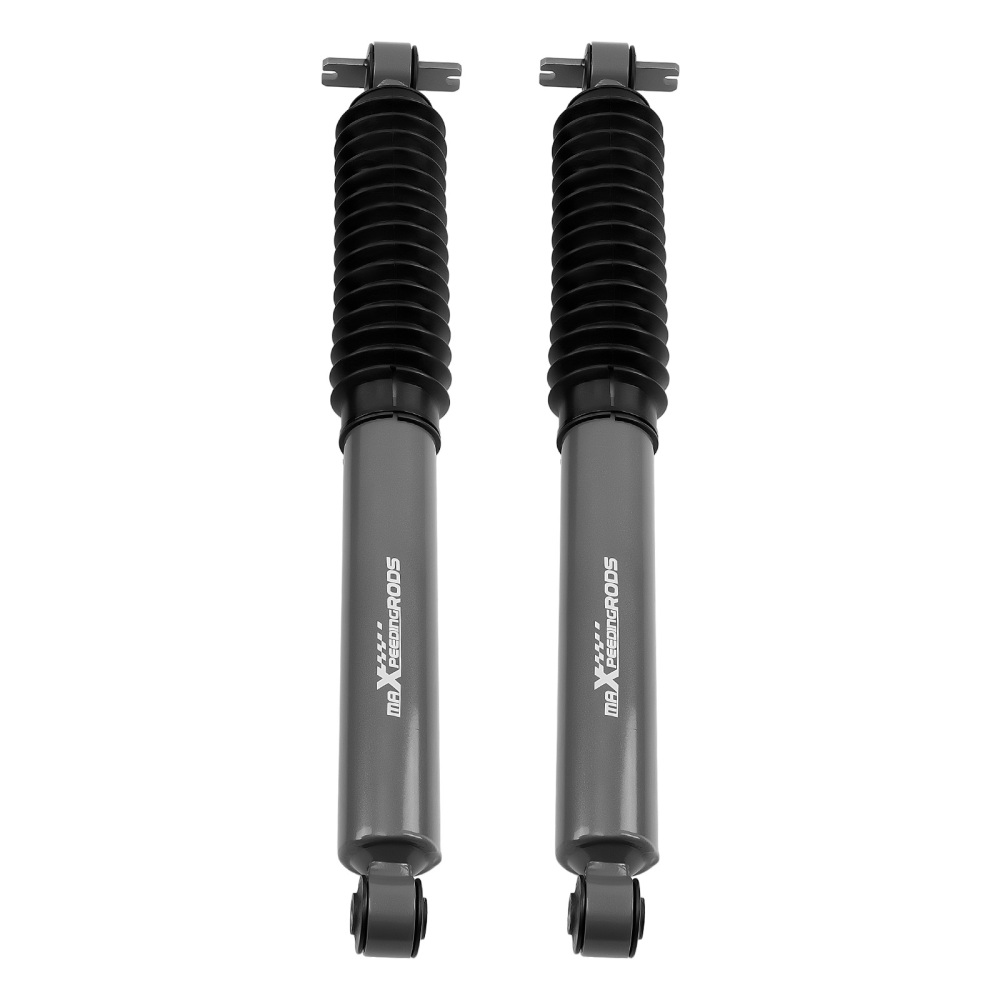

Rear Shock x 2

Feature

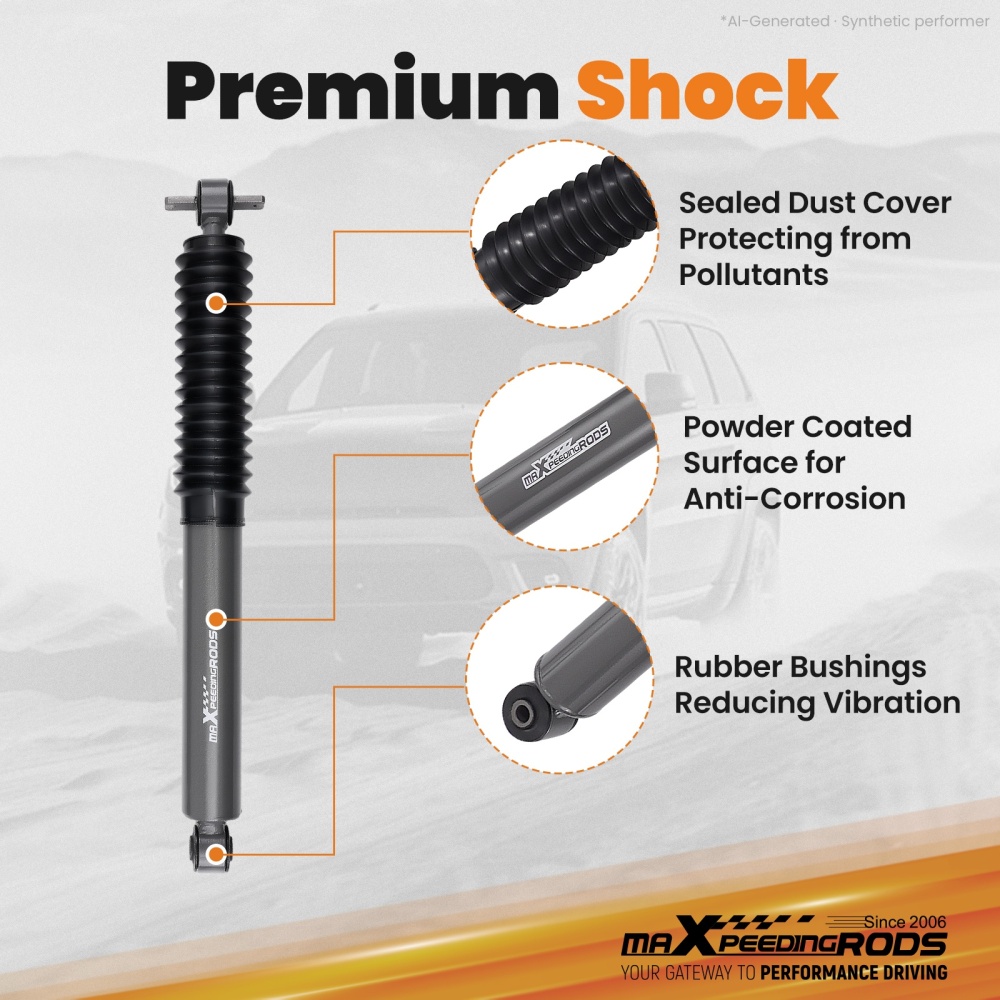

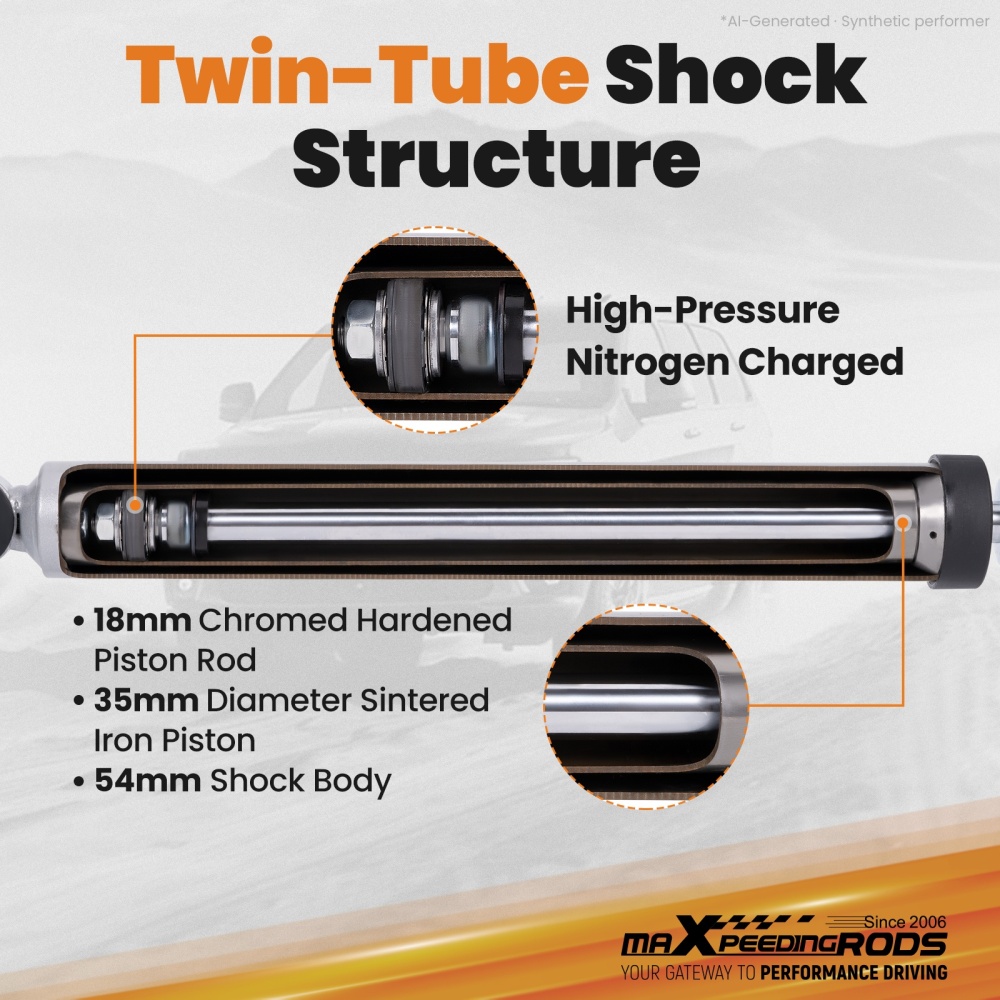

-High-pressure nitrogen charged twin-tube shock absorber with high durability.
-Rubber bushings for better absorption.
-18mm Chromed Hardened Piston Rod.
 -35mm Diameter Sintered Iron Piston.
-54mm body diameter for better heat dissipation.
-36KN Tensile Strength.
-Precision Welding.
-Improve your off-road ride.
-Easy bolt-on installation.
-Power coated surface：provides superior corrosion resistance.
-High Tensile Strength Carbon Steel for optimal durability and fitment.
-Dust cover included prevent the shaft rod and -oil seal from damaging.
-Chromium-silicon cold-wound structure with high tensile strength and resilience.
-High tensile spring——600,000 times continuously test to assure its high tensile strength.
-Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.

Note

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
