25 Row Universal Transmission Cooler 10AN Aluminum Engine Oil w/ Hose Kit

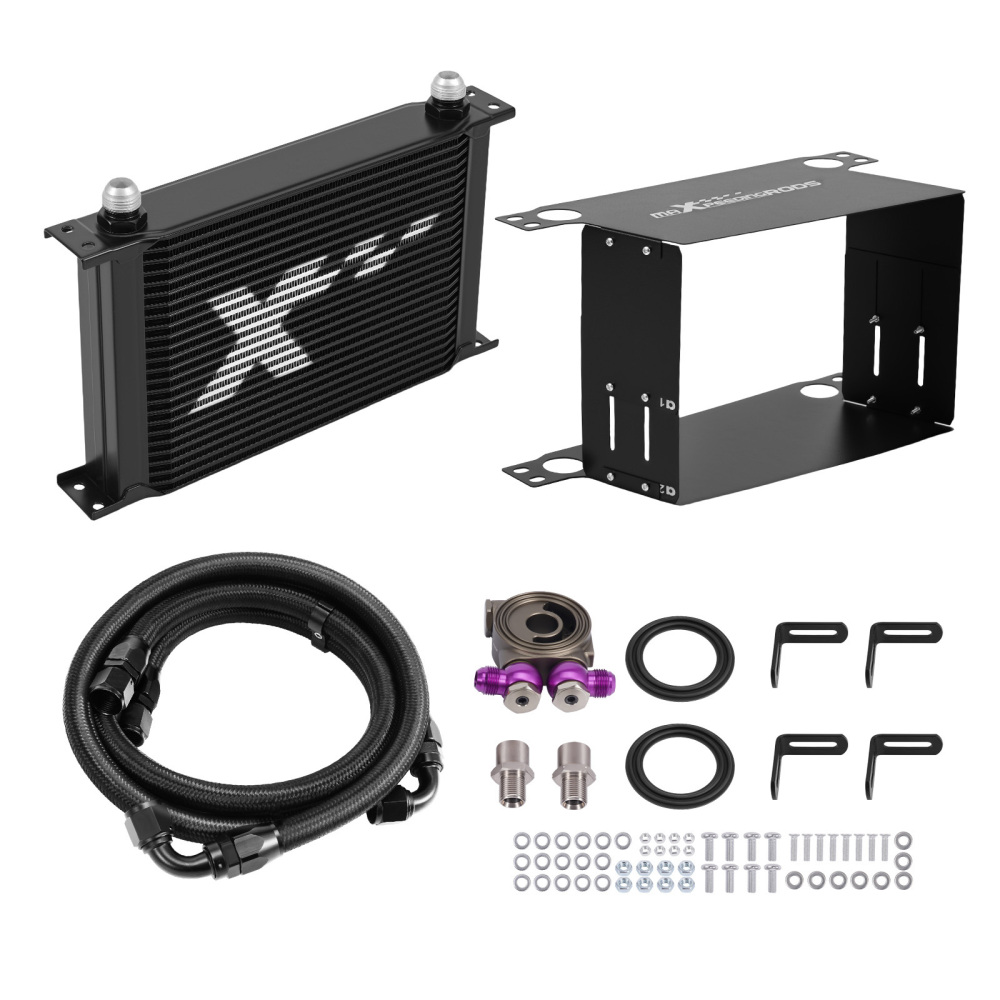

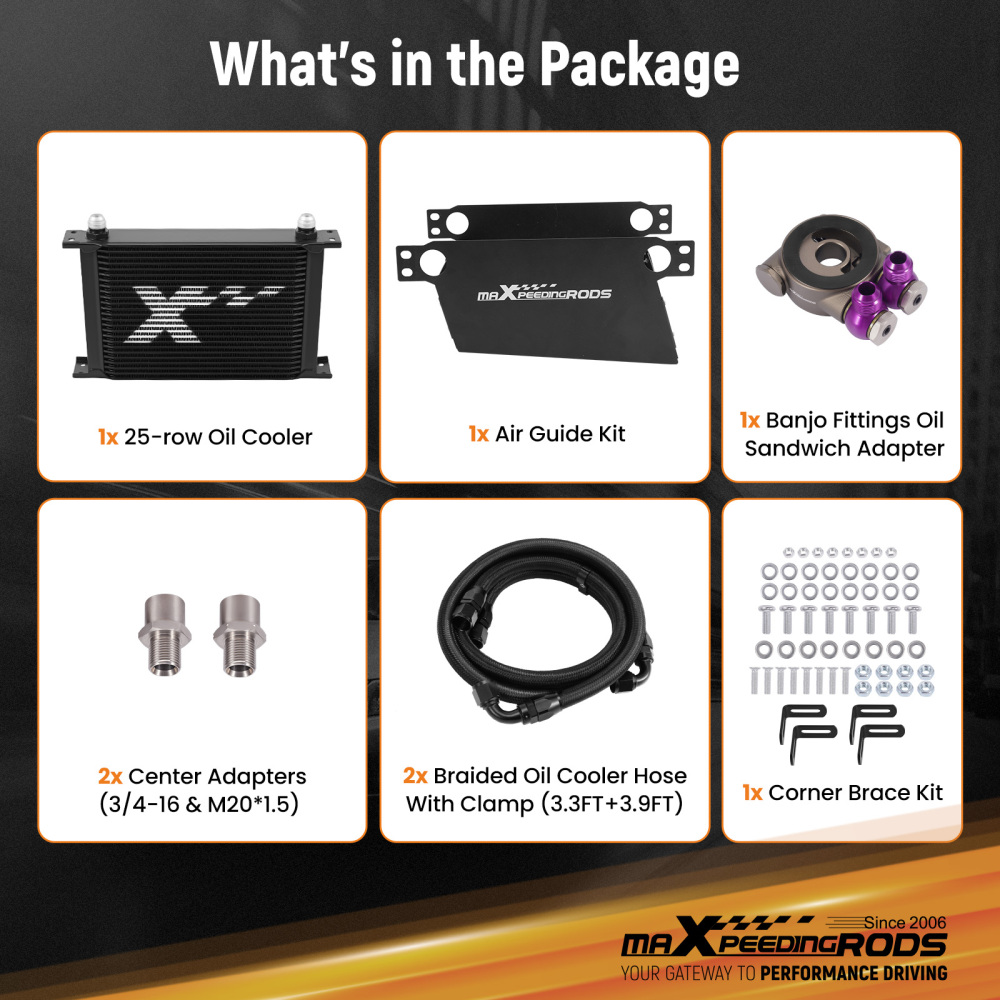

Package included

1* 25-Row Oil Cooler
1* Air Guide Kit
1* Fisheye Fittings Oil Filter Sandwich Adapter

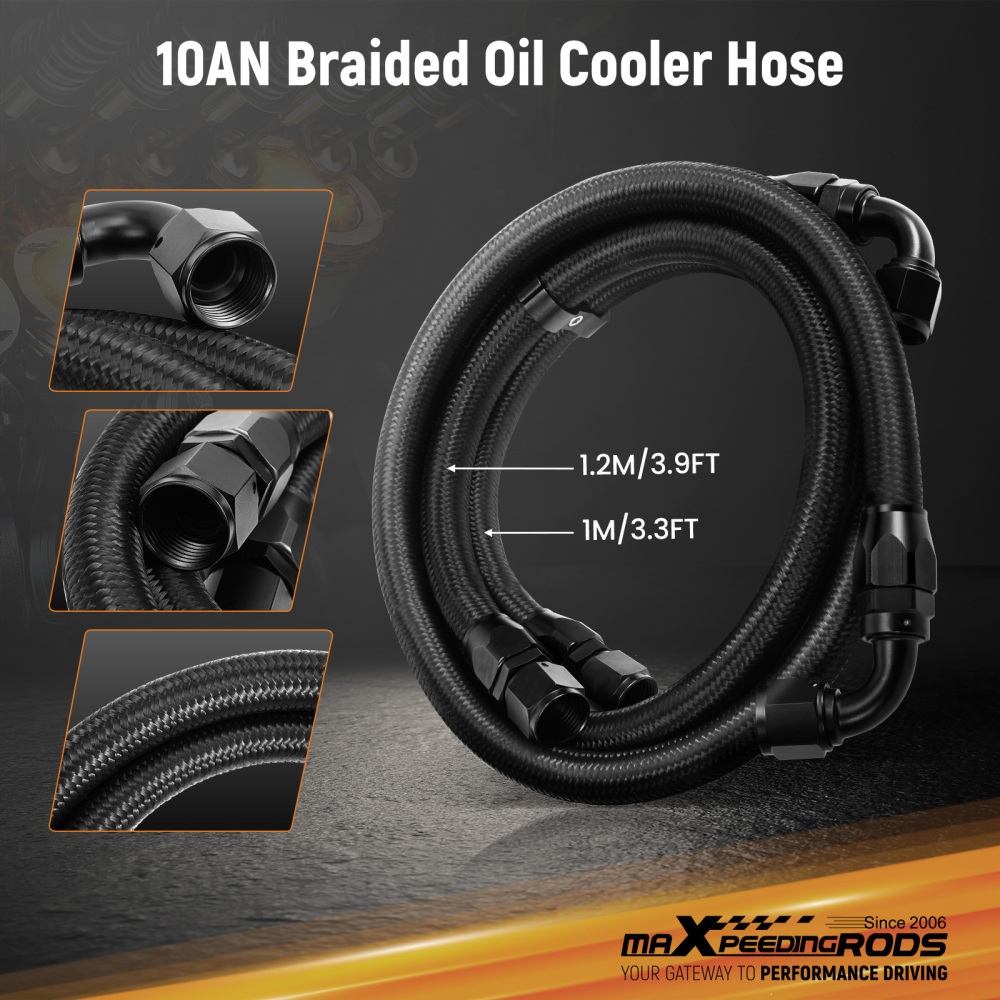

1* 10AN Braided Oil Cooler Hose(1m)
1* 10AN Braided Oil Cooler Hose(1.2m)
1* Corner Brace Kit
1* 3/4-16 Center Adapter
1* M20*1.5 Center Adapter
1*Hose Clamp
(As Shown in the Picture)

Feature

1. The oil cooler is made of high quality aluminum, and it is powder-coated and oxidized which can protect the product and be more durable.
2. This oil cooler kit is efficient to cool the oil temperature, and it can keep the oil at a suitable operating temperature to improve engine performance. It can also help to prolong the life of oil and the internal engine components.

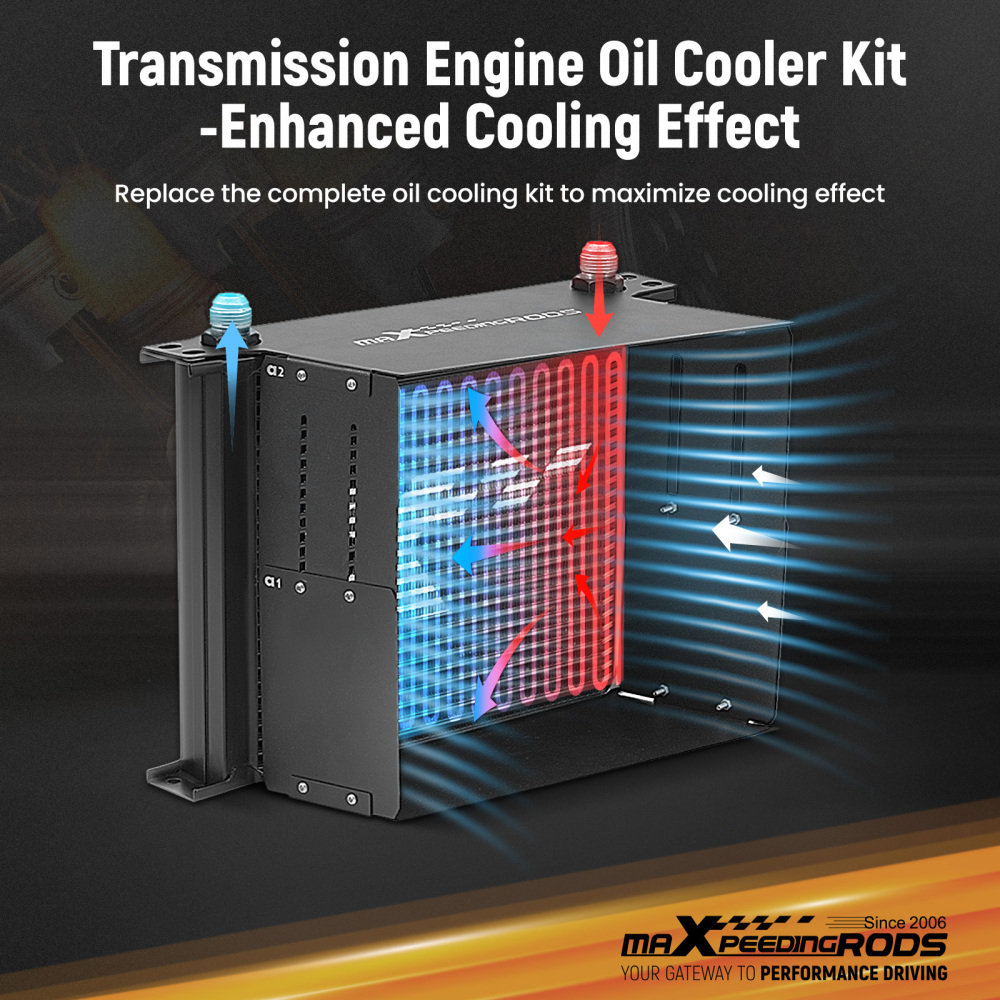

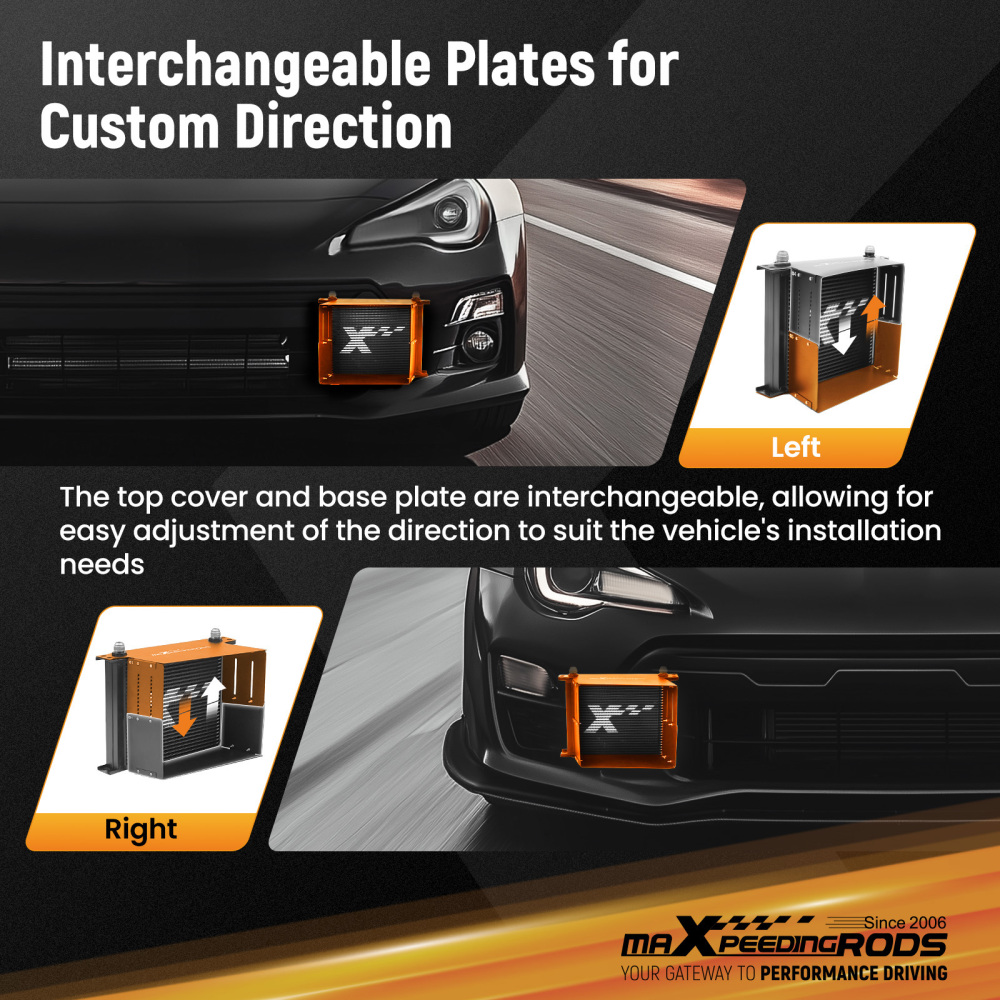

3. The oil cooler kit includes a air guide kit, which can make the contact area between the air and the oil cooler greater. Thus it can reduce the oil temperature more effectively. The air guide kit’s top cover and base plate can be interchanged to achieve either a left-facing or right-facing air intake. You can choose the orientation based on the vehicle's installation position.

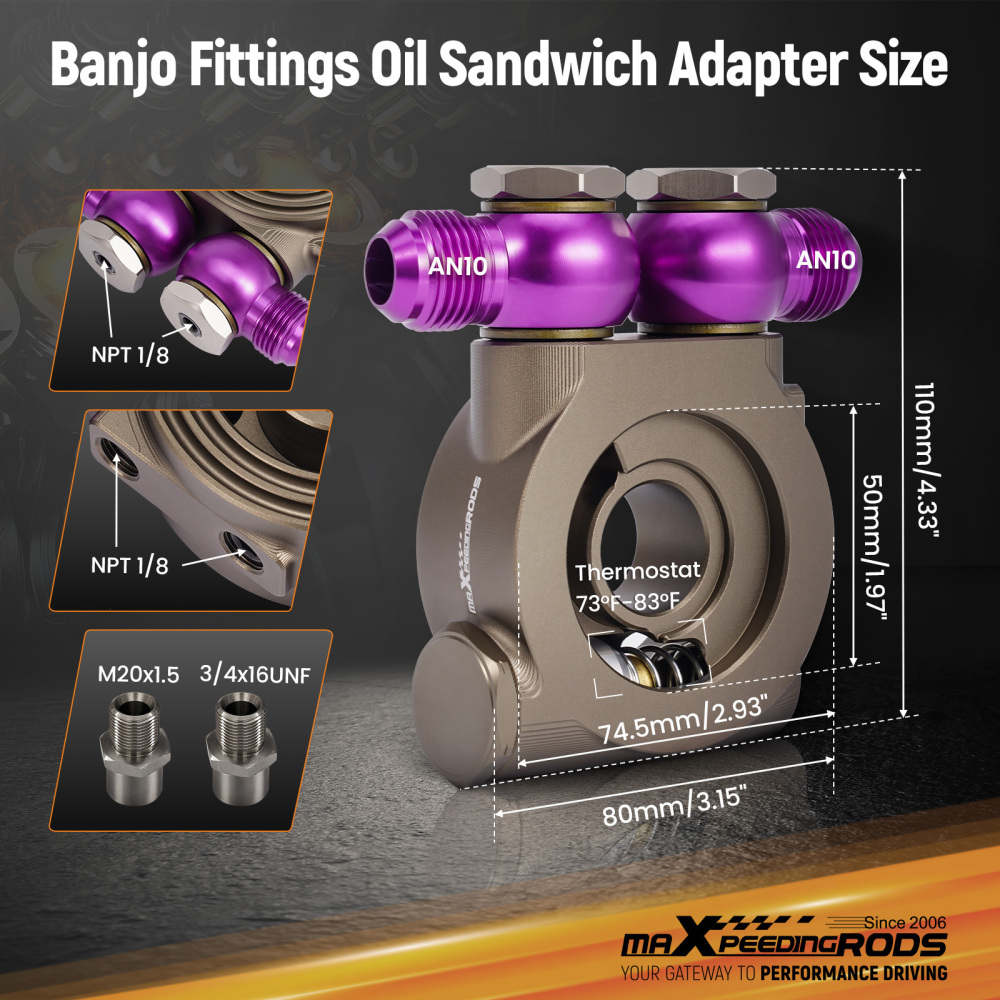

4. This oil filter sandwich adapter is made of aluminum alloy for durability. It is elaborate because of the CNC machined from aluminum with an anodized finish. Purple fittings with cooper gold oil filter sandwich adapter are matched and fashionable. It has a thermostat which can automatically adjust the oil entering the oil cooler according to the oil temperature. This oil filter sandwich adapter includes two fisheye fittings. They can achieve 360° rotation and ensure the oil filter sandwich adapter can be positioned at an optimal angle, regardless of the vehicle orientation. There are four 1/8 NPT ports for option to install oil temperature sensor or oil pressure sensor.
5. This oil cooler kit also includes 4 corner braces and other accessories which make the installation more secure.

Note

1. Preparation Before Installation: ①Fill the oil cooler with oil. ②Completely fill until all air is evacuated. ③Attach the AN oil cooler hoses. ④Fill the AN oil cooler hose with oil.
2. This is a universal oil cooler kit. Just measure the size of the space before buying to ensure that it can be installed, and then you can choose the right size according to your cooling efficiency needs.
3. The oil filter sandwich adapter's mounting threads are M20x1.5 and 3/4-16 UNF. Please confirm compatibility before installation.
4. Professional Installation is Highly Recommended.
5. The item description was measured by hand, it could have 1-2 inches deviation.

Application

Universal-Suitable for most cars, may requires additional accessories to meet the needs of the particular application. Please ensure enough space for installation.

Specification

Oil Cooler Type: 25-Row Oil Cooler Kit
Oil Cooler and Air Guide Material: Aluminum
Oil Cooler Style: English Style
Oil Cooler Inlet/Outlet Size: AN10
Corner Brace Material &Thickness : Stainless Steel 3mm
Hose Size: AN10
Hose Length: 1Pc 1m & 1Pc 1.2m
Hose Clamp Size: AN10
Oil Filter Sandwich Adapter Type: Fisheye Fittings & Thermostatic Adapter
Oil Filter Sandwich Adapter's Fitting Size: AN10
Oil Filter Sandwich Adapter's Center Adapter: 3/4-16 & M20*1.5
Oil Filter Sandwich Adapter's Ports Size: 1/8 NPT Ports
Thermostat Working Temperature: 73℃-83℃
