24 Way Damper Coilovers Strut Kit w/ EIBACH Springs compatible for Tesla model 3 2017+ AWD

Introduction

The maXpeedingrods C2 series is designed for automotive enthusiasts who seek the perfect blend of handling, comfort, and adjustability. Enjoy better ride quality in all road conditions. Featuring adjustable rebound damping, adjustable height, upgraded damper oil, and high-performance springs, this series allows you to adjust your suspension for optimal comfort while enhancing your vehicle's appearance.

Application

Compatible for Tesla model 3 2017+ AWD / dual motor

Specification

Front Top Mounts: Aftermarket top mounts
Rear Top Mounts: OEM top mounts required
Damping adjustable: Available, 24 levels of rebound damping force
Height adjustable: Available
Lowering height (compare with OE height) front: 0-75mm
Lowering height (compare with OE height) rear: 0-70mm
Spring rate front: 8 kg/mm (448 lbs/in)
Spring rate rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 64-80.5 mm
Rear spring inner diameter: 92.5-102 mm
Spring length front: 255 mm
Spring length rear: 262 mm
Spring Type Front: Progressive spring
Spring Type Rear: Progressive spring
Front and Rear Spring Brand: EIBACH
Front and Rear Shock Body Material: Stainless steel
Color: Silver body with yellow spring

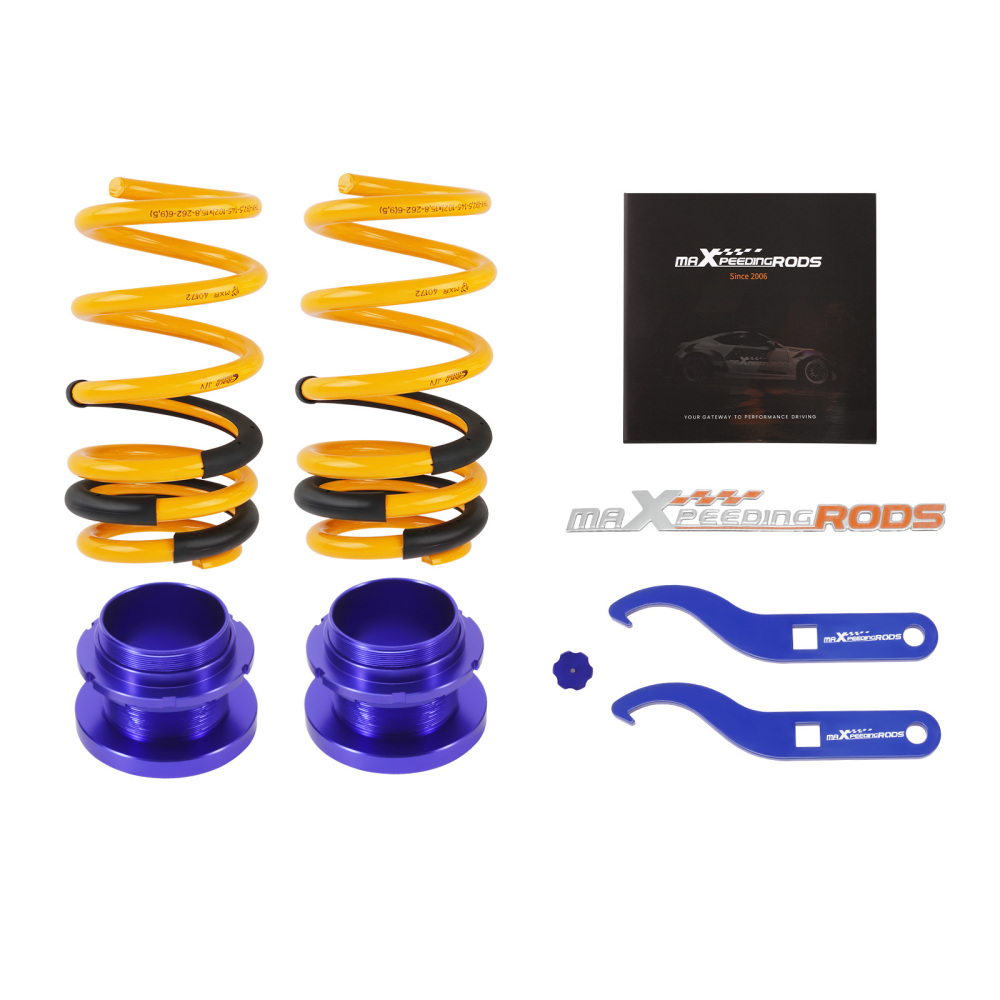

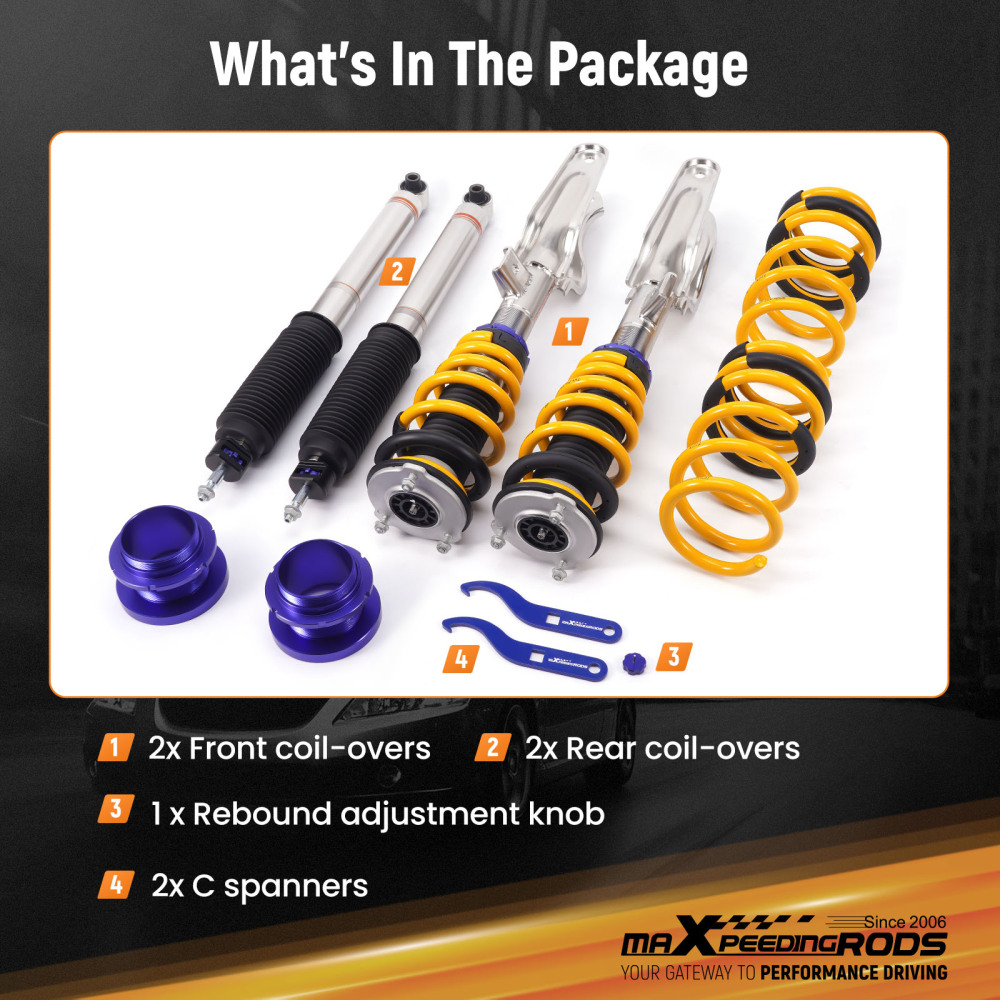

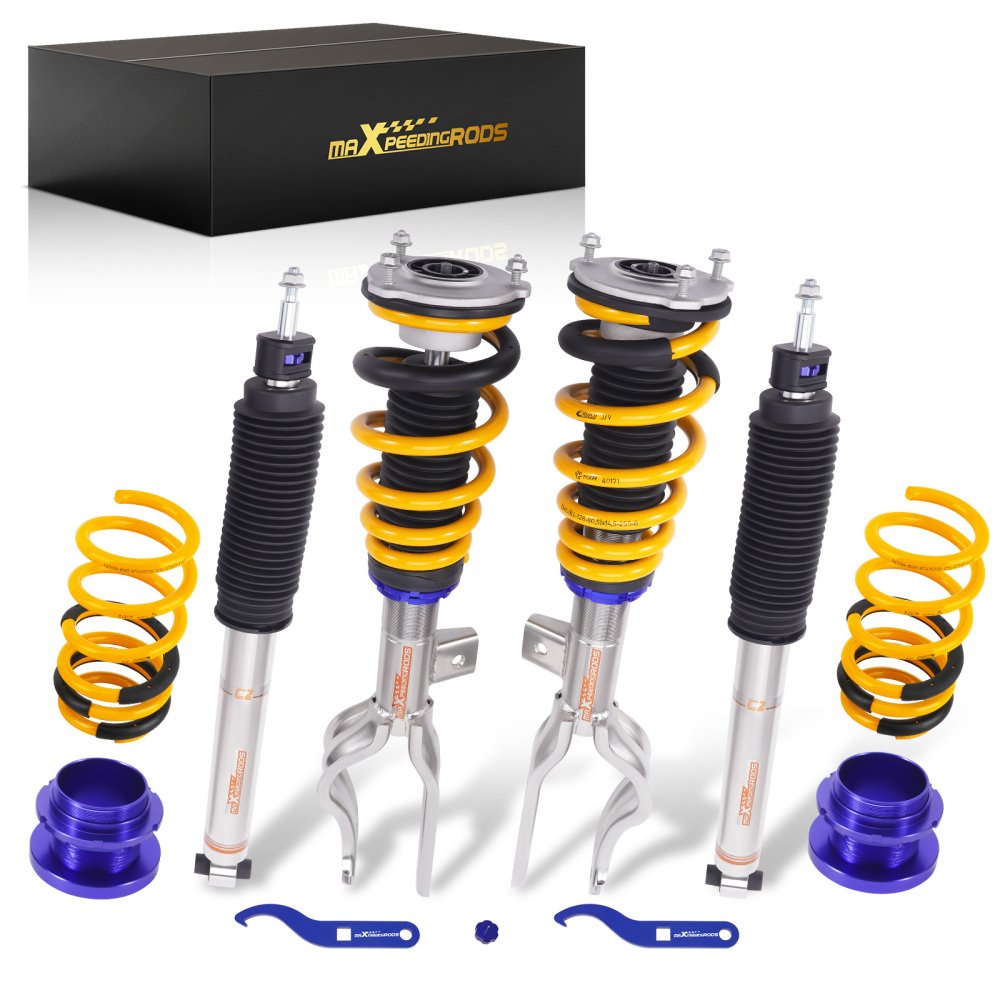

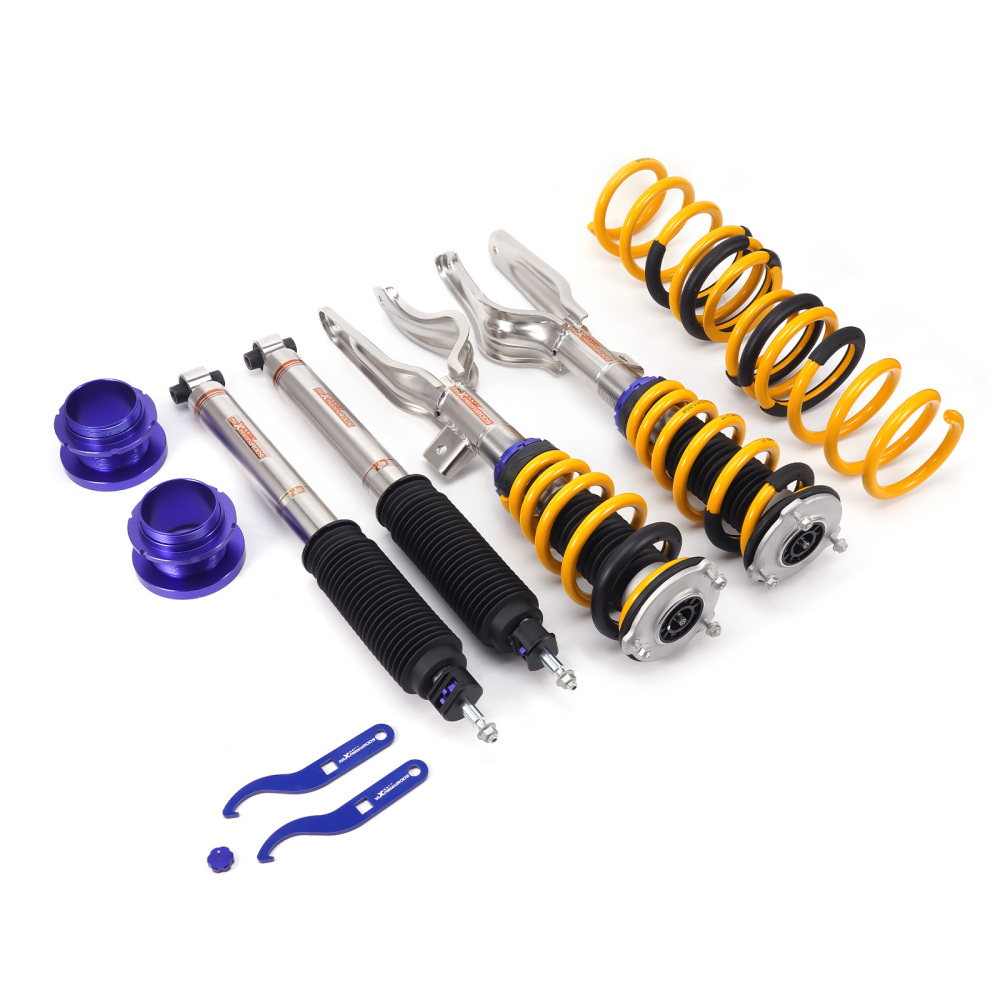

Package included

Package included：

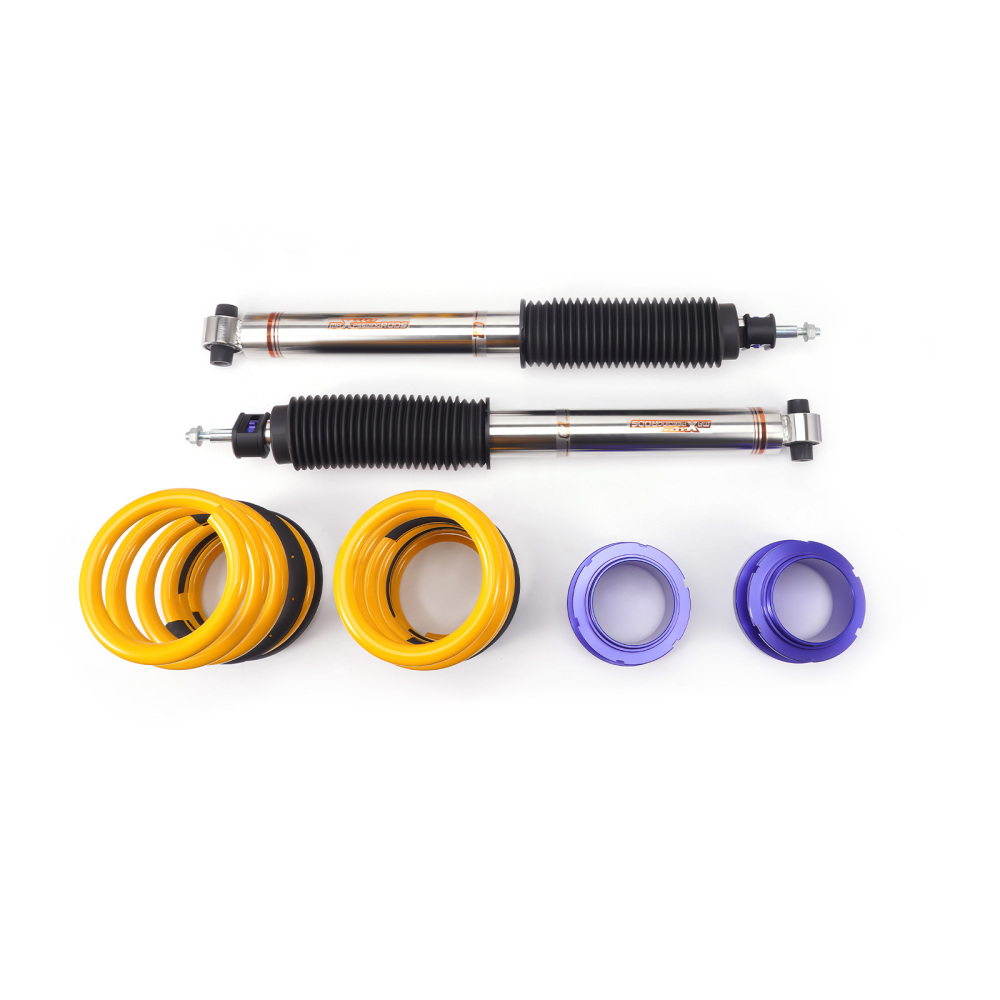

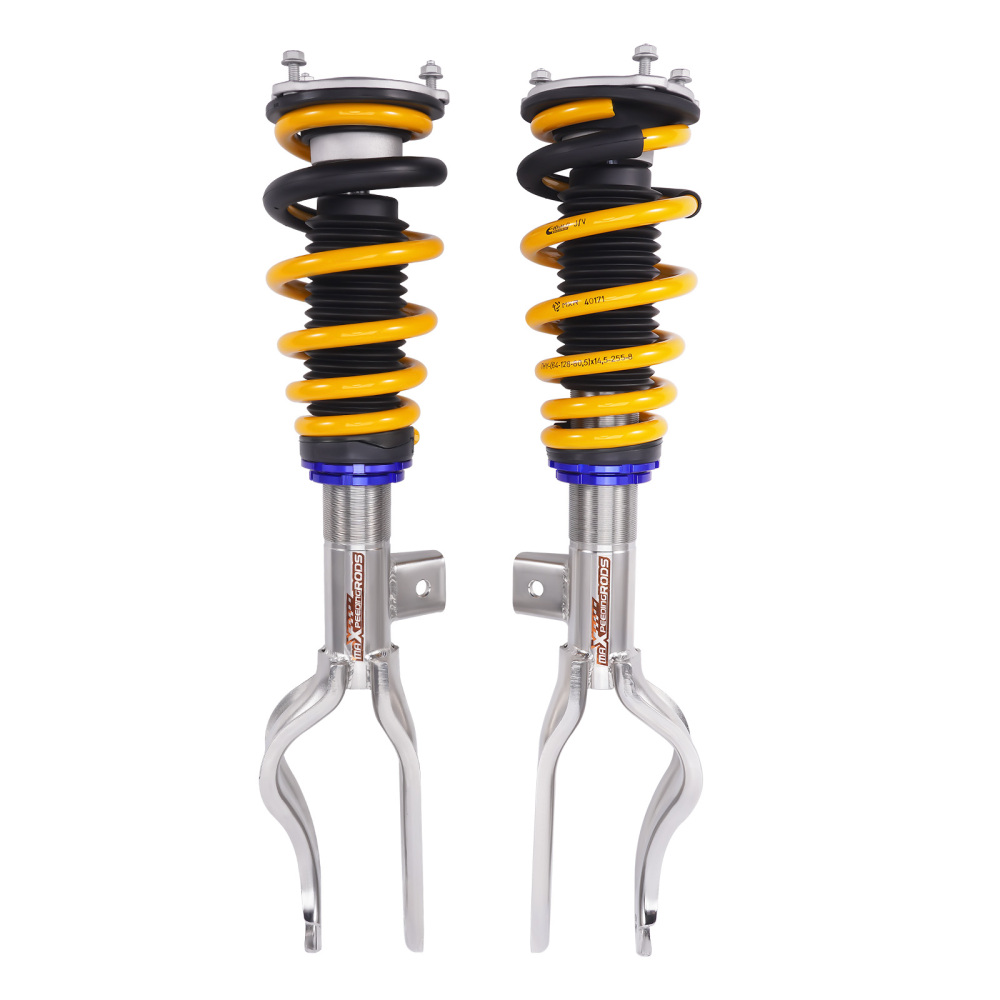

2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners
1 x Rebound adjustment knob
1 x Sticker

Dimension

Package Size: 71*51*21 cm
Weight: 32350 g

Feature

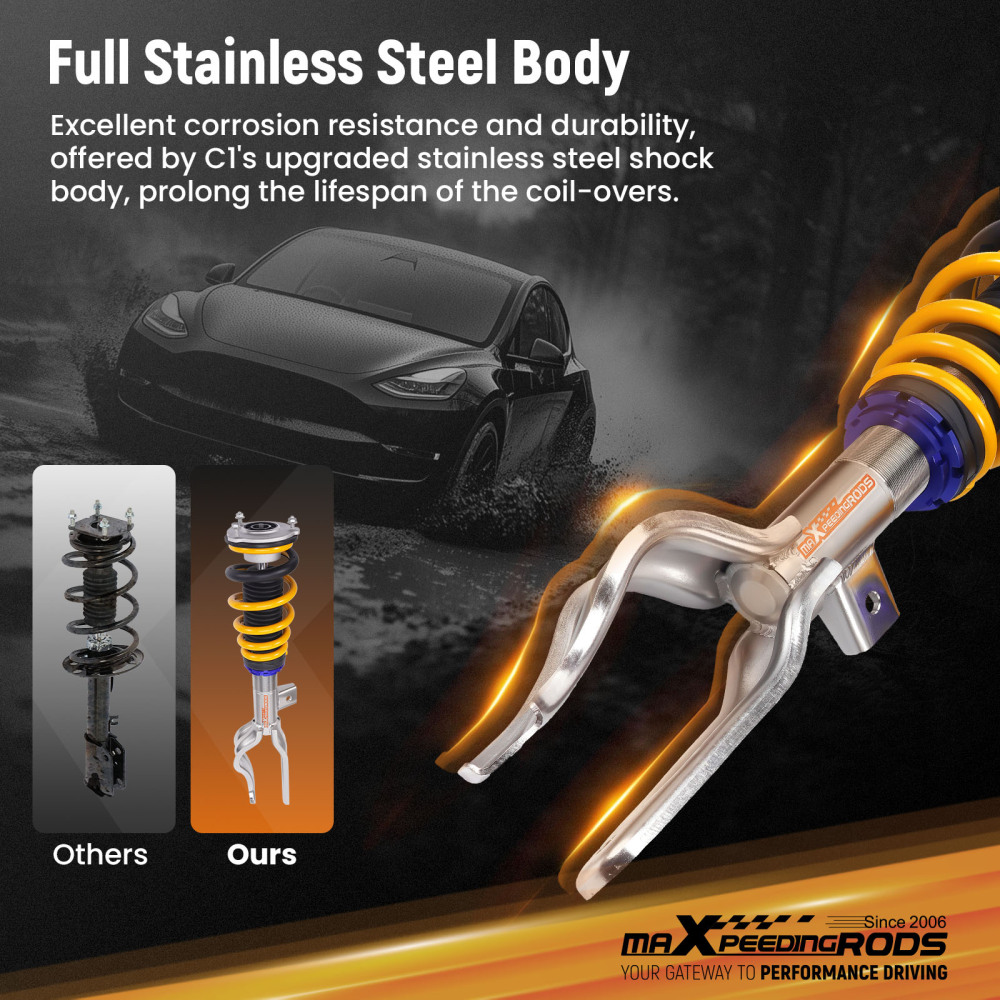

1. The stainless steel shock body offers excellent corrosion resistance and durability, prolonging the lifespan of the coil-overs.

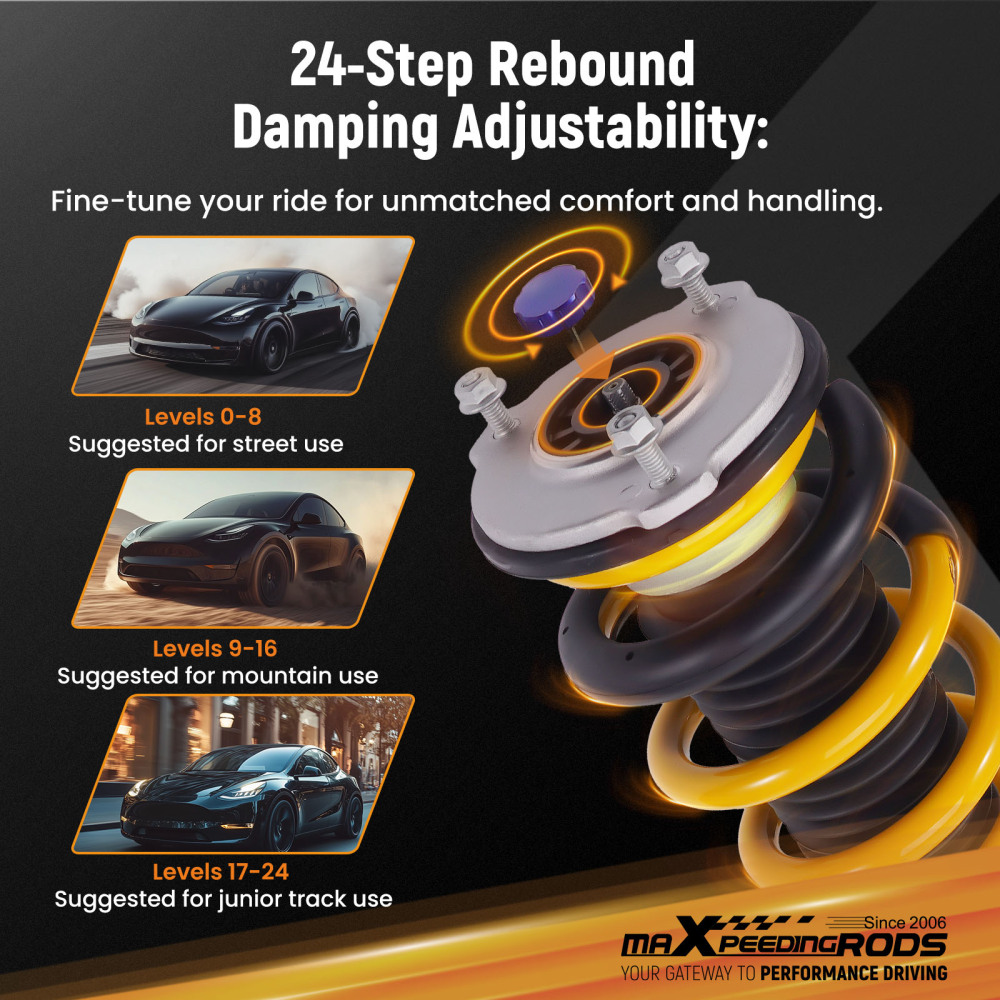

2. The system offers 24 levels of rebound damping force, allowing you to adjust the suspension to meet your specific needs and preferences.

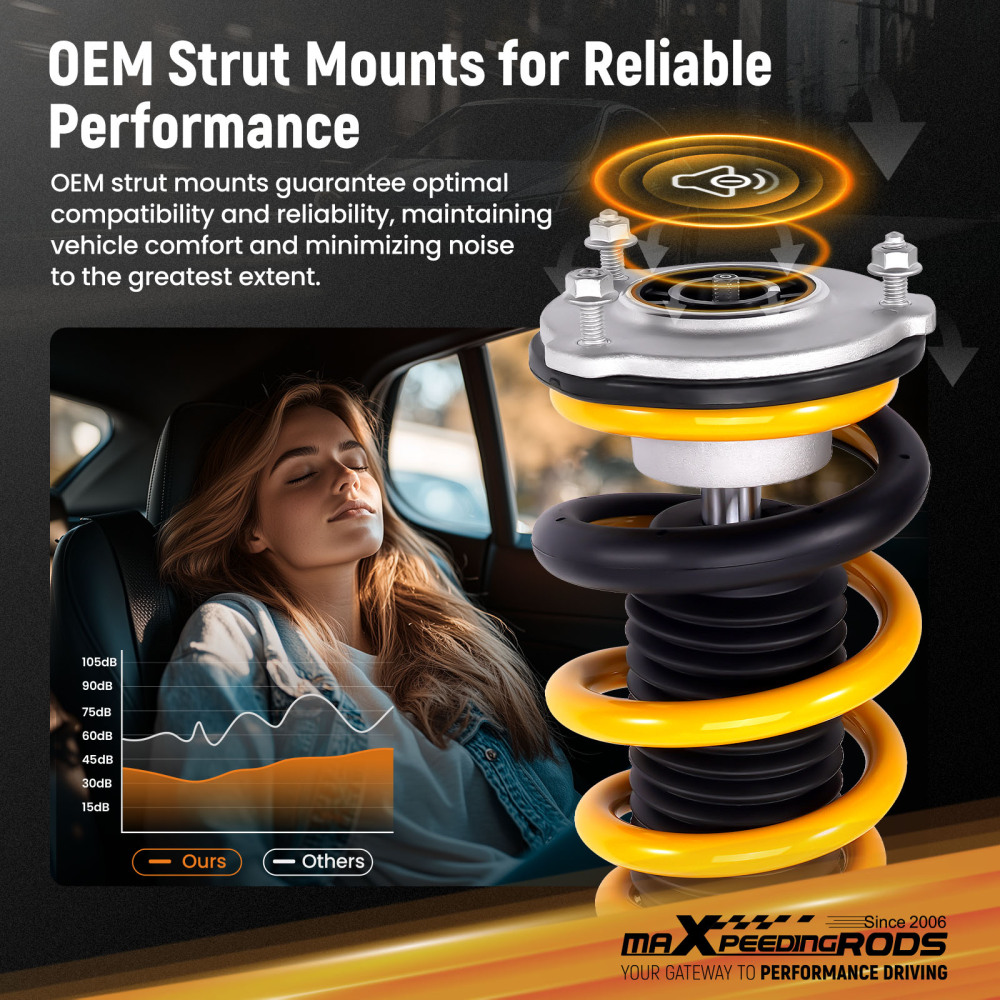

3. Aftermarket top mounts guarantee optimal compatibility and reliability, maintaining vehicle comfort and minimizing noise, vibration, and harshness to the greatest extent.

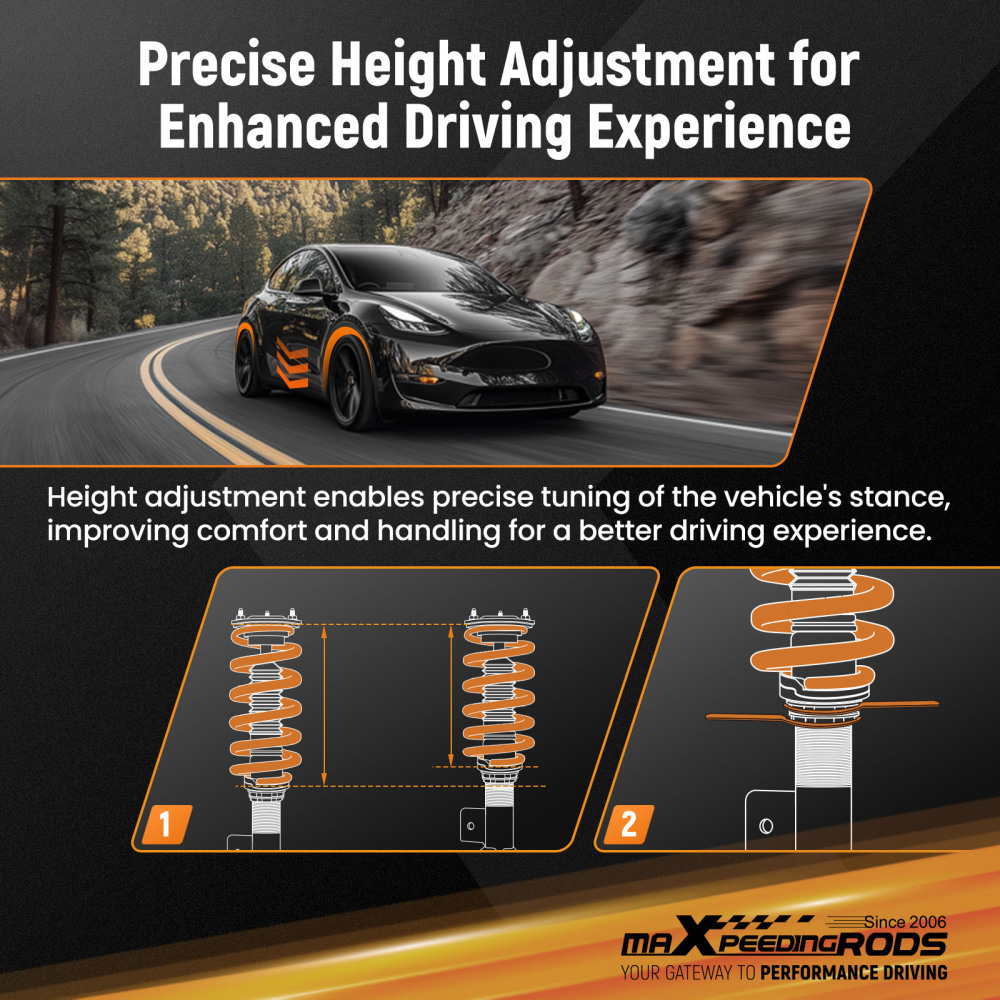

4. Height adjustment enables precise tuning of the vehicle's stance, improving comfort and handling for a better driving experience.

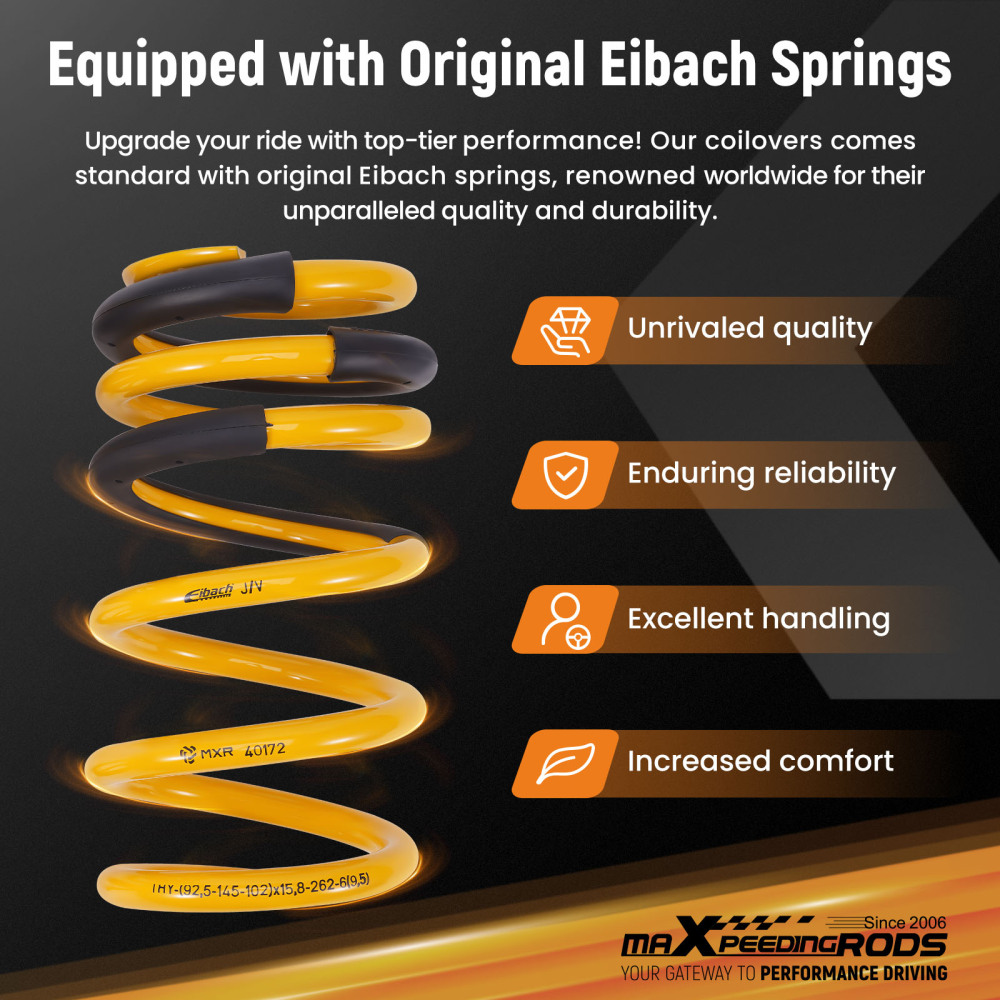

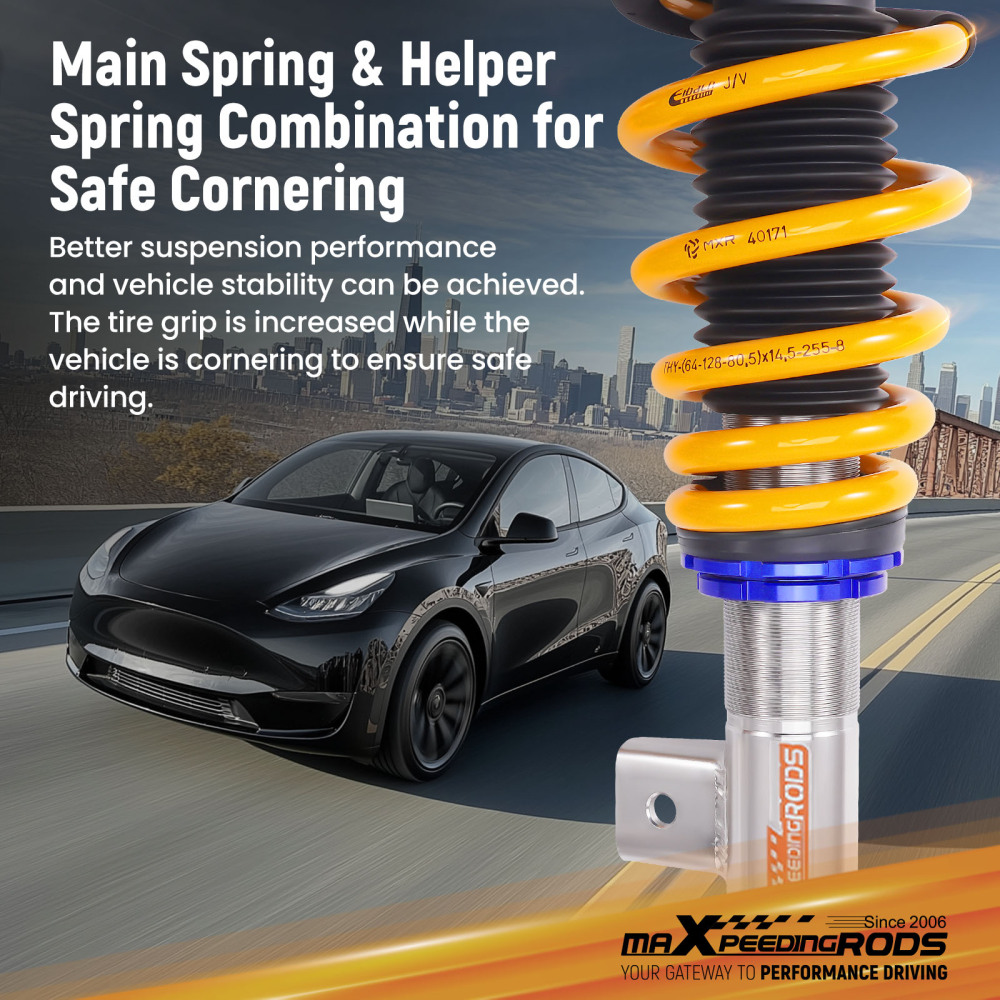

5. Combined with EIBACH springs, the coil-overs provide outstanding handling and stability, significantly improving the vehicle's cornering capabilities and overall durability.

6. High Viscosity Index Damping Oil delivers reliable damping performance and minimizes viscosity fluctuations across a range of temperatures.

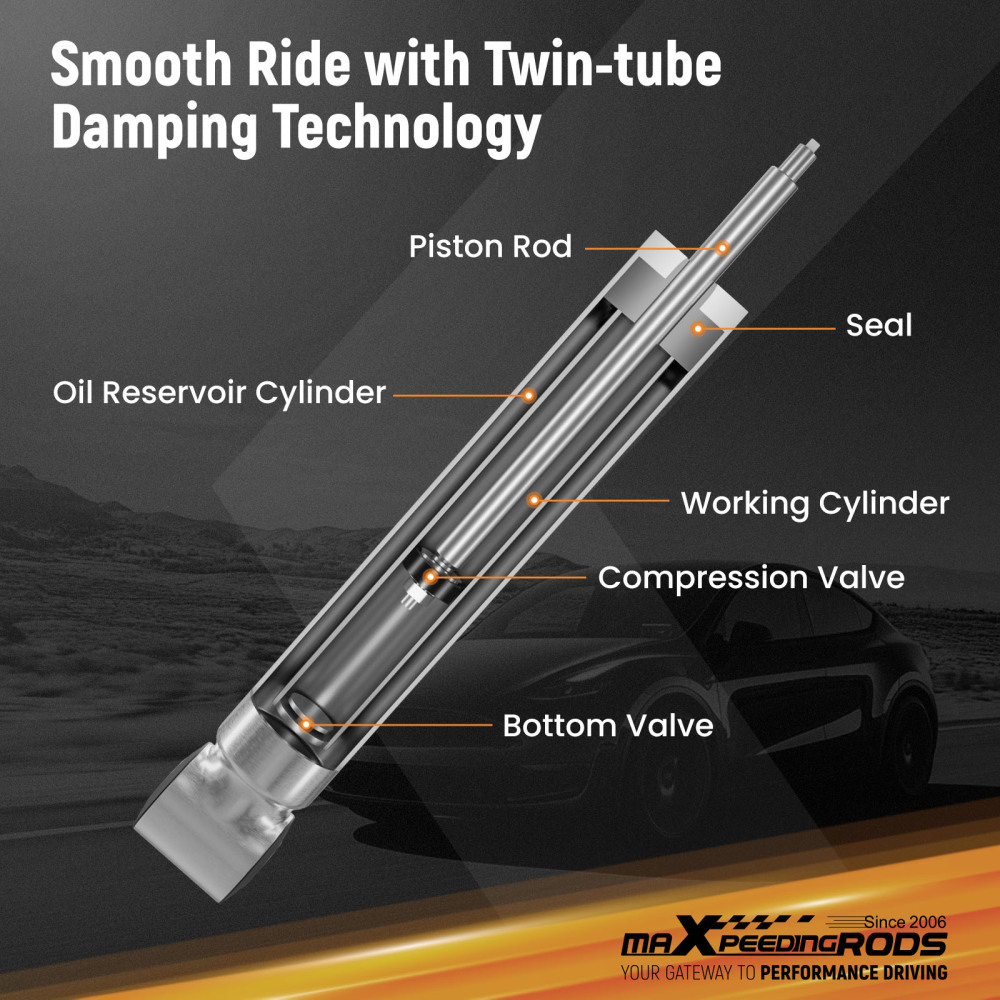

7. Twin-tube damping technology offers outstanding comfort and stability, ensuring a smooth ride across different road conditions.

8. The 45# reinforced steel piston rod offers high strength, durability, and wear resistance for enhanced stability.

9. Anodized AL6061 aluminum spring seats and locking rings are lightweight, corrosion-resistant, and strong.

10. The extended dust cover protects the damper from dust intrusion and prolongs the damping system's service life.

11. High-quality sealing materials effectively prevent damper oil leakage, thus enhancing operational efficiency and reliability.

12. The rubber buffer provides excellent elasticity and shock absorption for a comfortable ride.
