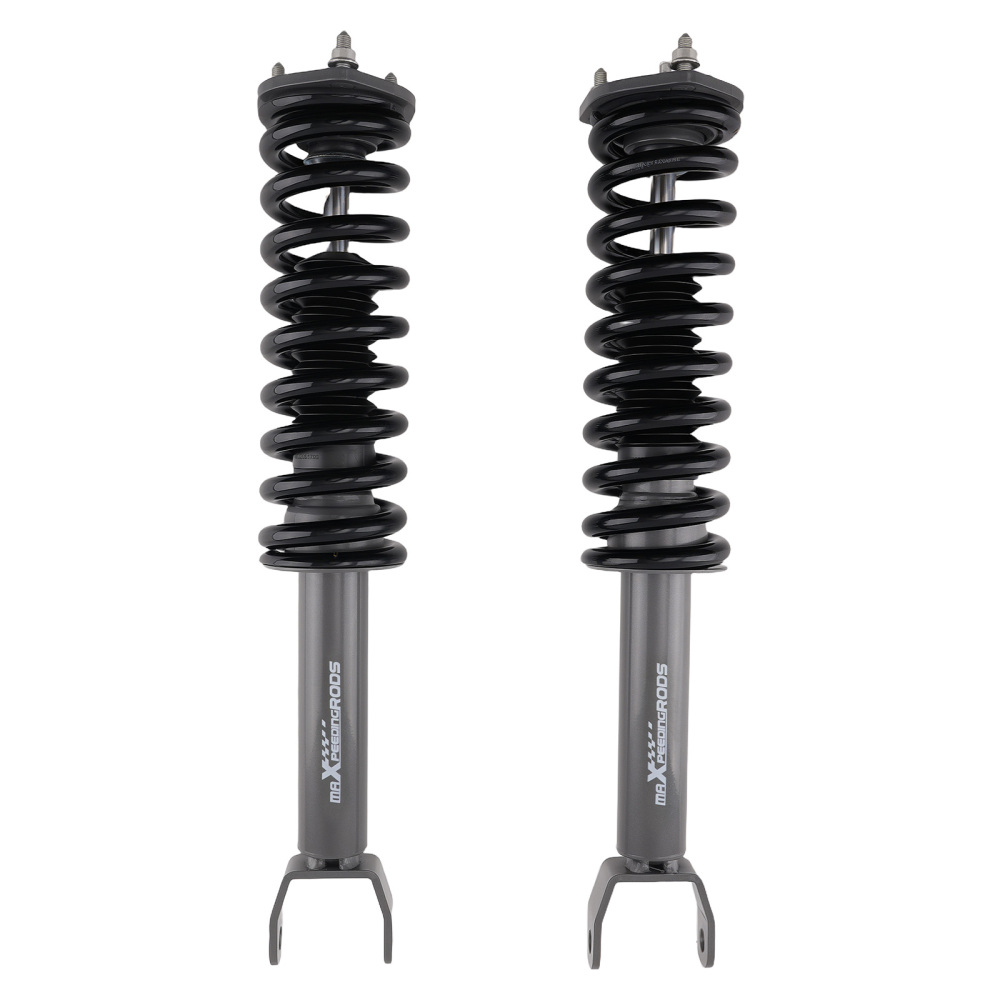

2 Front Leveling Struts compatible for Ram 1500 2012-2018 Classic 2019-20224WD

Application

Compatible for Ram 1500 4WD 2012-2018
compatible for Ram 1500 Classic 4WD 2019-2022
Note: not for big horn models
Cannot be installed in conjunction with a strut spacer.
Does not work with air-ride models.
Does not fit V6 models.

Specification

type：lift strut
Lift Height: front 2"
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Bushing material: Rubber
Diameter of piston rod: F 18mm/0.70"
Piston diameter：F 35mm/1.38"
Outer cylinder diameter: F 50mm/1.97"
Travel: F:180mm/7.09"
extended length: F:615mm/24.21"
collapsed length:F:435mm/17.13"
Nitrogen charged：yes
dust cover equipped: yes
spring rate: 12kg/mm（671.97lb/in）
spring material: 55CrSi
spring length: 340mm/13.39"

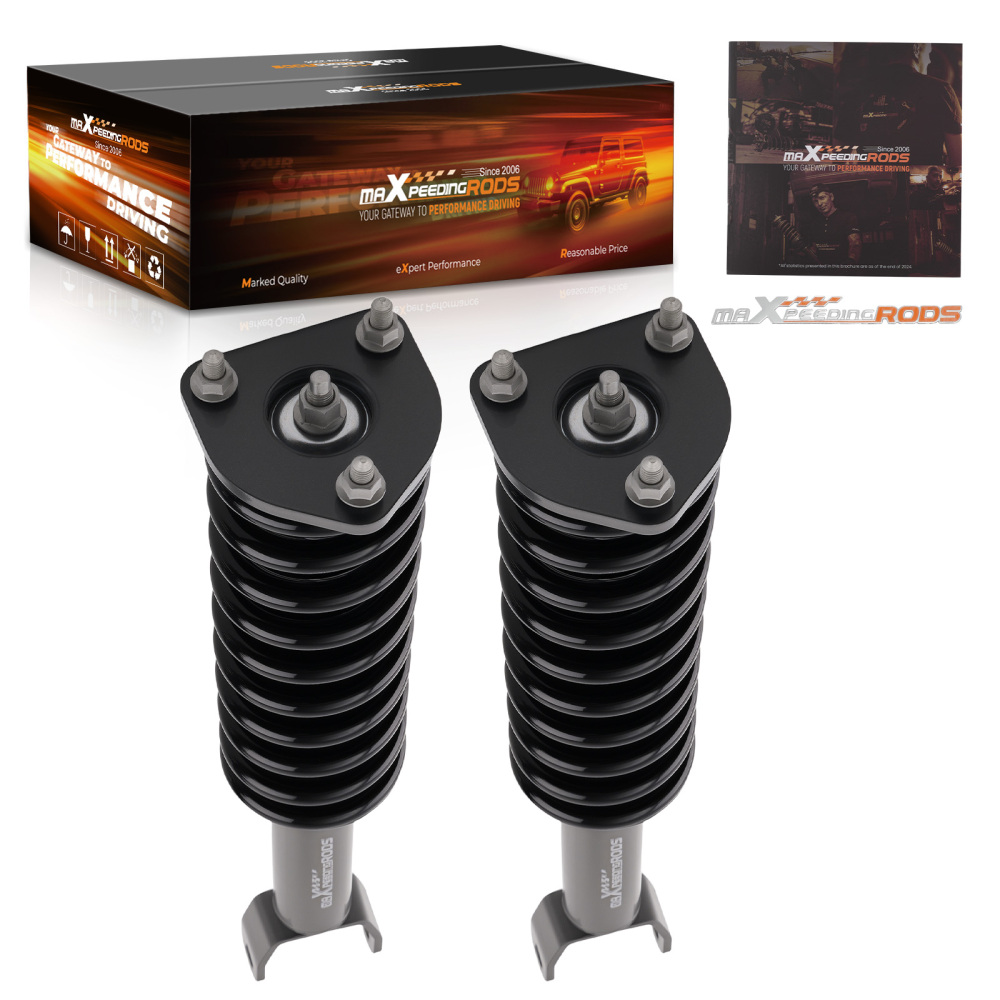

Package included

2x Front Struts

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.
Rubber bushings for better absorption.
18mm Chromed Hardened Piston Rod.
35mm Diameter Sintered Iron Piston.
50mm body diameter for better heat dissipation
36KN Tensile Strength.
Dust cover included prevent the shaft rod and oil seal from damaging.
Precision Welding.
Improve your off-road ride.

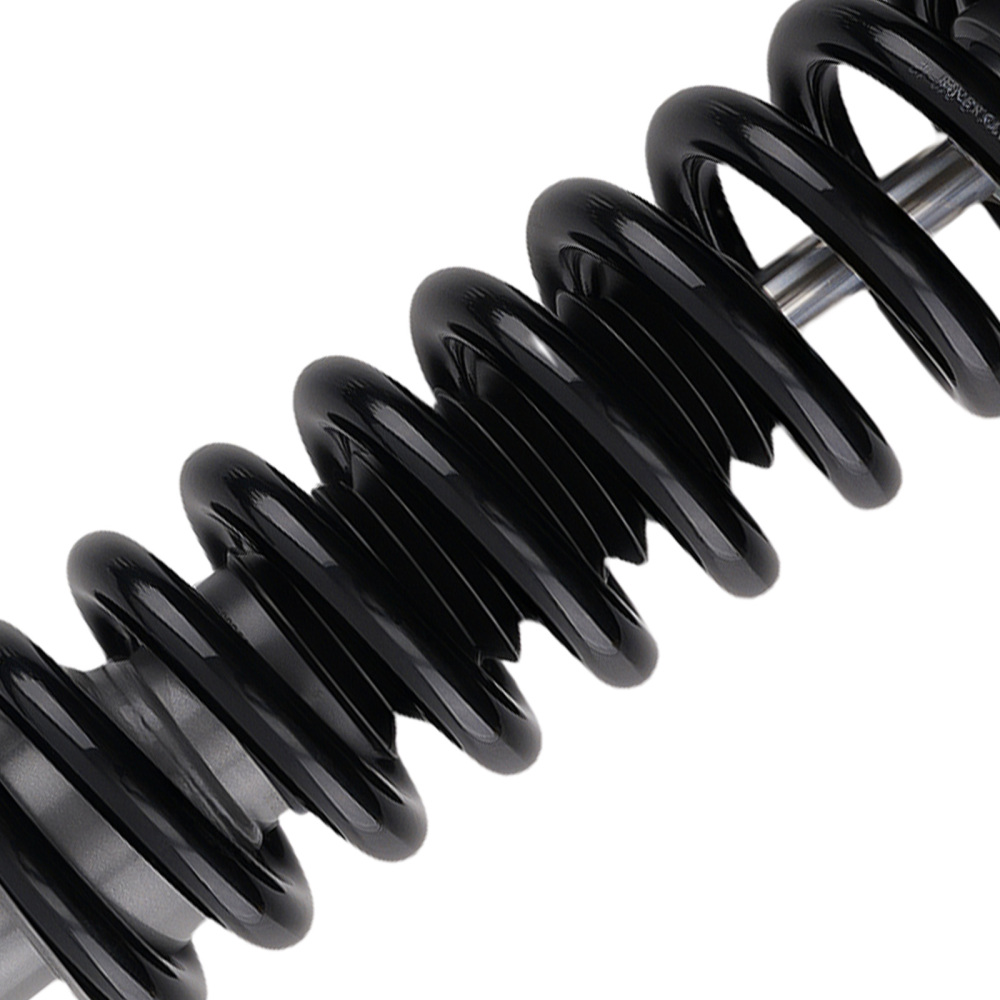

Chromium-silicon cold-wound structure with high tensile strength and resilience
High tensile spring——600,000 times continuously test to assure its high tensile strength.
Increased Ground Clearance – help your vehicle handle bumps and other obstacles on the road better.
