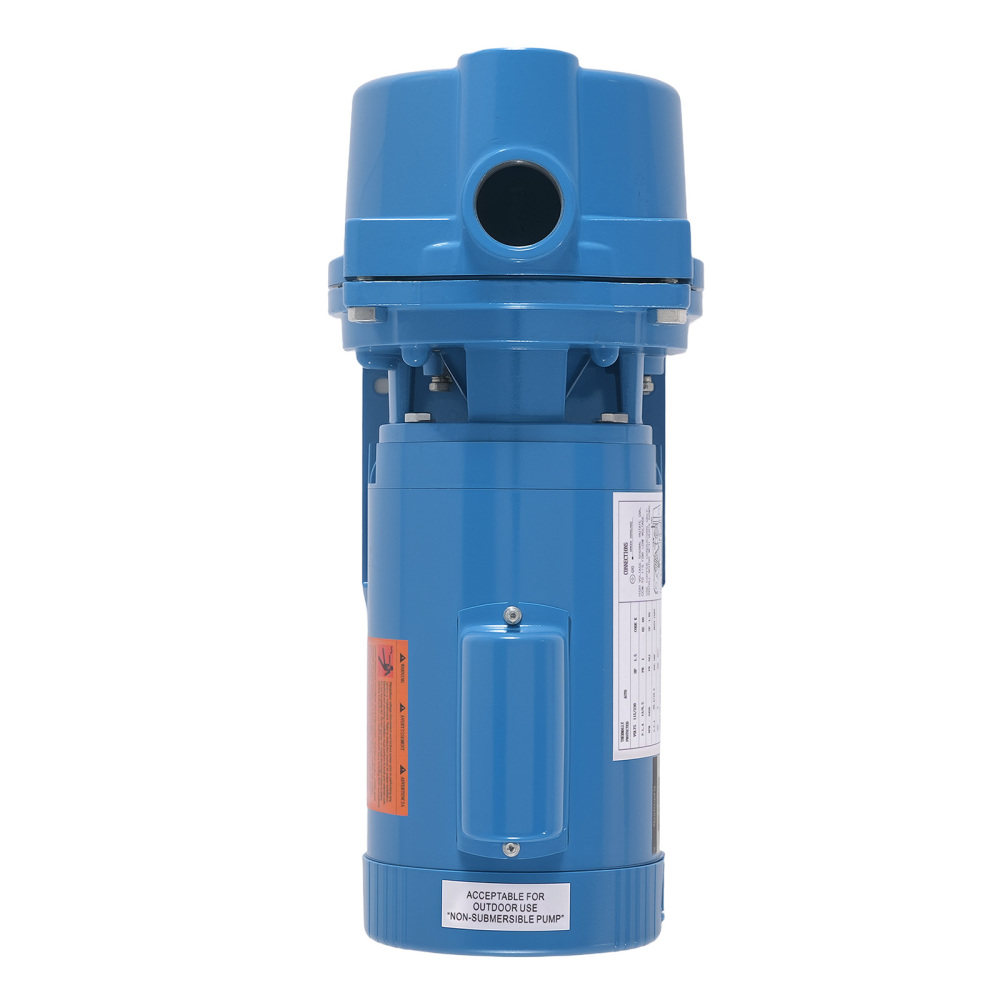

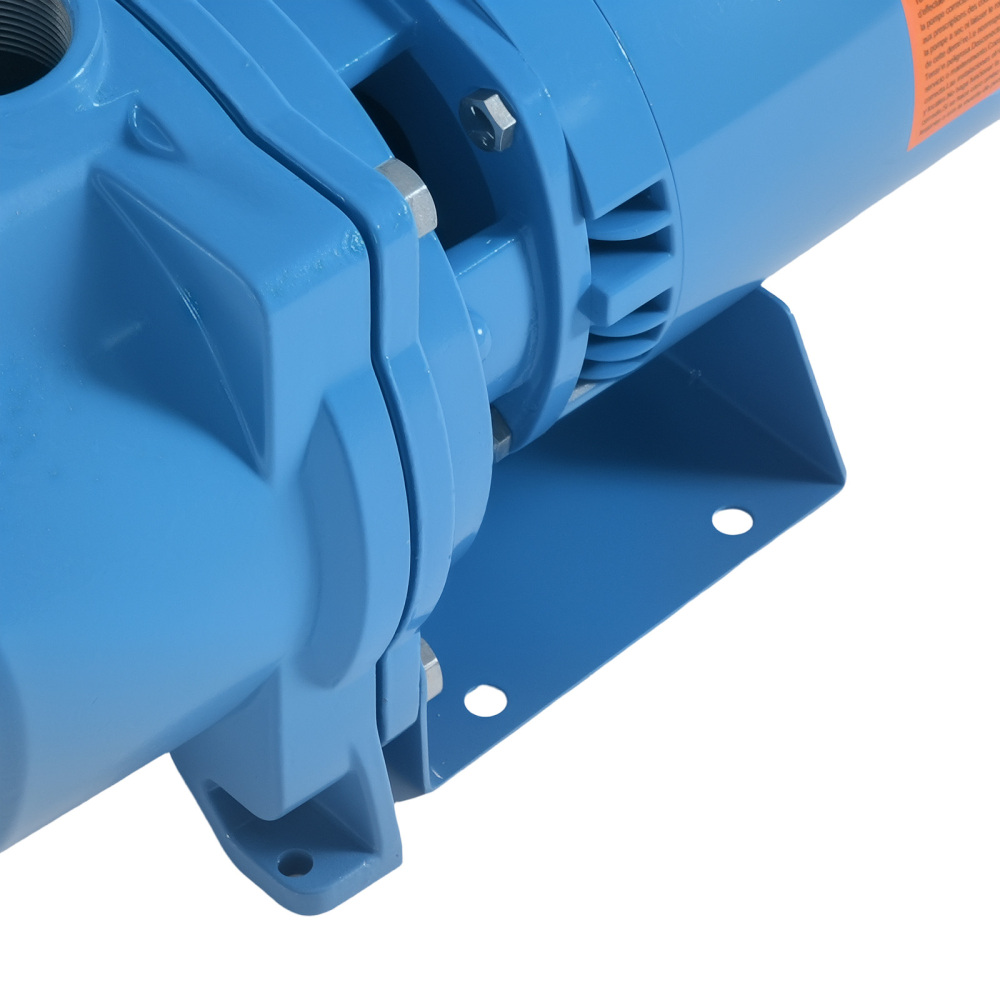

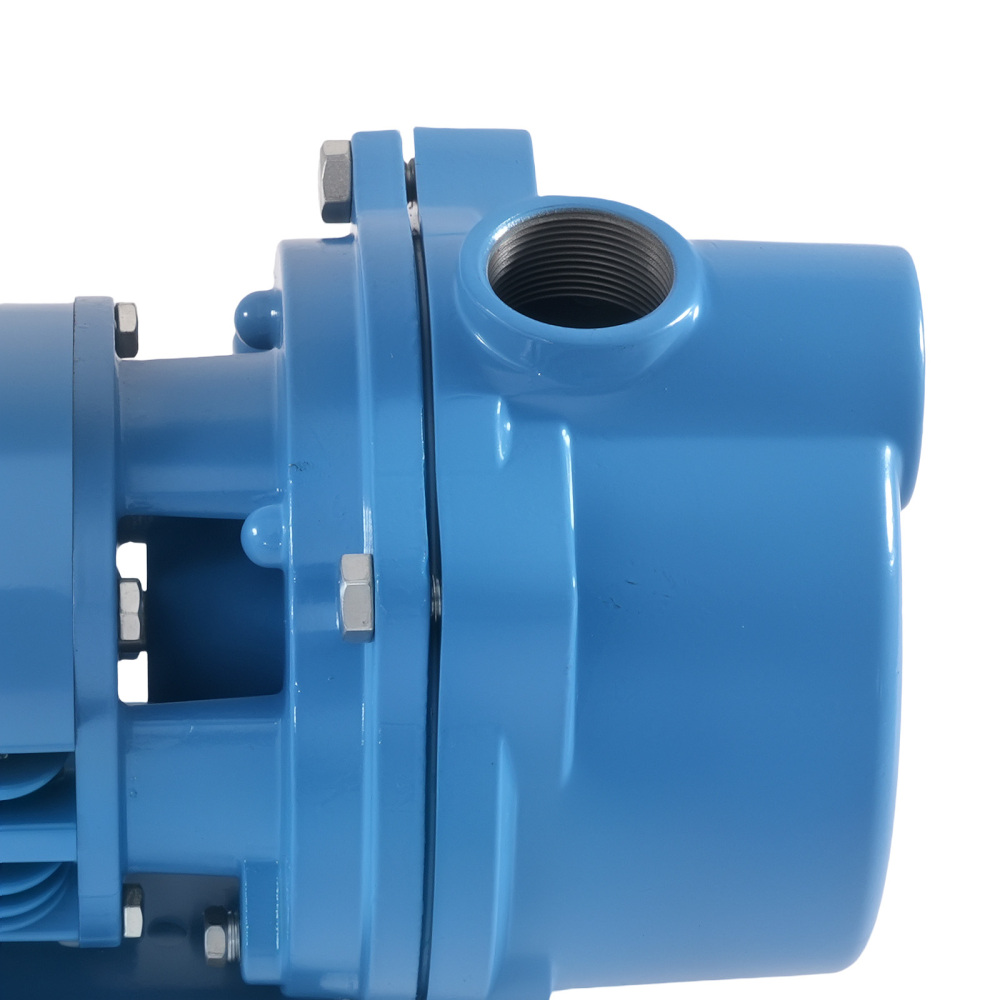

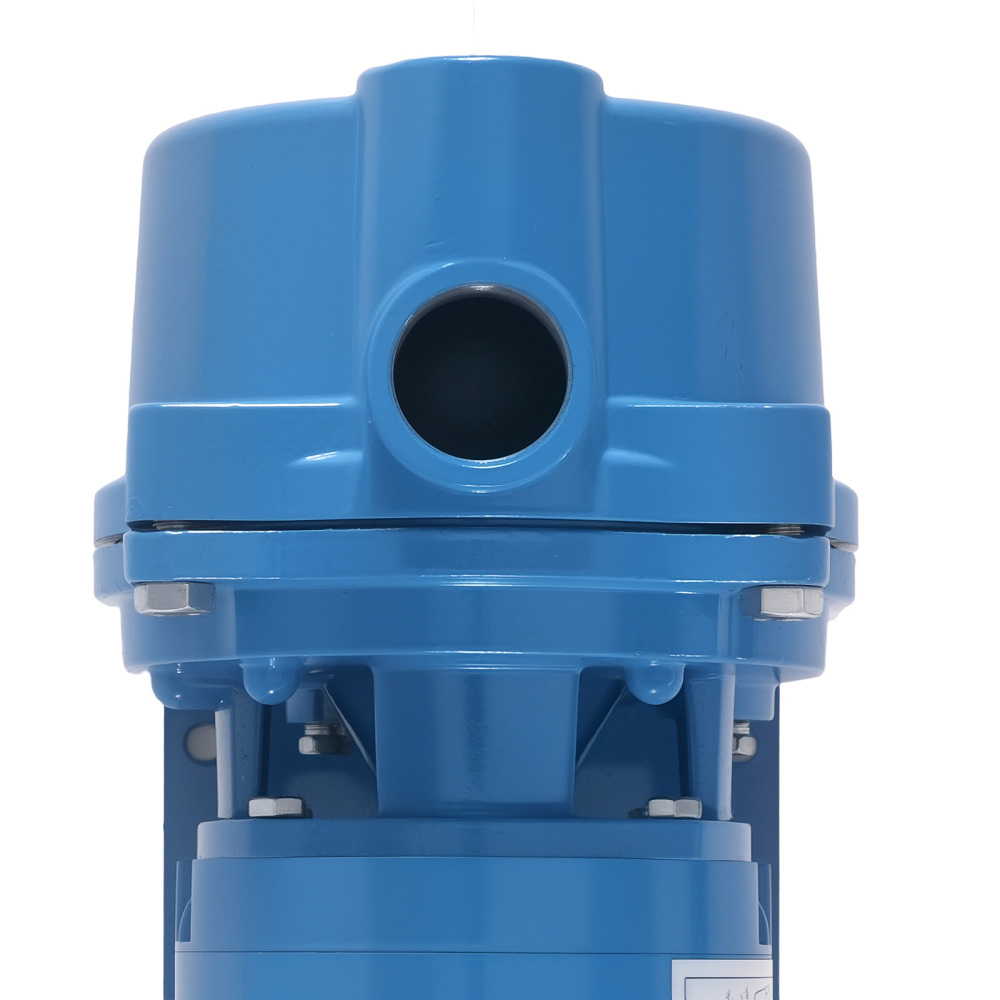

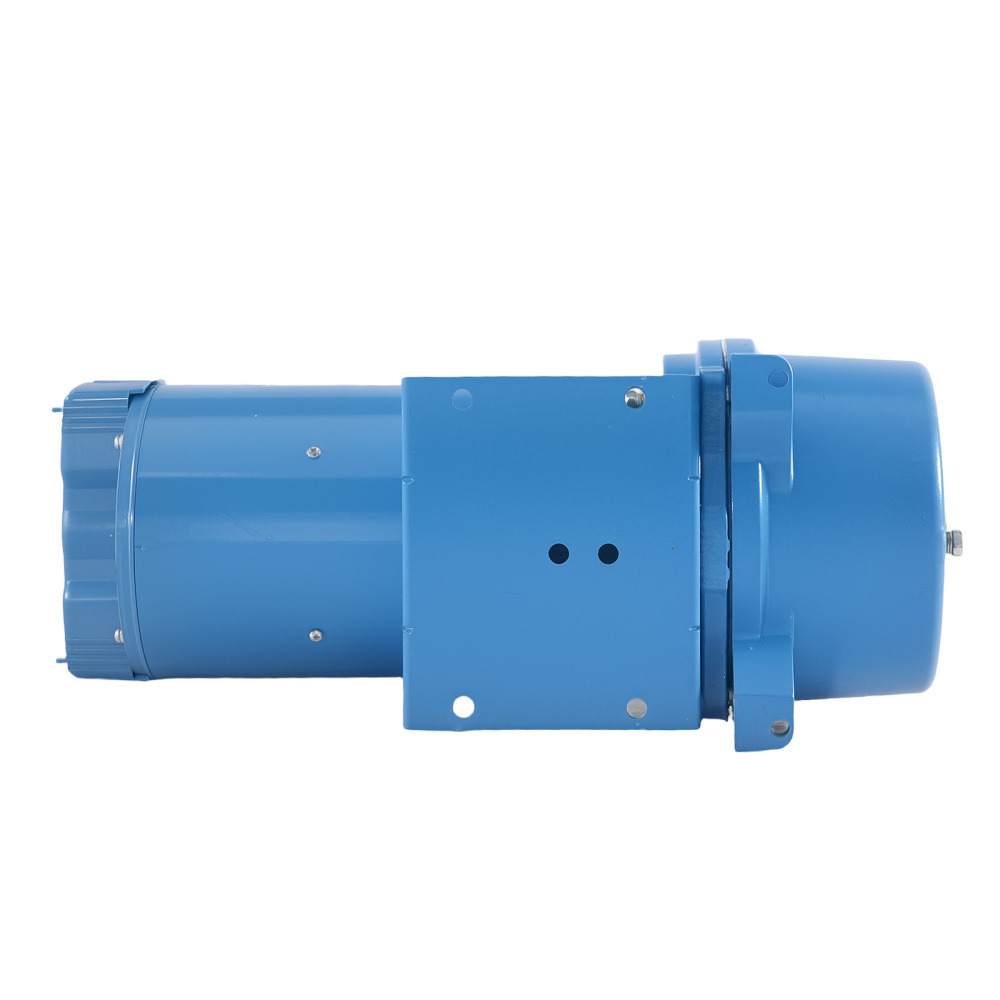

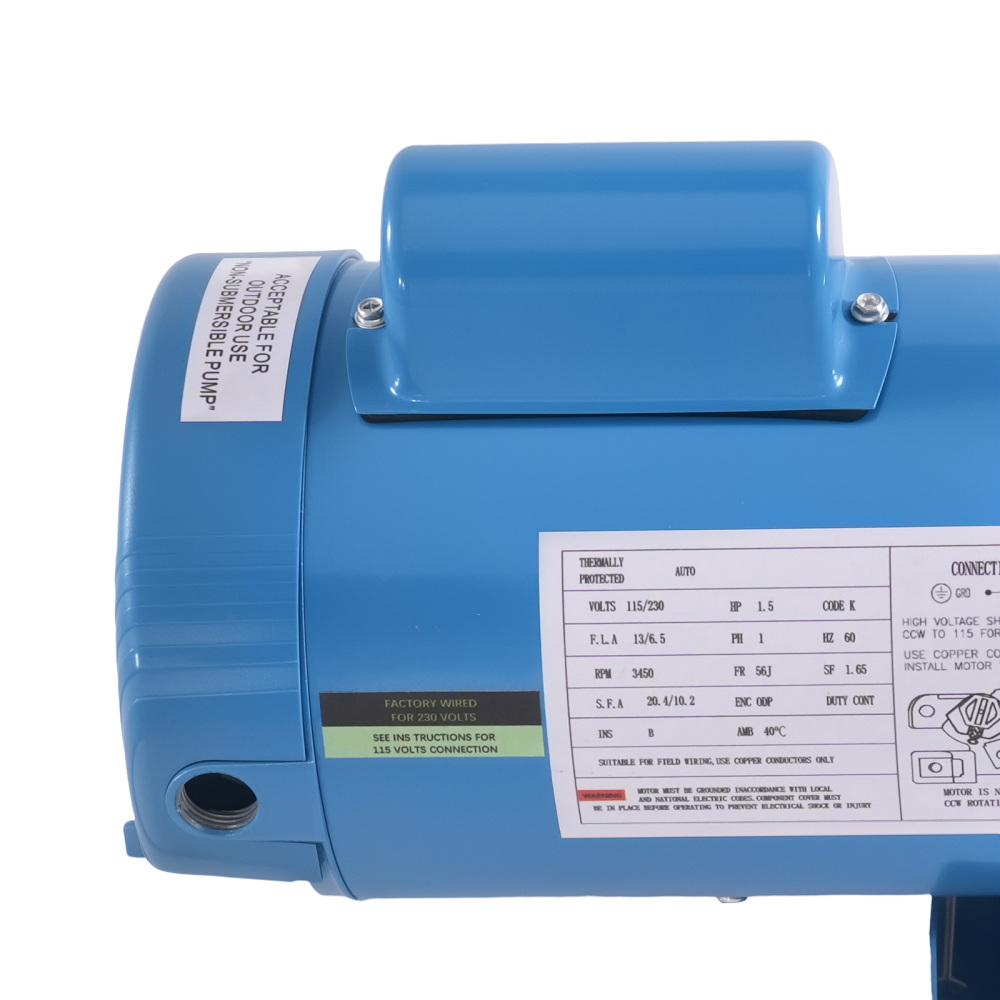

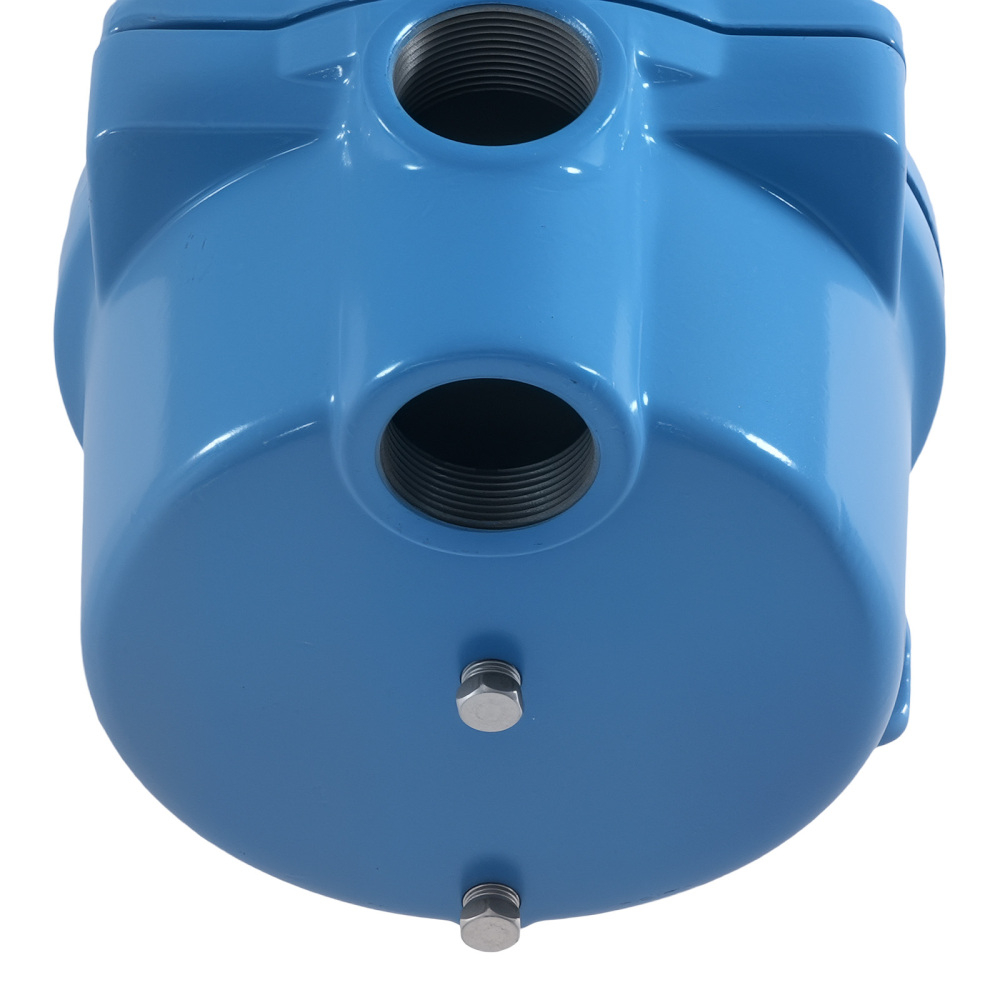

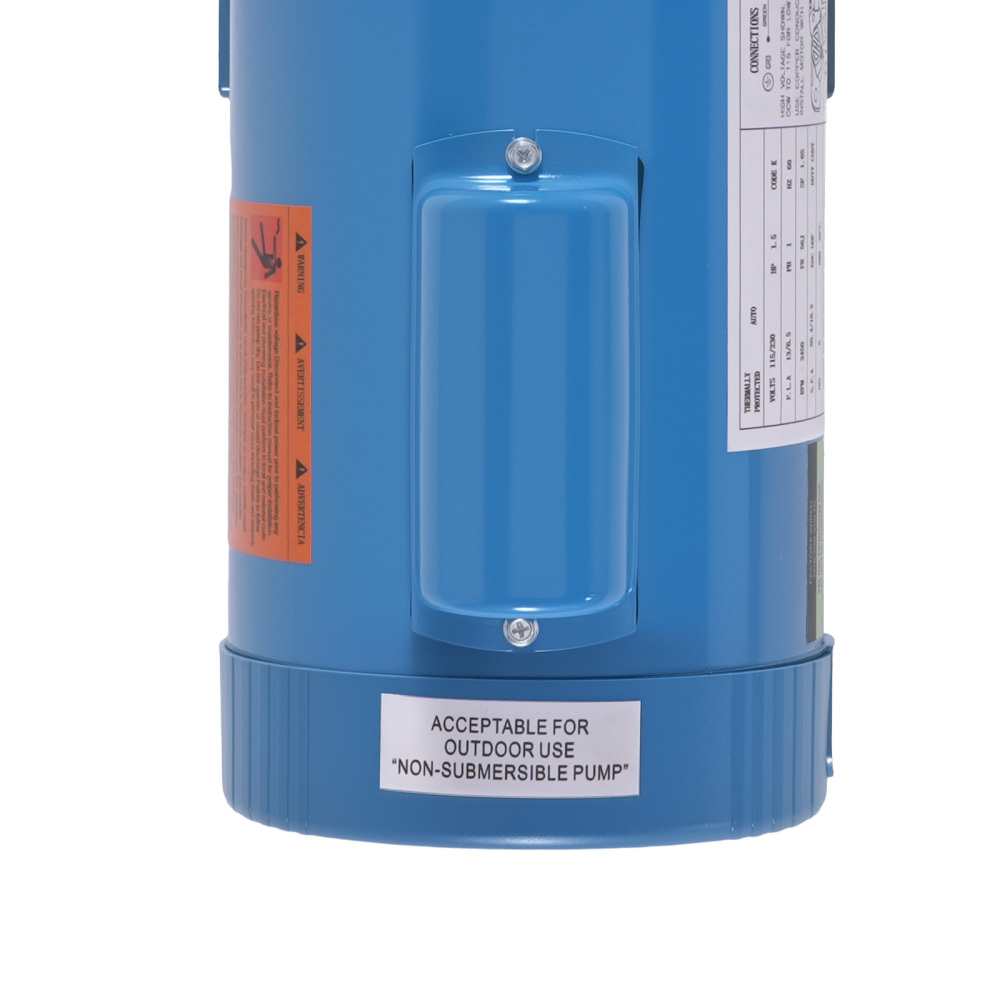

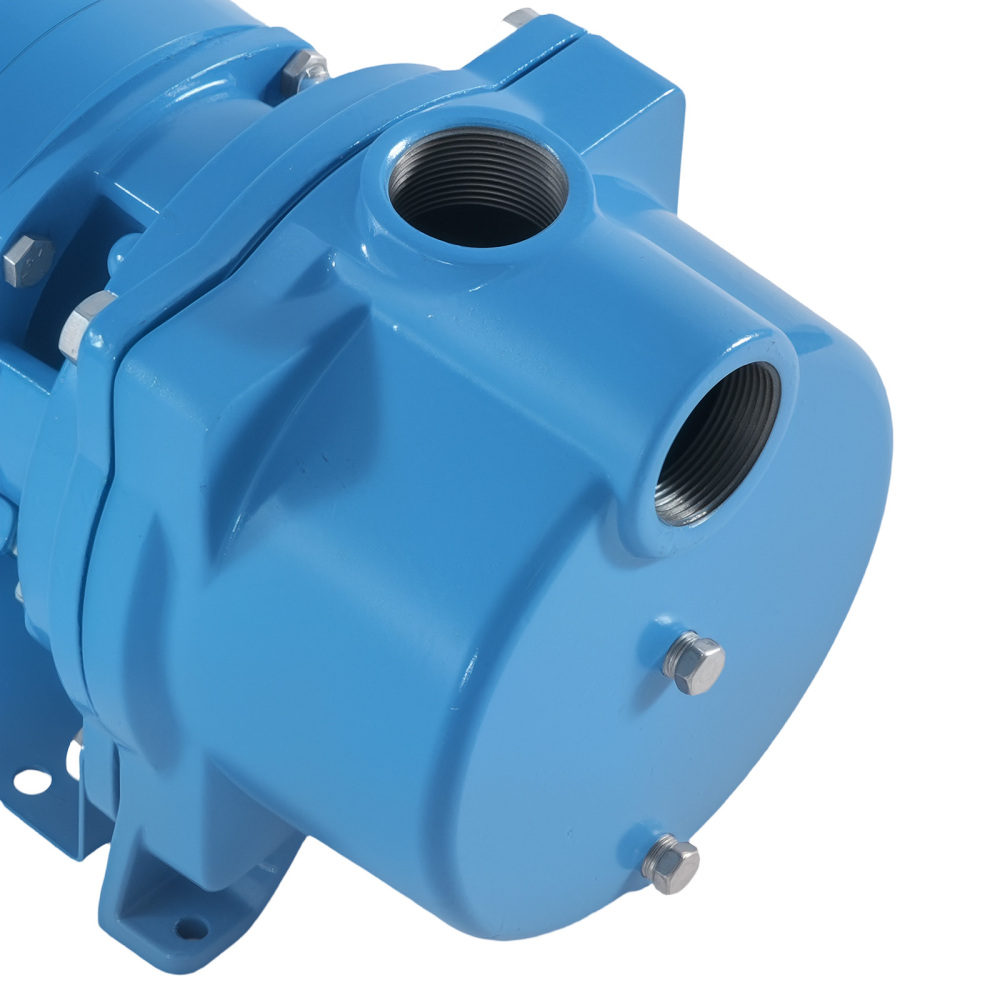

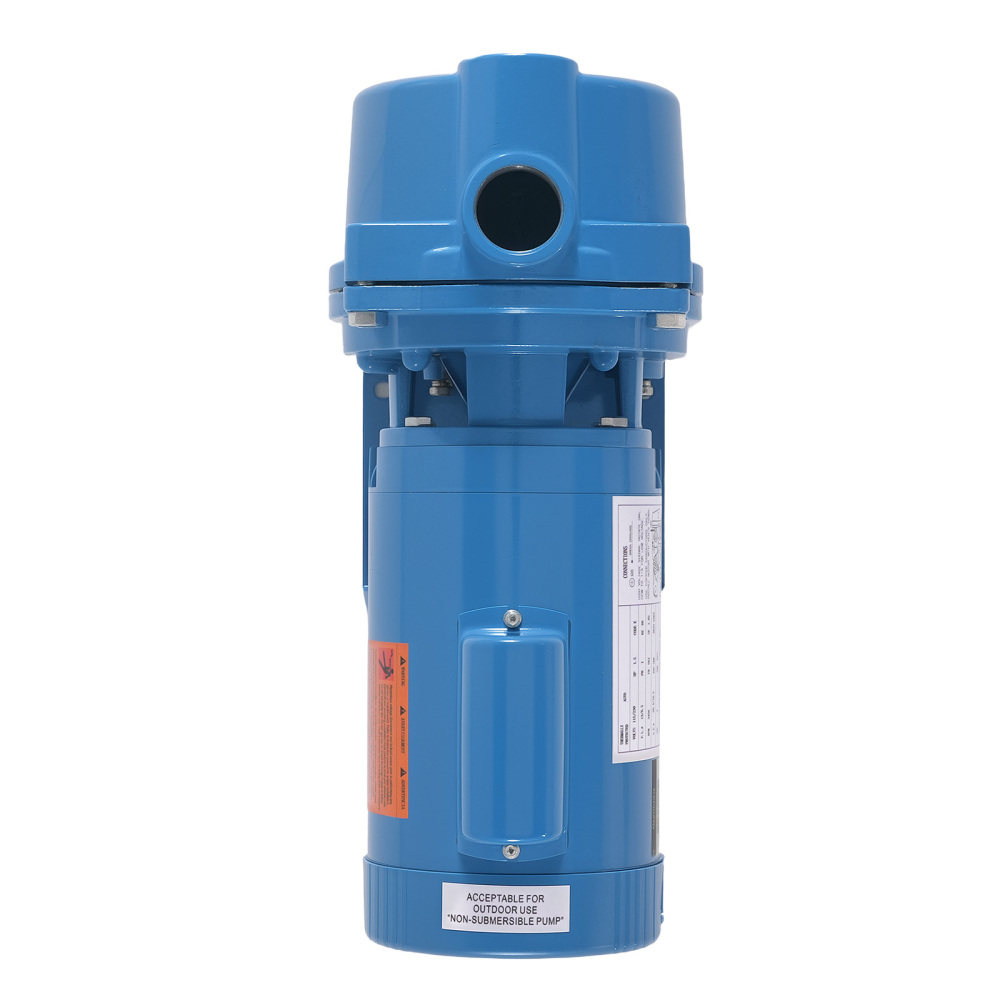

1.5HP Self-Priming Centrifugal Pump for GT15 115/230V Irrigation Water Transfer

Application

For Lawn sprinkling
For Irrigation
For Air conditioning systems
For Heat pumps
For Water transfer
For De-watering

OE/Part number

GT15

Specification

Type：Water Well Jet Pump
Model: GT15
Centrifugal Pump Type:Self-Priming
Rated Power: 1.5 HP
Voltage: 115/230 v
Suction: 1-1/2" NPT
Discharge: 1-1/2" NPT
Flow rate: 64 GPM
Phase: 1 Phase
Capacities: to 110 GPM at 5 foot suction lift
Maximum Lifting Height: 25 Feet
Max Total Dynamic Head: 128 ft
Maximum working pressure: 125 PSIG
Maximum water temperature: 140_ F (60_ C).
Casing material: Cast iron

Package included

1×Centrifugal Pump

Feature

1.Self-priming design — Once pump is primed, filled with water, it never needs priming again even if water level drops below the end of the suction pipe. Pumping resumes once the water level rises above the end of the suction pipe.
2.Back pullout design allows disassembly of pump for service without disturbing piping.Two compartment motor for easy access to motor wiring and replaceable components.
3.Bolt down diffuser (guidevane) ensures positive alignment with impeller
4.Mechanical seal with carbon/ceramic faces, BUNA elastomers, and diaphragm to prevent dry running

Note

1.Professional Installation Is Highly Recommended.
2.Even if your Equipment is shown in the compatibility, pls also double check the fitment details and photos before ordering.
