150HP Boat Hydraulic Steering Kit for Selva 70 Mako Shark Marine Outboard

Application

Compatible for Yamaha 60-70 2 Stroke 1990-2008
compatible for Yamaha 75C-90 2 Stroke 1998-2008
compatible for Yamaha F70 4 Stroke 2010-today
compatible for Yamaha 115C-130B 2 Stroke 1990-2008
compatible for Yamaha 150F 1996-2007
compatible for Yamaha 150 HPDI VMAX 2 Stroke 2000-2008
compatible for Yamaha F75-F80 EFI 4Stroke 1999-2007
compatible for Yamaha F100-F115-F150 EF14 Stroke 1999-2007
compatible for Yamaha F80-F100 4 Stroke 2000-today
compatible for Yamaha F115-F150 2004-today
compatible for Honda BF80-BF90 4 Stroke 1995-today
compatible for Honda BF115D 1998-2009
compatible for Honda BF115A 2009-today
compatible for Honda BF130A 1998-2005
compatible for Honda BF135-BF150 4 Stroke 2005-today
compatible for Honda BF90-BF150V-TEC 4 Stroke 2008-today
compatible for Suzuki DF70-80-90 4 Stroke 1998-today
compatible for Suzuki DF100-115-140 4 Stroke 1998-2008
compatible for Suzuki DF100-115-140 4 Stroke new model 2008-today
compatible for Suzuki DF 150 4 Stroke 2006-today
compatible for Tohatsu Nissan 70-90 2 Stroke 2004-today
compatible for Tohatsu Nissan 115-120-140 2 Stroke 2004-today
compatible for Tohatsu Nissan 90-90-115TLD 4 Stroke 2004-2011
compatible for Mercury Mariner 75-90 2 Stroke 1998-2008
compatible for Mercury Mariner 115-125-150 EF12 Stroke 1990-2007
compatible for Mercury Mariner 90-115-125 Optimax 2 Stroke 2004-today
compatible for Mercury Mariner 135-150 Optimax 2 Stroke 1999-today
compatible for Mercury Mariner 80-90 EF14 Stroke 2000-today
compatible for Mercury Mariner 100-115 EF14 Stroke 2007-today
compatible for Mercury Mariner 150 Fourstroke 4 Stroke 2011-today
compatible for Evinrude E50-E55-E60 2 Stroke 2004-today
compatible for Evinrude E75-E90 2 Stroke 2004-today
compatible for Evinrude E115-E130-E135 2 Stroke V4 1995-today
compatible for Evinrude E150 2 Stroke V6 1995-today
For Selva 50-Madeira/Bull shark-60 Grey shark/St.tropez-70 Mako shark 2 Stroke 1996-2008
For Selva 80 Portofino Tigershark 2 Stroke 1995-2008
For Selva 150 compatible for White shark 2 Stroke 2001-2007
For Selva 50-60 Dorado EFI4 Stroke 2001-2007
For Selva 100 EFIMarlin -115 EFINarwhal-150EFI Killer whale 4 Stroke 2000-today
compatible for Johnson BJ60-70 4 Stroke 2001-2007
compatible for Johnson BJ90-115-140 4 Stroke 2001-2007
compatible for Johnson J90-115V4 2 Stroke 1995-2007

OE/Part number

HK4200A-3,150HP,20FT

Specification

Applicable Engine Horsepower:≤150HP
Maximum Pressure:2.5Mpa/363psi
Tube I.D:Φ1.2 in/30 mm
Rod ID: Ф0.6 in/16mm
Stroke: 7.7 in/195 mm
Quick-fit Fittings:5/16"
Output Force: 400 KGF
Capacity: 117 CC
Lock-to-Lock Turns (Pump): 5.5 ± 0.5 turns
Steering Wheel Mount Thread: 5/8"-18 UNF
Cylinder Capacity: 101 ± 10% mL
Material: Aluminum Alloy +Stainless Steel

Package included

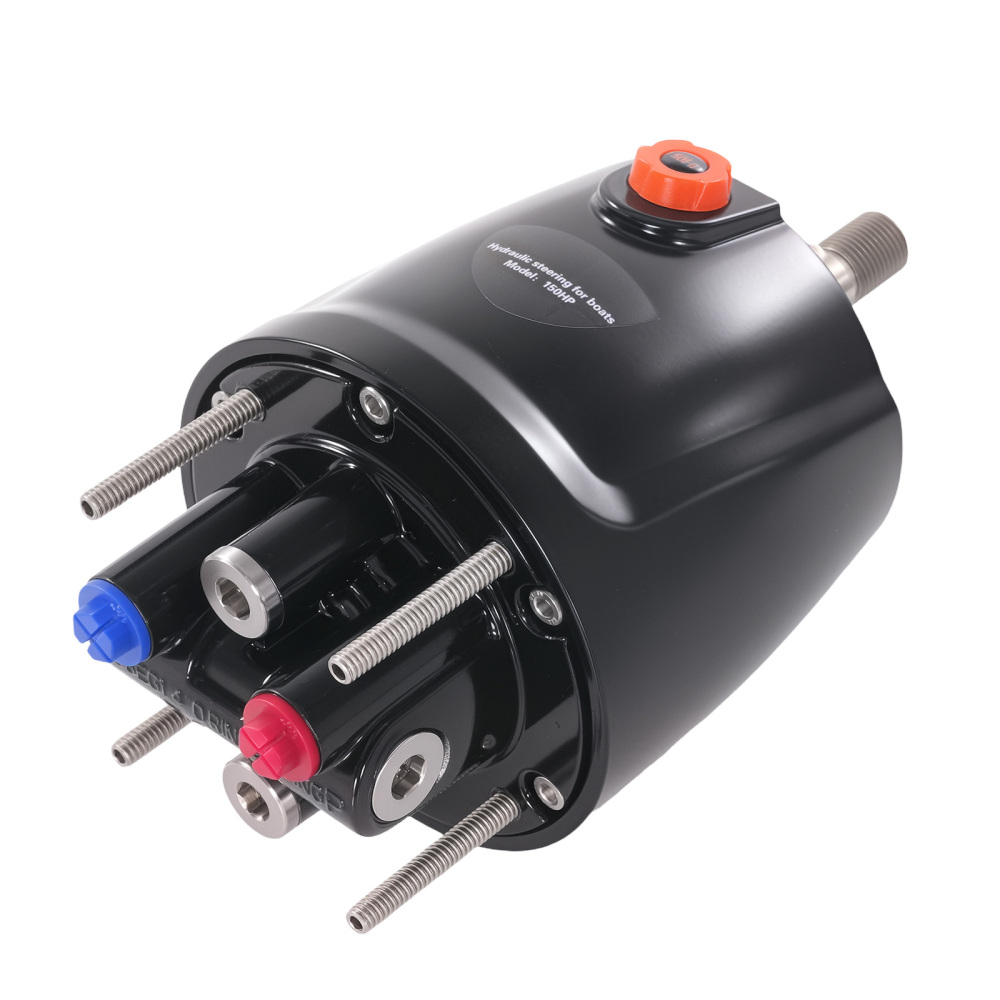

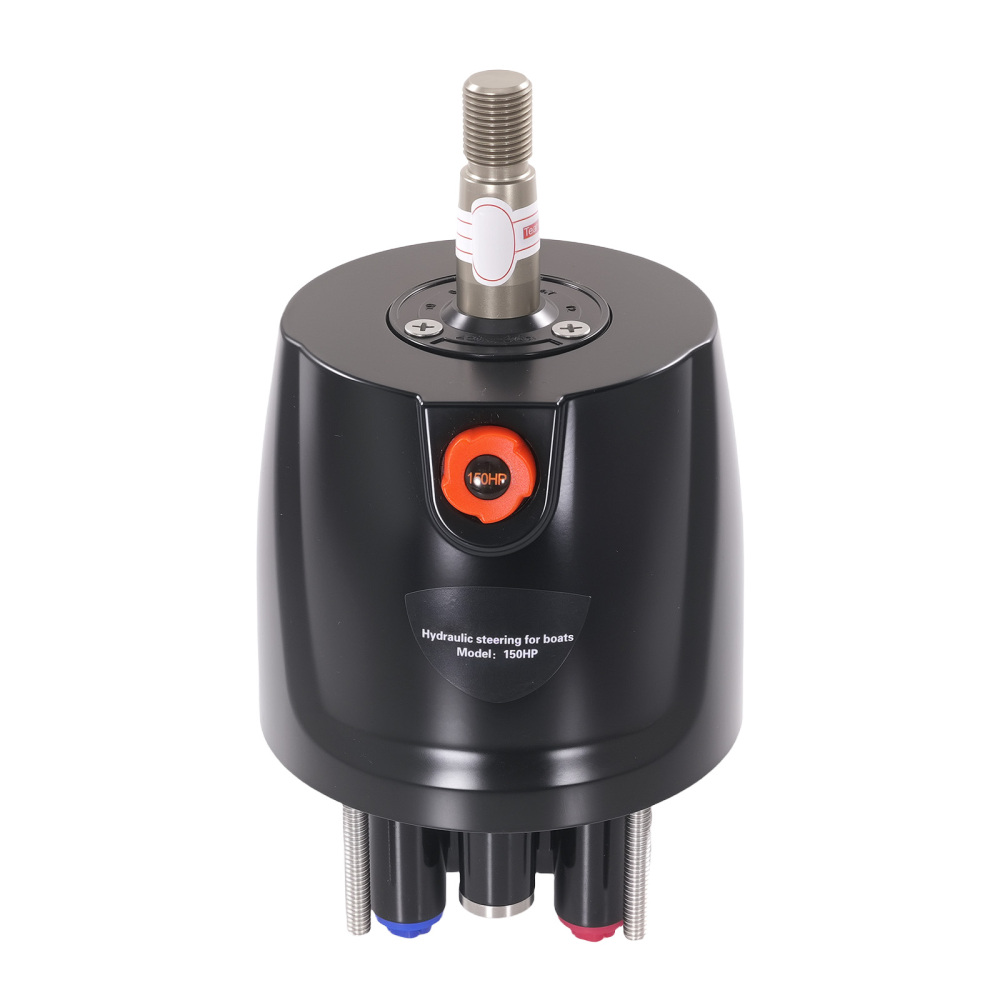

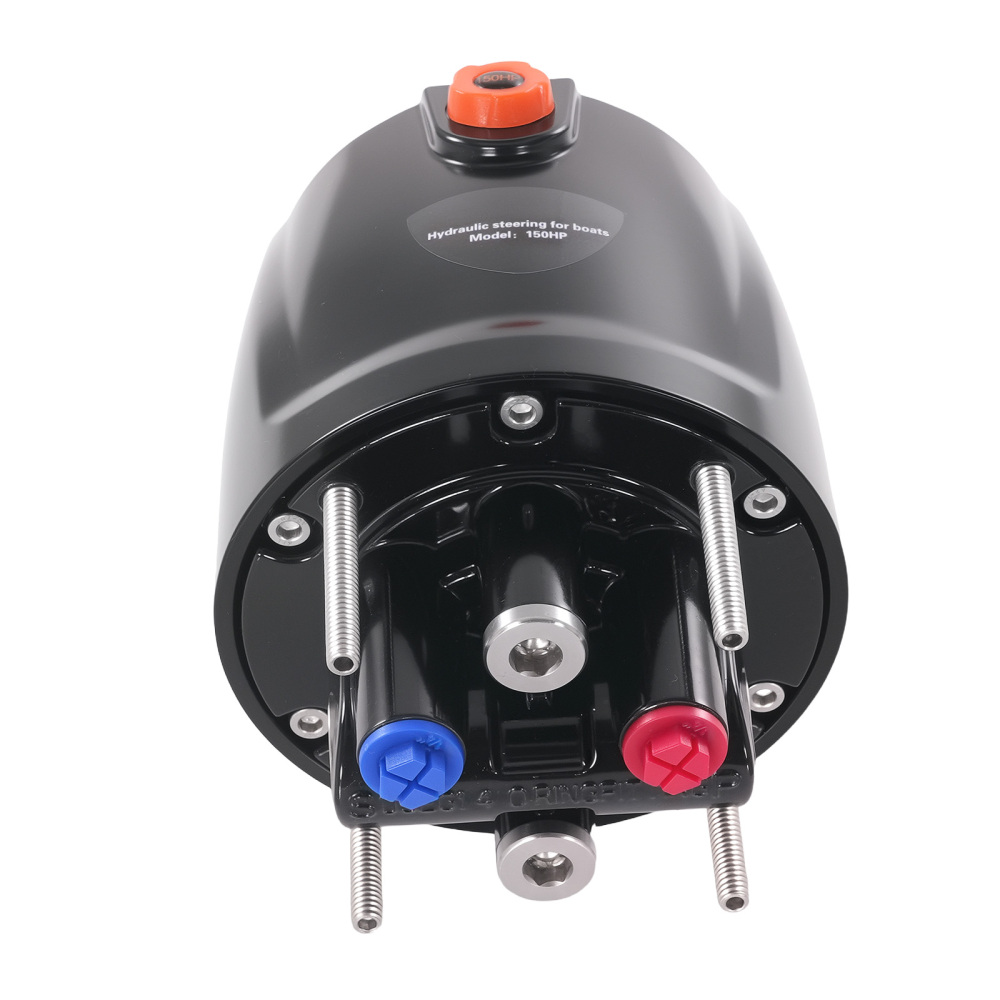

1x Hydraulic Steering Pump

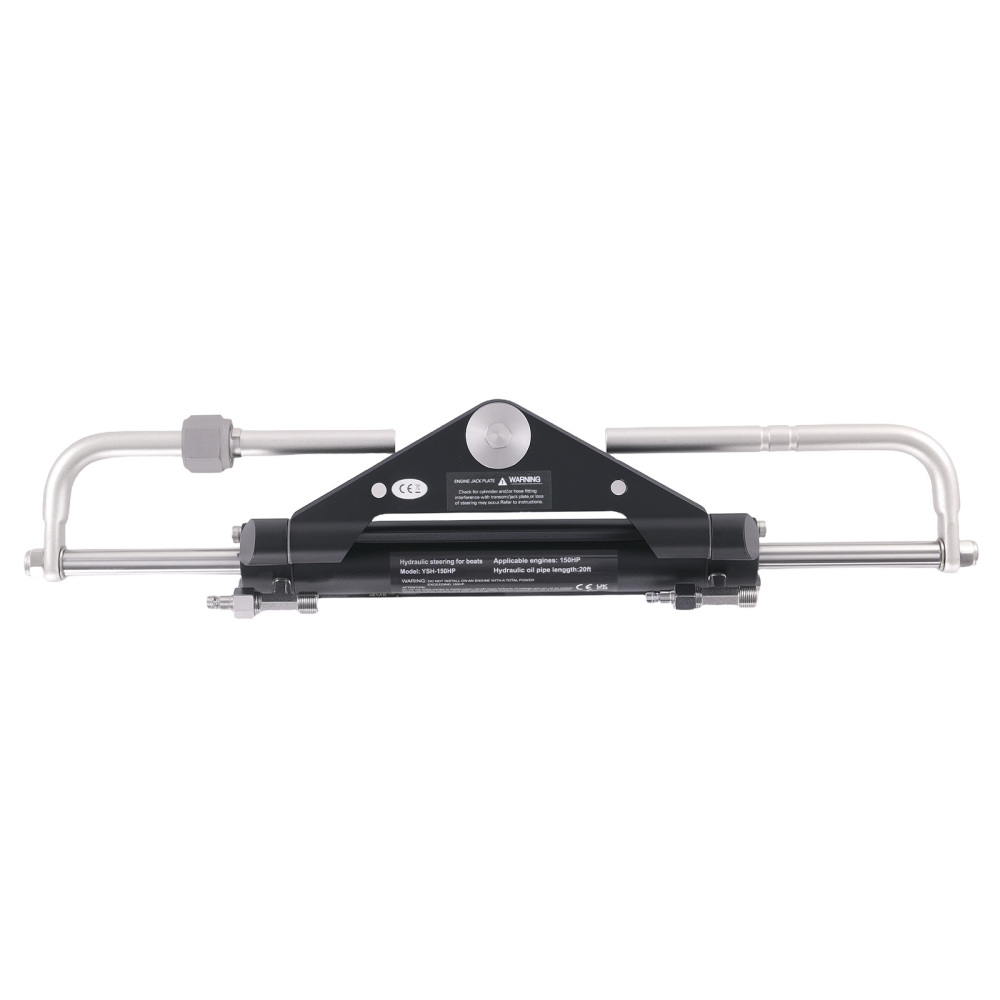

1x Hydraulic Steering Cylinder
2 x 20 ft High-Pressure Oil Hoses

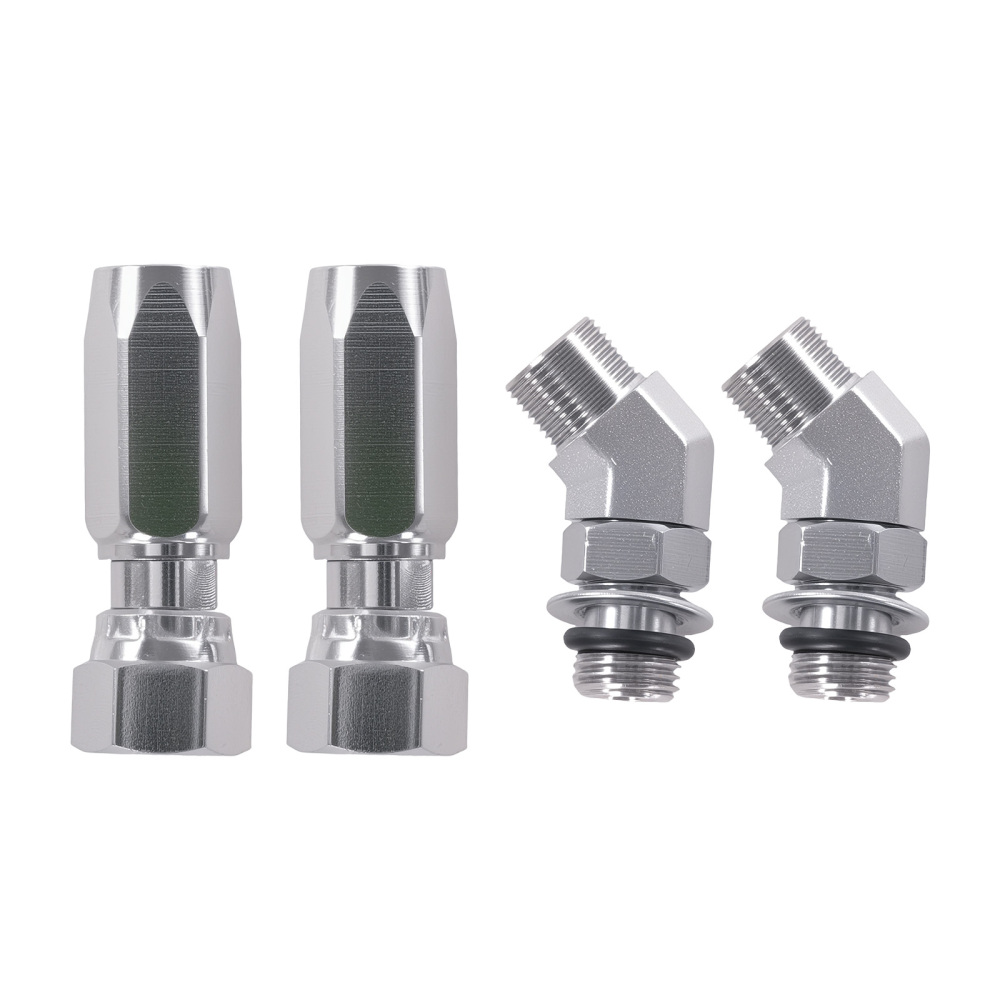

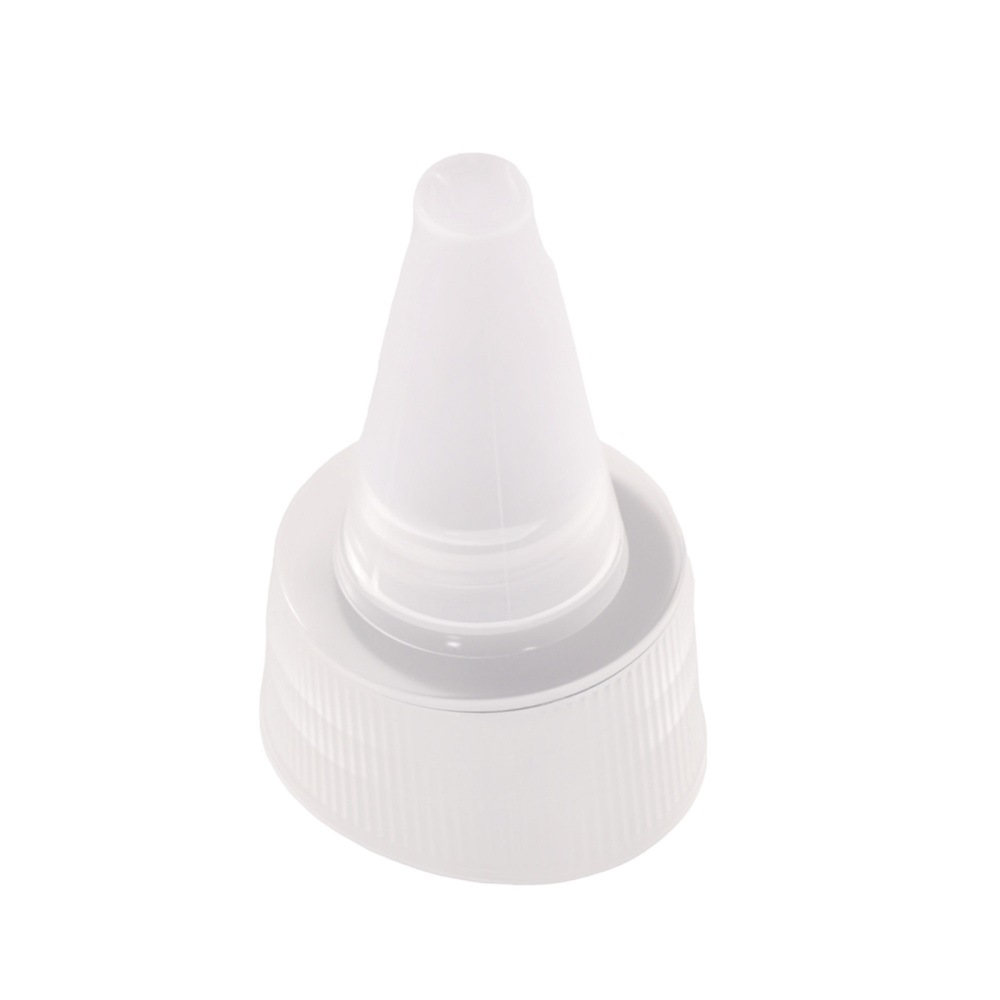

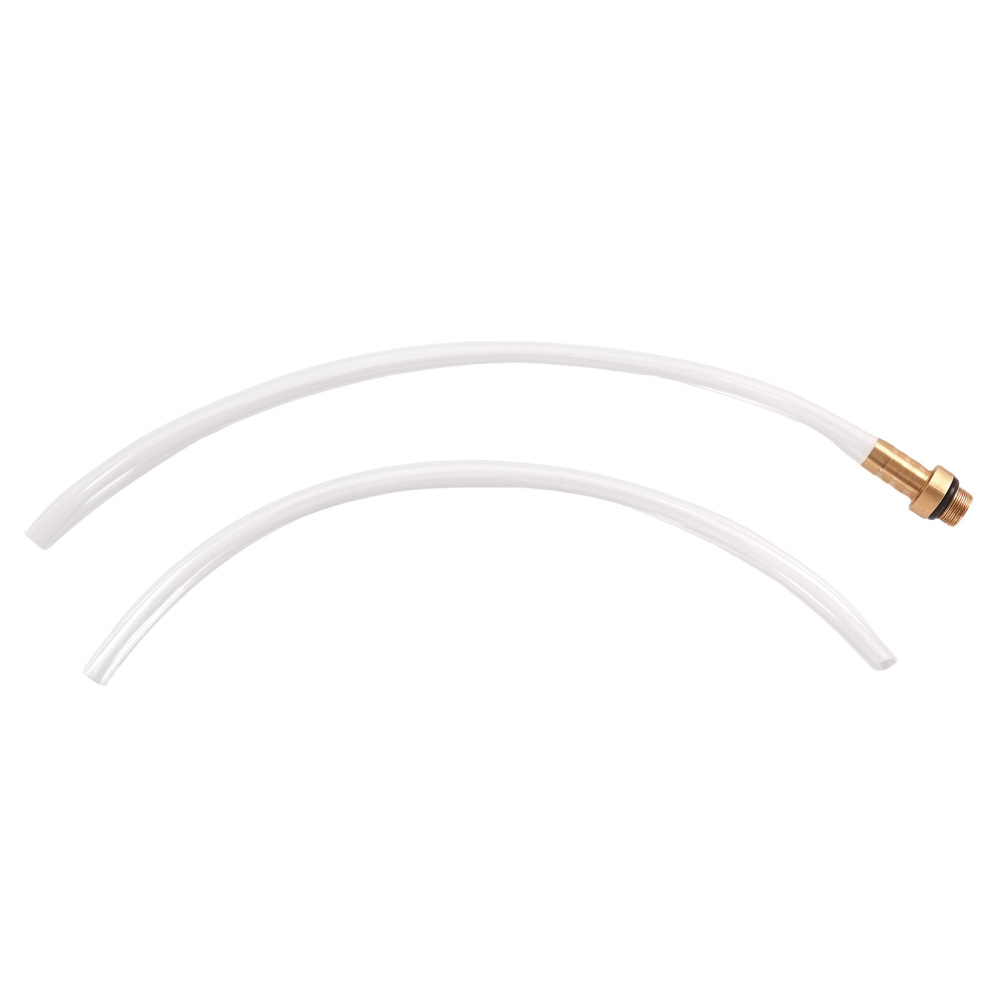

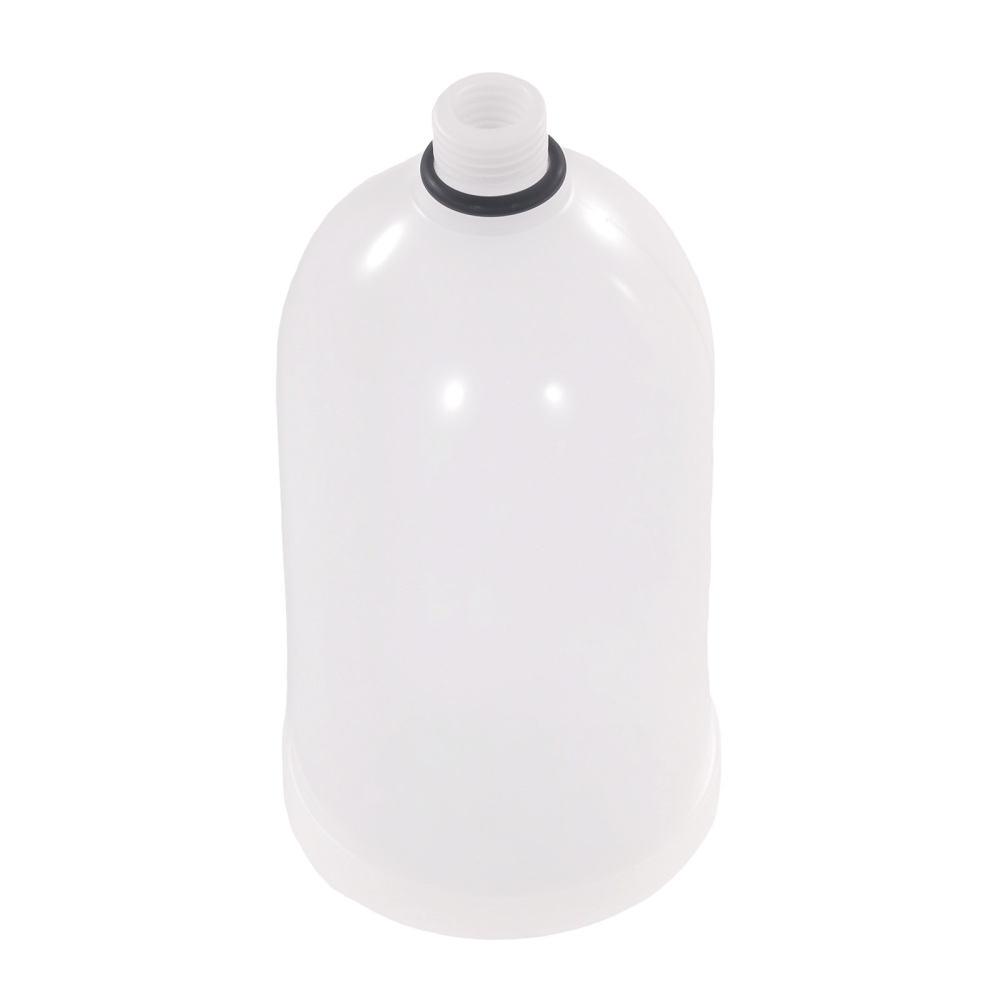

1 x Installation Accessories Kit

Feature

1.Handle Up to 150 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 150 HP, providing a 5.5 turns lock-to-lock for precise and responsive handling on every trip
2.Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use
3.Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions
4.2 x 20FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
5.Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

Note

1.Professional installation is highly recommended
2.Color may vary from actual item due to lighting or monitor display
