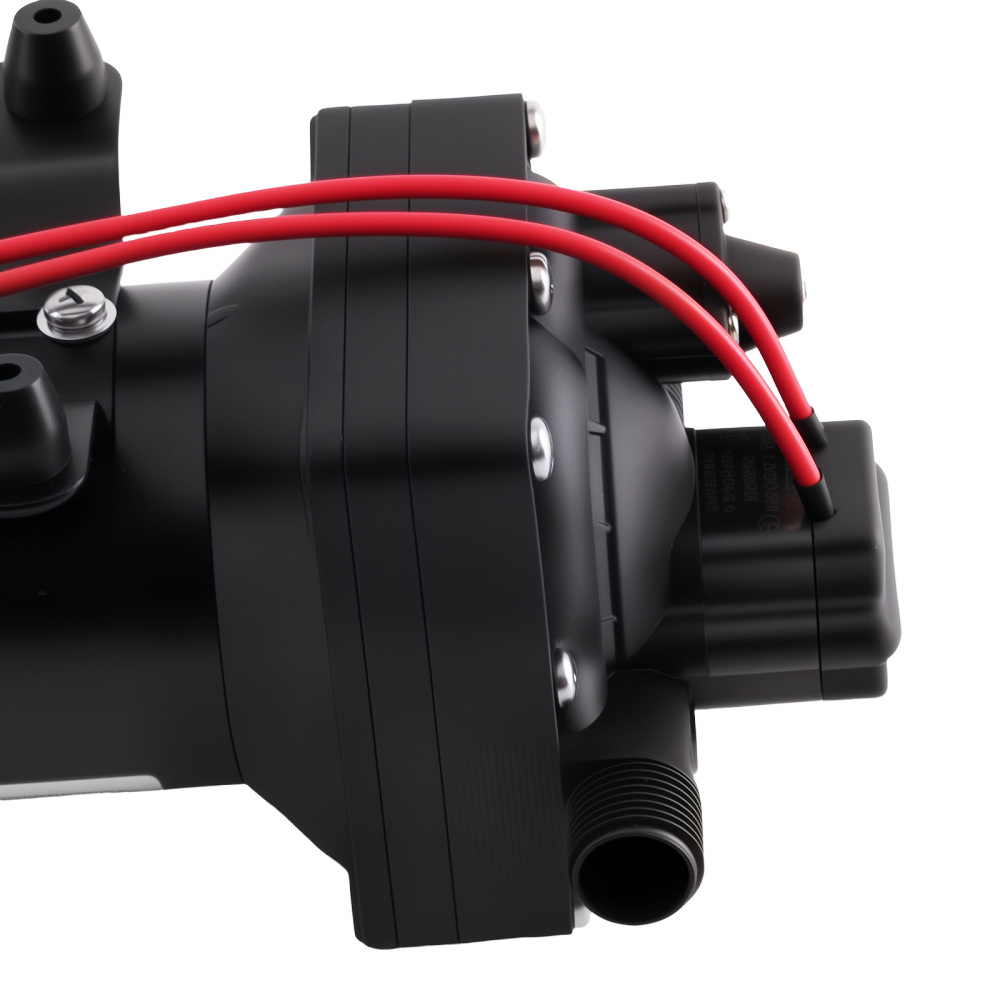

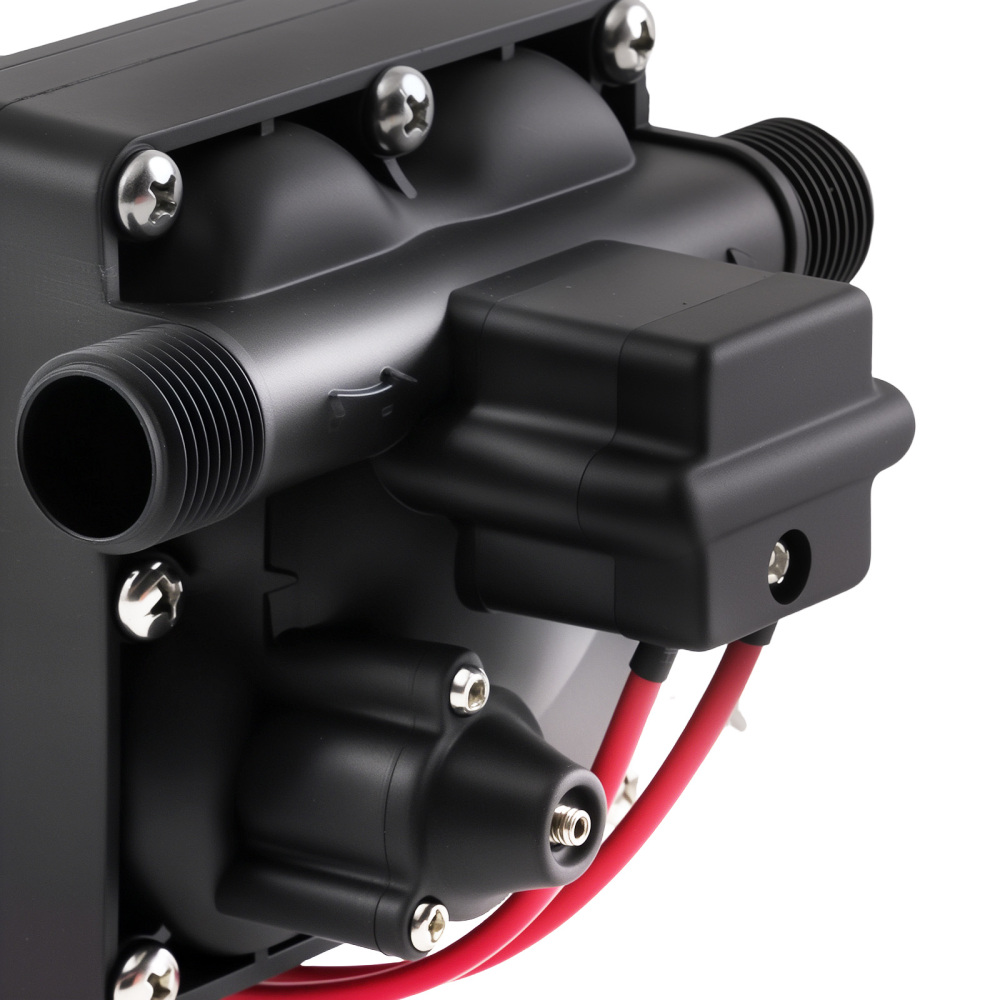

12V RV Fresh Water Pump for 6GPM 70PSI Yacht Garden Camper Diaphragm Pump

Application

For Replacement pump, suit most RV
For RV, Yacht, Garden, Camper

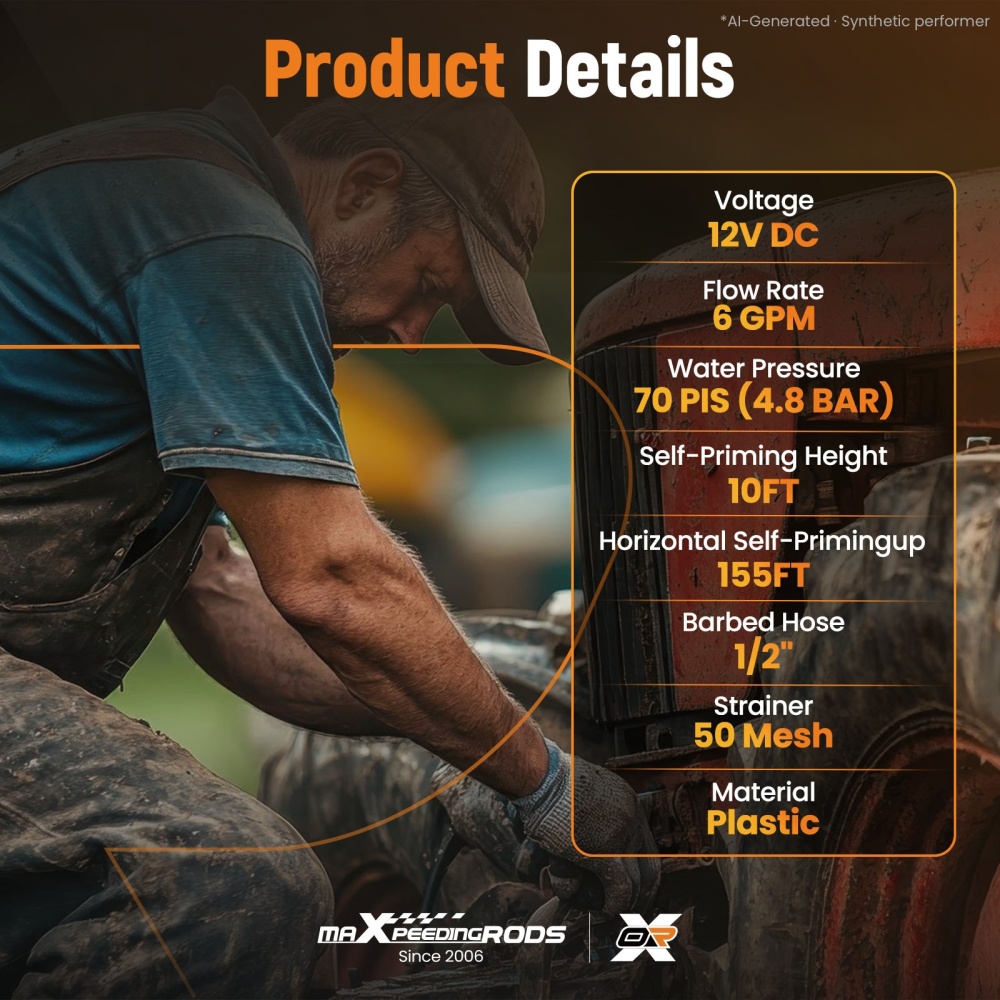

Specification

1.Voltage: 12V DC
2.Flow Rate:6 GPM
3.Water pressure: 70 PIS (4.8 BAR)
4.Cut-in pressure：25-30PIS (general home) / 30-40PIS (large RV)
5.Cut-off pressure:70 PIS
6.pressure:85-90PIS
7.Current Draw: 6.0Amp (max. 17.0 Amp)
8.Self-Priming Height: 10 FT
9.Horizontal Self-Priming:155FT
10.Barbed Hose : 1/2"
11.Strainer:50 Mesh
12.Material: Plastic

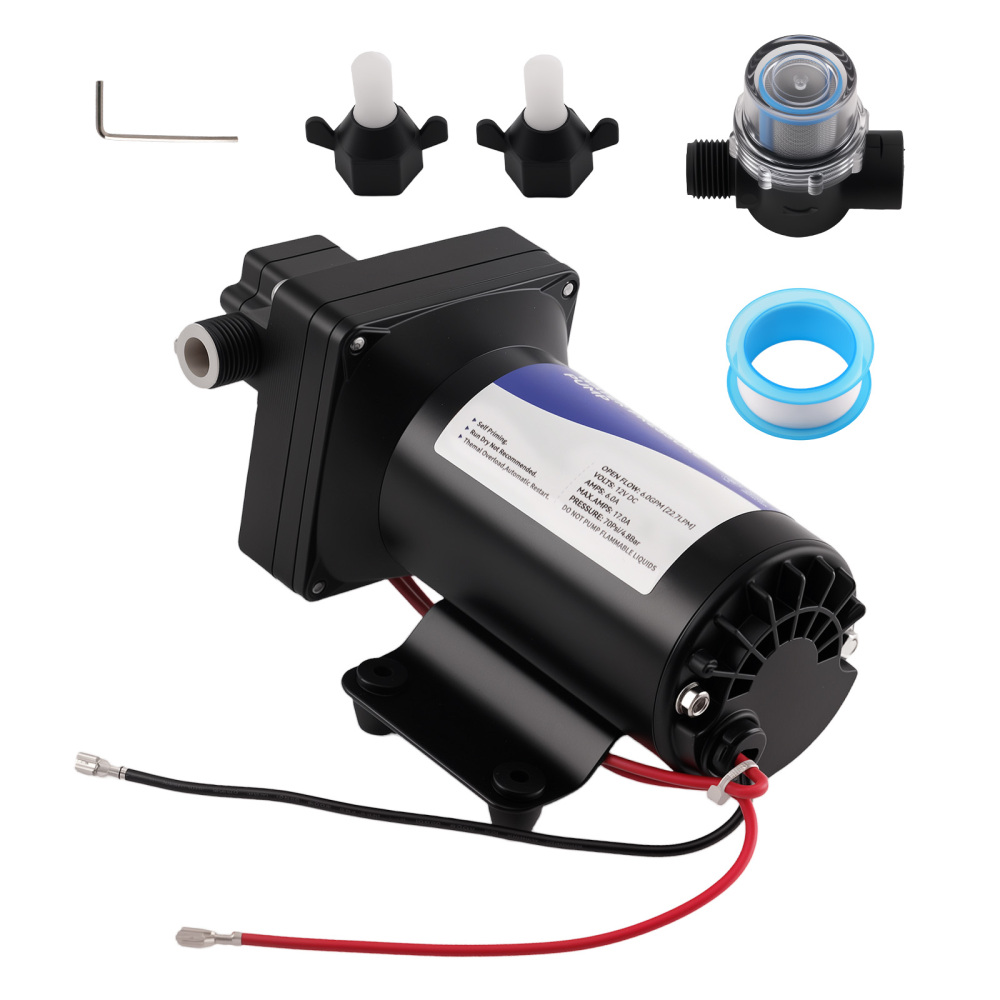

Package included

1* Water Pump
1* Filter
2* Adapter
Showing as the picture

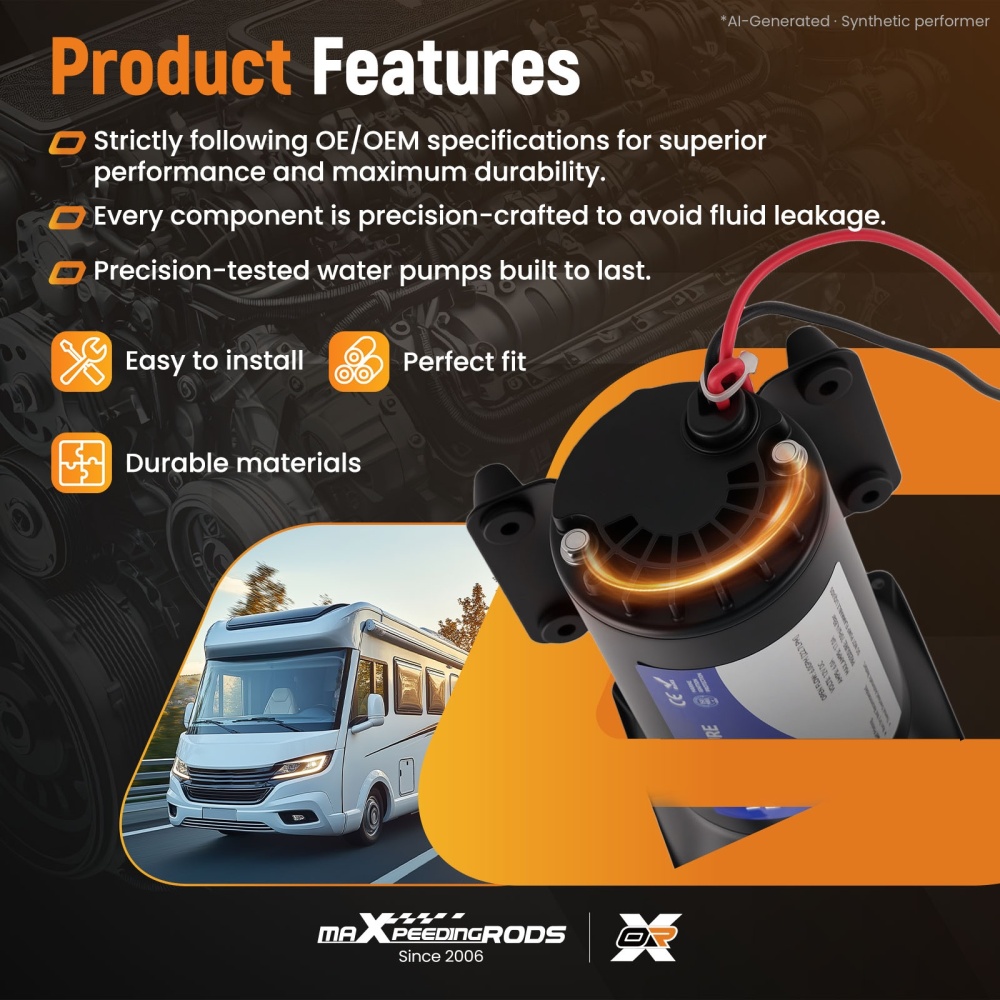

Feature

1.Built with NSK double ball bearings for high durability and smooth operation
2.One-piece 4 Chambers Diaphragm Design ensures high flow and low noise running
Built-in pressure switch enables automatic stop and start function
2.High-quality construction provides reliable performance in various applications

Note

1.Regarding the fuse: Our water pump has high power and it is recommended to use a 20-30A fuse. If it's below 20A, it may trip or damage the circuit.
2.About the power supply: Our water pump operates on 12V DC. Please choose another pump suitable for a 110V compatible for AC power suppl
3.Concerning pressure: Our water pump is a high-flow pump, reaching a maximum pressure of 70PSI.
4.This product should not be used with acidic liquids. If the pump temperature becomes excessively high, it will activate the automatic protection function, causing the product to shut down. Please patiently wait for the pump to cool down and lower its temperature.
