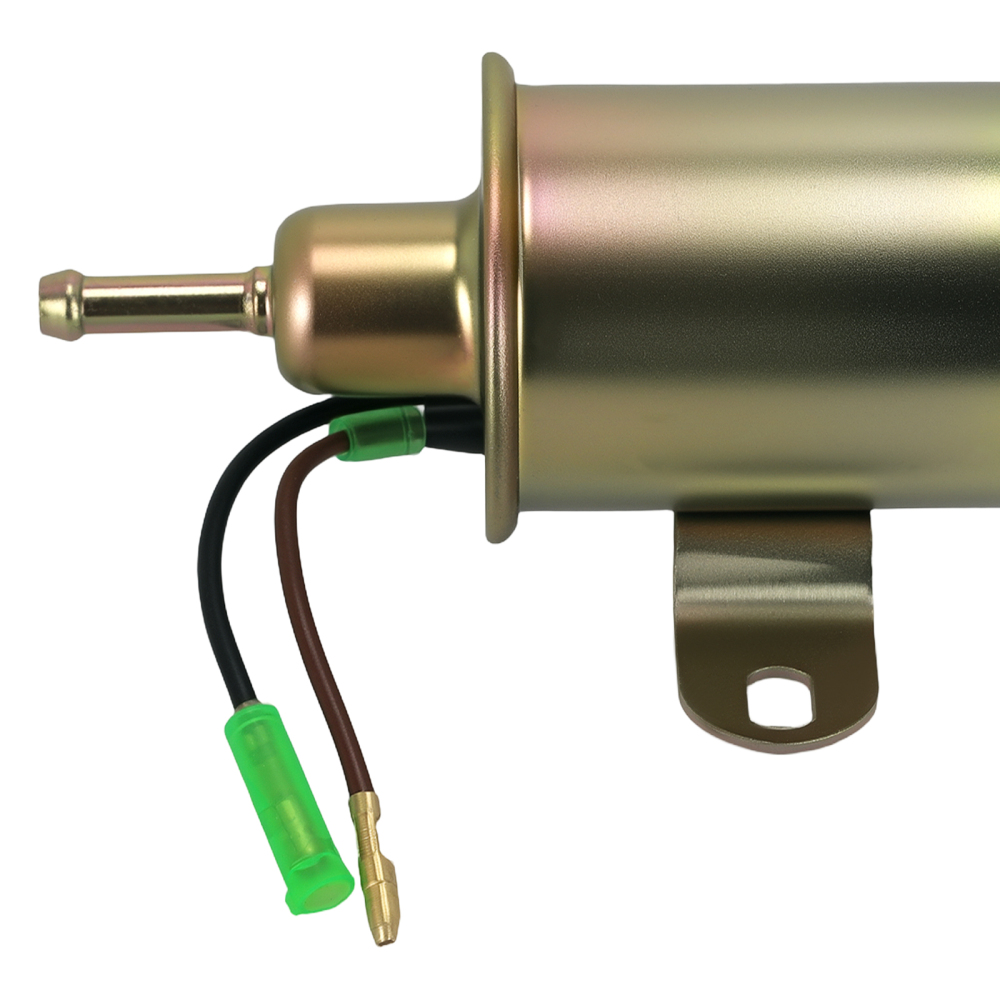

12V Electric Fuel Pump compatible for Polaris Ranger 400 500 4011545 4011492 4170020

Application

Compatible for Polaris Ranger 400 2009-2012
compatible for Polaris Ranger 500 1999-2008

OE/Part number

4011545, 4011492, 4010658, 4170020

Specification

Condition: New
Type: Fuel Pump
Drive Type: Electric
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥17
Pressure(MPa): 0
Inlet Quantity: 1
Outlet Quantity: 1
Material: Metal
Housing Material: Metal
Placement on Vehicle: Front

Package included

1X Fuel Pump(as shown in the pictures)

Feature

Armature：
1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
fuels, work efficiency increased by 10%, life expectancy increased by 50%.
2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
hysteresis loss.
3. Insulation paper potect armature under more than 1000V breakdown voltage.
4. Temperature resistance of enameled wire: 220℃.
5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

Pump Housing：
1. The selection of high-quality carbon seamless steel pipe, effectively
Eliminate electromagnetic eddy current, reduce magnetic loss.
2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
Vibration, reduce operating noise, increase product life.
3. Environmental plating, strong corrosion resistance.

Turbine Impeller：
1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
effective suppression of vibration.
2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
3.Due to the different display and different light, the picture may not reflect the actual color of the item.
