12-Stage Lift G3 Shock 0-2.5 Front Rear compatible for Jeep Wrangler JK 4WD/RWD 2007-2018

Application

Compatible for Jeep Wrangler JK, 2007-2018 4WD & RWD

Specification

type：lift shock

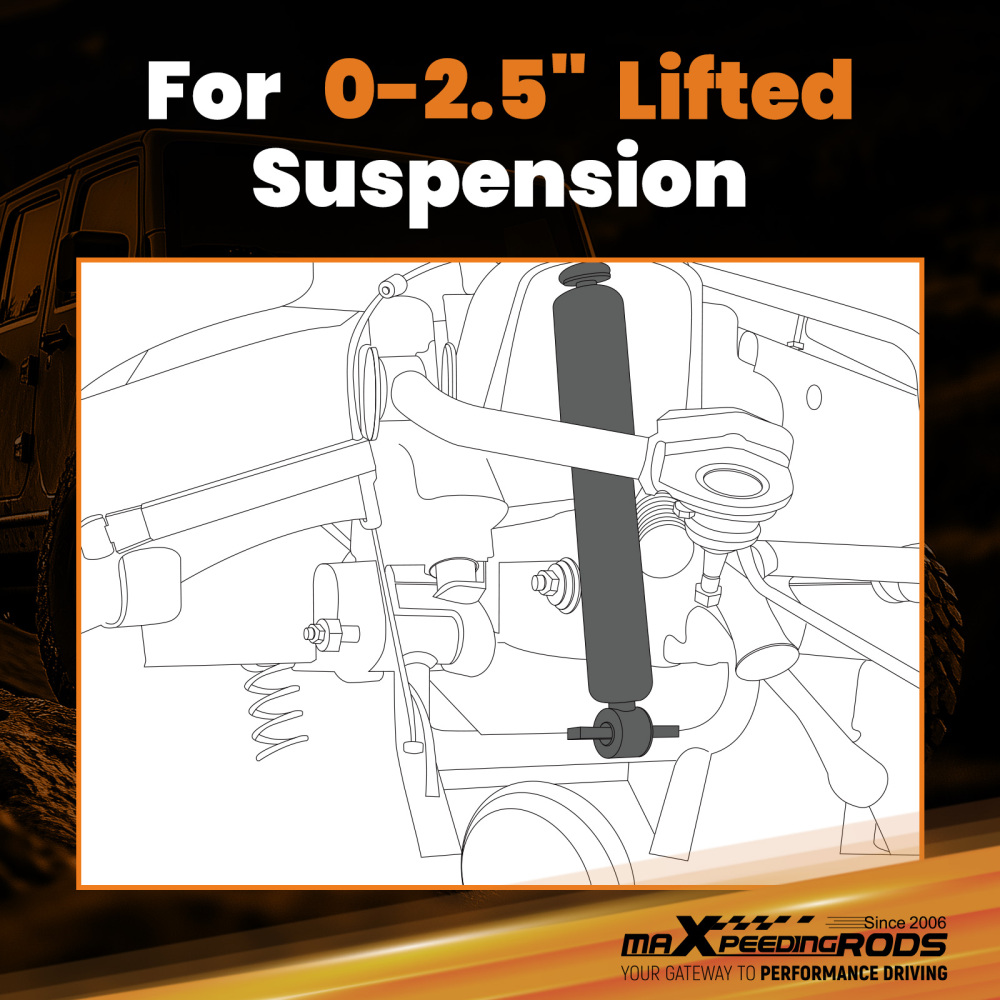

Compatible Height：F&R 0-2.5"
Material: High Tensile Strength Carbon Steel
Finish: Oven-baked paint
Bushing material: Rubber
Adjustable: 12 level rebound adjustable
1(Softest)-6(OE)-12(Hardest)
Levels 1-4 are suggested for daily street driving
Levels 5-8 are suggested for daily mixed driving conditions
Levels 9-12 are suggested for off-road driving
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 35mm/1.37"
Outer cylinder diameter: F&R 58mm/2.28"

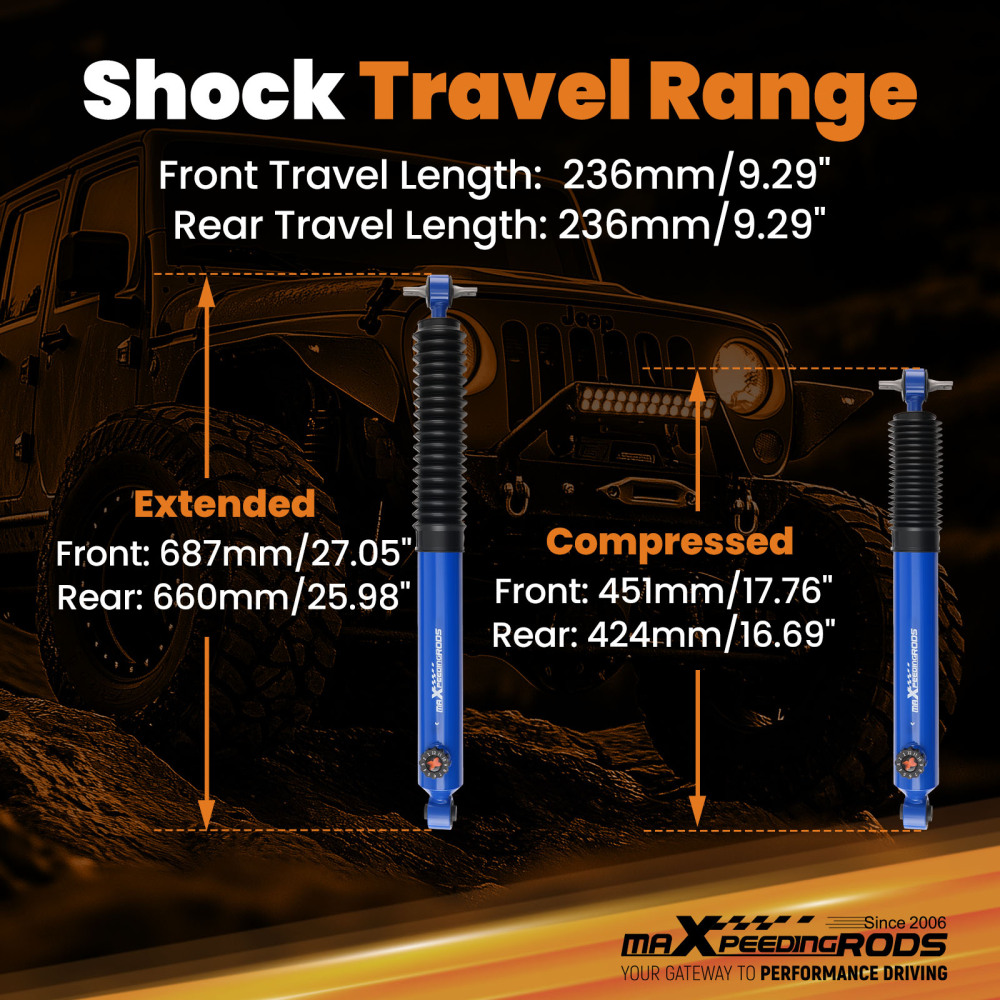

Travel: F: 236mm/9.29" R: 236mm/9.29"
extended length: F:687mm/27.05" R: 660mm/25.98"
collapsed length:F: 451mm/17.76" R: 424mm/16.69"
Nitrogen charged：yes
dust cover equipped: yes

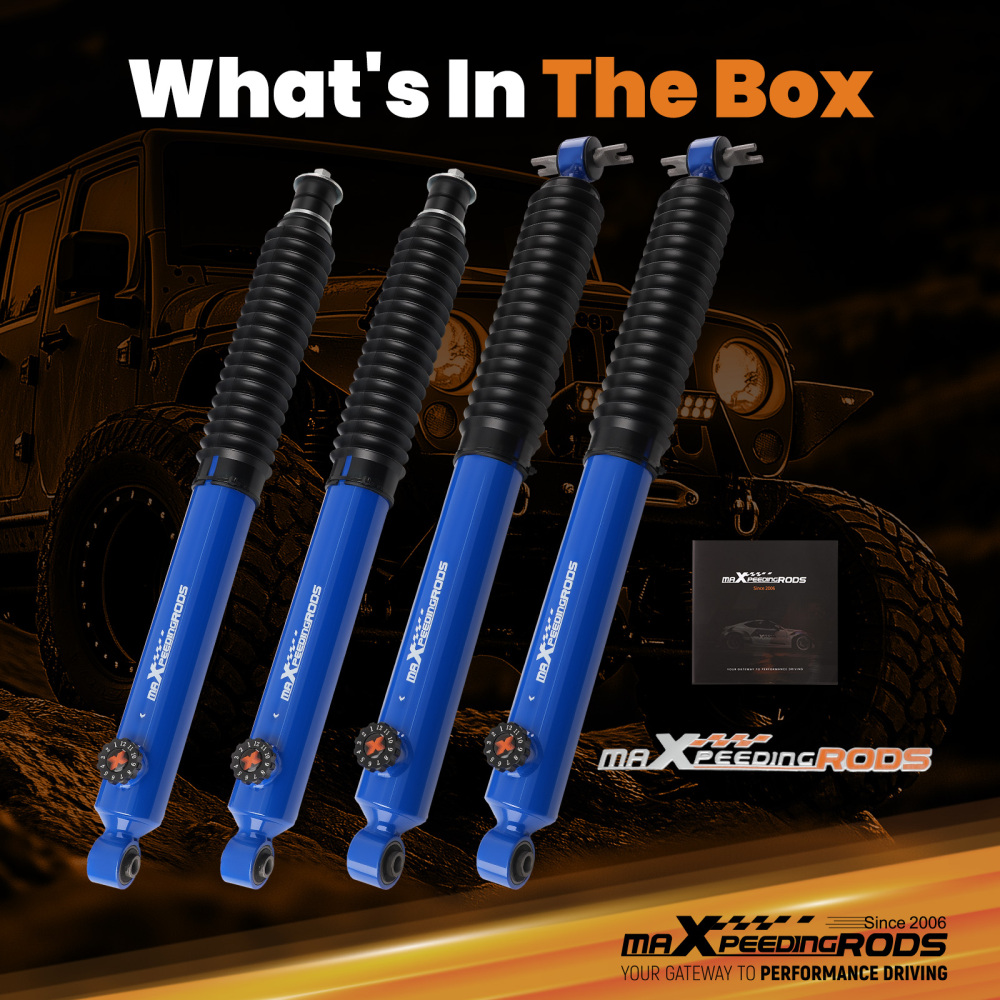

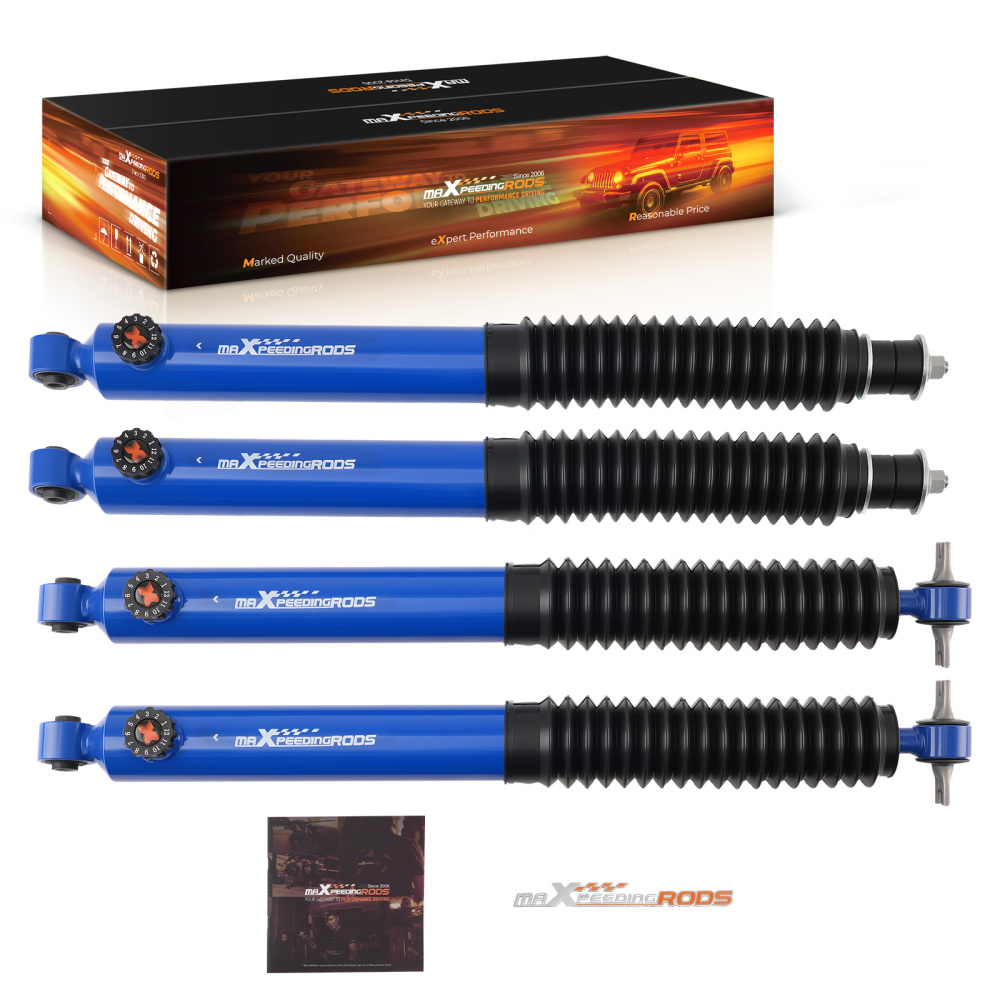

Package included

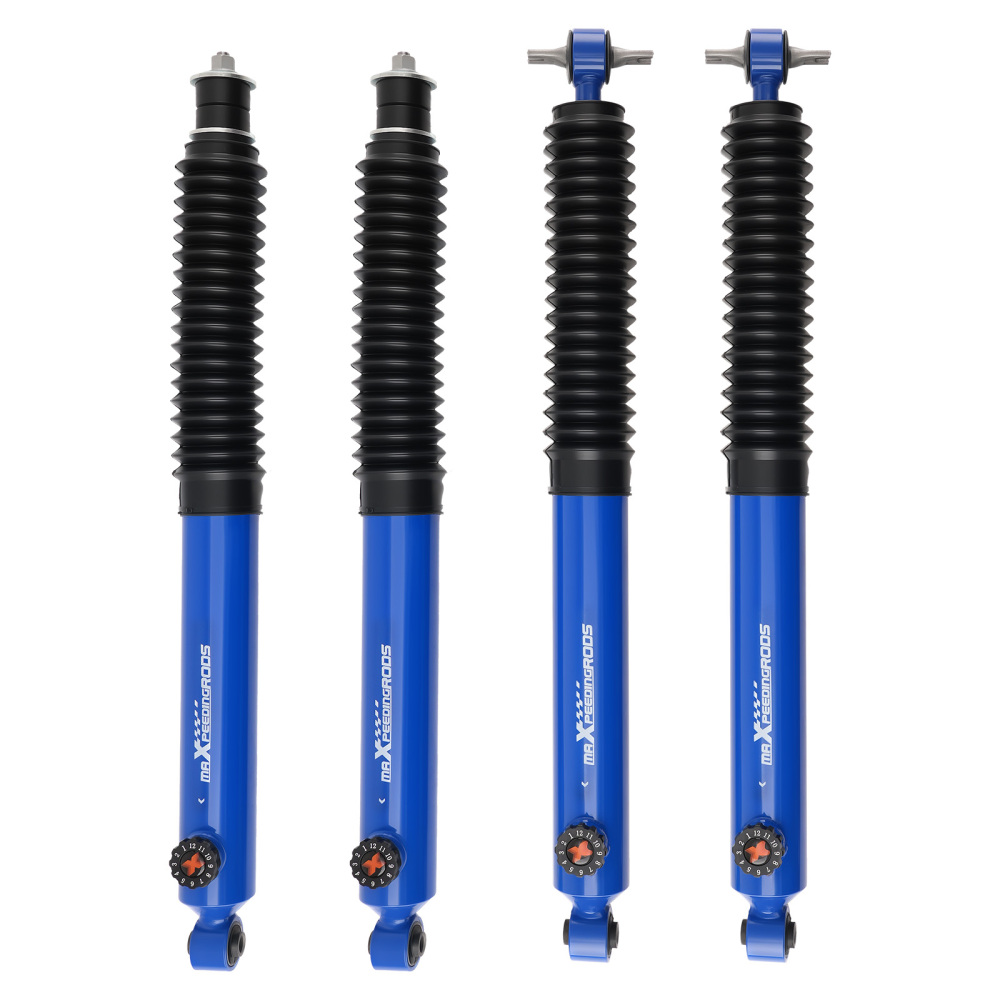

2X Front Shock Absorbers
2X Rear Shock Absorbers

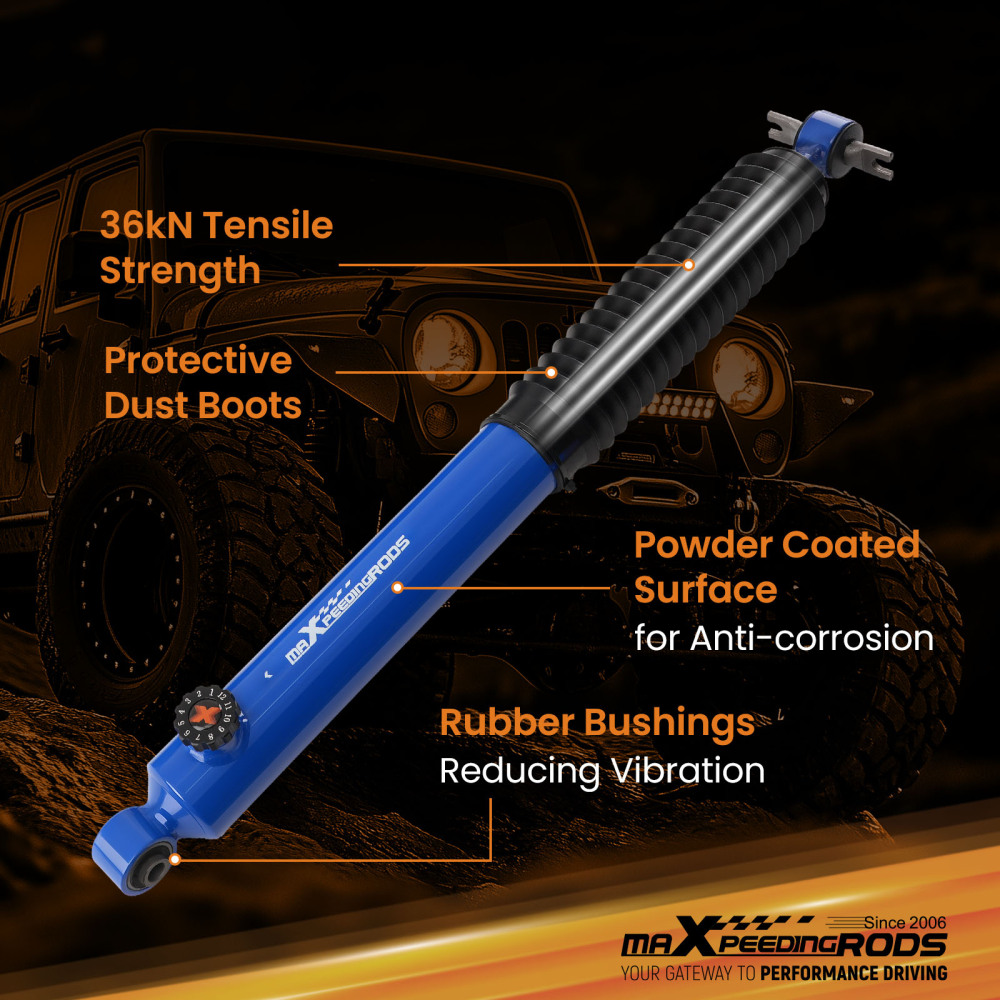

Feature

12-way rebound control for precise tuning on street, trail, or heavy loads.

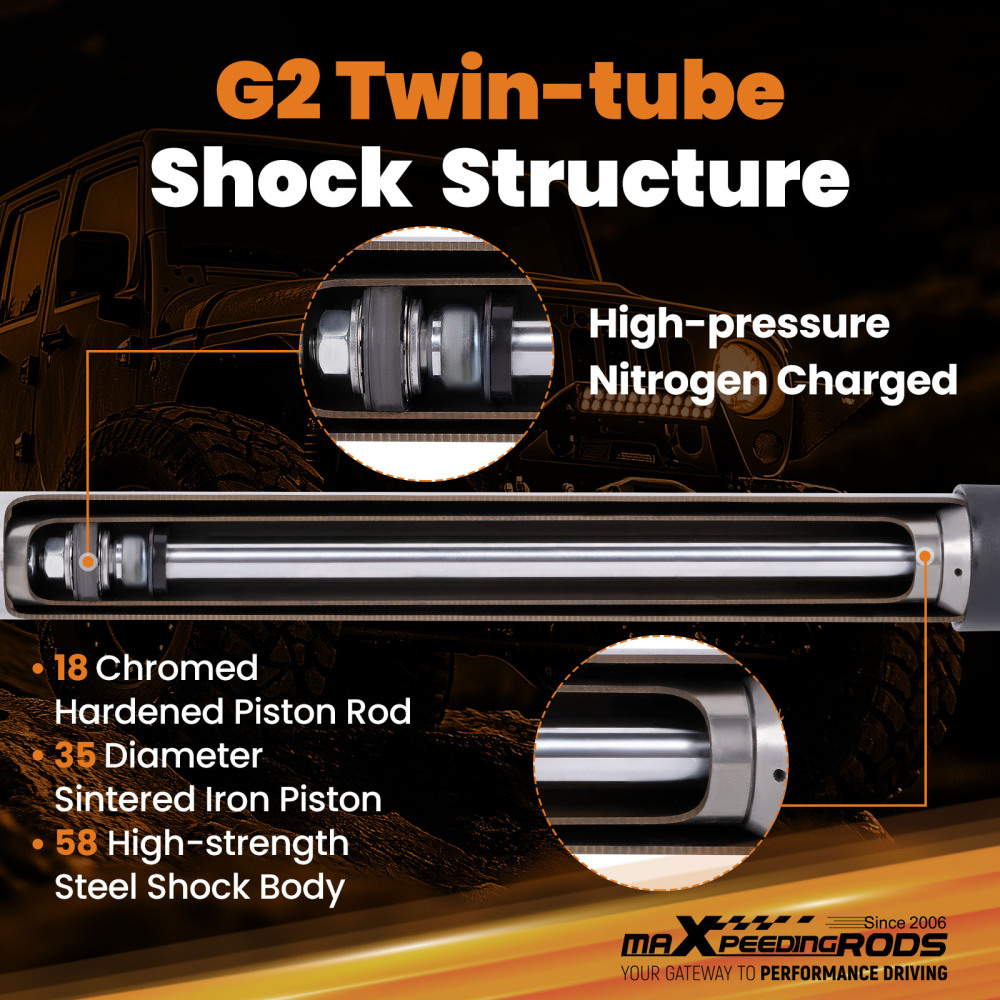

2.28" twin-tube design with 15-20% more oil capacity for fade-free off-road performance
High quality all-weather oil come with stable viscosity from -20°C to +80°C for consistent performance.
1.37" oversized piston delivers 30% stronger damping force than standard shocks
0.70" chromoly steel piston rod is hardened and chrome-plated for rock-proof durability.
The plate-type multi-lip seal provides dual professional protection with excellent effectiveness

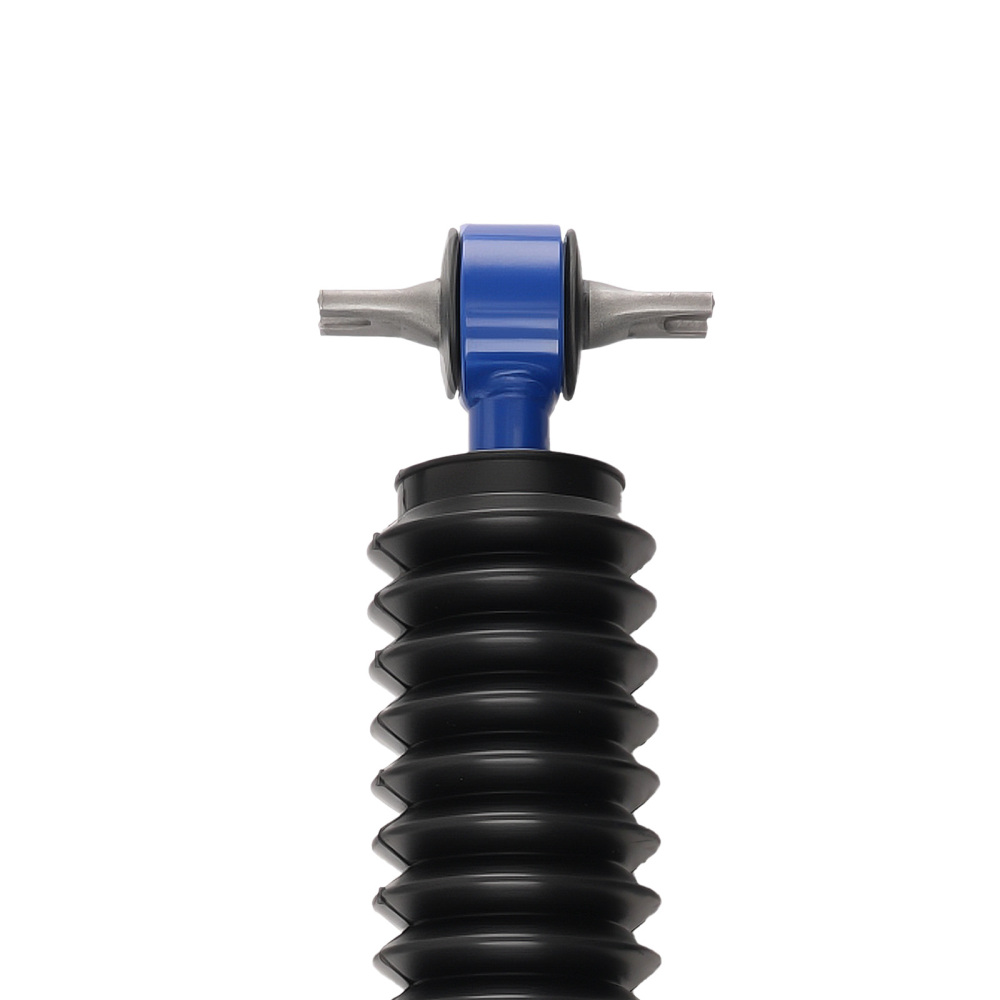

Upgraded rubber bushings for better absorption and more durable.
High Tensile Strength Steel for optimal durability and fitment.

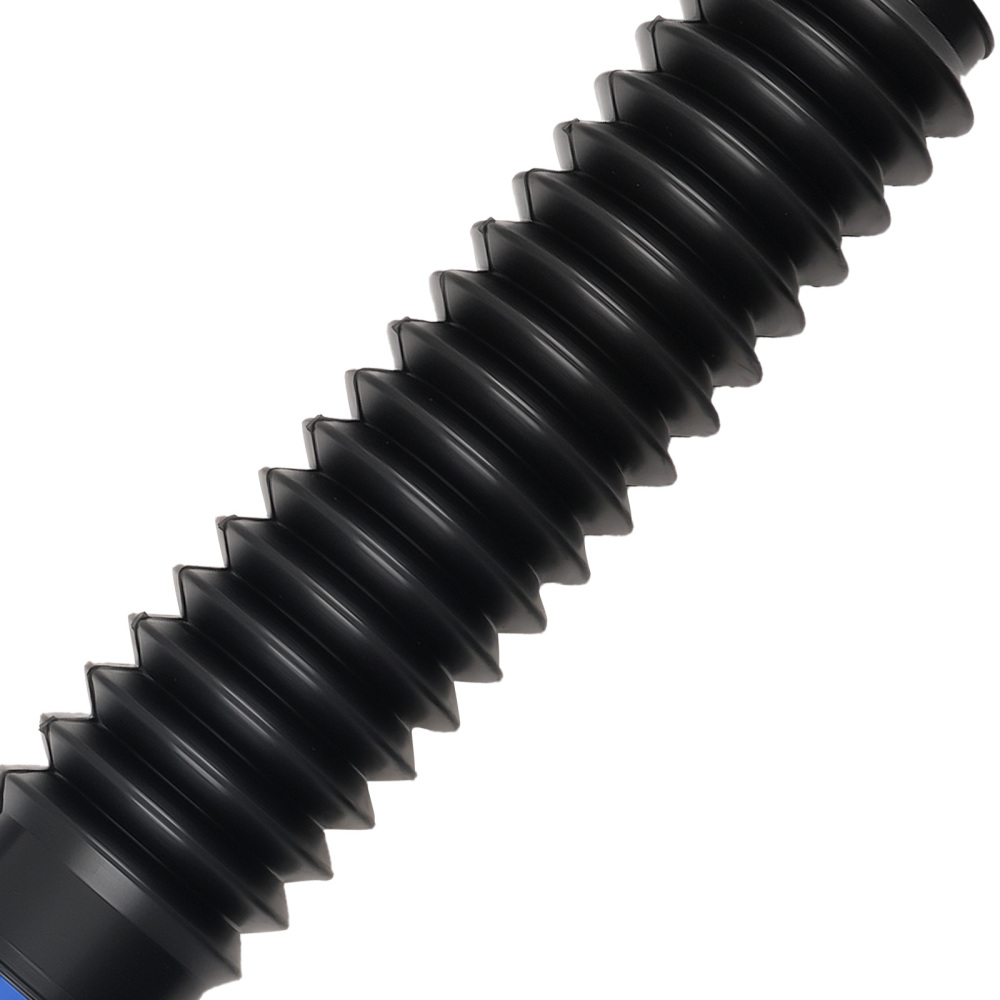

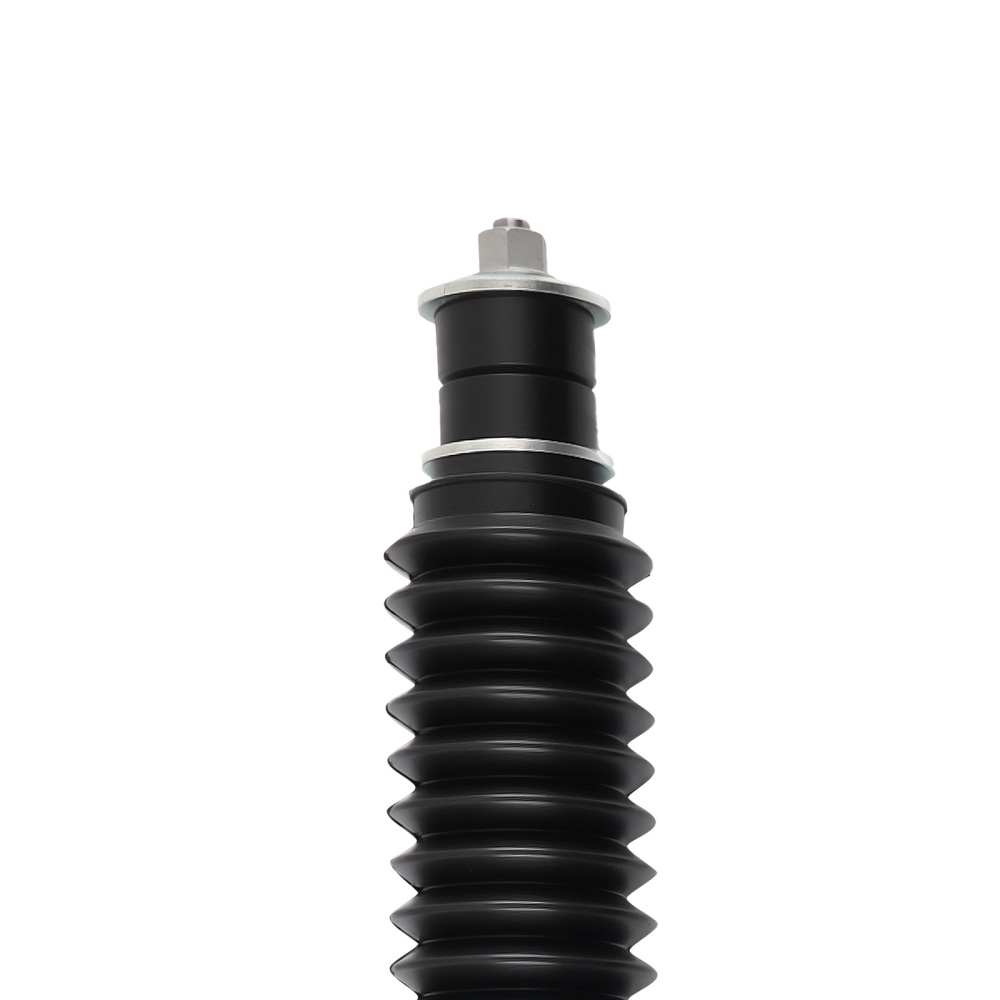

Dust cover included prevent the shaft rod and oil seal from damaging.
Baked Paint Finish provides superior corrosion resistance.
Match with lift springs and improve your off-road ride.

轮胎尺寸

Target Tire Size (Non Rubicon)
255/75R17 (0" Lift), 285/70R17 (2.5" Lift)
Target Gear Ratio (Non Rubicon)
4.56 (285/70R17)
Target Tire Size (Rubicon)
255/75R17 (0" Lift), 285/70R17 (2.5" Lift)
Target Gear Ratio (Rubicon)
4.56 (285/70R17)
