110V Electric Diesel Transfer Pump 16GPM 3/4HP Cast Iron w/ Auto Refuel Gun

Application

For vehicles, construction sites, farms and outside applications or other fuel powered equipment using light oils such as diesel or kerosene.

Specification

Type: Fuel Transfer Pump
Weight: 13.5 kg
Material: Cast iron, copper
Horsepower: 3/4 p
Suction Lift: 5-8m
Head Lift: 10-15m
Max Flow Rate: 16GPM
Voltage: 110V
Outlet Hose: 4m
Inlet Diameter: 1”
Outlet Diameter: 1”
Suction Pipe Length:2m

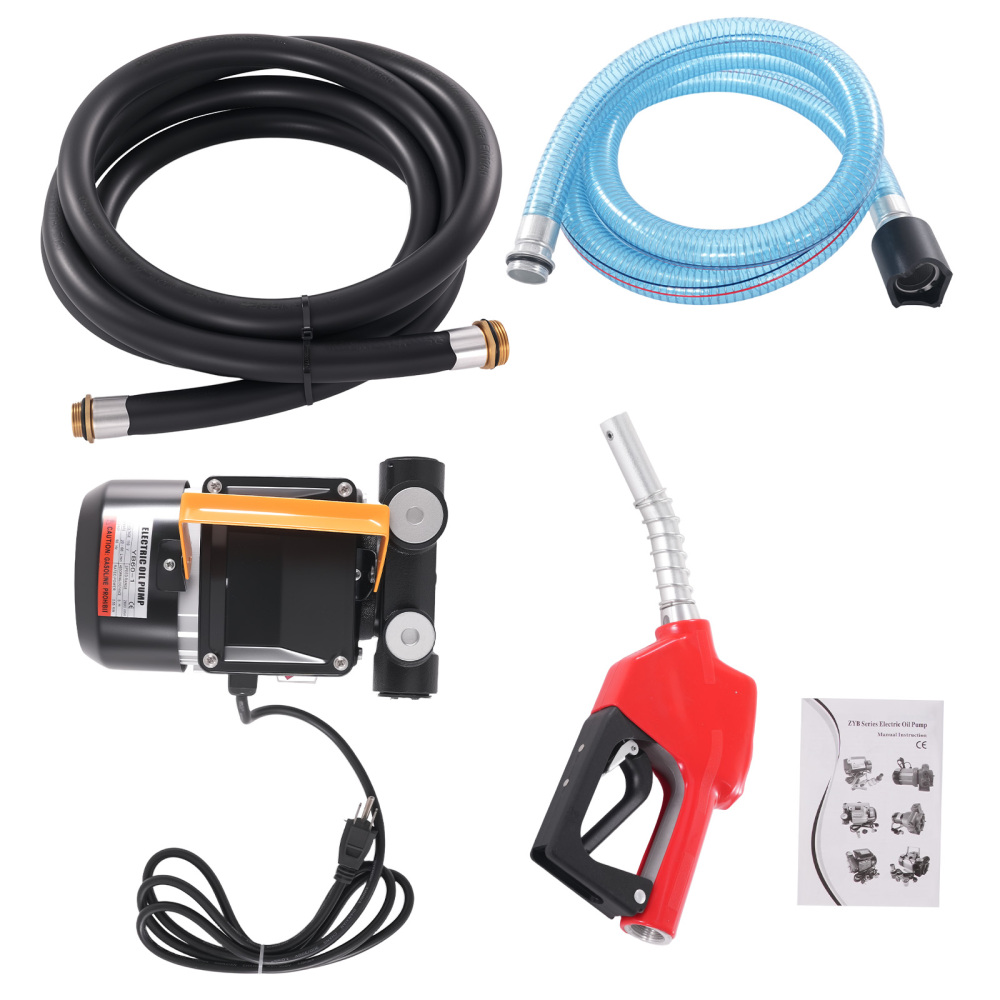

Package included

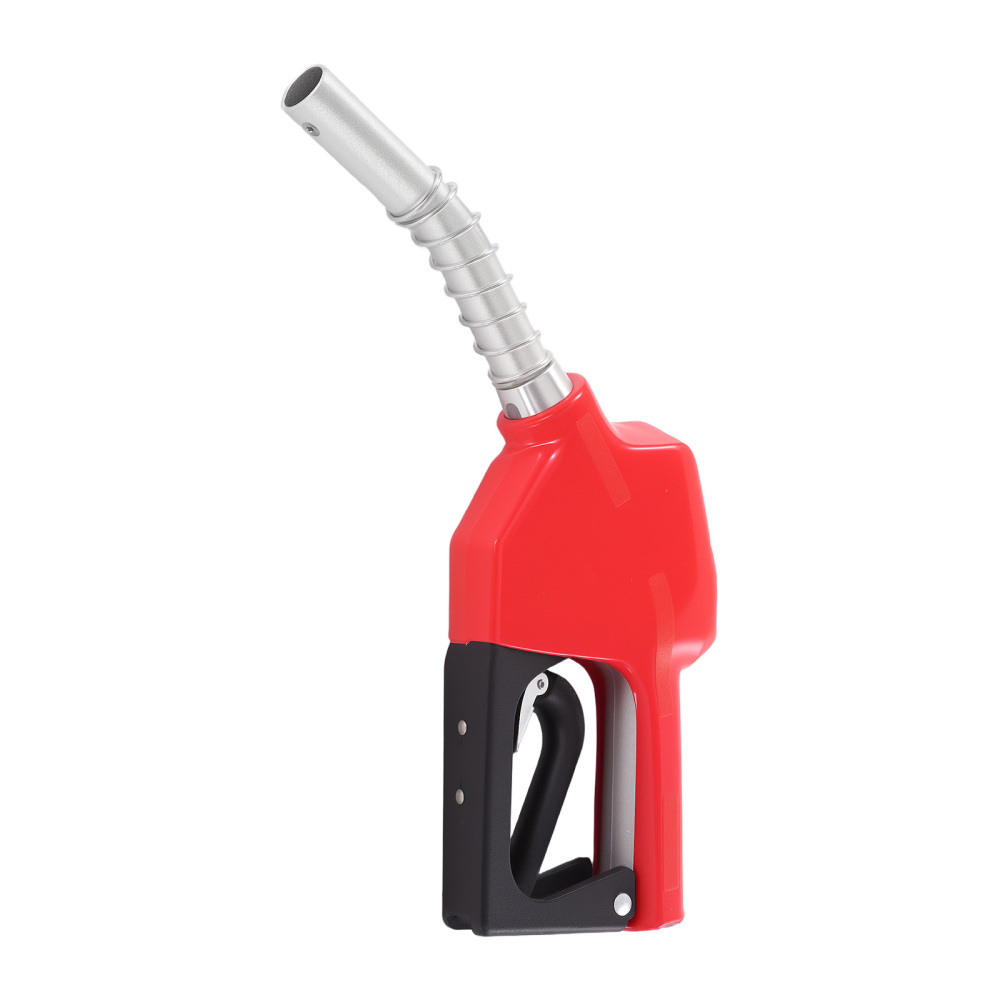

1x Automatic Refueling Gun
1x Oil Inlet Pipe

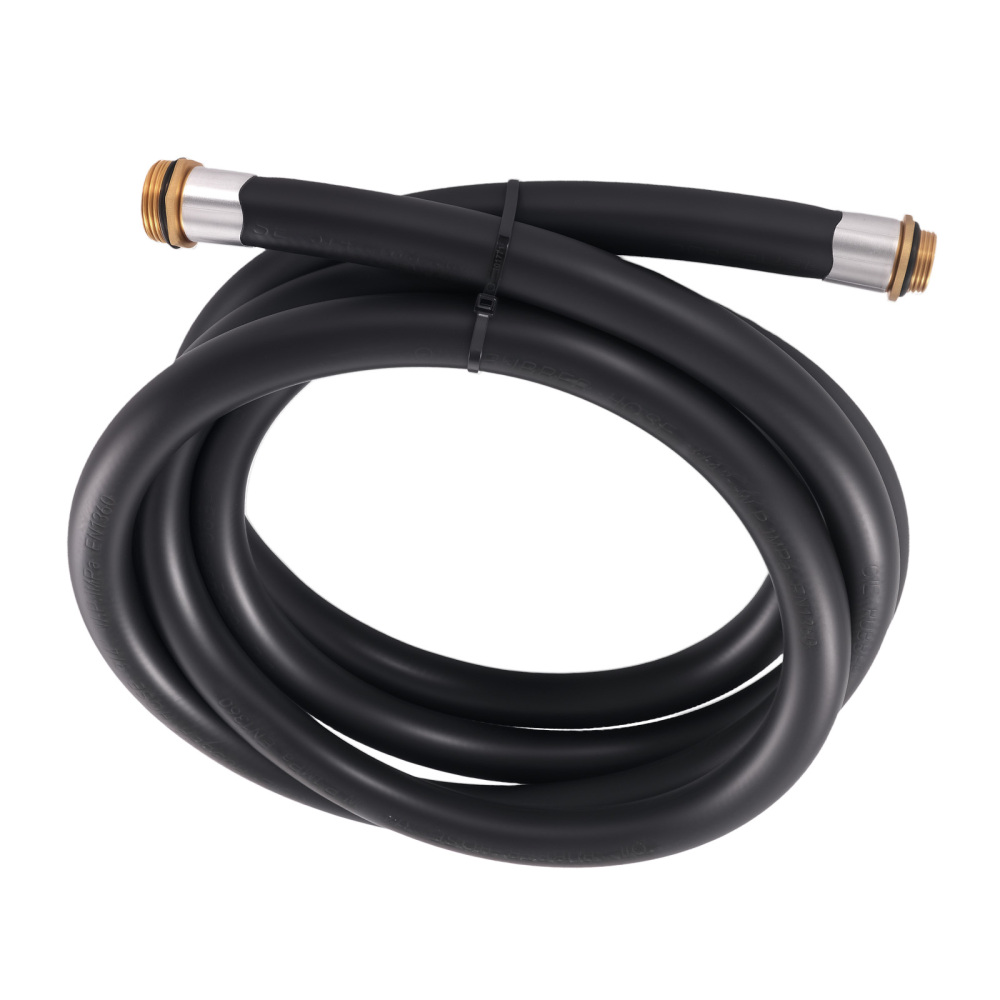

1x Oil Outlet Pipe
1x Adapter

Feature

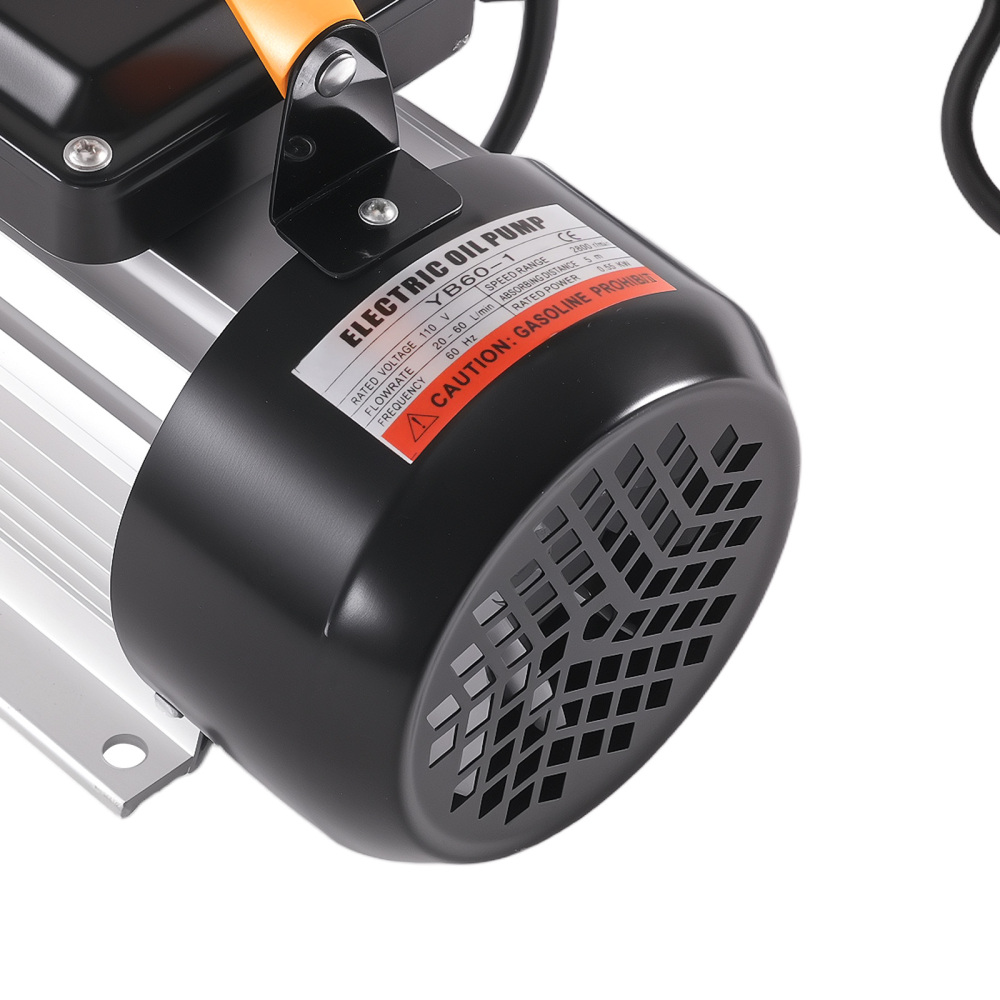

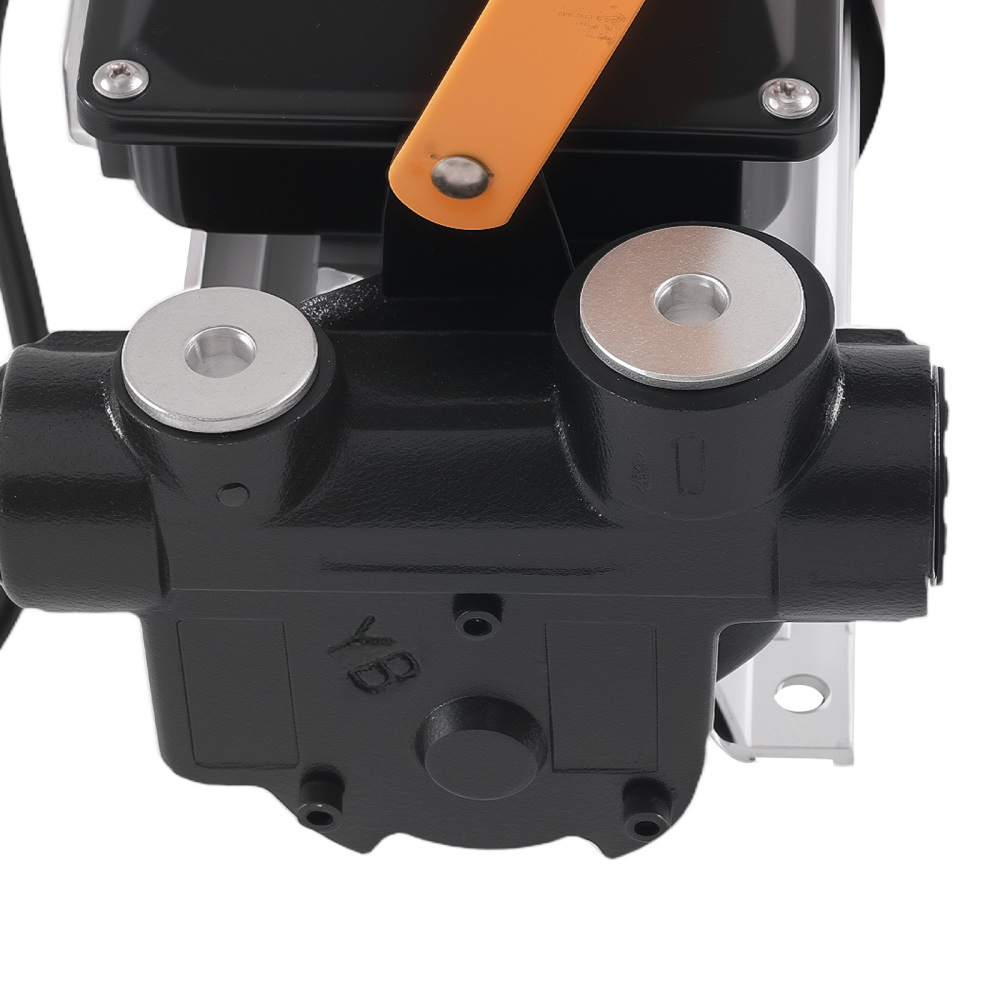

1.The pump head made of high-quality cast iron, aluminum alloy housing, and carbon steel base can resist wear, corrosion, shock, heat, and deformation. Meanwhile, copper wires with good conductivity can ensure the stable operation of the machine while saving electricity.

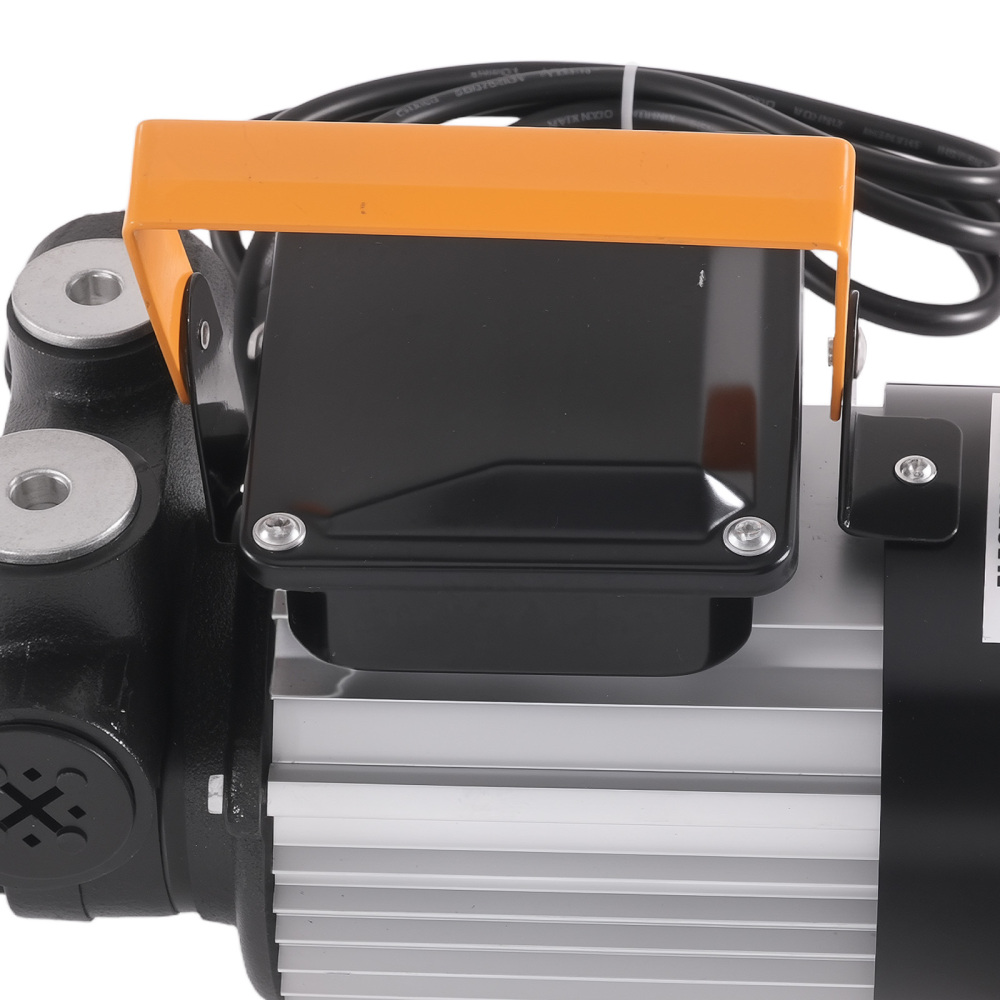

2.The power switch is designed with a cover to prevent dust, water, and electric leakage, and the oil return valve in the pump head is helpful for safe pressure relief. Meanwhile, the bypass valve can prevent the motor from burning out due to excessive pump pressure.

Note

1. Please check the relevant information to ensure this is the product you need. 2. Professional installation is highly recommended.
