10-Way Damping Reservoir Rear Shocks Pair 0-1.5 Lift compatible for Chevy Tahoe 2007-2015

Introduction

MaXpeedingrods X3 Series Remote-Reservoir Shocks
The upgraded system enhances off-road capabilities for SUVs and pickup trucks through an innovative external nitrogen reservoir with oil-gas separation technology. The optimized design features an expanded gas compression chamber for improved shock stroke efficiency, coupled with an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. With precision-engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts through advanced thermodynamic management.

Application

Compatible for Chevrolet Avalanche 2007-2013
compatible for Chevrolet Silverado 1500 2007-2018
compatible for Chevrolet Silverado 1500 LD 2019
compatible for Chevrolet Suburban 2015
compatible for Chevrolet Suburban 1500 2007-2014
compatible for Chevrolet Tahoe 2007-2015
compatible for GMC Sierra 1500 2007-2018
compatible for GMC Sierra 1500 Limited 2019
compatible for GMC Yukon 2007-2015
compatible for GMC Yukon XL 2015
compatible for GMC Yukon XL 1500 2007-2014

Specification

Height adjustable: rise 0-1.5"
Body Outer Diameter (mm)：65*300
Body Inner Diameter (mm):57*300
Body Material:45# steel
Top Mount:EYELET BUSHING
Bottom Mount:EYELET BUSHING
Compressed Length (mm):224
Extended Length (mm):224
Reservoir Outer Dimensions:Φ65×160
Reservoir Inner Dimensions:Φ57×160
Reservoir Type:IFP
Shaft Size (mm):351
Travel (mm): 224
Type:shock

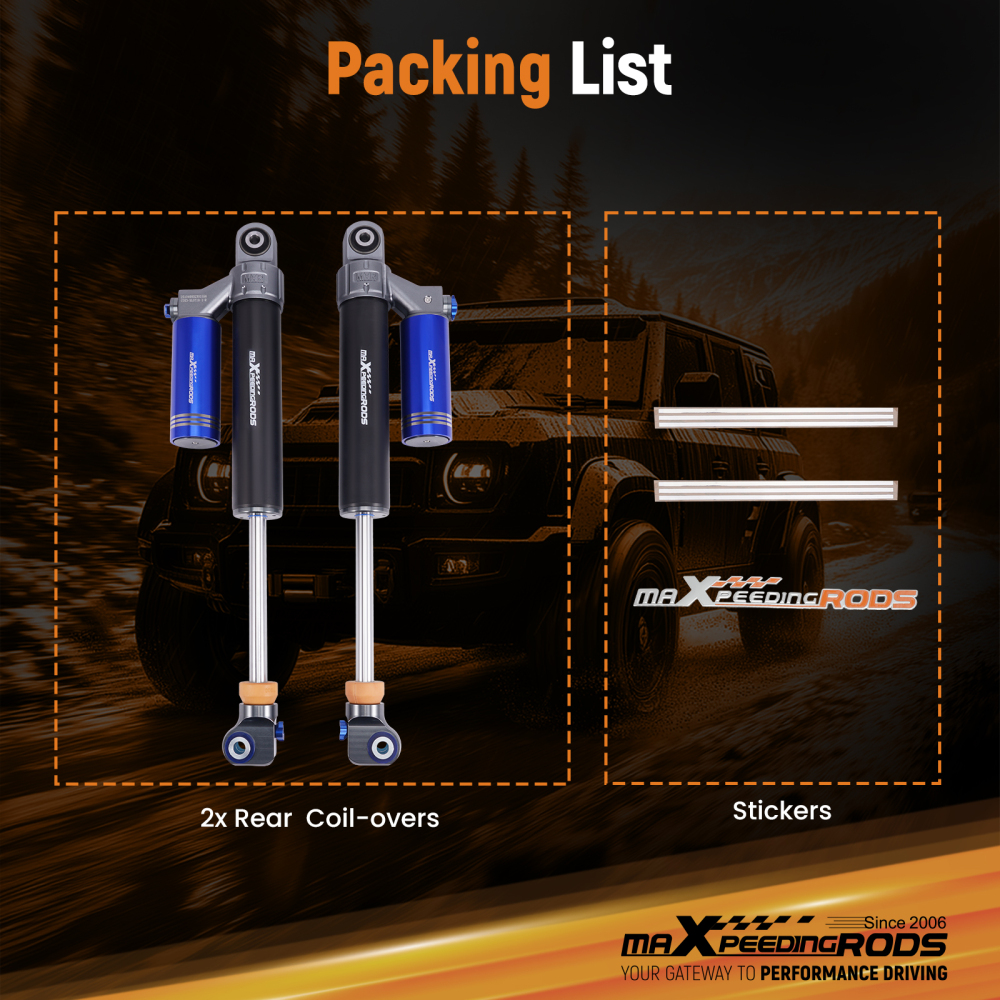

Package included

rear coil-overs*2

Feature

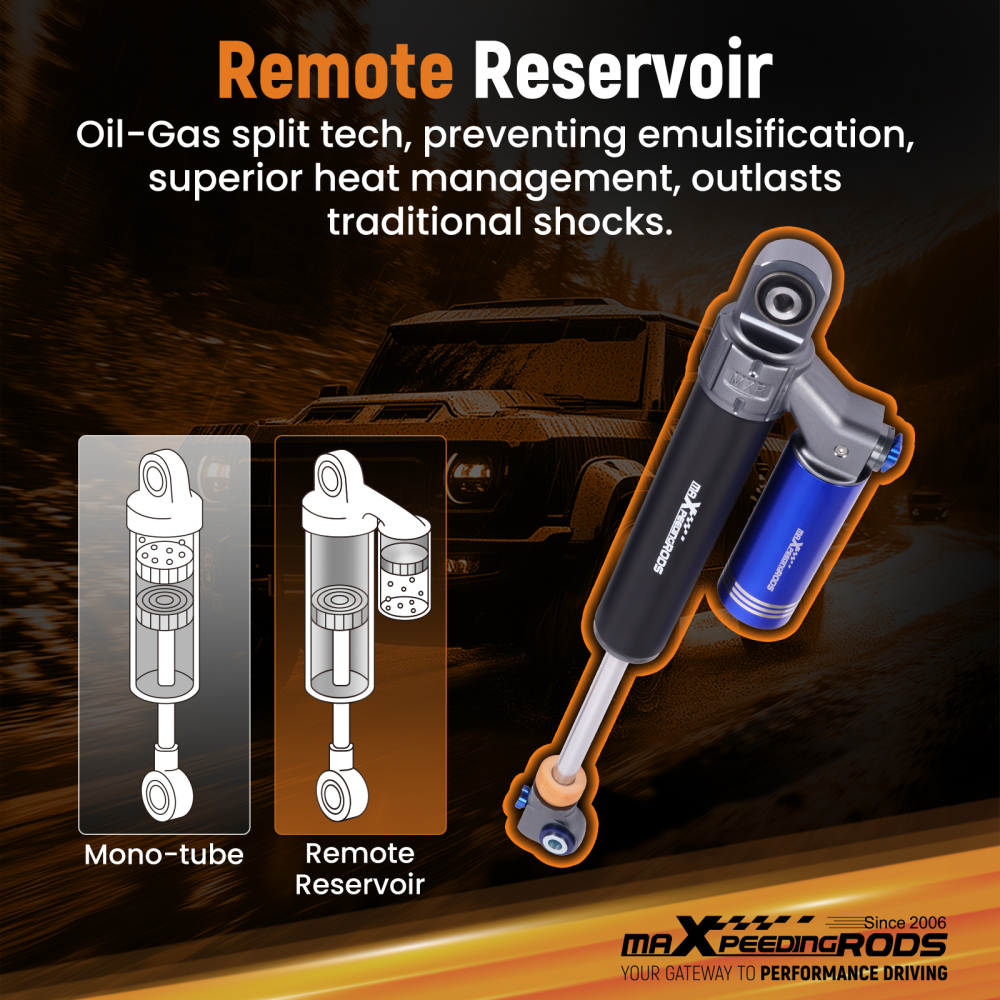

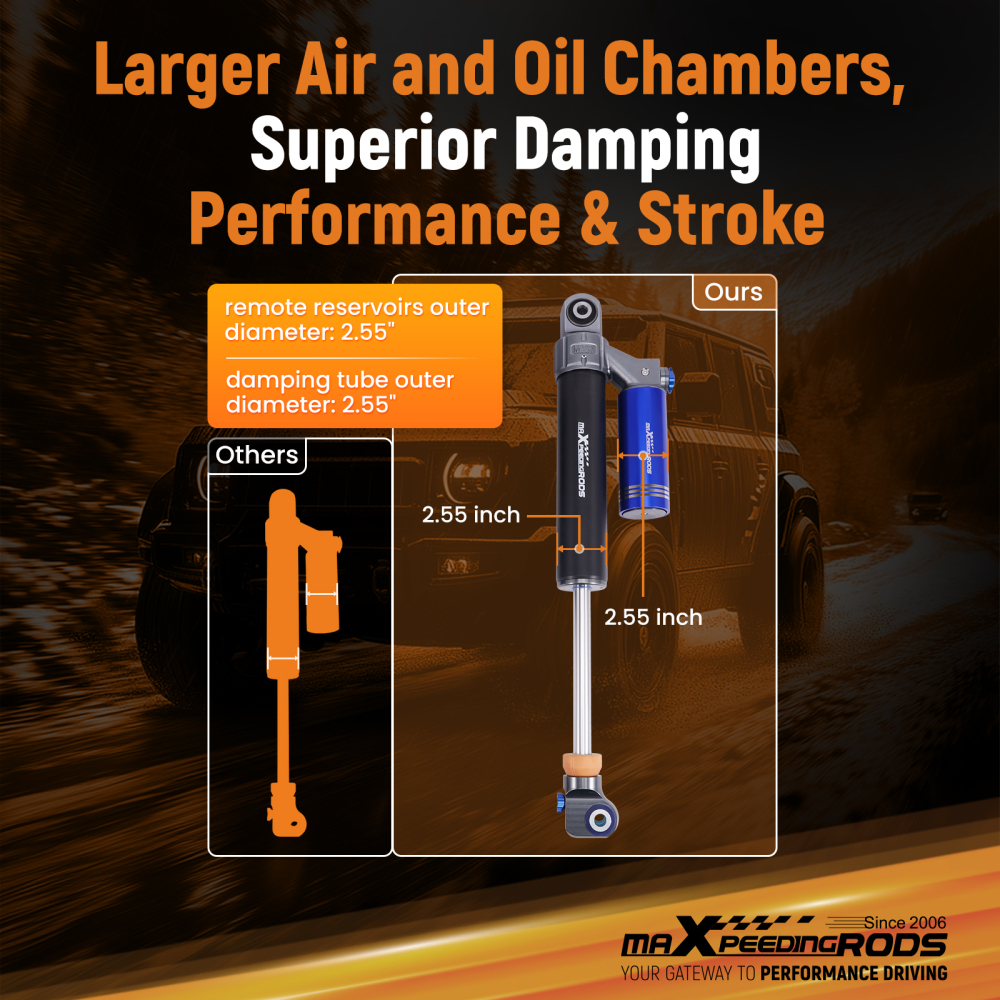

1. Enhanced Nitrogen Reservoir Design
The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

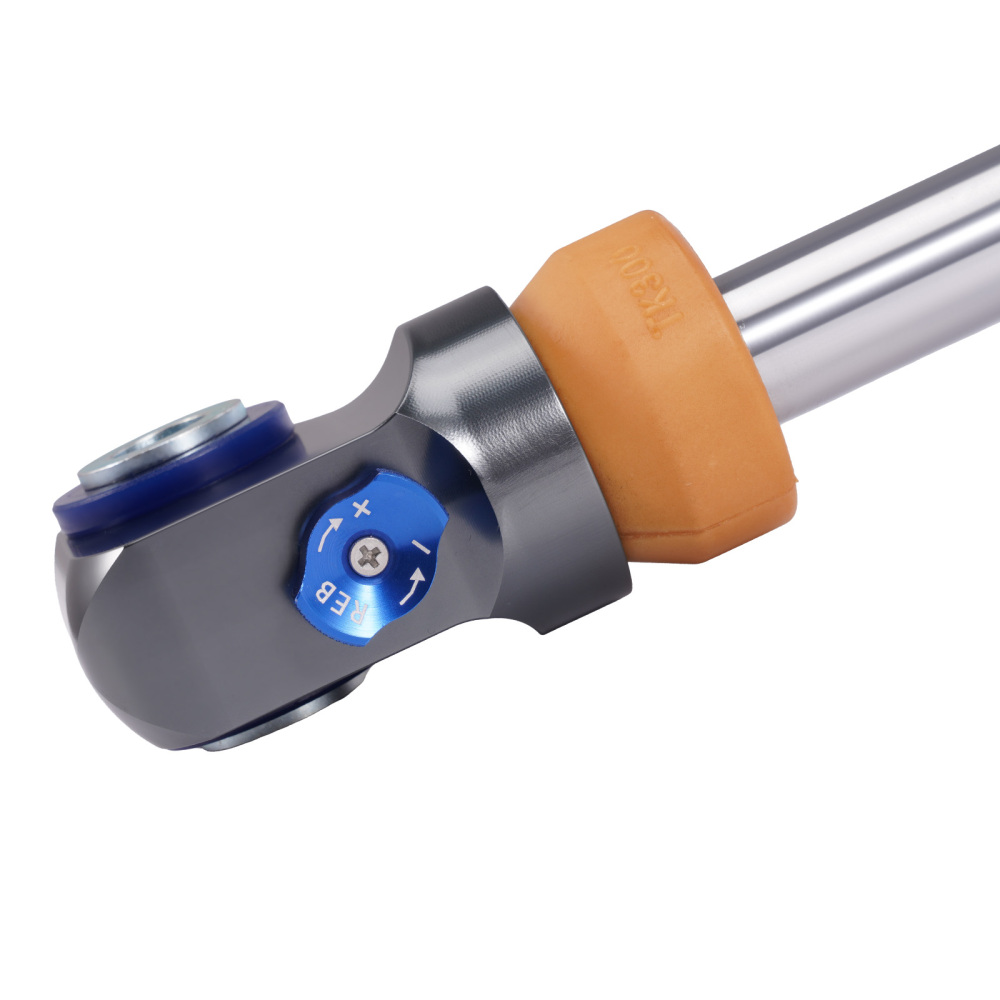

2. Dual-Mode Adjustability
A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

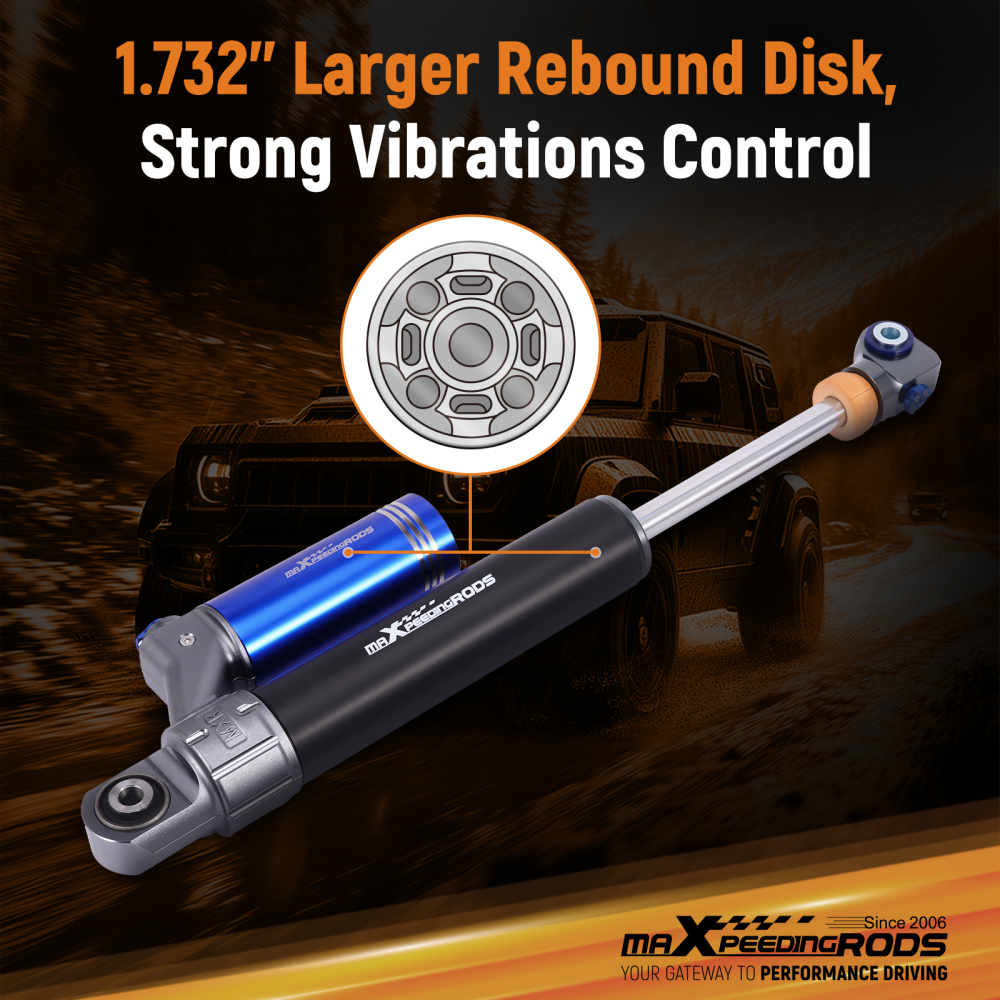

3. Oversized Damping Architecture
The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.
4. Advanced Surface Engineering
High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

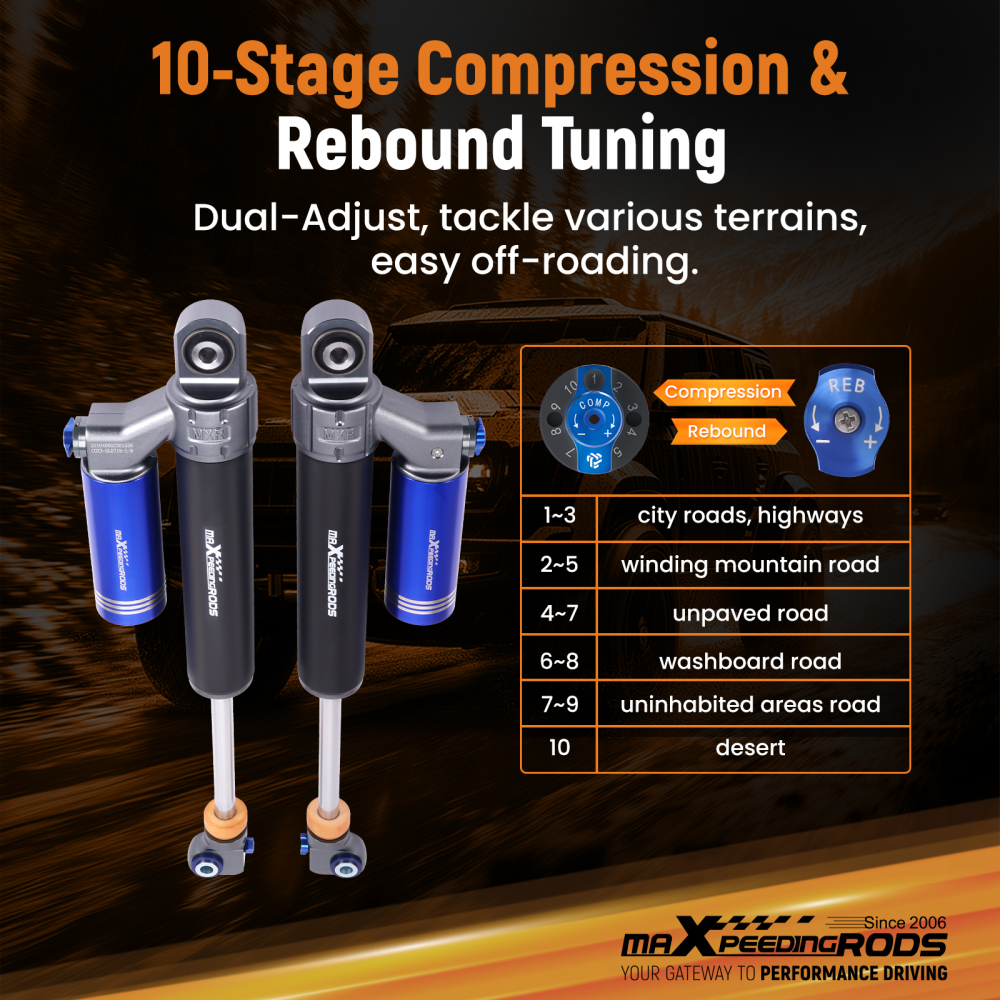

5. Dual Compression/Rebound Damping Adjustment
The X3 Series features synchronized compression and rebound damping tuning capabilities, with terrain-specific recommendations provided for optimal setting combinations across diverse operating conditions (e.g., high-speed gravel, rock crawling, paved-road cruising).
