1 Pair LH and RH 12quot; x 2quot; Electric Trailer Brake Assembly for 7000 lbs Axle -21005

Stock In Stock
Item Number 3002200484

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Description:

A pair of 12" x 2" electric brake assembly and parts.

5 Hole installation. Works with Al-Ko, Dexter, and Quality Trailer Axles.

Works on 5,200 lb or 7,000 lb trailer axles with five-hole brake flanges.

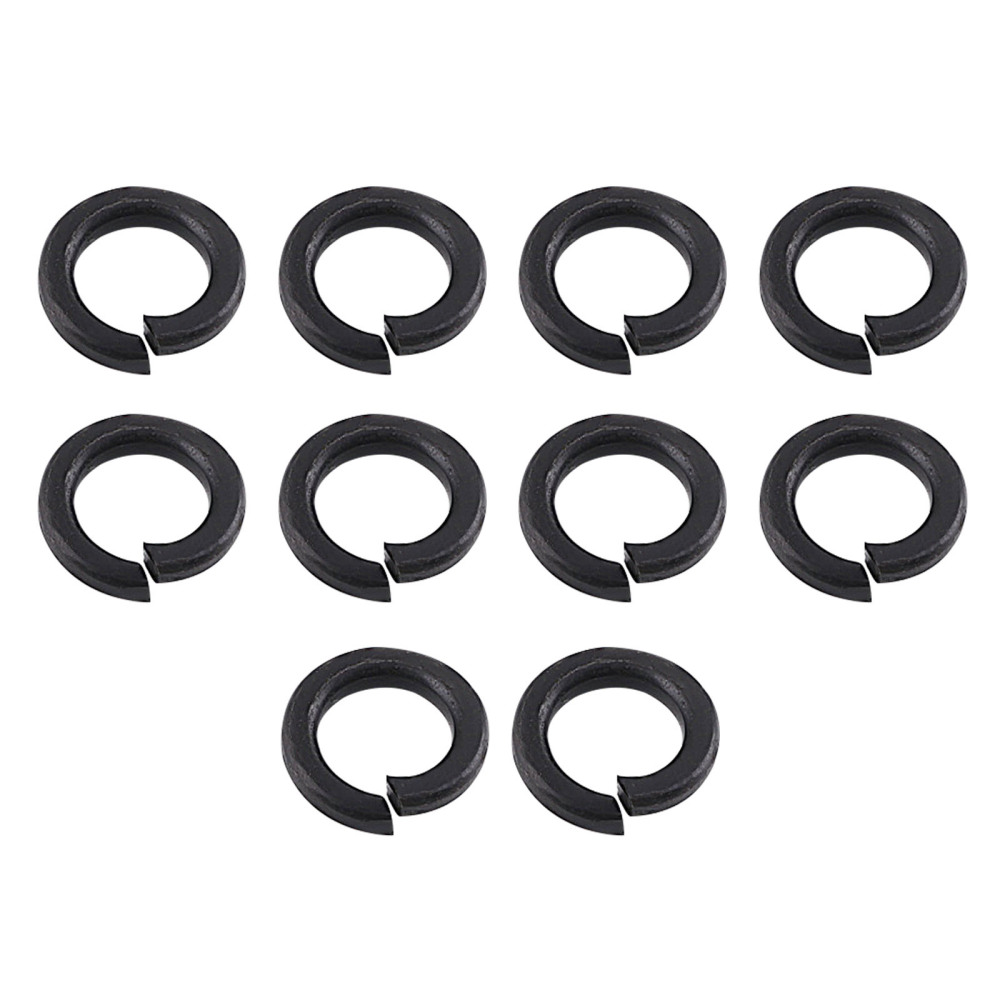

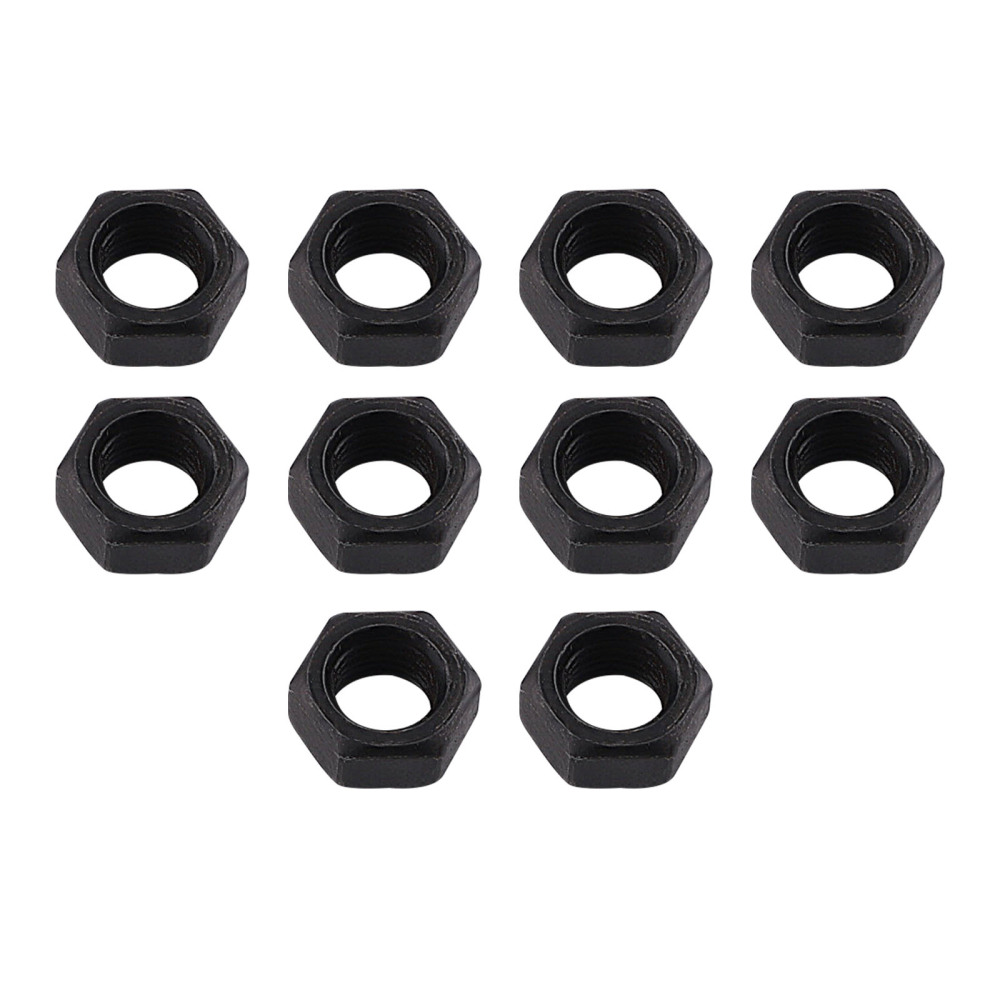

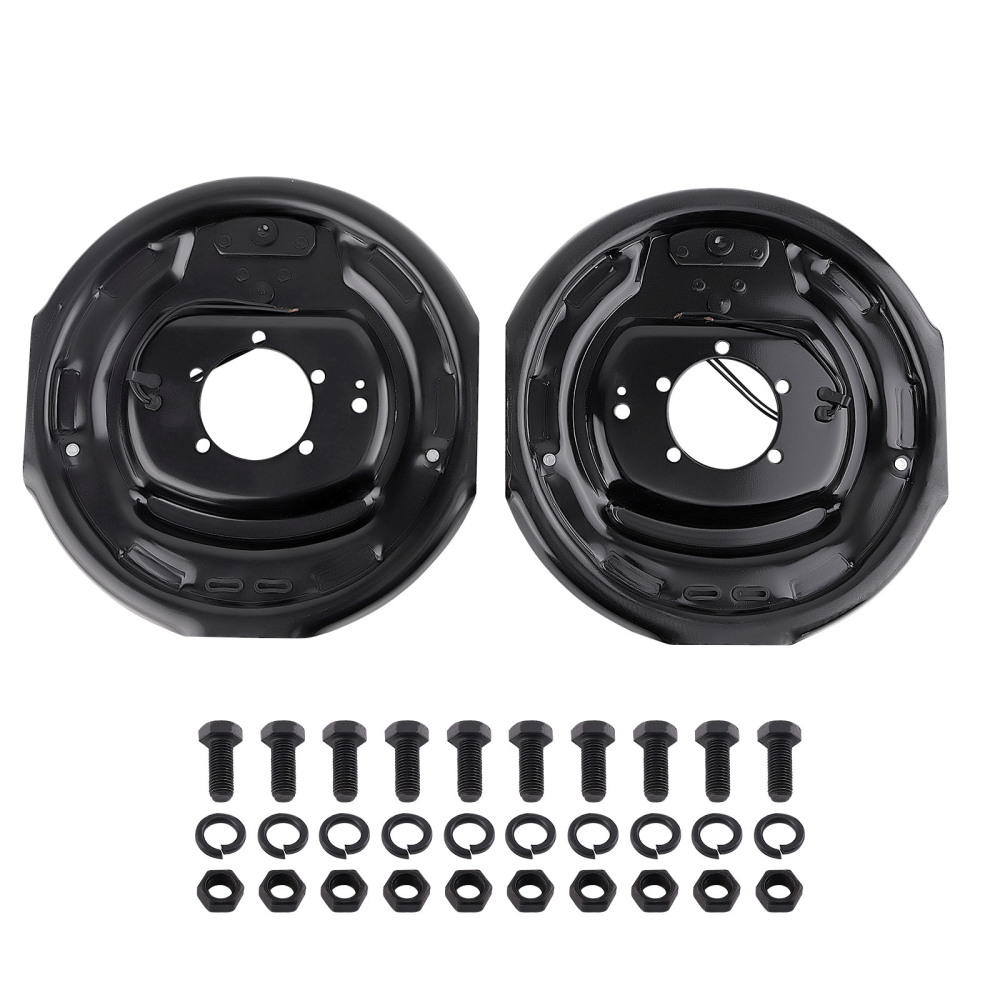

Including installation hardware.

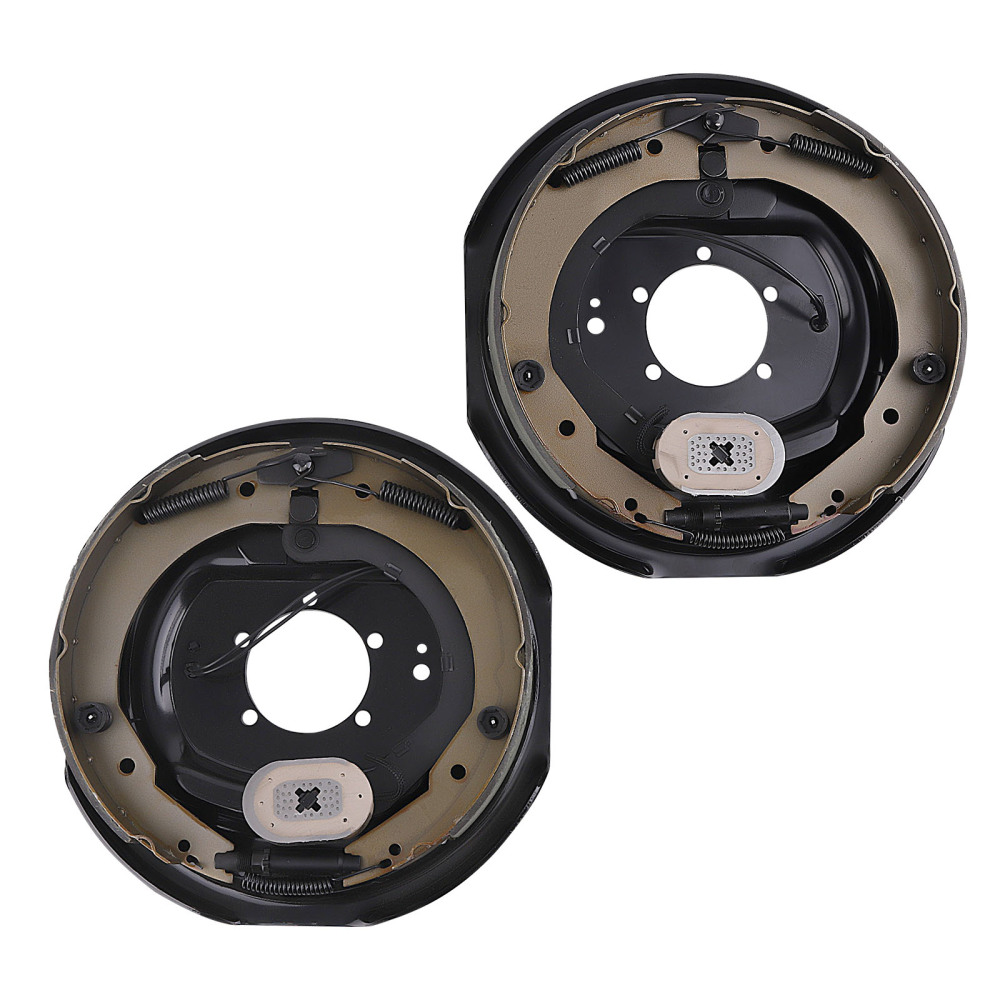

These are fully assembled back panels with boots, springs and magnets on them and can be installed at any time.

The pair includes a left-hand brake and a right-hand brake assembly.


Features:

Fit for: most 5,200 to 7,000 lbs axles

Condition: New

Dimensions: 12" x 2"

Center hole diameter: 3.25"

Bolt Hole spacing: 2"

Mounting flange bolt pattern: 5 bolt

Wheel size: 14-1/2", 15", 16", and 16-1/2"

Axle rating: 7000 lbs

Replaces Dexter part numbers: K23-180-00 &  K23-181-00


Notice:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.


Warranty: one year warranty for any manufacturing defect
