Specification

Material: 45# steel

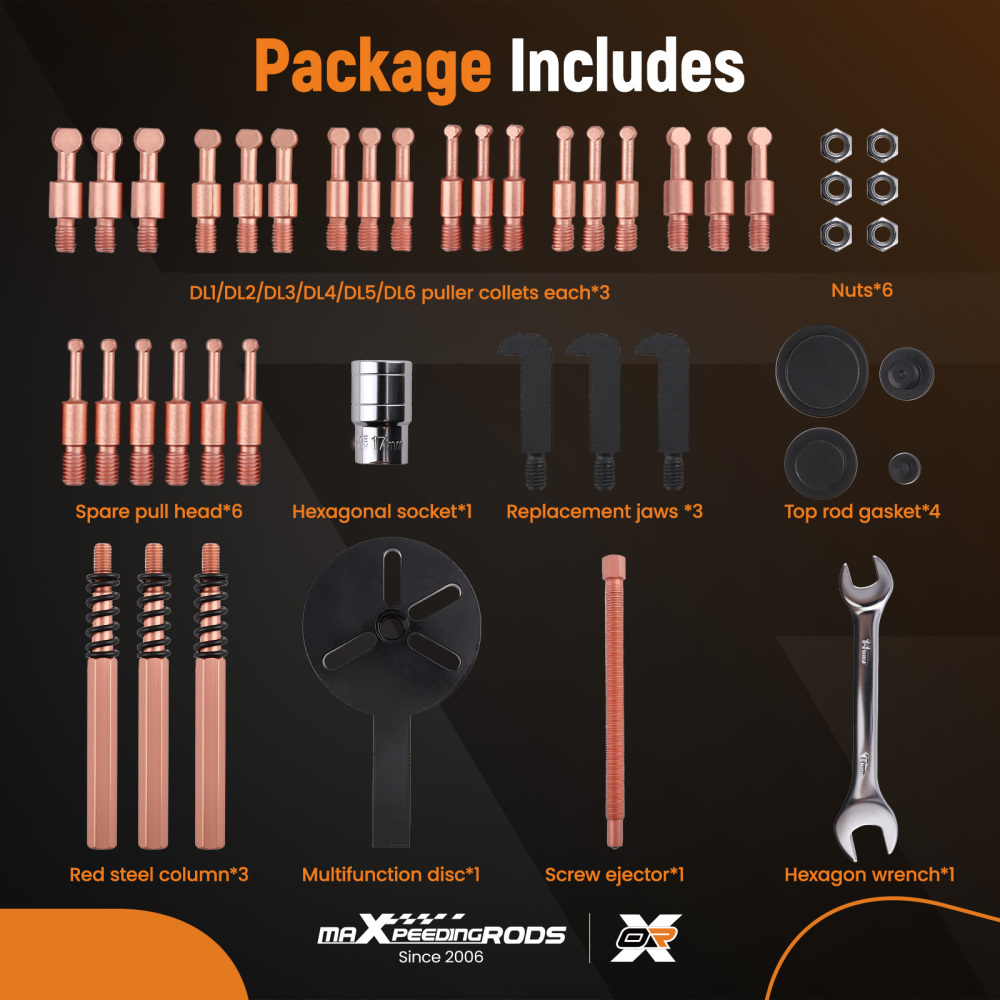

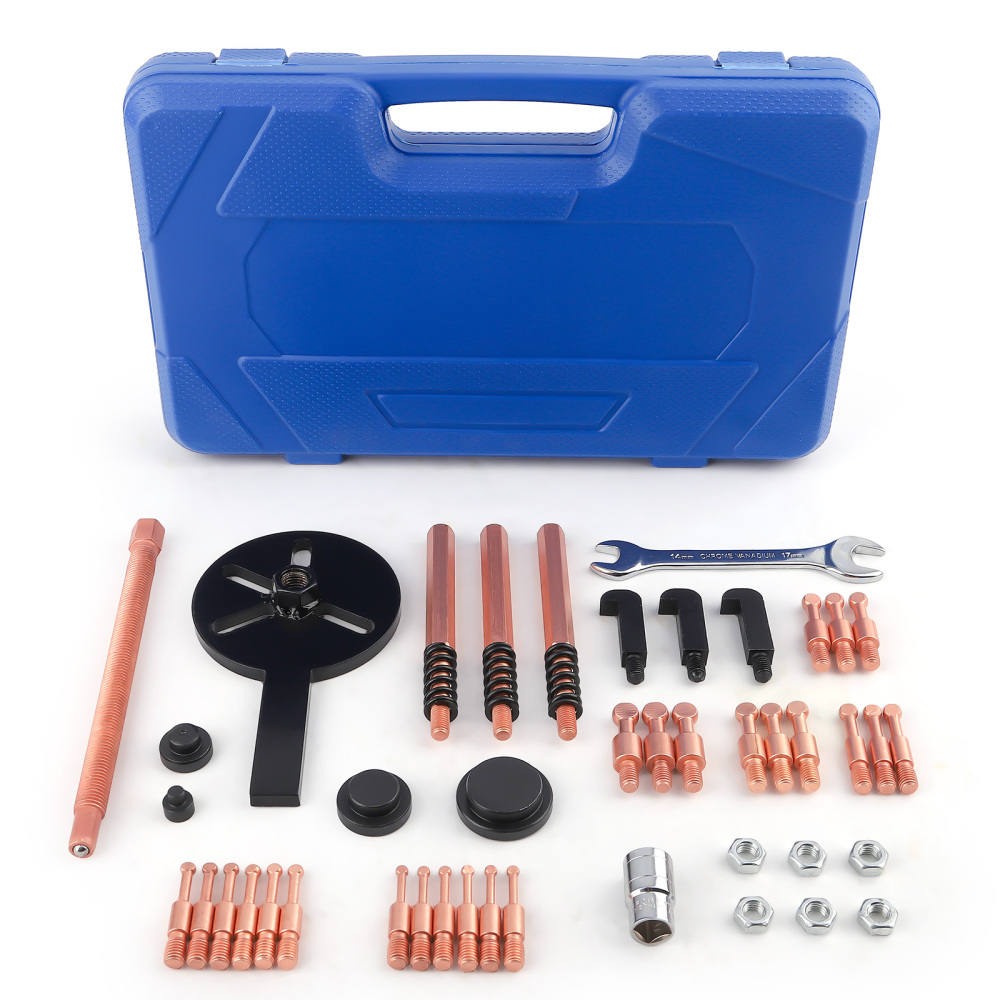

Package included

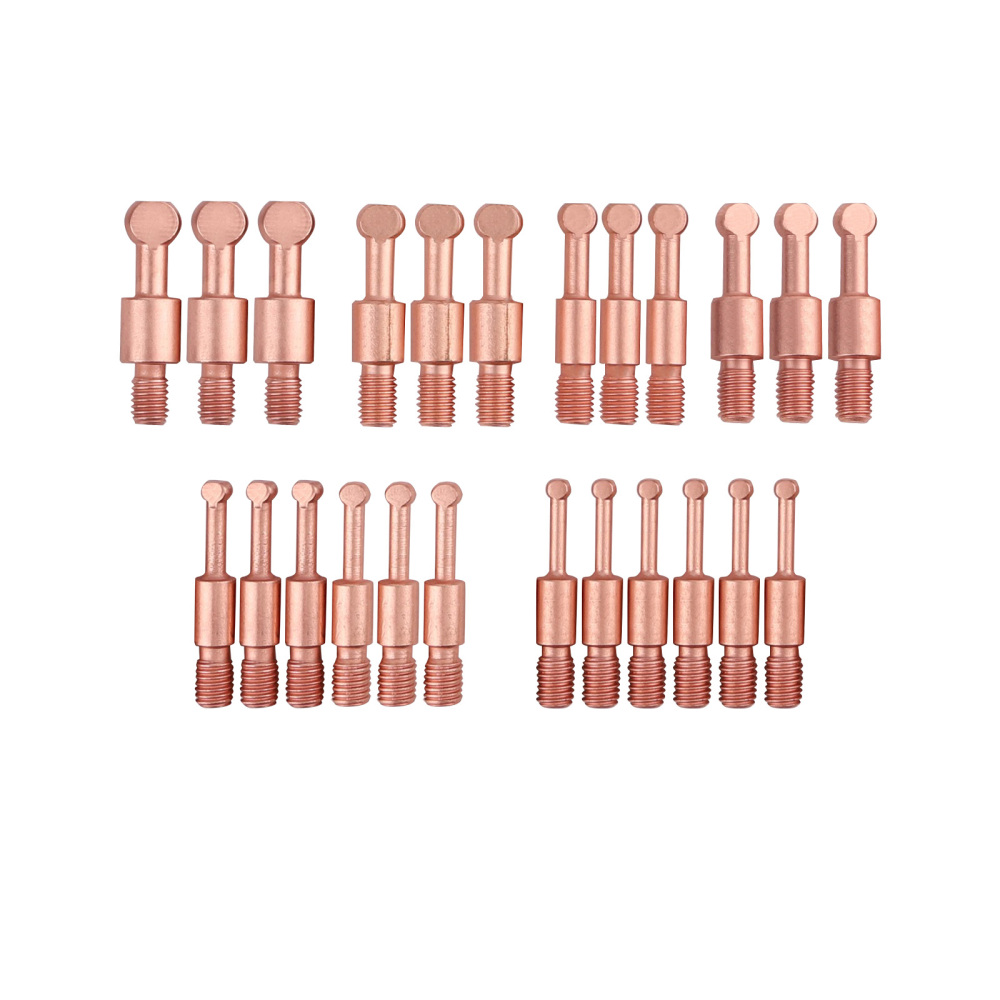

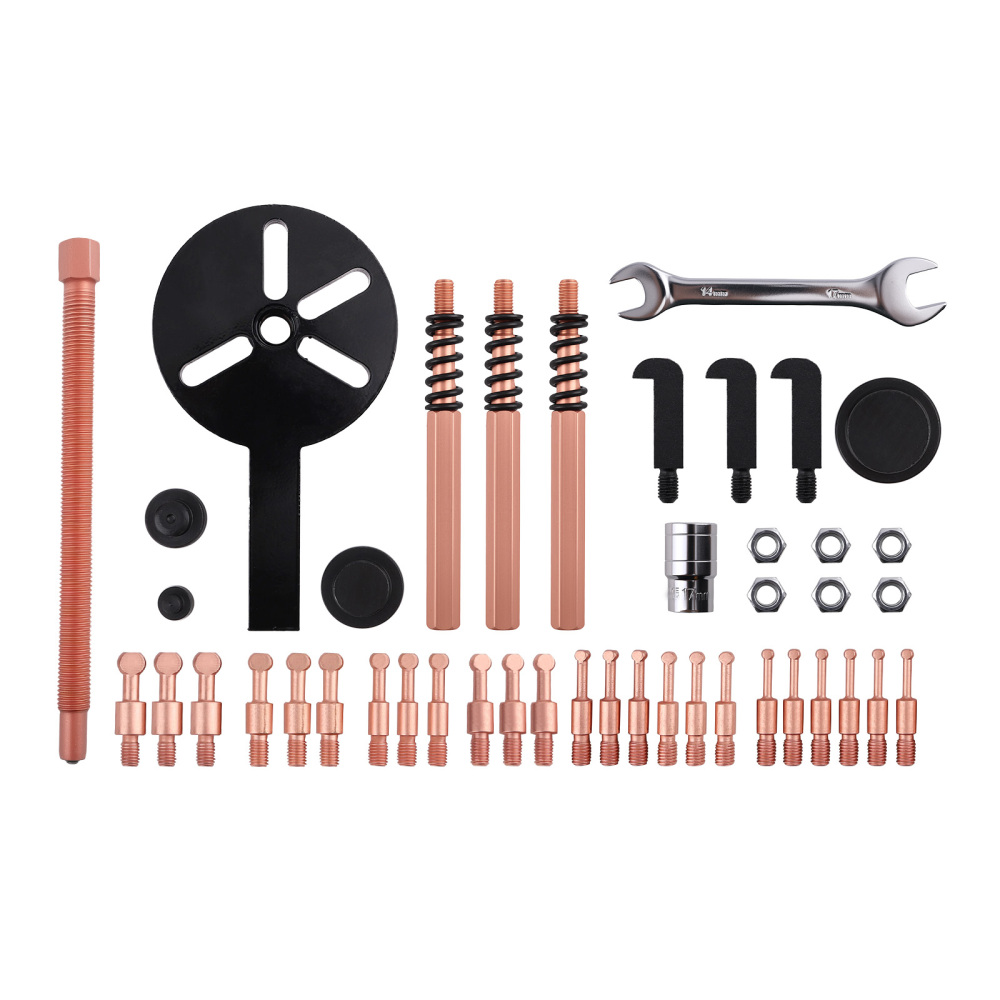

DL1/DL2/DL3/DL4/DL5/DL6 puller collets each*3；Spare pull head*6；Red steel column*3；Replacement jaws *3；Top rod gasket*4；Multifunction disc*1；17MM Hexagonal socket*1；Hexagon wrench*1；Screw ejector*1；Nuts*6

Feature

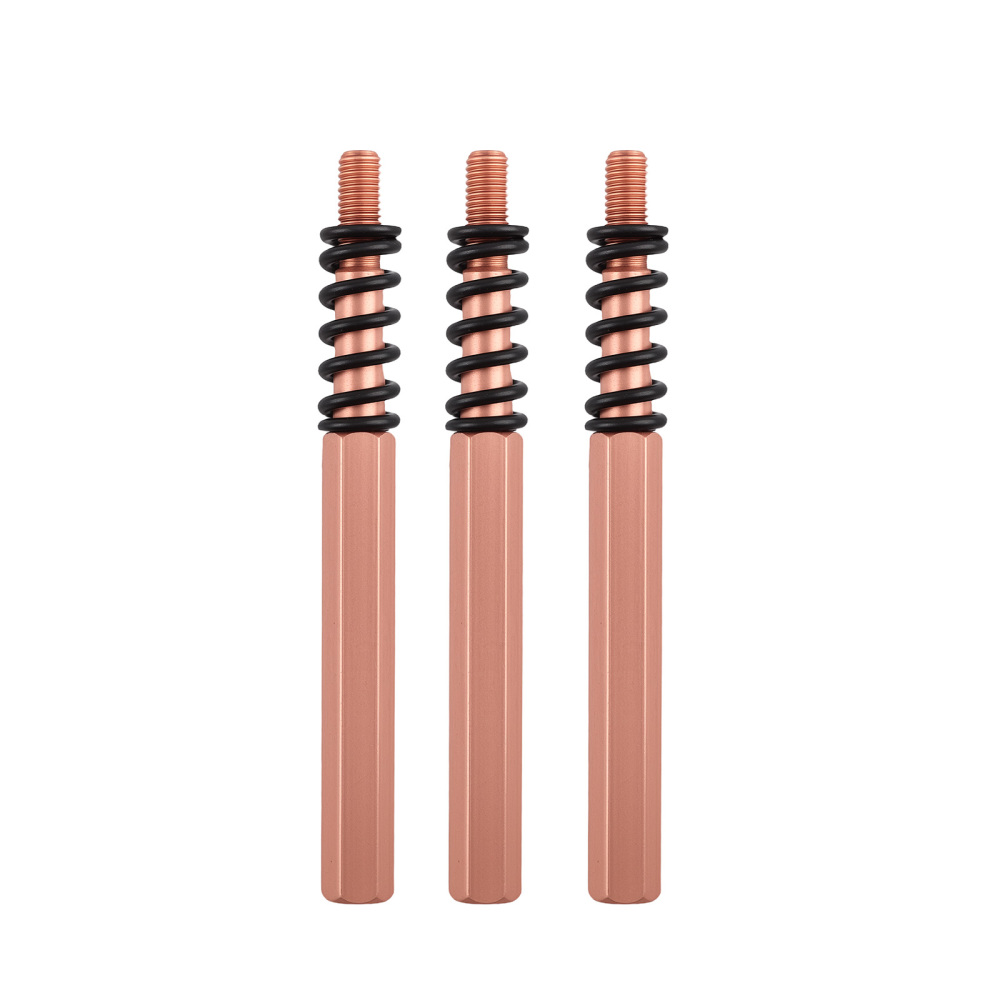

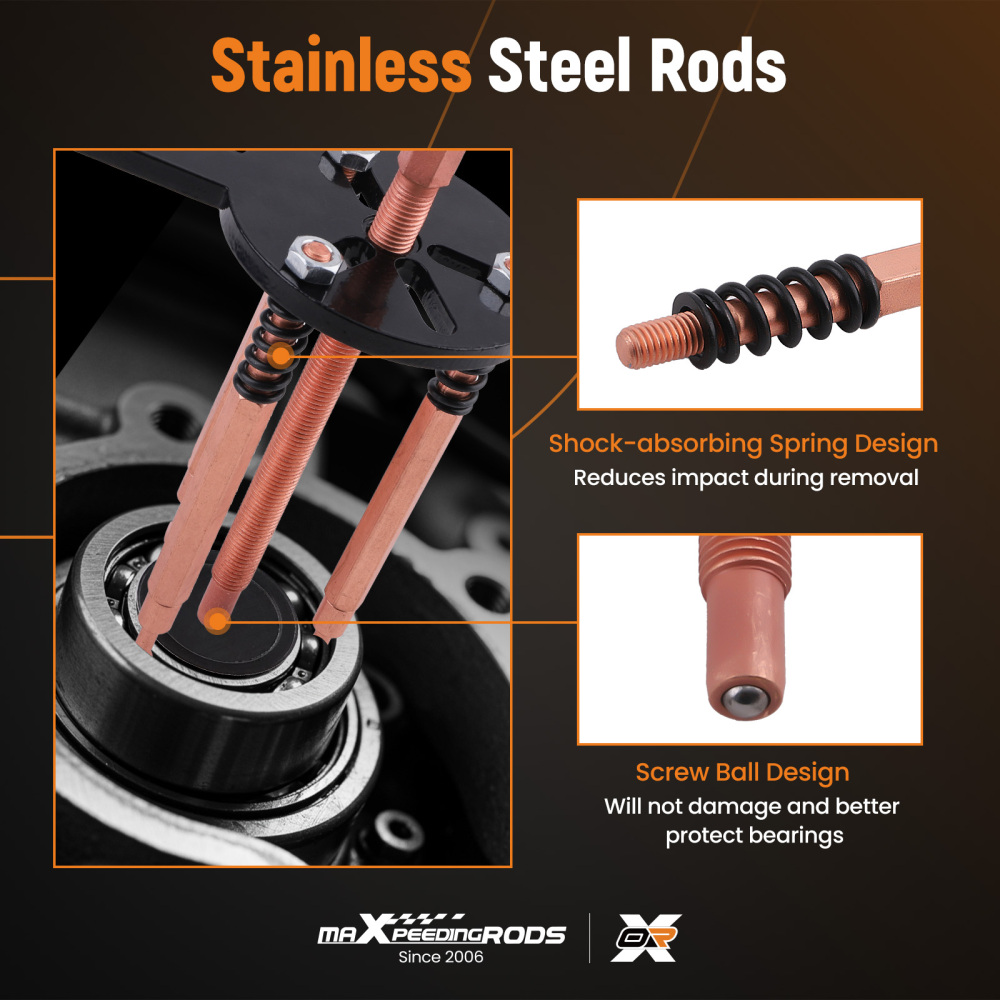

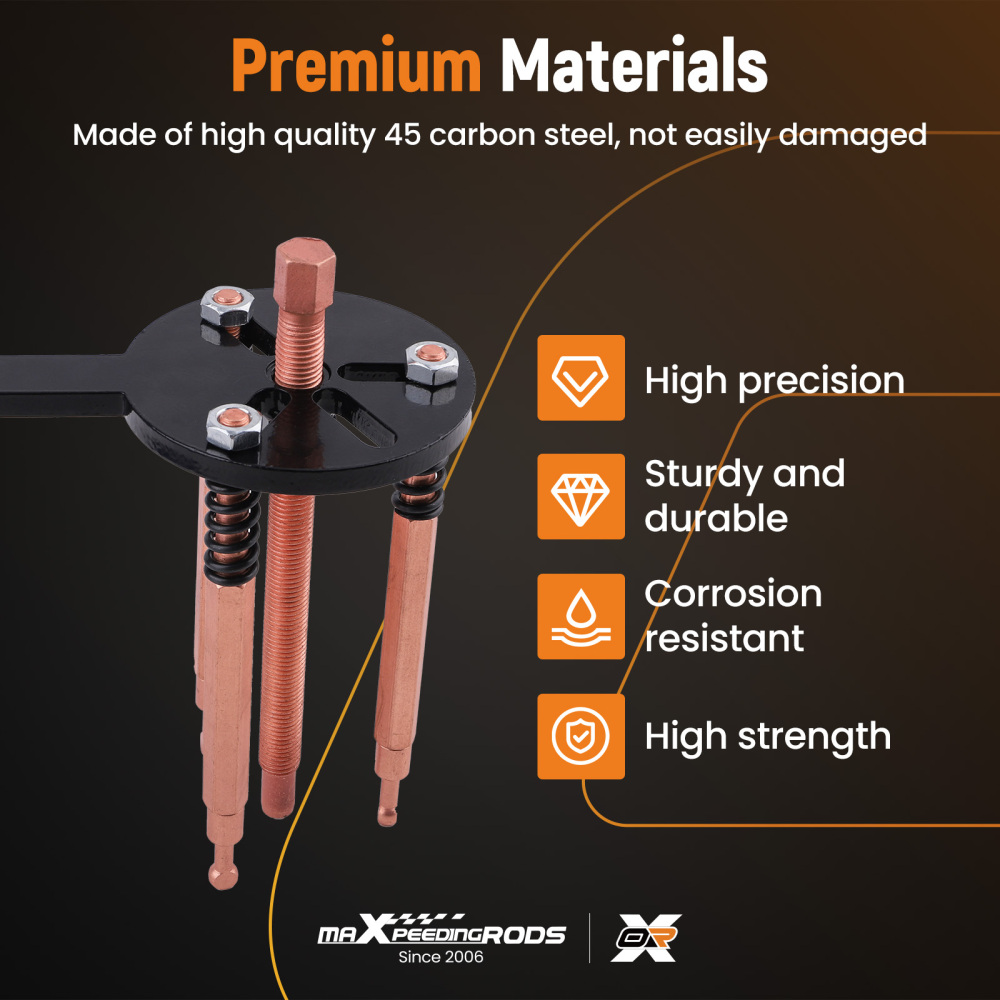

1. High-quality manufacturing: The upgraded collets and columns are made of high-hardness red steel, which is more durable than traditional ones. Other accessories are forged from high-quality chromium vanadium steel. After heat treatment, features high hardness, high toughness, and not easy to rust.

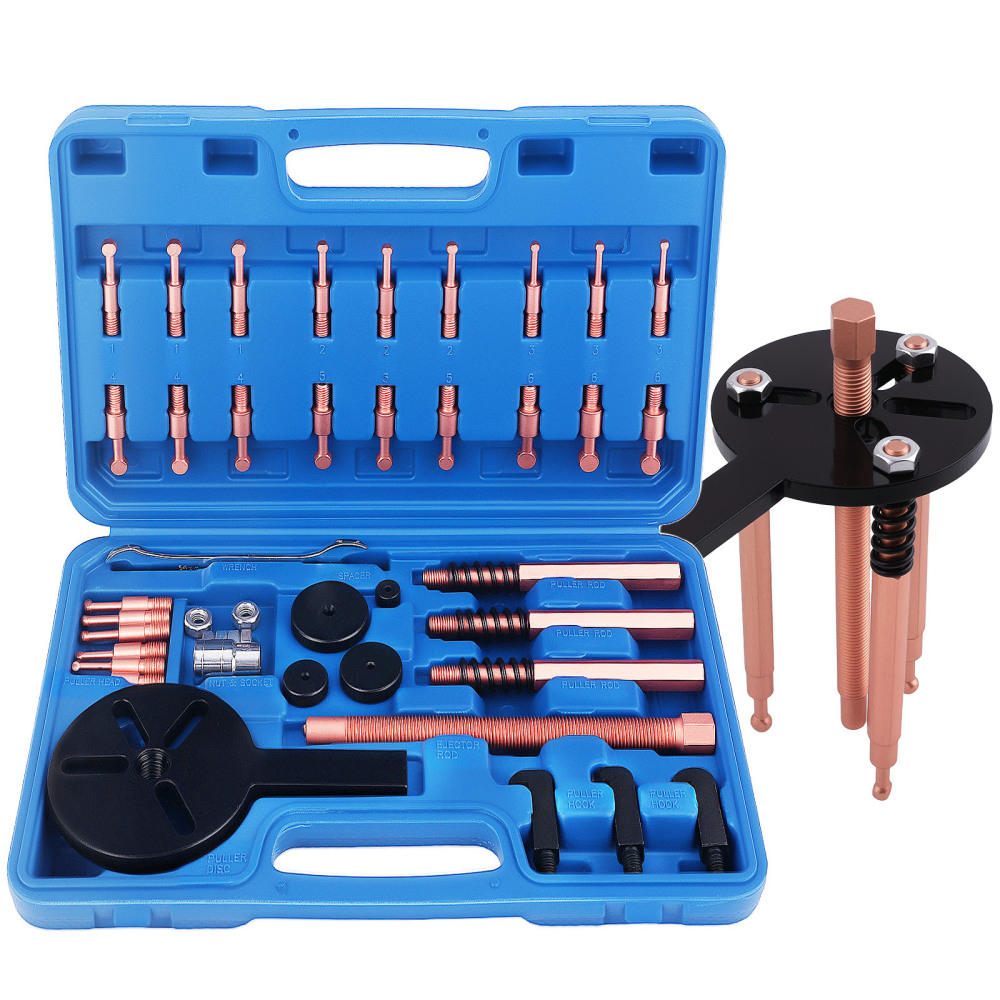

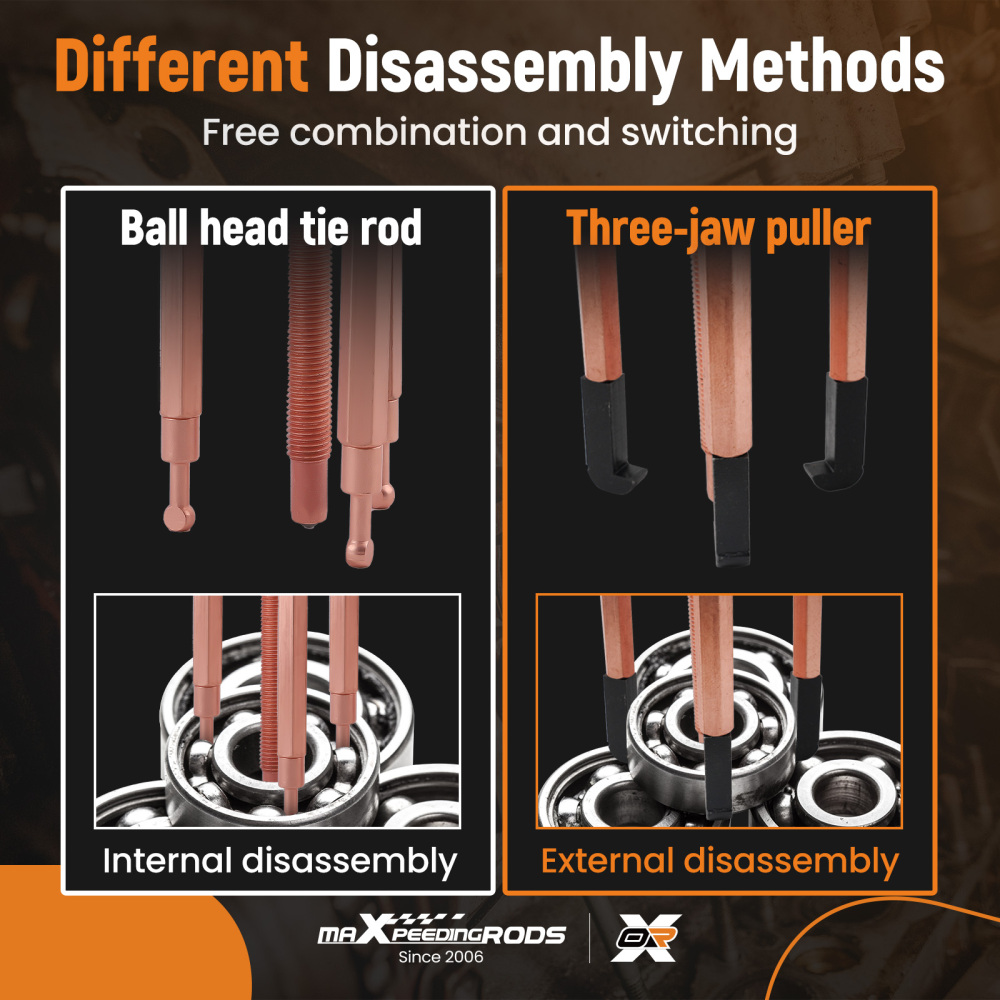

2. 36-in-1 Bearing Puller Kit: Comes with 6 different sizes of collets, and an additional 2 sets of the most commonly used puller heads as spares, suitable for bearings of various shapes and sizes. The additional 3 hooks facilitate the removal of more bearings of different specifications. 4 different types of ejector spacers are used to better exert force during the process of pushing out the bearing.

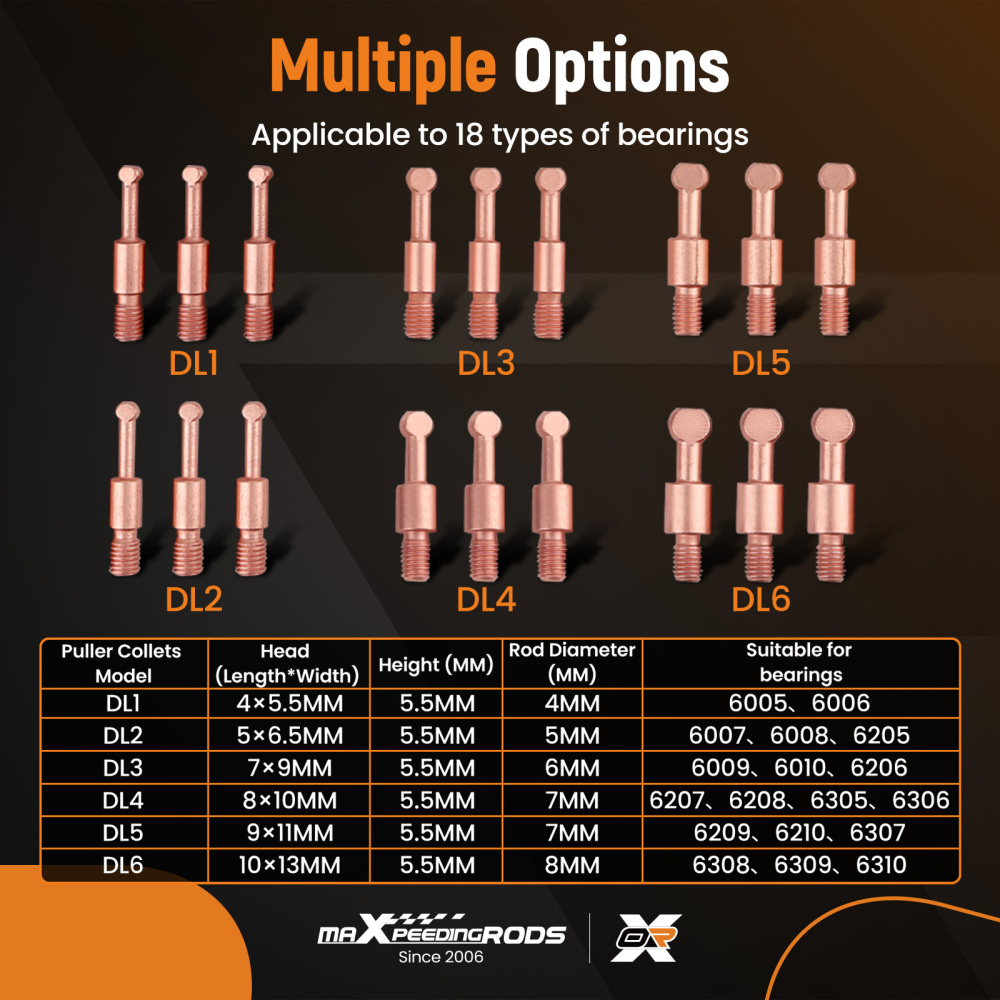

3. Applicable bearing specifications: 6005/6006/6007/6008/6009/6010/6205/6206/6207/6208/6209/6210/6305/6306/6307/6308/6309/6310. With three additional claw hooks, it can be used to remove more different types of bearings, gears and kits.
4. Easy to use: Select the appropriate collet according to the bearing type. Insert the collet between the inner and outer rings of the bearing, and rotate 90 degrees to ensure locking the collet to the bearing. The bearing is pulled out by continuously twisting the screw ejector, which also can be used with the ejector gasket to increase the contact surface between the ejector and the bearing.

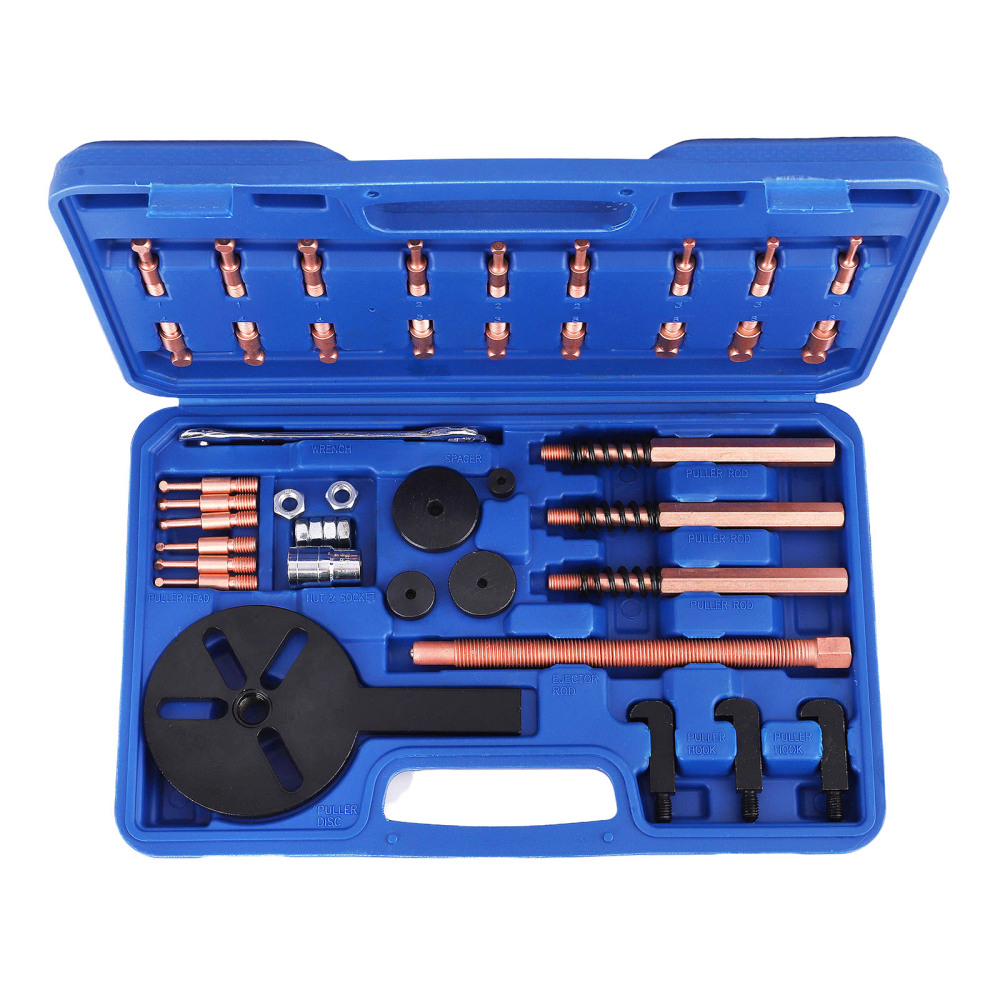

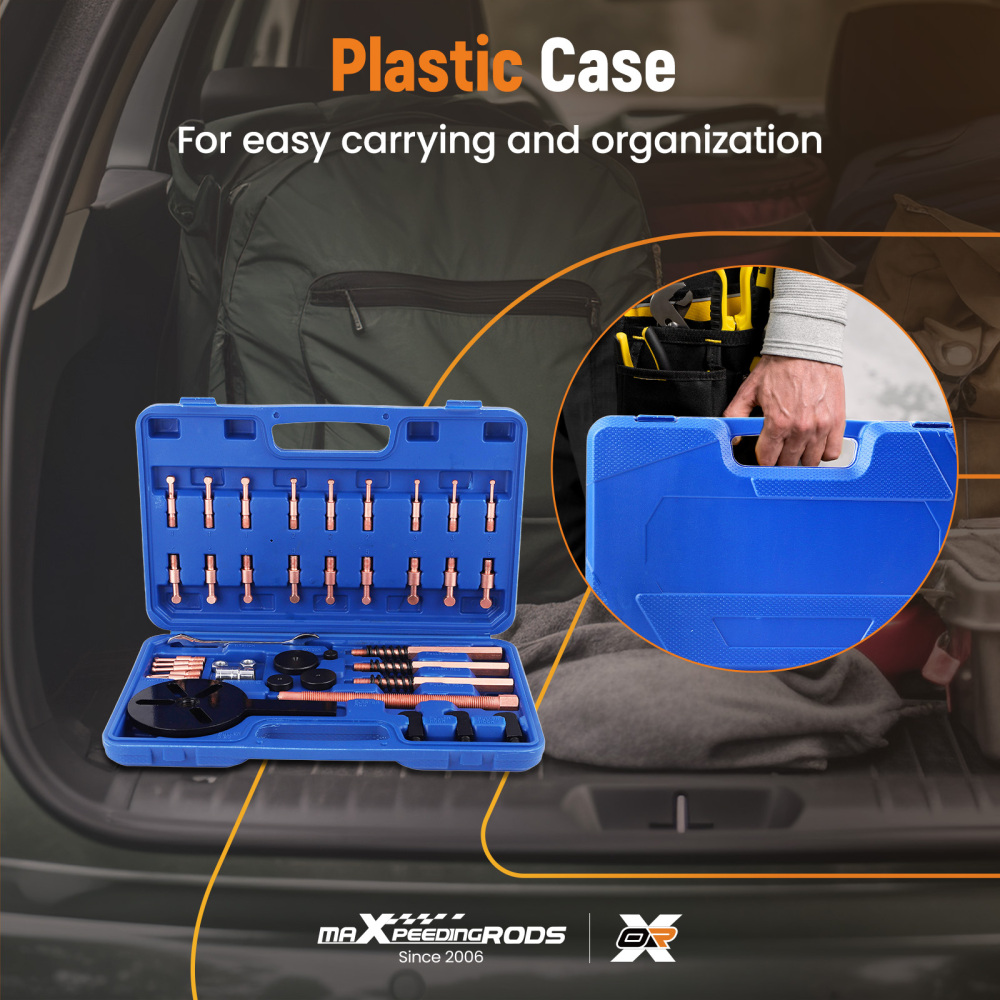

5. Well-organized: The newly designed plastic storage box keeps all accessories neatly classified, making it easy for you to carry, store and find accessories at any time.

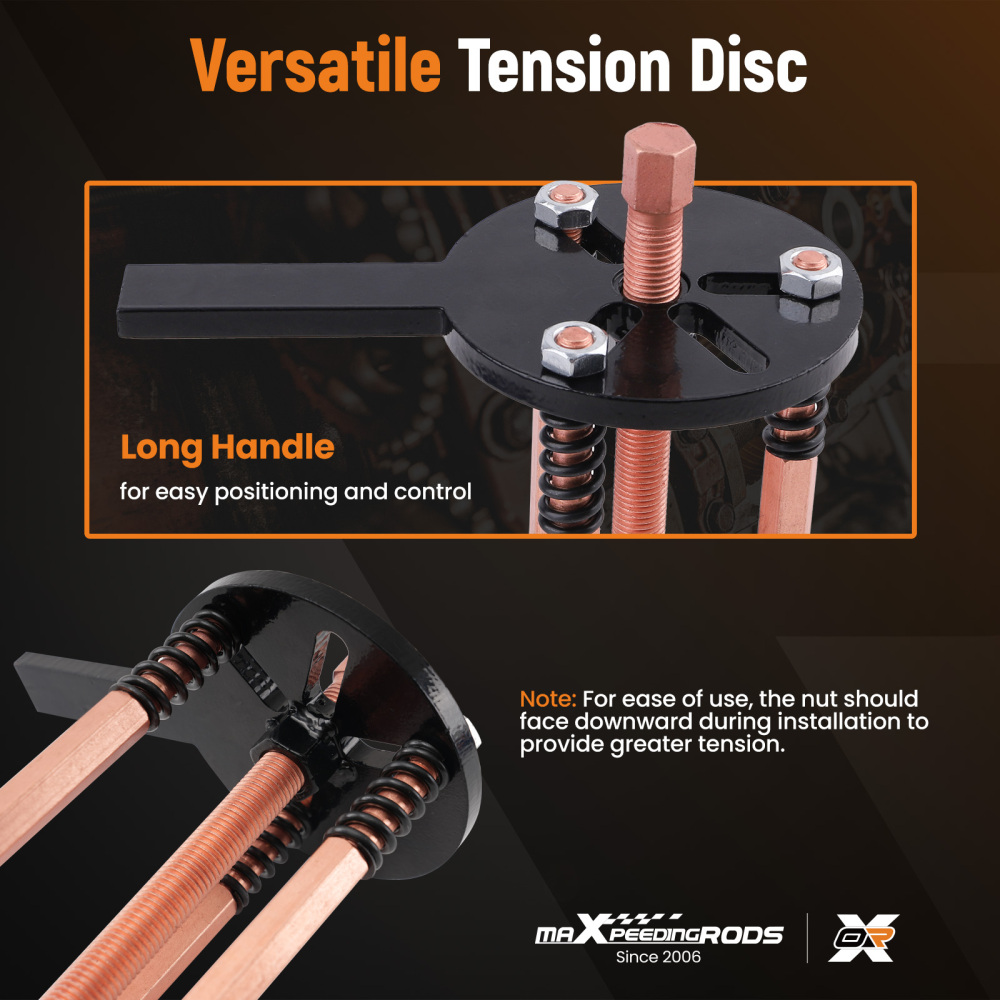

6. PULLER METHODS：1. Remove bearing the dust cap. 2. Select the appropriate puller head and assembly puller rod. 3. Insert the puller head into the race between bearing, and rotate 90° to ensure the bearing is locked. 4. Place the multifunction chuck on the drawbar and adjust the position, tighten the fixing nut of the tie rod. 5. Holding the handle and align the centre of the spindle with the centre of the spindle and turn the top top lever nut continuously, the bearing is easily removed.
