Universal Pneumatic Jack Triple bag 5 Ton 11111 lb for Pickup SUV, Fast Lifting, with Adjustable Handle and 60 mm EXTENSION

Application

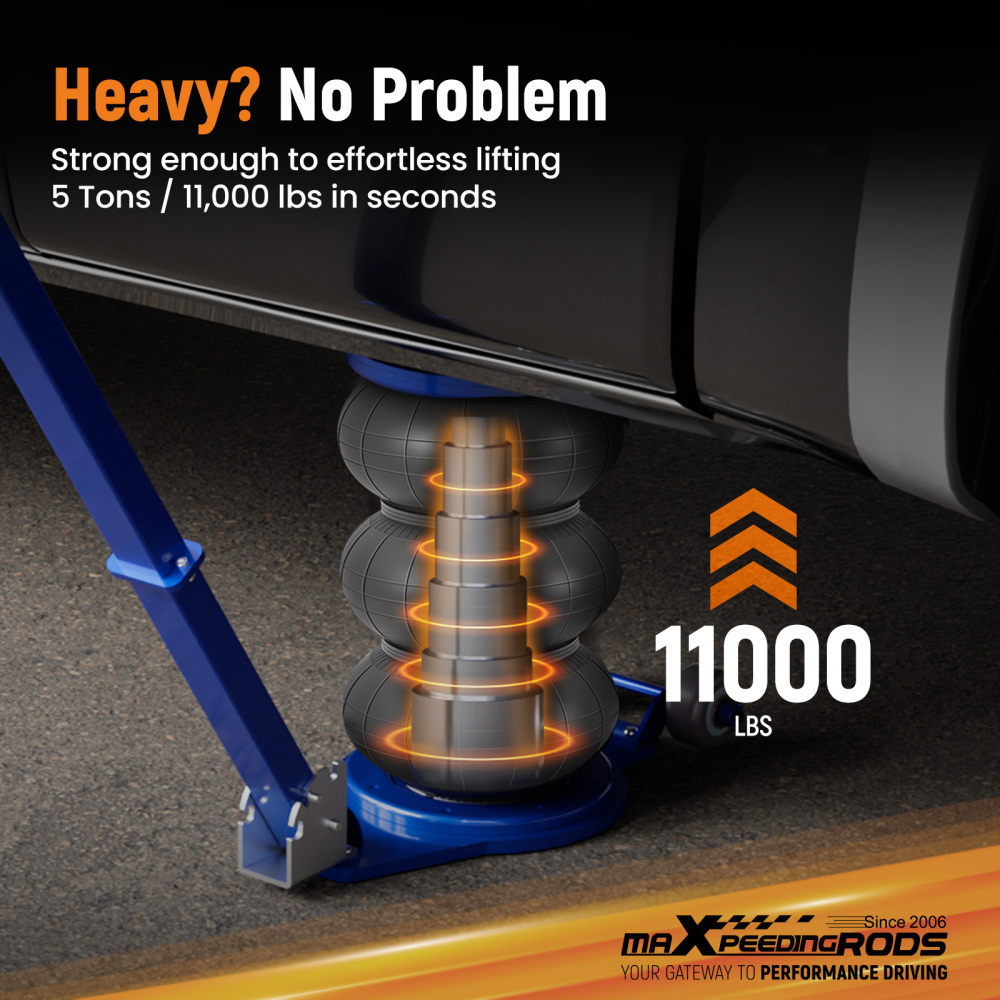

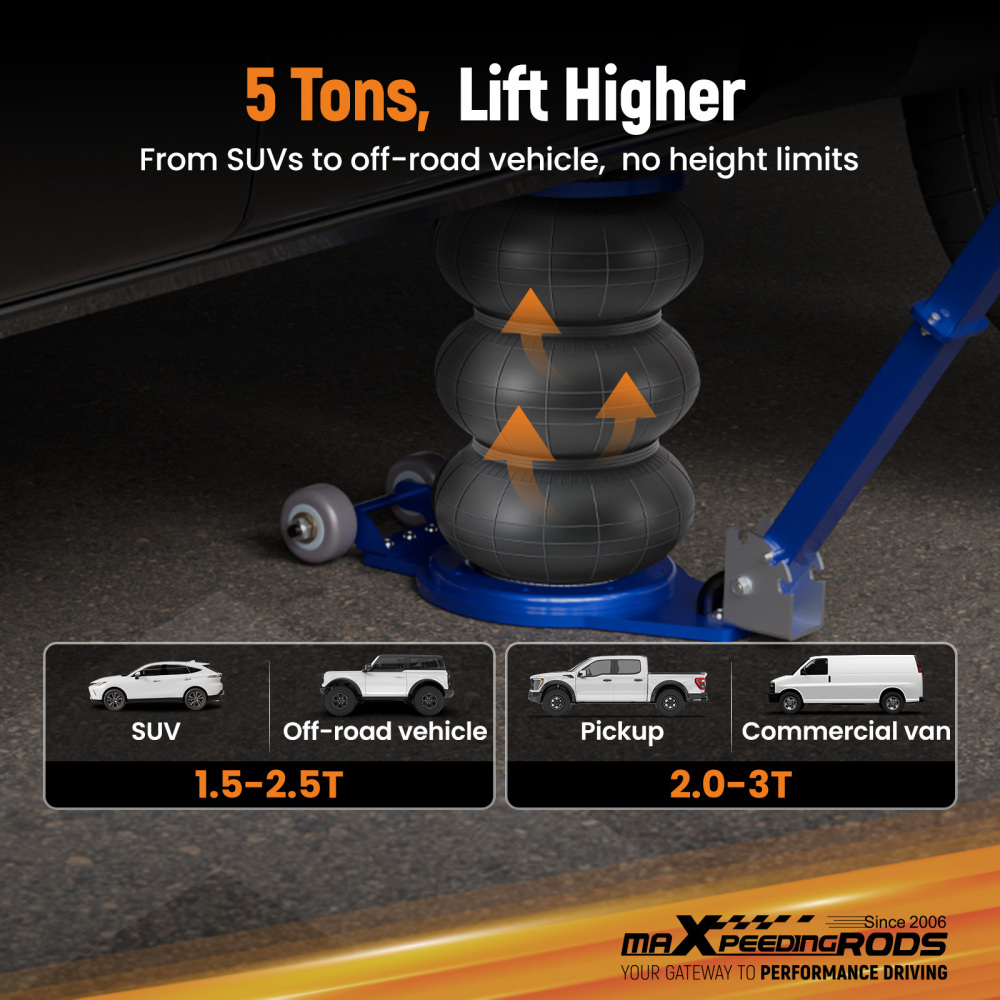

Universal pneumatic air jack 5 Ton (11111 LBS）3 Stage Rubber Air Bladders for most SUV, Pickup and Van Models

Specification

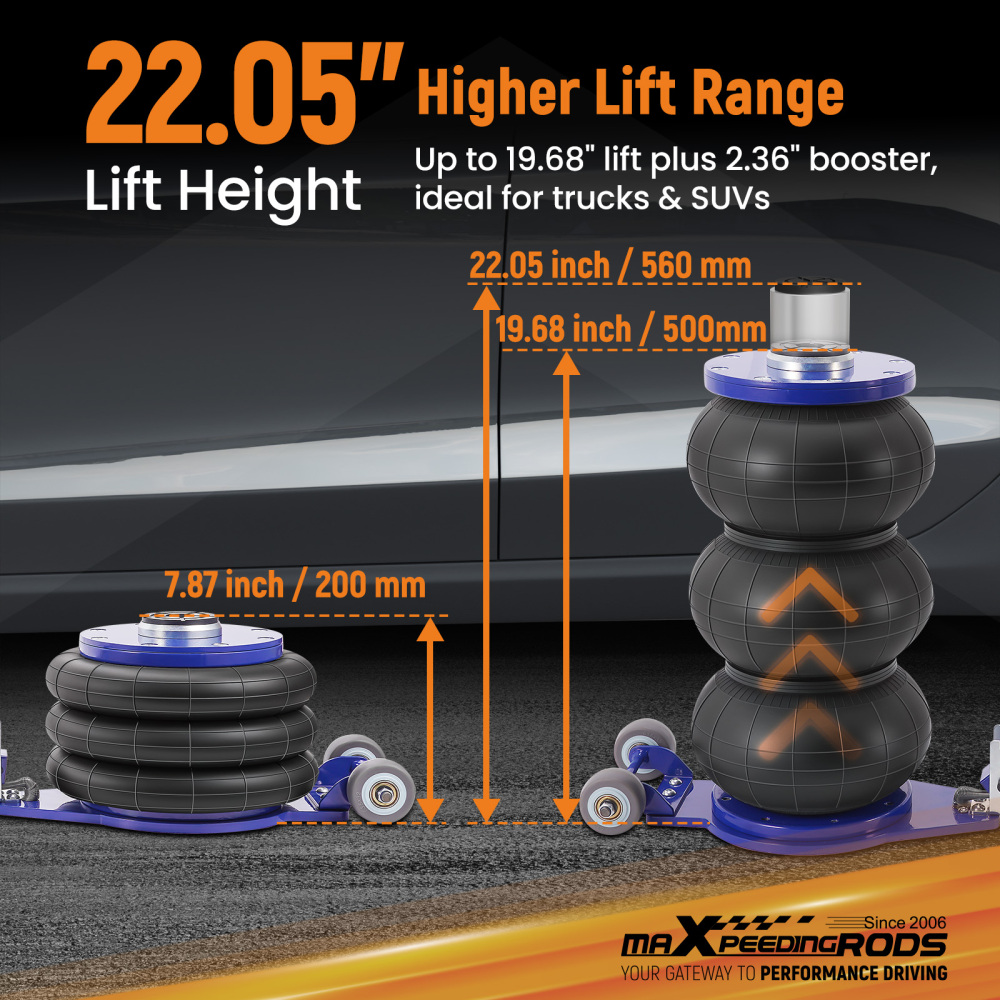

5T Minimum height：7.9 in. (200mm)
5T Maximum height：19.7 in. (500mm)

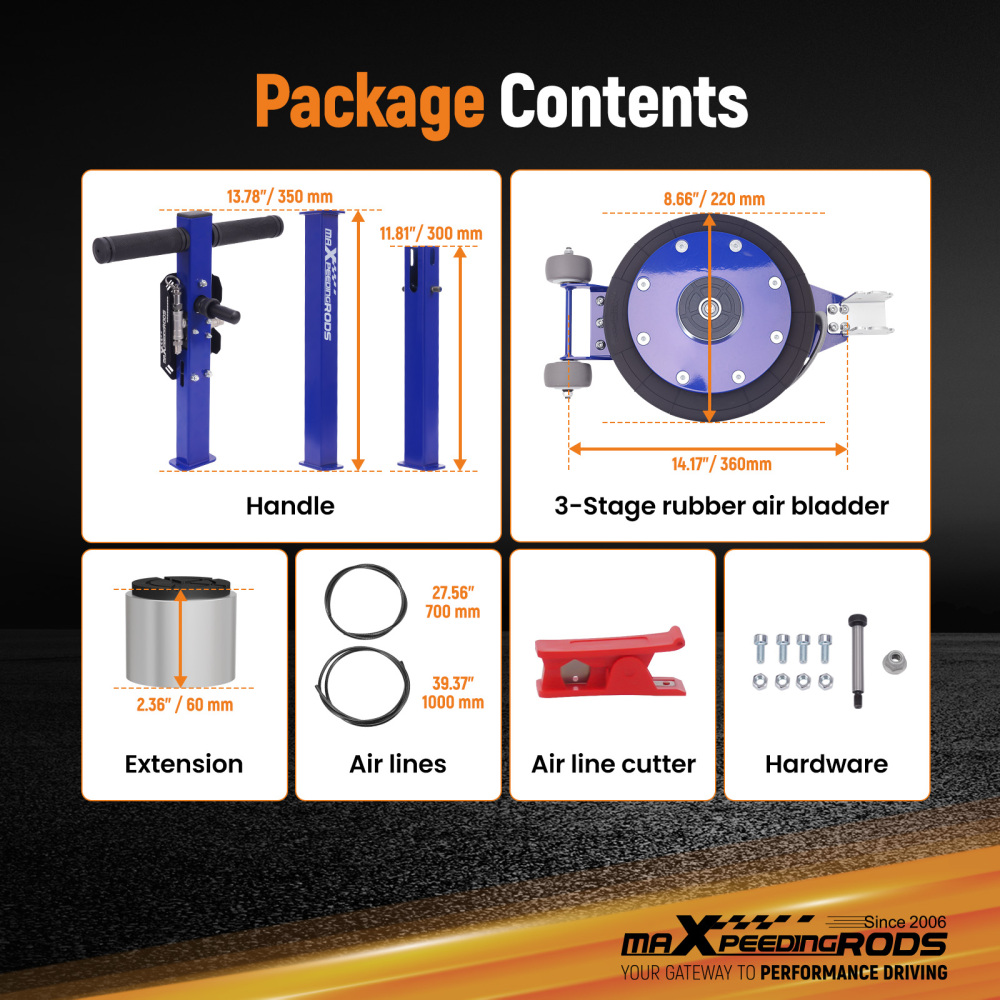

EXTENSION INCLUDED: 2.4 in. (60mm)
Adjustable handle angle: 90°/55°/15°
Working Air Pressure: 100-145 PSI
Inlet Air Pressure: 10 Bar Max
Condition: Brand New
Air fitting size: 1/4 NPT Male Coupler
Length, width and height (cm): 66*52*33
Weight: 27.1kg
-------------------------------------------

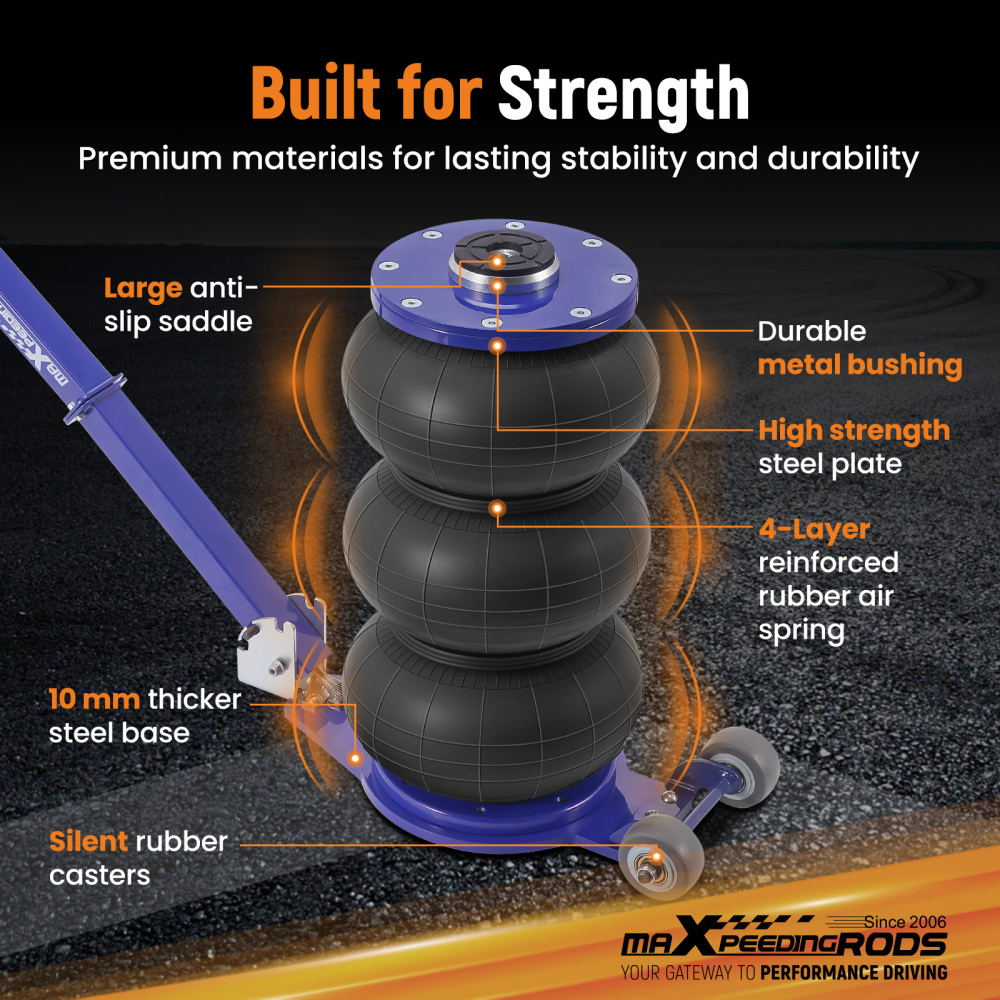

1、SPHC-high strength steel, Bottom plate thickness up to 10mm, Top plate 6mm.
2、Working Pressure 100-145 psi
3、Working Temp -40℃~ 70 ℃
4、Burst pressure 3 Mpa.
5、The number of rubber layers is 4.
6、Height (handle) is one meter.
7、With silent rubber wheels.
8、Three position adjustable handle (35/35/30 cm) for disassembly and assembly.

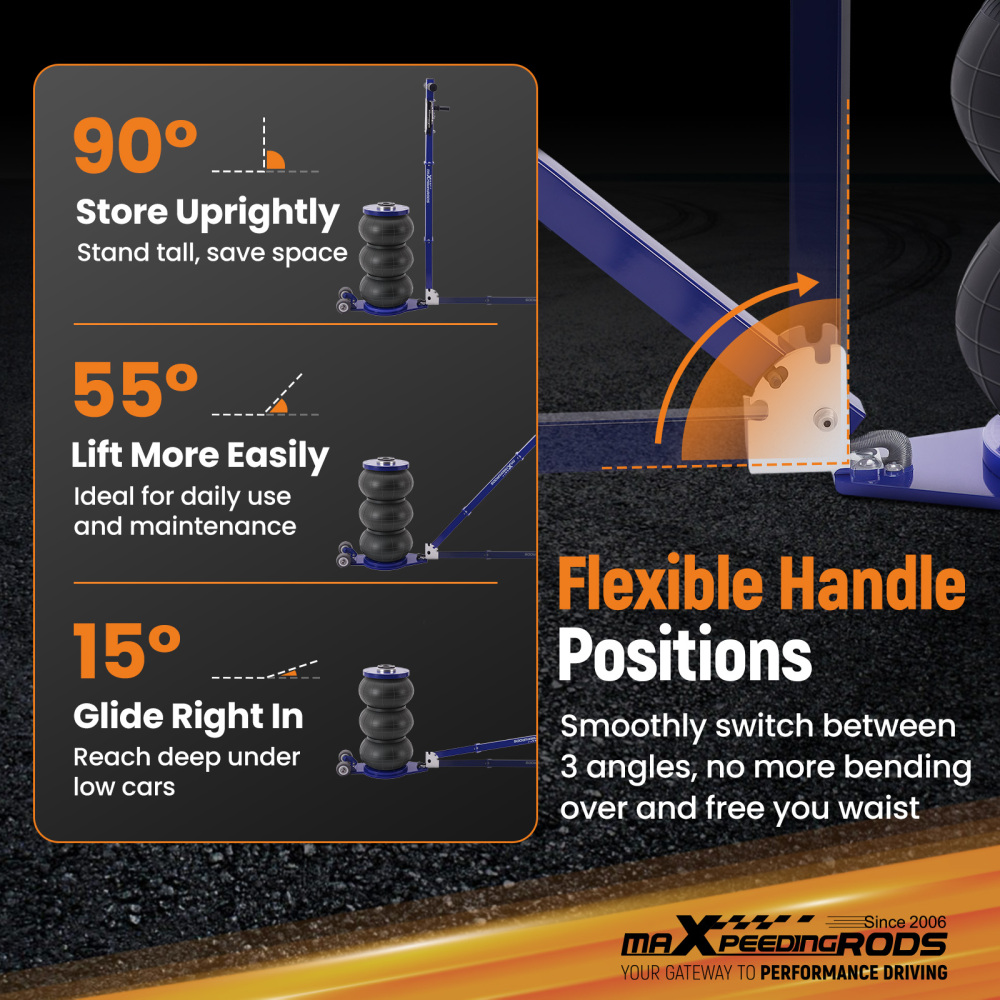

9、Adjustable handle angle (90/55/15°). No more bending over.
10、The height of the top anti-slip rubber is 18mm, and it is equipped with a metal bushing.

Feature

1.Labor-saving: Minimal Physical Effort.
2.Timing-saving: Quick setup. Inflates rapidly.
3.User friendly: Simple 'up/down' lever operation.
4.No breakdown: No oil, no electricity, works totally on air compressor.

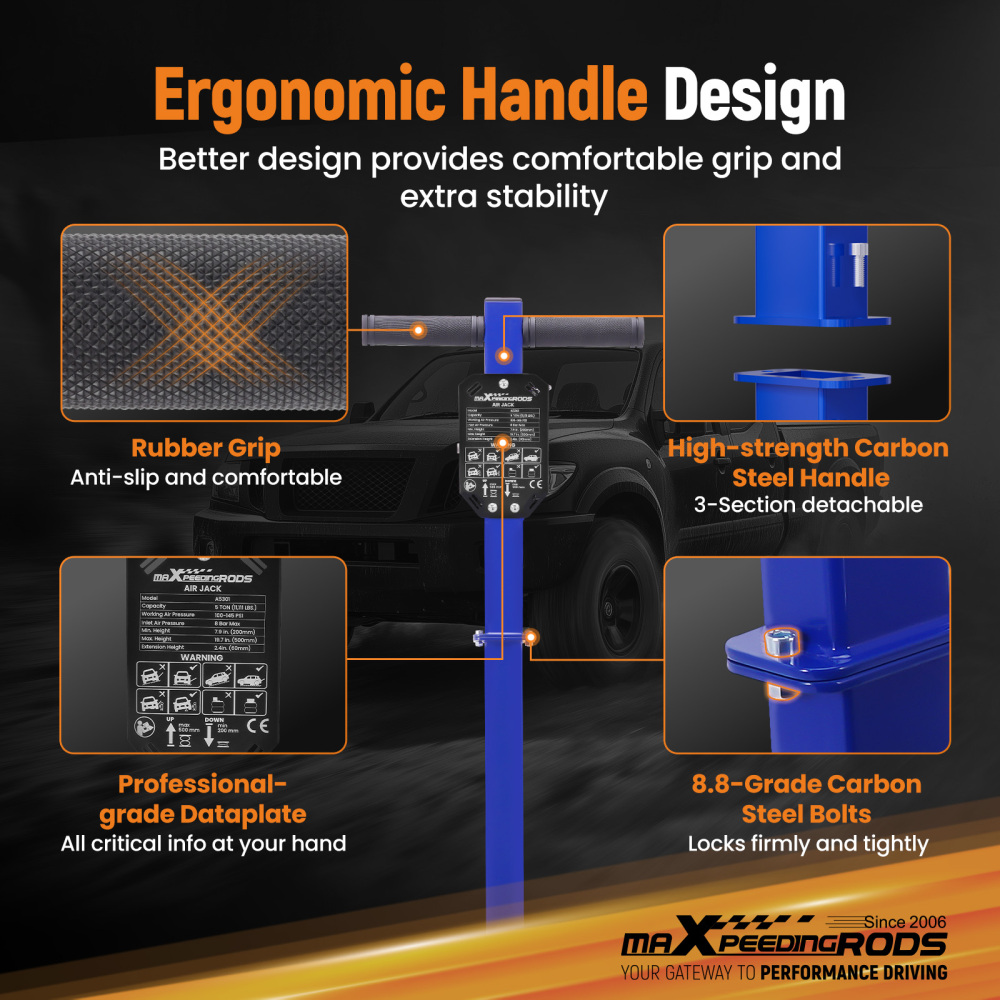

5.Comfortable ergonomic handle: Humanized design.
6.Overload safety valve: With safety insurance device (The air pressure more than 10 bar, safety valve exhaust air automatically.).
7.Internal stabilizer: Telescopic centering device is durable, lower resistance.
8.Easy long life: The seal is wear-resistant and has good sealing performance.
9.No scratches: Protect the vehicle's sills with the rubber pad.
10.Save space: Conveniently stands upright for minimal storage space.

Note

1、Keep the work area clean, uncluttered and ensure there is adequate lighting.
2、 Use the jack only on level and firm surfaces. Be aware that the jack may sink into soft surfaces.
3、Ensure the jack is correctly positioned beneath the vehicle before operating.
4、Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure.
5、DO NOT exceed the rated capacity of the air jack.
6、DO NOT adjust or tamper with the safety valve.
7、DO NOT leave the jack as sole support for the vehicle. This is a lifting device only.
8、DO NOT use the jack to support the vehicle. After jacking always support vehicle on suitable axle stands before starting work.
9、DO NOT overinflate, maximum air pressure.
10、Keep hands away from the jack pad at all times.
11、Only attachments and/or adaptors supplied by the manufacturer shall be used.
12、Wear Safety goggles.
13、Avoid contact with petroleum-based products or chemicals of any kind.
14、Jack base must be parallel to the lifting point to prevent uneven jacking that may cause sudden drop of load.
15、Keep sharp objects away from the bag. A punctured bag will cause the jack to fall without warning, resulting in serious injury or property damage.

MAINTENANCE

The MaXpeedingRods Air Jack is designed for low-maintenance. However, please observe the following suggestions:
1.Visually inspect Air Jak before each use. Ascertain the jack has no broken or damaged parts.
2.Put a few drops of pneumatic tool oil on the air inlet occasionally (monthly).
3.Using a cleaning cloth or air gun, remove all dust and dirt that may affect the performance or life of the product.
4.We strongly recommend that you have your lifting equipment inspected annually by an accredited individual.
5.Raise the jack to its maximum height without load and check the air circuit for leaks.
6.Check that the markings (technical table on the handle and maximum capacity label on the jack) are the same as in the original condition once a year.
