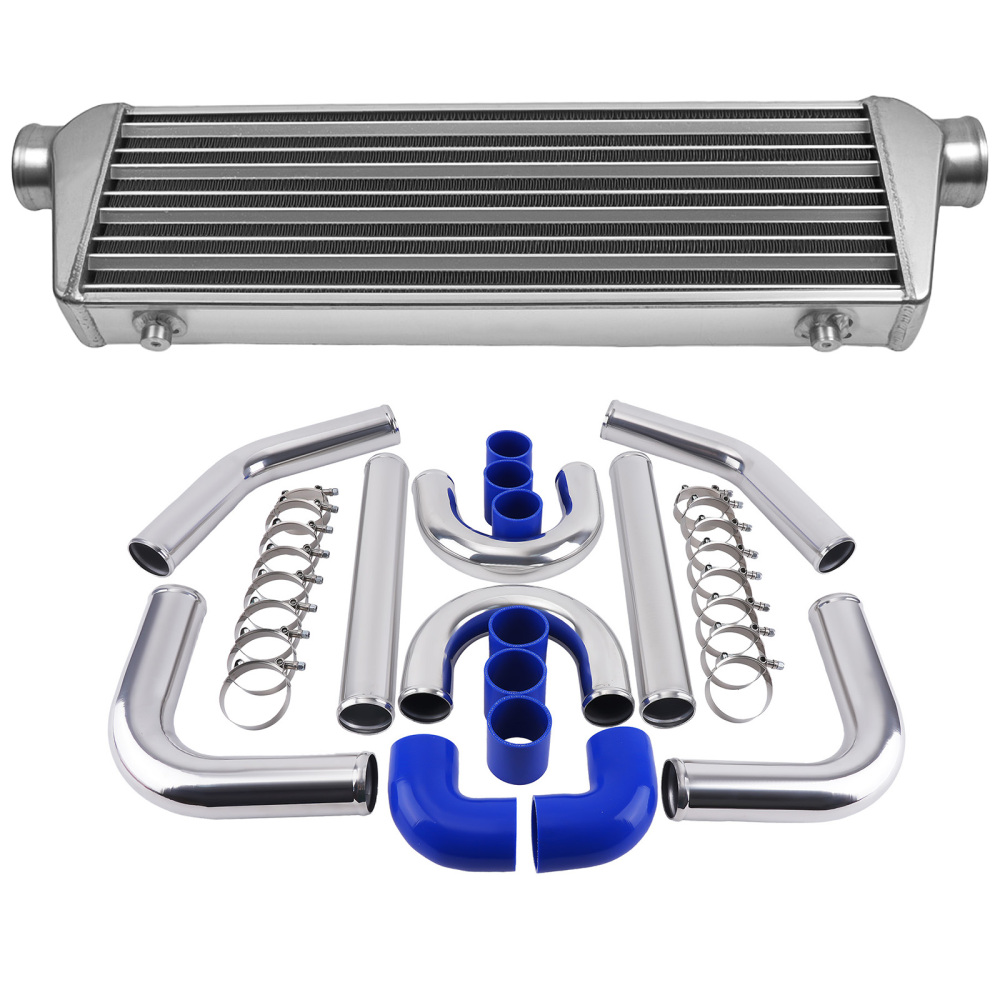

Universal Turbo Intercooler 27 x 7 x 2.5 + 2.5 Aluminum Pipe Tube Hose Kit

Intorduction

Intercooler exchange device used on turbocharged and supercharged internal combustion engines to improve their volumetric efficiency by increasing intake air charge density through nearly isobaric cooling, which removes the heat of compression that occurs in any gas when its pressure is raised or its unit mass per unit volume is increased.

Applaction

Universal

Specification

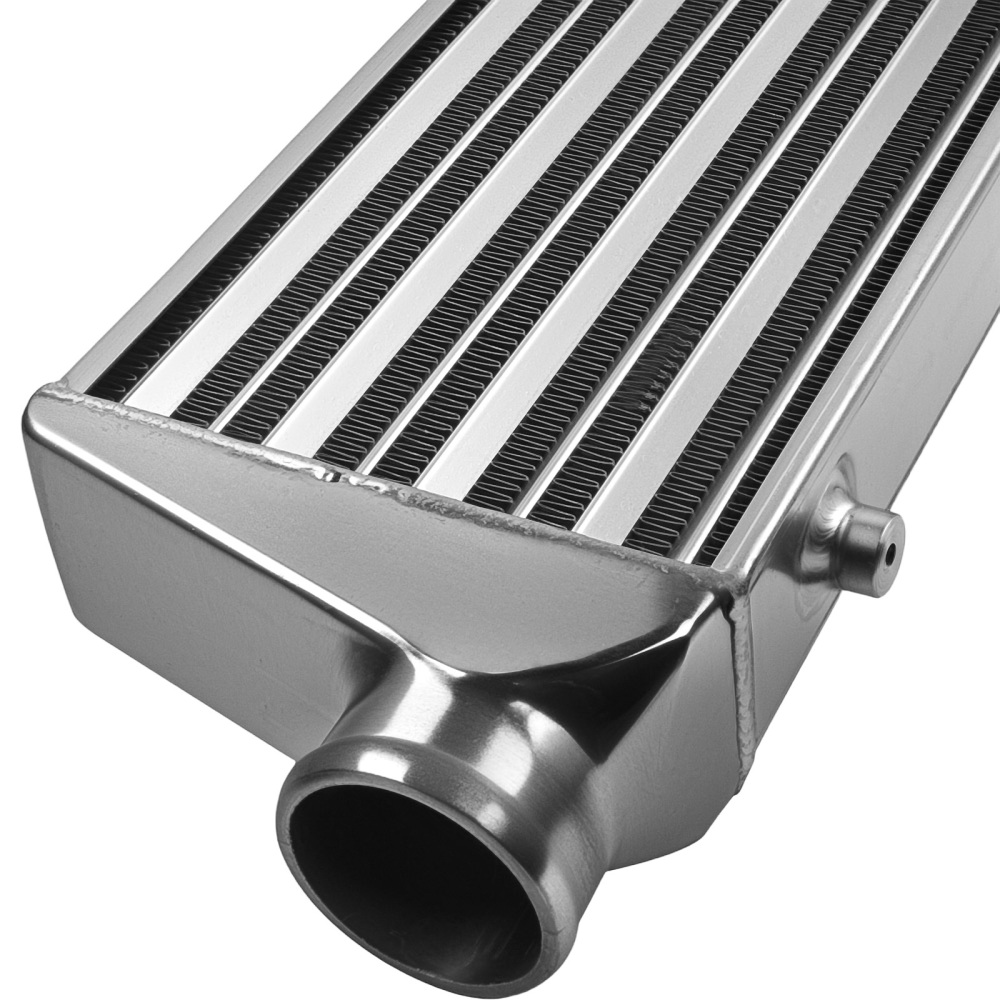

Specifications of Intercooler:
Inlet / Outlet Size: 2.5"
Core size: 21'' x 7'' x 2.5''
Full size: 27.00" (L) X 7.00" (H) X 2.50"(W)
Core design: Tube & Fin
Material: Aluminum alloy
Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP
Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi
Warranty: 1 Year
Condition: 100% Brand New

Specifications of Pipe Kit:

Applications: Universal fits all Turbo Projects
Pipe Thickness: 1.8mm--Durable quality size
Diameter: 2.5''
Pipe Length: 18''
Pipe Thickness: 1.8mm
Material: 6061 Aluminum

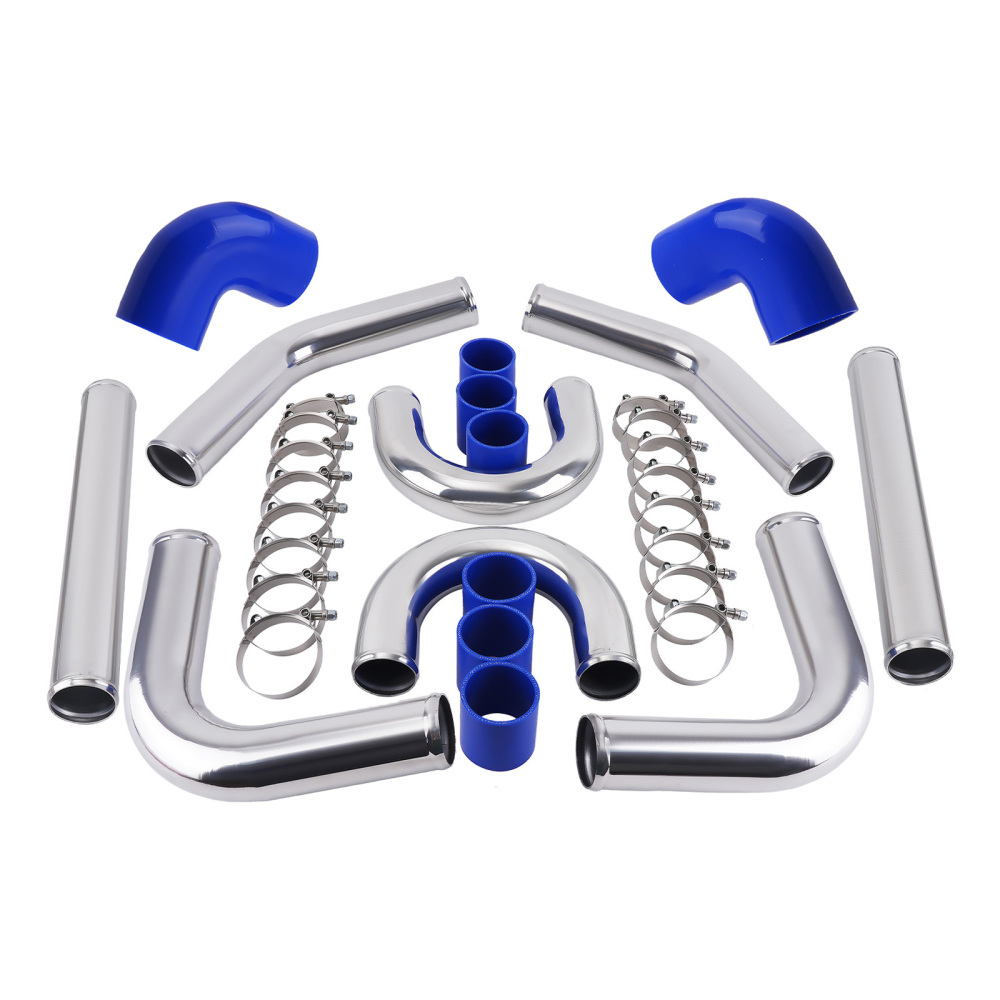

Package Including
1 x Intercooler
2 x 90 Degree Aluminum Pipe 2.5"
2 x Straight Aluminum Pipe 2.5"

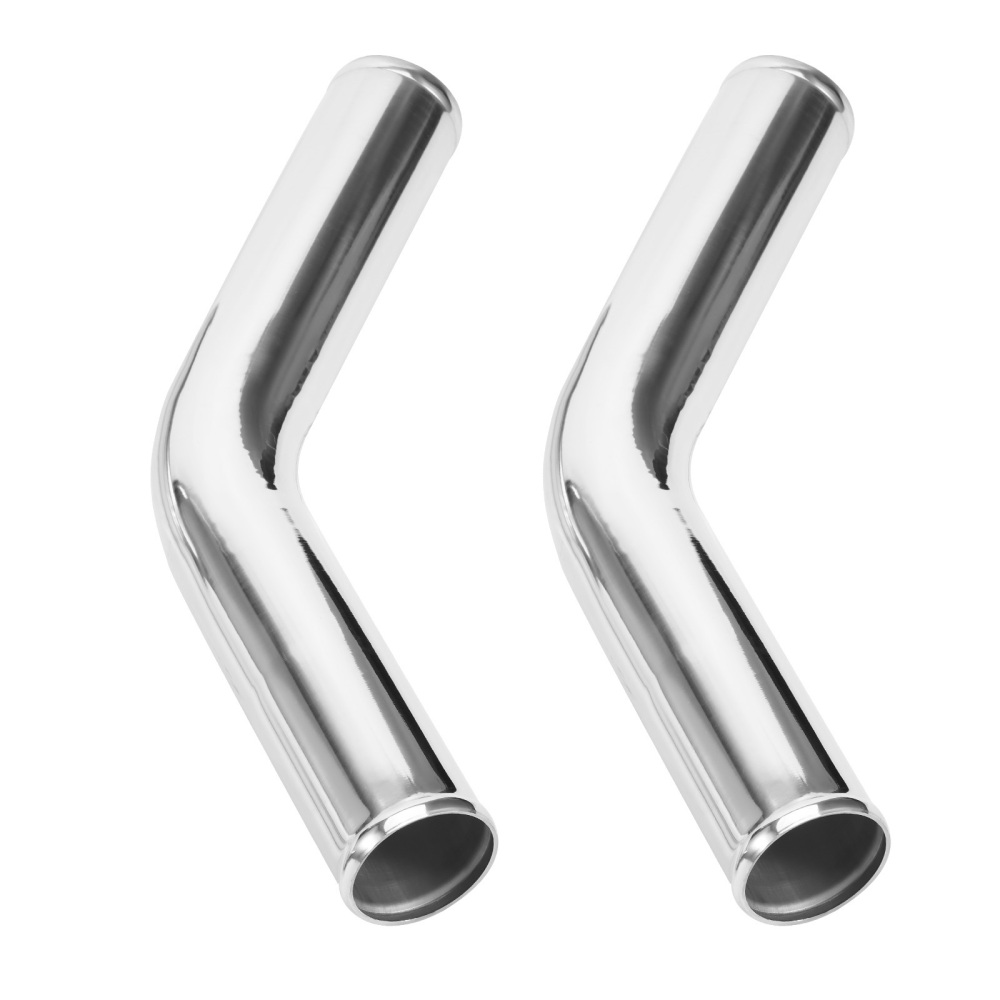

2 x 135 Degree Aluminum Pipe 2.5"
2 x U Aluminum Pipe 2.5"

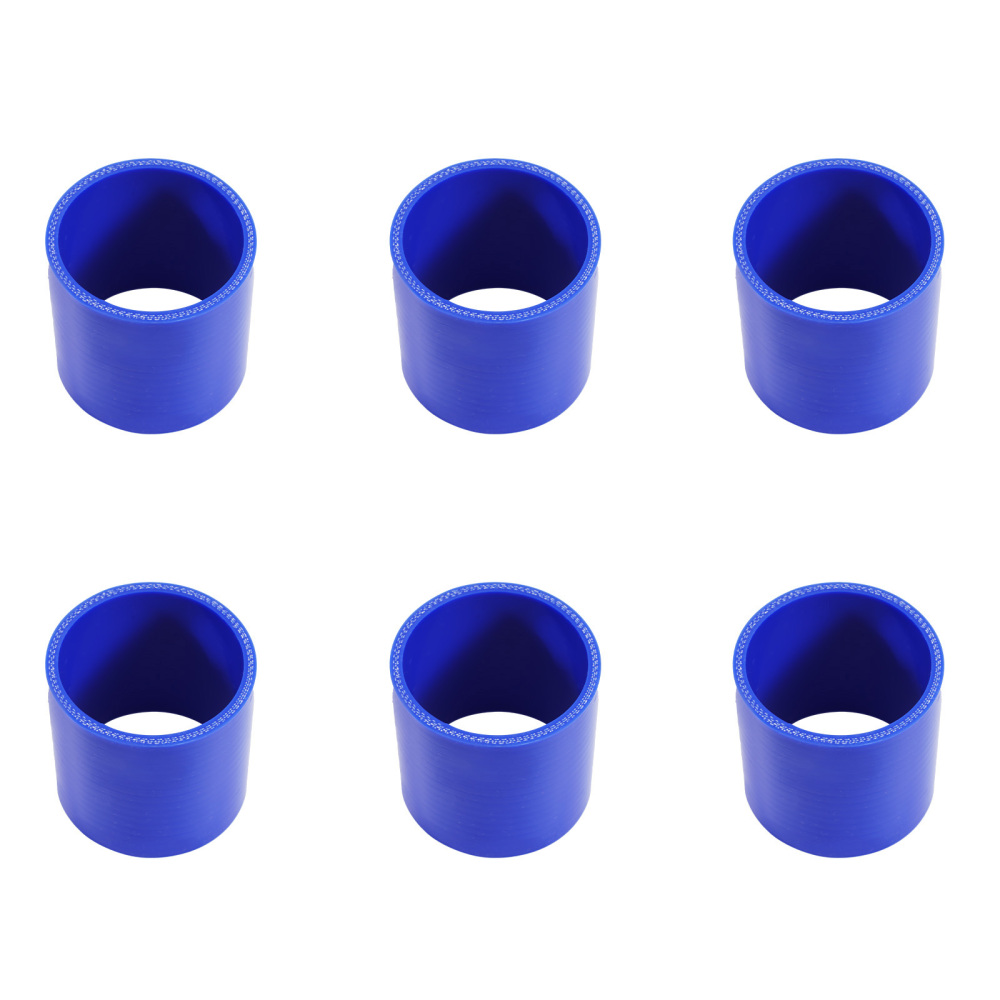

6 x Straight Silicone Hose 2.5" (Blue )

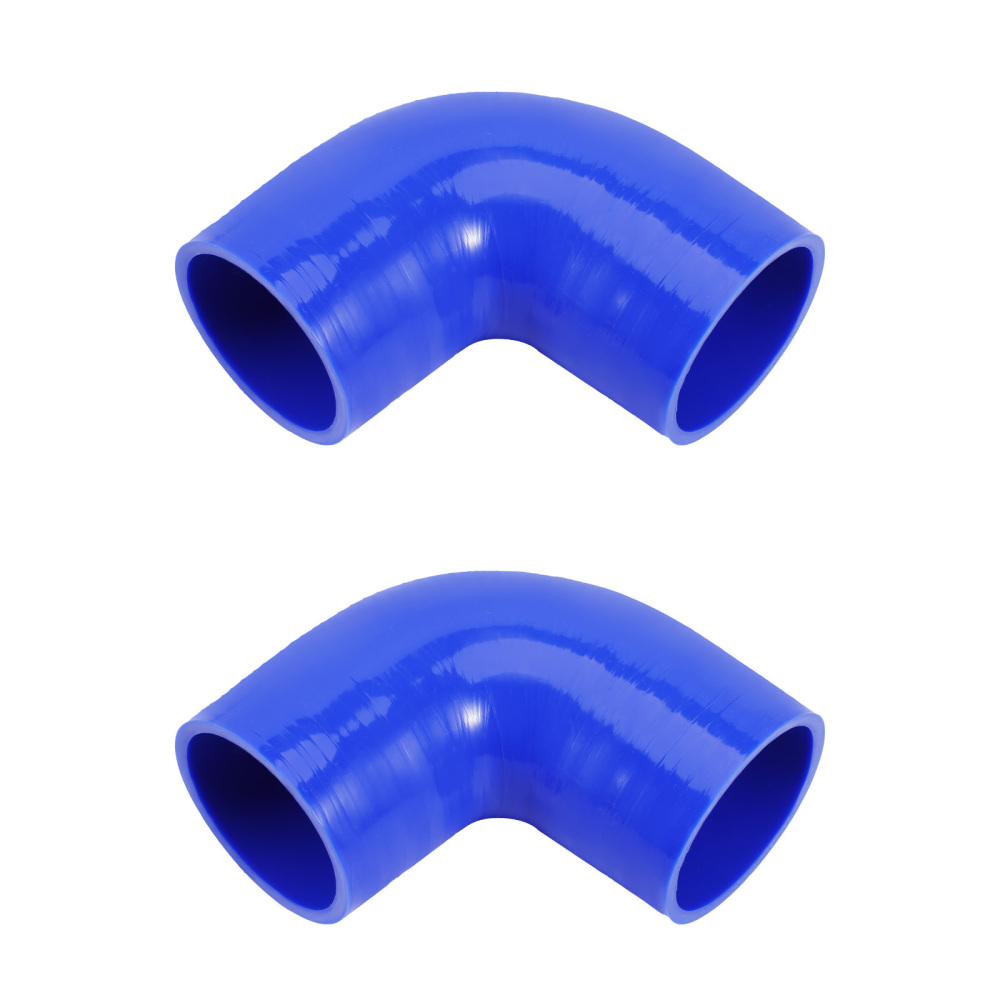

2 x 90 Degree Silicone Hose 2.5"(Blue )

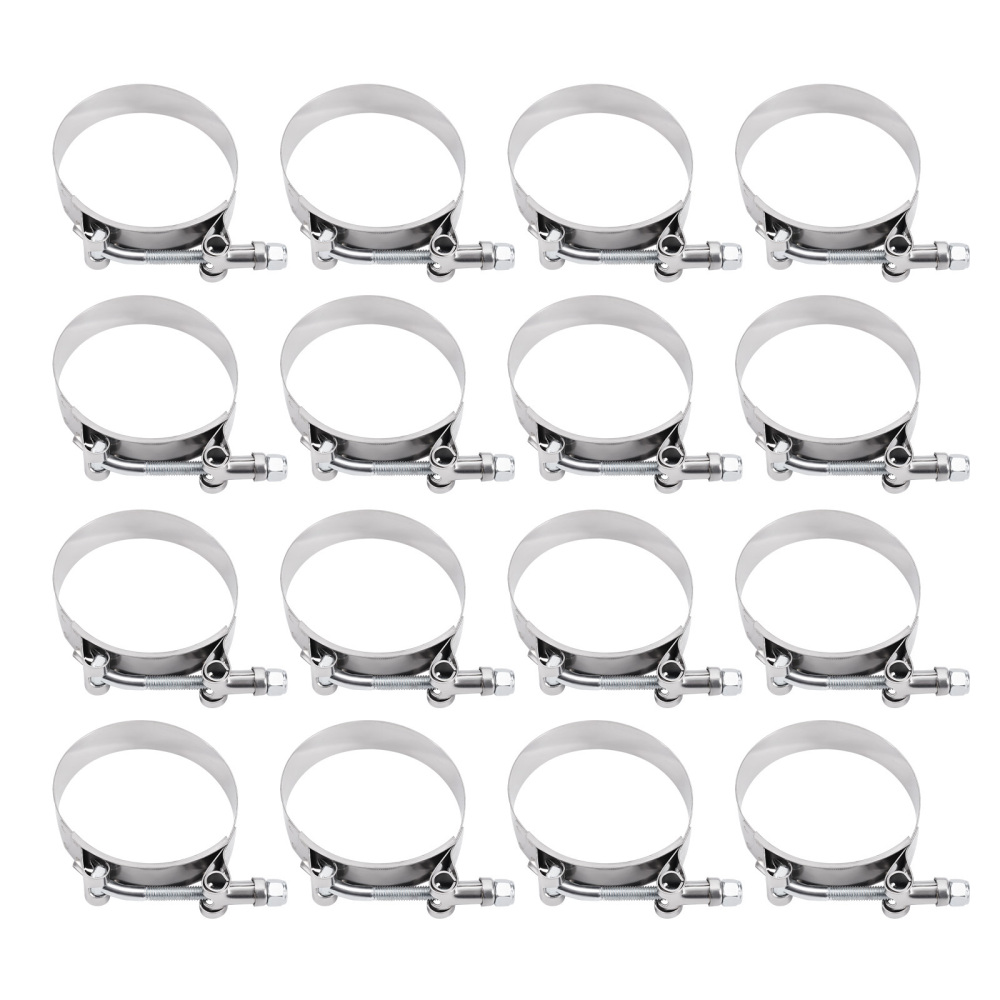

16 x Clamps 2.5"
(You will get exactly as shown in the picture above)

Features
Intercooler：

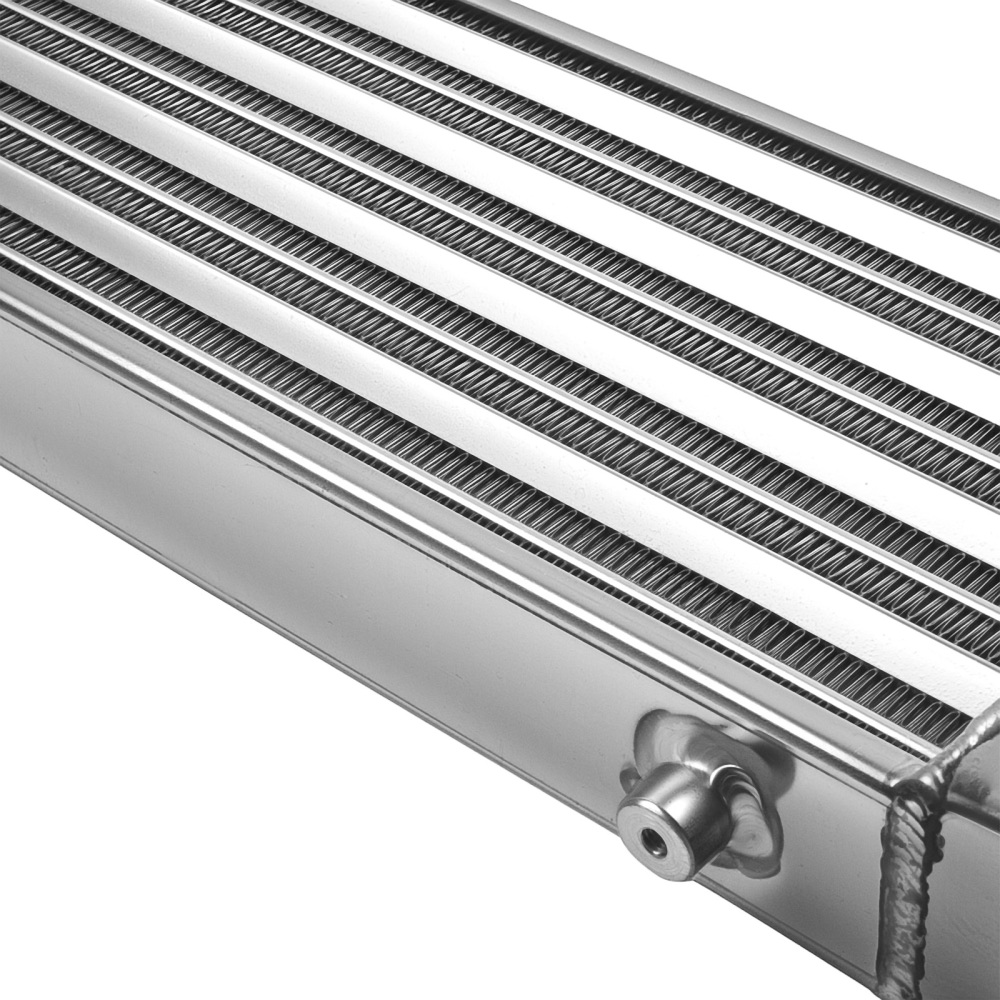

Tube & Fin Design.
Light weight designed. Made of Aluminum.(Increase 10-20 HP).
PSi Drop under 0.2. Other Intercooler usually drop 10Psi Some are More.
Max PSi is 30 Up to 400HP
Pipe Kit：
Anti-rust and Anti-preesure
Easy to install and uninstall
Have a longer service life

Note
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
