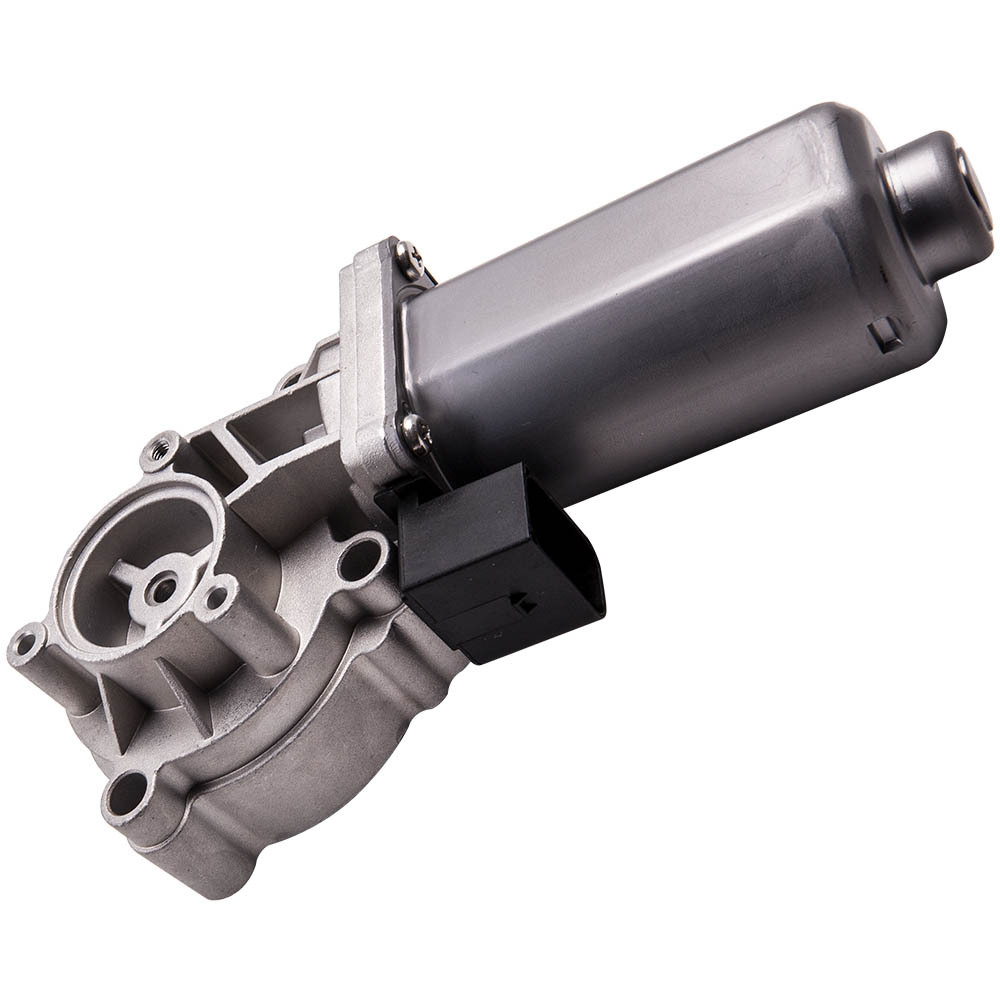

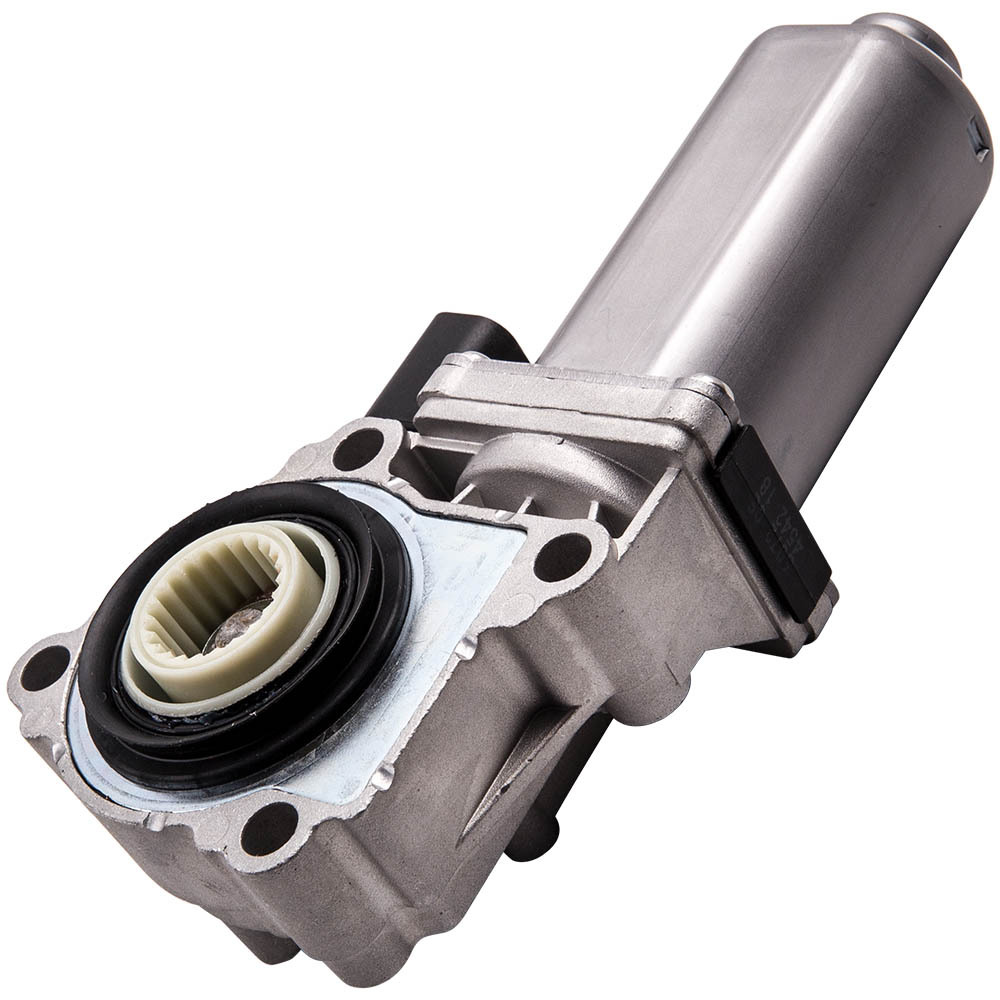

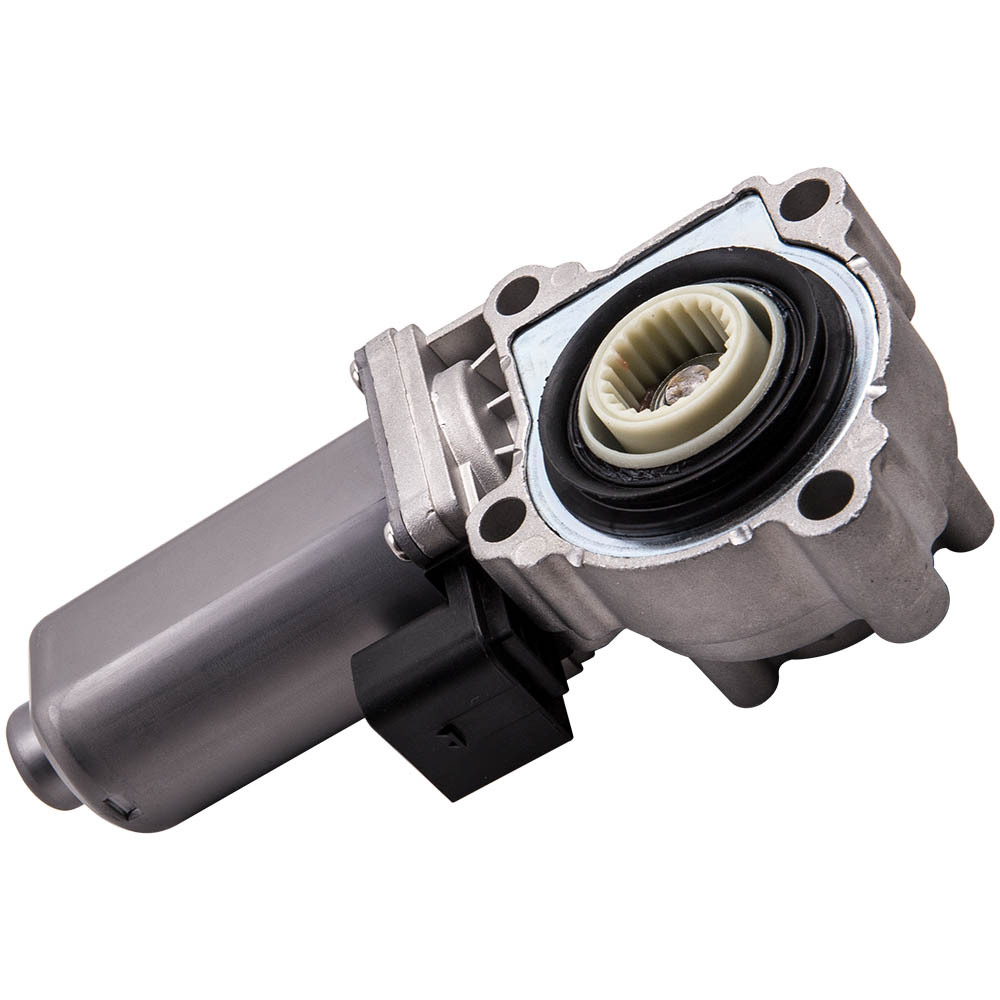

Transfer compatible for Case Shift Actuator Motor compatible for BMW X3 X5 E83 E53 E70 27107555297

Compatible for BMW ATC400 ATC500 ATC700 Transfer compatible for Case
Compatible for BMW E83 2003-2010
Compatible for BMW E53 2003-2005
Compatible for BMW E70 2006-2009
Compatible for BMW X3 2004-2010
Compatible for BMW X5 3.0i 2003-2004
Compatible for BMW X5 4.4i 2004
Compatible for BMW X5 4.8is 2004
Compatible for BMW X5 2005-2006

Notice: For ATC400/ATC500, There is no external classification resistor and it should be reinstalled from old actuator.

Professional installation and special equipment to reset adaptations after installation are Required.

Part Number:

27107566296, 27103455135, 27107555295, 27107599898, 27103455139
27103455138, 27107599889, 27107599890, 27103455136, 27103455132
27107599886, 27107599887, 27103455137, 27107555297, 27107599899

Specifications:

Type: Transfer compatible for Case Motor
Color: Silver
Material: Metel
Pins: 7-pin
Power: 50W
Voltage: 12V
Condition: 100% Brand New
Warranty: one year warranty

How to replace Transfer compatible for Case Shift Motor?

1. Disconnect the Battery: Always start any electrical work on your vehicle by disconnecting the negative terminal on your battery.

2. Remove the Old Shift Motor: The shift motor will be attached to the transfer compatible for case with a series of bolts. Once the bolts are removed, you should be able to slide the shift motor out. There will also be an electrical connector that you'll need to disconnect.

3. Install the New Shift Motor: Connect the electrical connector to your new shift motor, then slide it into place on the transfer compatible for case. Replace the bolts and tighten them with your socket set and ratchet.

4. Reconnect the Battery: Finally, reconnect the negative terminal on your battery.
