Upgrade K04 015 Turbo Turbocharger Turbolader compatible for Audi A4 A6 compatible for VW 1.8T K04-015

Application

Compatible for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
Compatible for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
Compatible for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -
Compatible for Audi A4 Upgrade 1.8T 1995 -
Compatible for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
Compatible for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T upgrade 1999 -

OE/Part number

53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
53049880015, 5304-988-0015, 5304 988 0015,
53049700015, 5304-970-0015,5304 970 0015,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV
058145703N,058145703NX , 058145703NV,
058145703Q，058145703QX,058145703QV
058145703B, 058145703C, 058145703D
058145703E, 058145703H,

Specification

Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet: 50 mm
Blades: 4 x 4 blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange

Turbo Model: k03 upgraded, K04
Engine： AEB/ANB/APU/AWT/AVJ/BEX
Fuel: Gasoline
Cooling Type：Water & Oil Cooling
Horsepower Rating: 220 HP
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type:Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight：5.9 kg
Package Size：26*25*23 cm
Warranty: one year warranty for any manufacturing defect

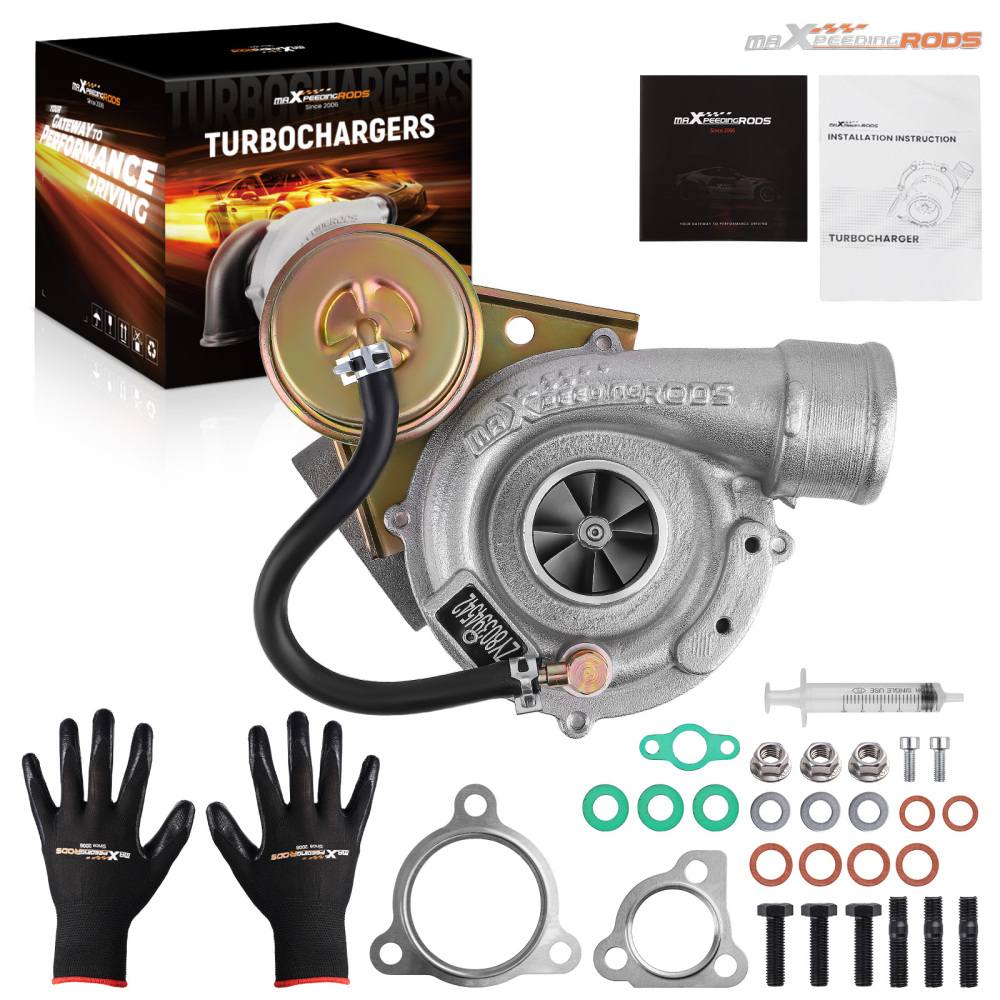

Package included

1x Turbo
1x Oil Port Gasket
2x Flange Gaskets
2x Oil Port Bolts & Washers
3x Stud Bolts & Nuts & Washers
3x Bolts
4x Washers
1x Manual
1x Brochure
1x Sticker

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. K03S upgraded turbine/compressor wheel with higher horsepower.
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
