GT45 T4 V-Band Flange 1.05 A/R 98mm UP TO 600+HP Turbocharger

Application

This turbo is a universal application turbo, some modification may be required based on individual vehicle.
Perfect for all 4.0L-6.0L engine

Specification

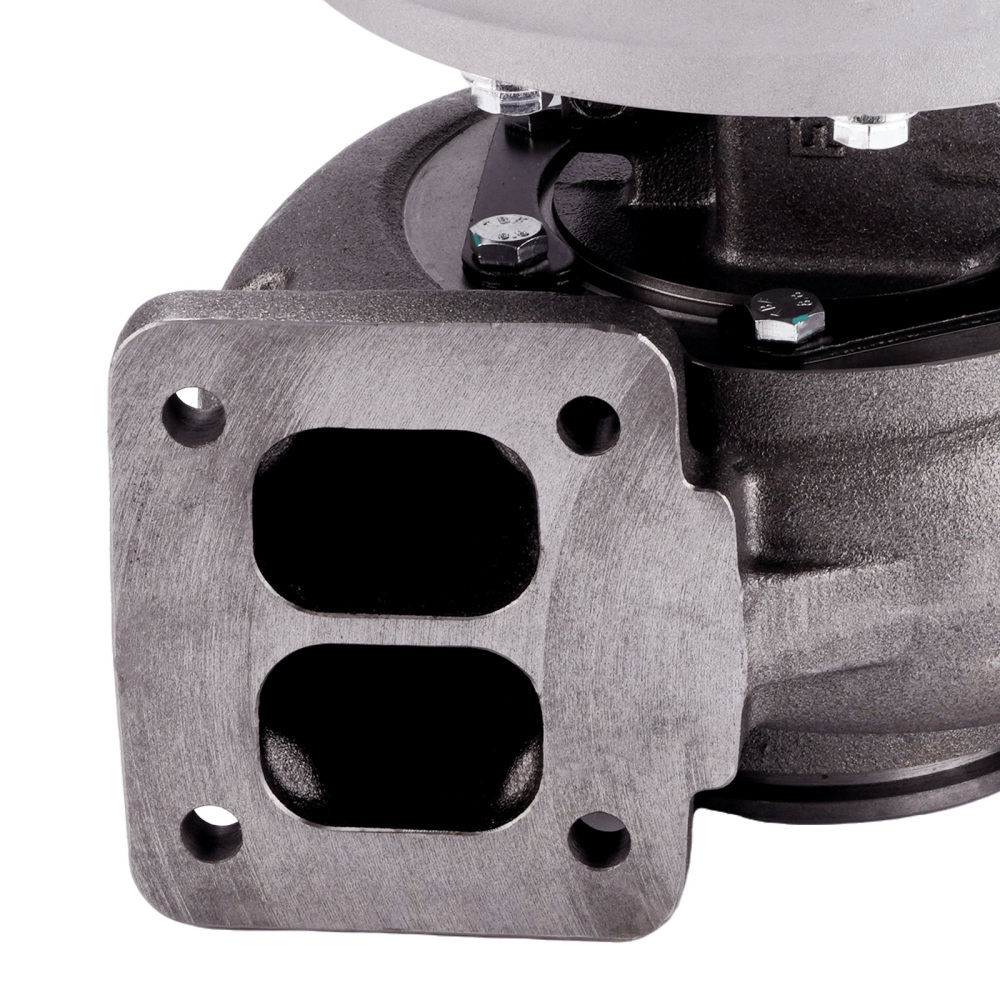

Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band Flange（ID: 82mm, OD: 111mm）
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm

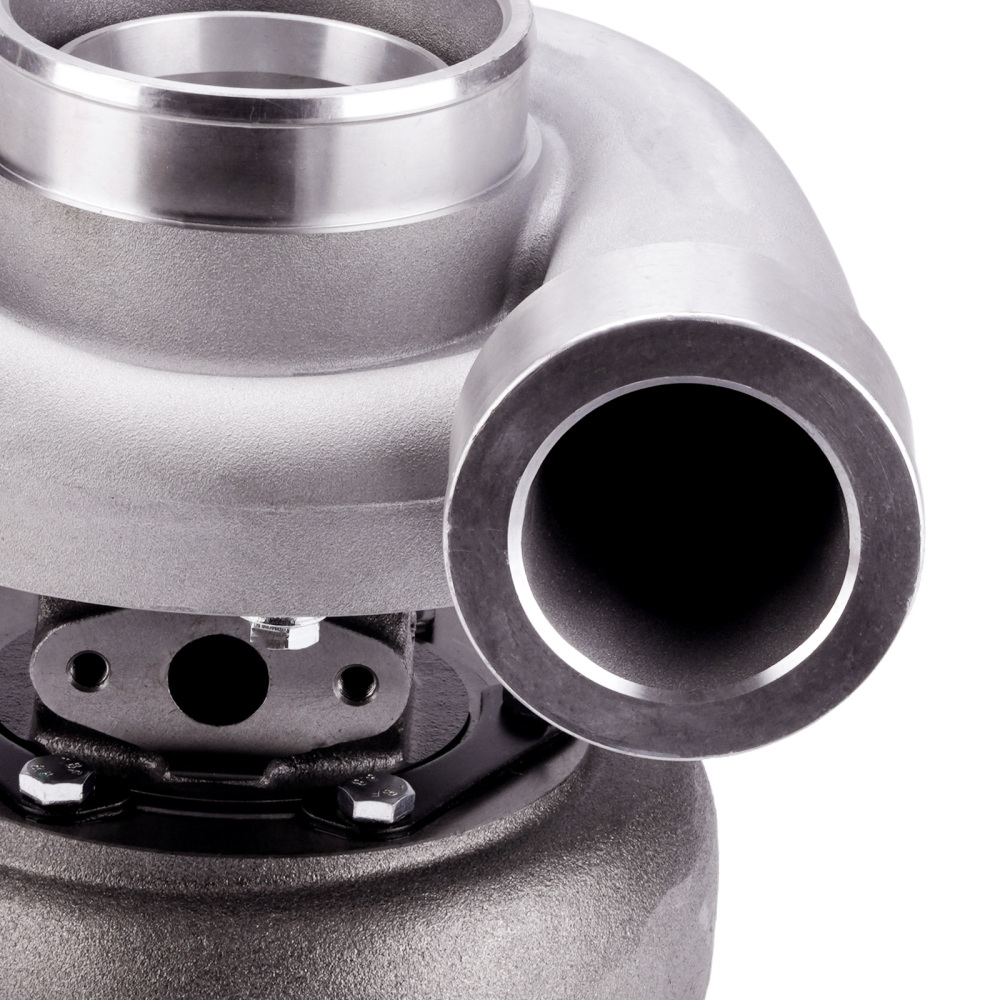

Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05

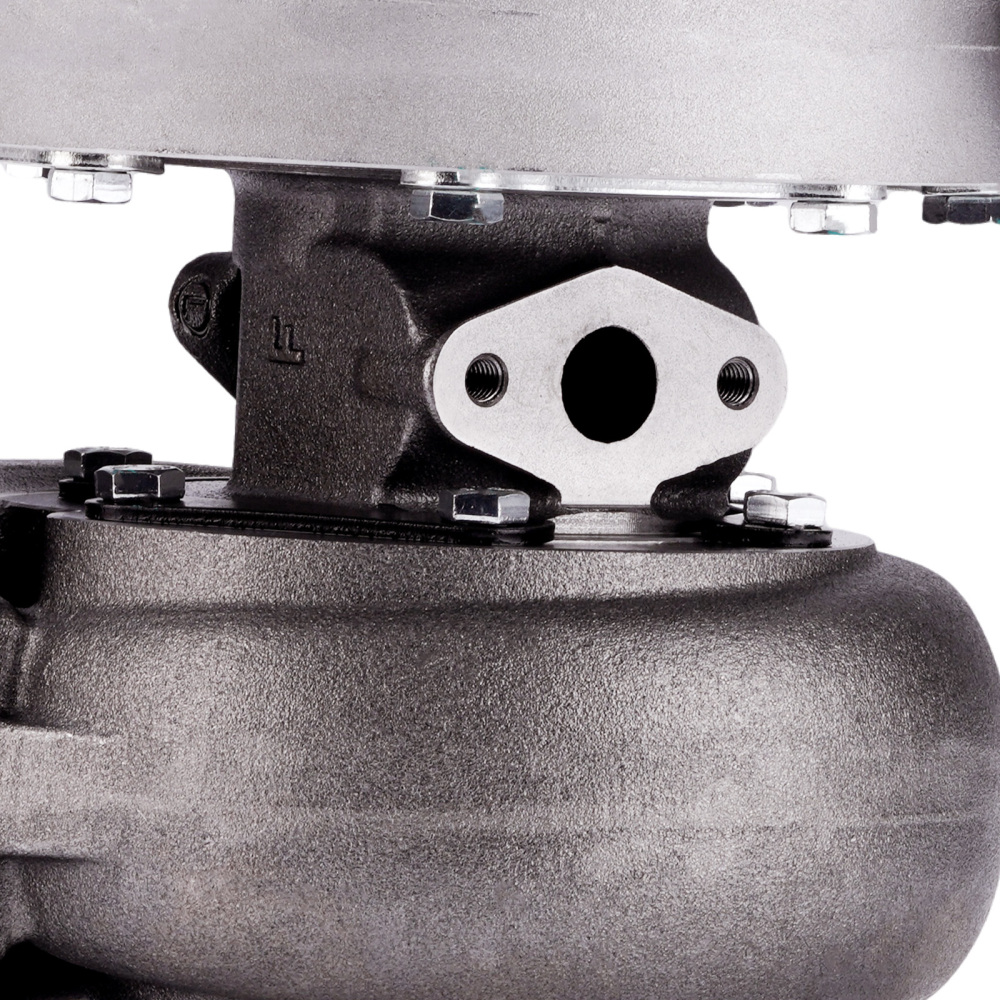

Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25

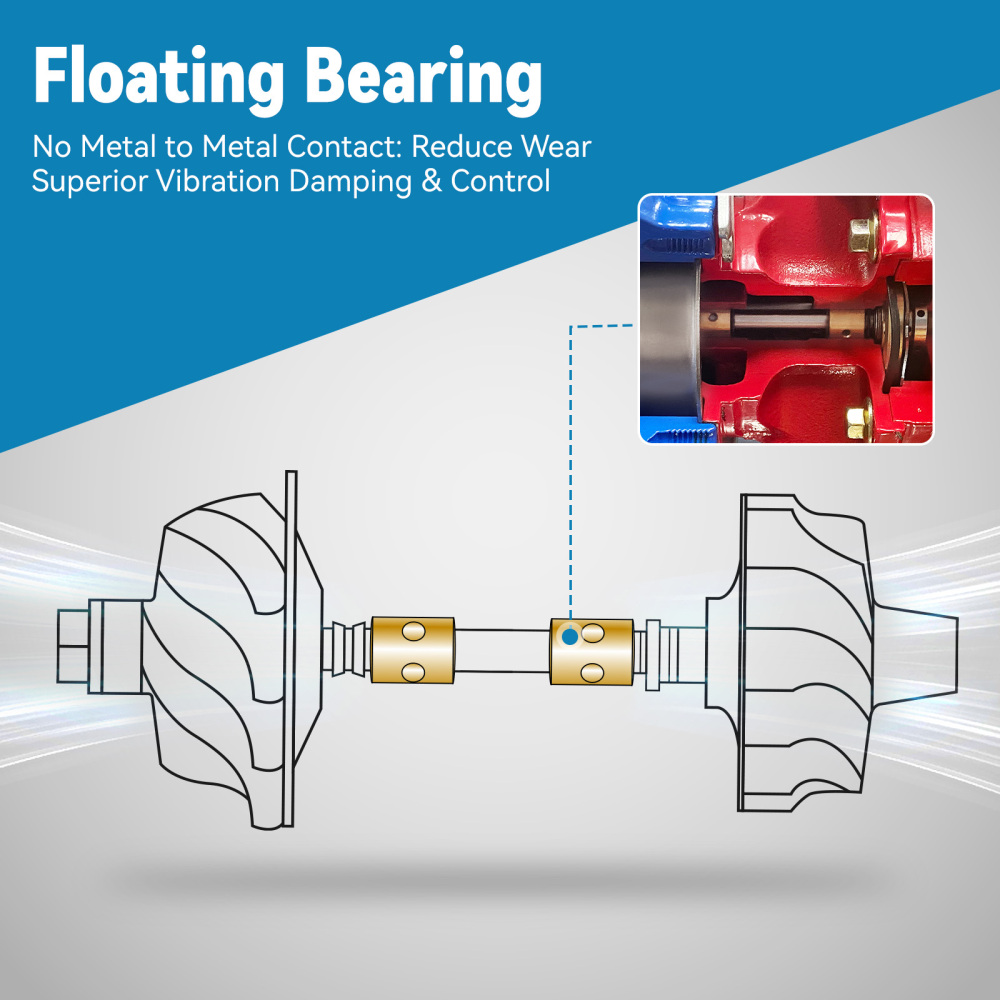

Bearing Type: Wet Float
Cooling Type: Oil Cooled
Wastegate：Without Wastegate
Hosepower: Up to 600+HP
Turbo Type:Individual
Universal Fitment:No
Finish:Matte
Condition: 100% Brand New
Package Size:30x 30x 27 cm
Package Weight: 16400g

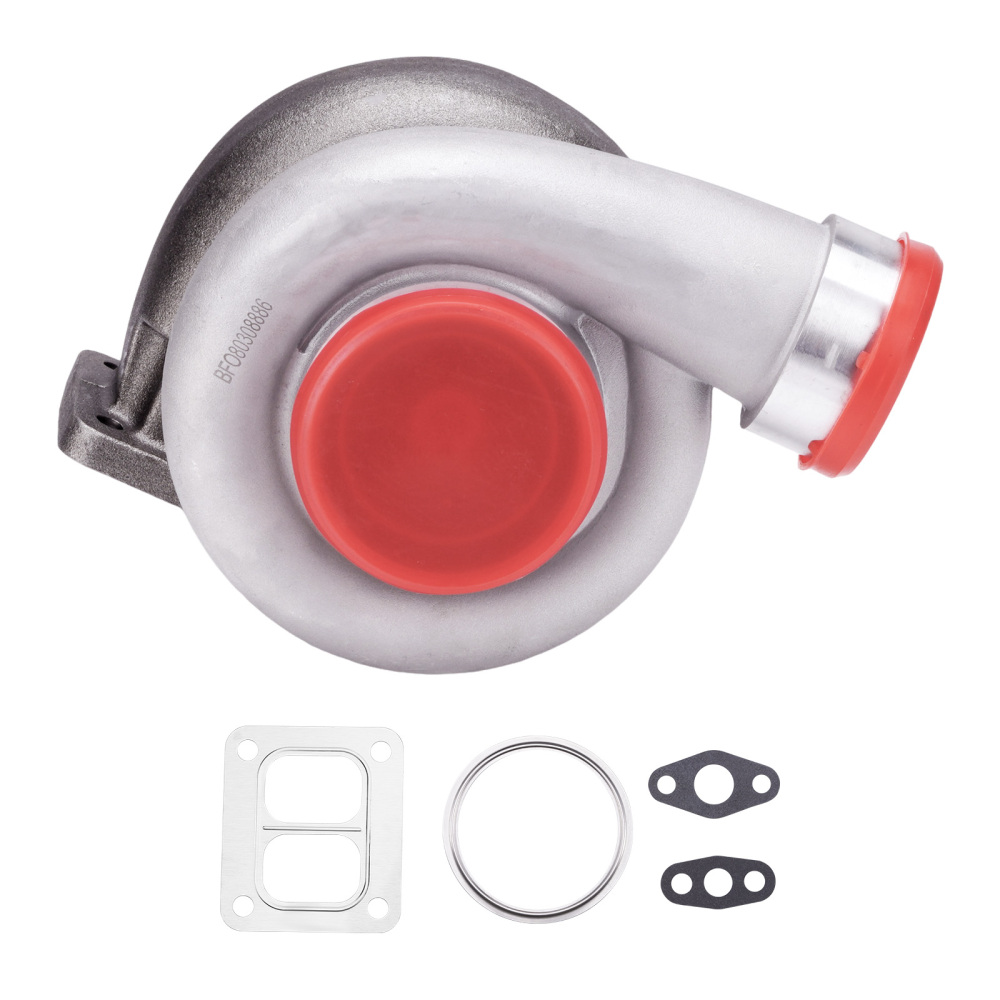

Package included

1xTurbocharger
1xAdapter
1xFlange gasket
2xOil port gaskets

Feature

1. Cost-effective Turbo increase 20-40% power for your car

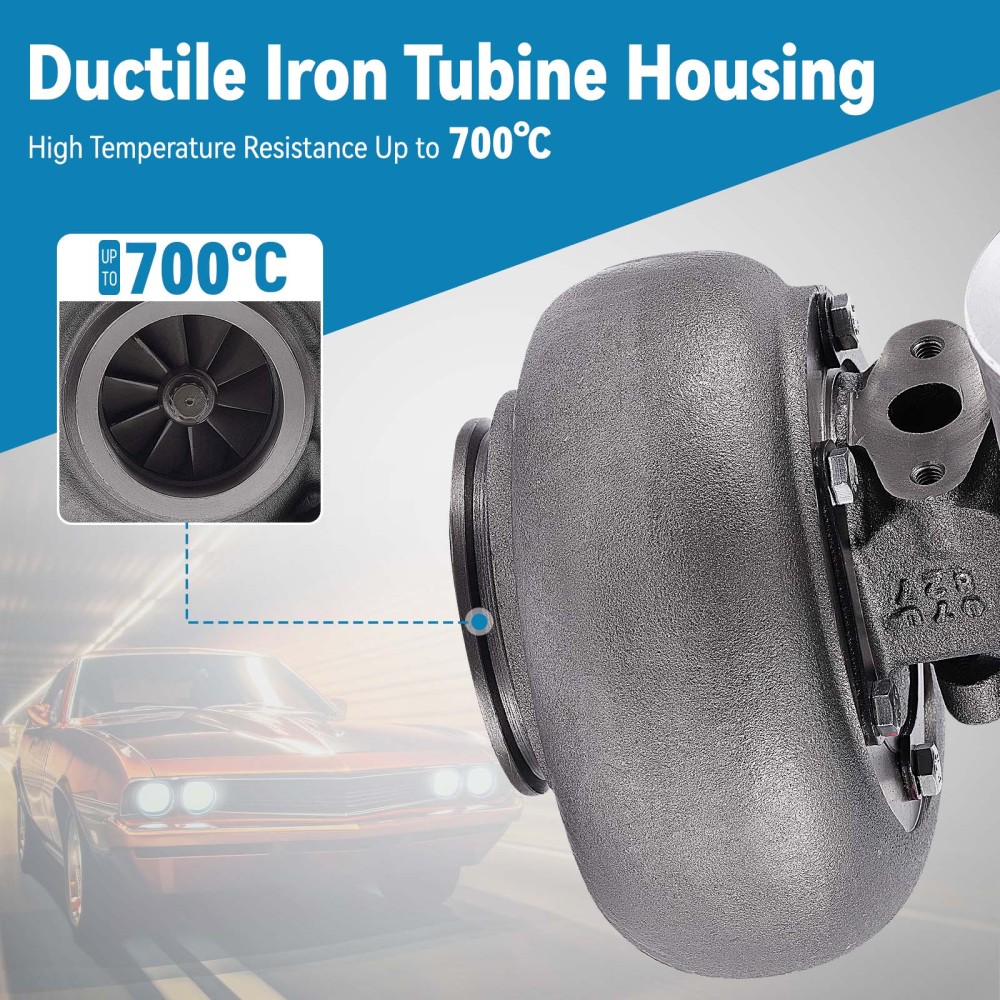

2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. ZL104 aluminum compressor housing with lightweight
6. 100% balancing Test by TURBOTECHNICS VSR3

Note

* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not OE parts. Please check the specifications and compatibility before purchasing.
* Before installation, please check the oil supply sufficient,clearnliness the air filter and gasoline,and the gasoline air tightness.
